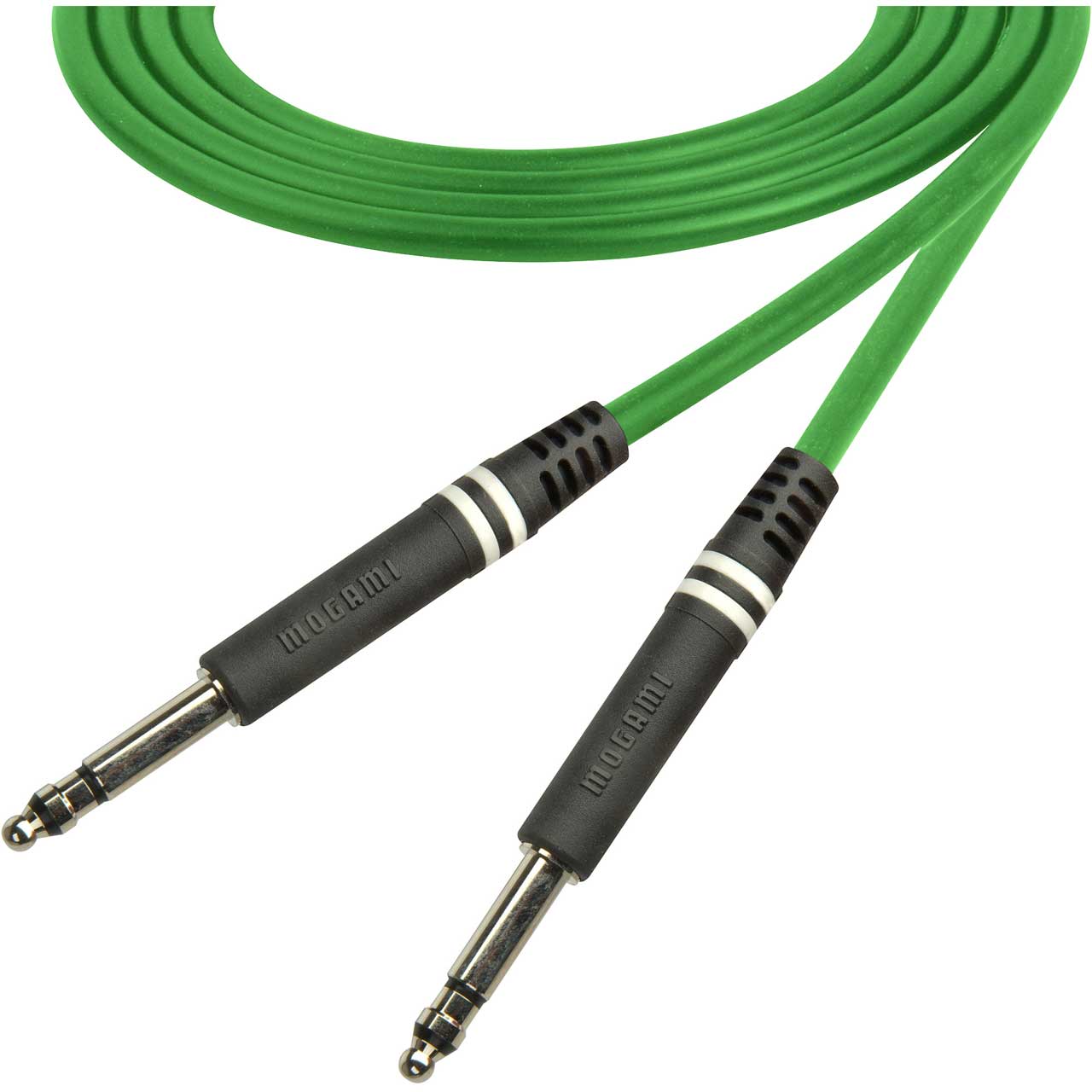

Mogami PJM-18 Bantam TT Patch Cord - 18-Inch - Green

PJM-1805 - Overview

• Features:

  • Super-flexible Quad-Balanced NEGLEX OFC wiring and Overall Served (Spiral) Shield provide maximum definition, detail and signal transparency in addition to giving excellent protection from electro-magnetic noise
  • Maintenance free with durable nickel plated tip/ring/sleeve connector preventing from tarnishing. Degradation of the sound quality caused by secular change becomes extremely low on account of it.
  • Compact low profile molded design permits use in high density jack fields. BANTAM PLUG : Overall Diameter 7.8mm (0.307")
  • Interchangeable color rings for easy patch cord identification
  • Adaptor cable of bantam plug to other connector available to special order


• Specifications:

  • Cable
  • No. of Conductor: 4 (Quad)
  • Conductor Details: 30/0.08 OFC
  • Conductor Size (mm²): 0.15mm² (#26 AWG)
  • Insulation Ov. Dia. (mm): 1.0∅ (0.039")
  • Insulation Material: XLPE
  • Served Shield: Approx. 73/0.12A
  • Jacket Ov. Dia. (mm): 4.8∅ (0.189")
  • Jacket Material: Flexible PVC

    Electrical & Mechanical
  • DC Resistance at 68°F (20°C) - Inner Cond.: 0.13Ω/m (0.040Ω/Ft)
  • DC Resistance at 68°F (20°C) - Shield: 0.025Ω/m (0.0076Ω/Ft)
  • Inductance Between Conductors at 1kHz. 68°F (20°C): 0.5µH/m (0.15µH/Ft)
  • Electrostatic Noise: 50m V Max
  • Microphonics at 50KΩ/Load: 30m V Max
  • Voltage Breakdown: Must withstand at DC 500V/15 sec
  • Insulation Resistance: 100000MΩ x m Min. at DC 125V, 68°F (20°C)
  • Flex Life: 26,000 cycles
  • Tensile Strength: 500N
  • Emigration: Non-emigrant to ABS resin
  • Applicable Temperature: -4°F - 158°F (-20°C - 70°C)


• GTIN:

  0801813168914
