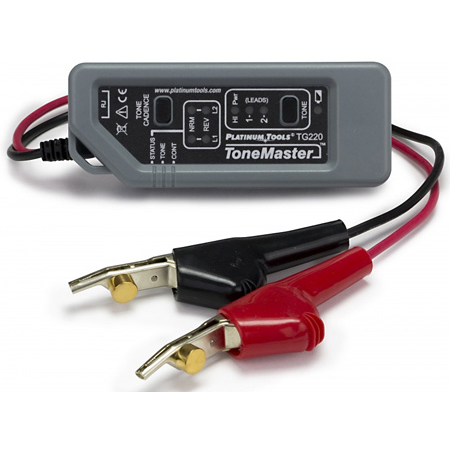

Platinum Tools TG220C ToneMaster High Powered Tone Generator with ABN Clips

ITEM #: PLAT-TG220C MFG #: TG220C

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$93.71

Our Price:

$89.03

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TG220C - Overview

The Platinum Tools TG220C ToneMaster high-power tone generator enables signal detection over 20 miles away and makes tracing through walls and enclosures easier with multiple tones and power levels suited for network, signal wire, coax, and telephone cable applications. Four tone amplitude levels include normal and half, high-powered normal and half, with the half amplitude unbalanced for stronger signal effect on twisted pairs. In addition, depending on test requirements, three distinctly different tones can be selected from the front panel. Paired with the Platinum Tools ToneSeeker tracer the ToneMaster makes easy work of tracing and locating cables and cable ends.

  • Features:

    • 700% more power than standard tone generators
    • Unbalanced tone mode supports longer distances on UTP cables
    • Constant amplitude output ensures no signal decrease as battery discharges
    • Auto-off for battery conservation
    • Full talk battery to power a dry line
    • Tone may be added in any mode - phone sets without a monitor feature can pick up tone
    • Part number TG220C includes molded-in angled bed-of-nails (ABN) clips

  • Specifications:

    • Tone Frequencies: Dual 1,165 Hz and 874 Hz Two single tones 1,165 Hz and 874 Hz
    • Tone Power: Typical (into 600Ω, new battery to 5.0 V)
    • LO: 3.6 dBm
    • HI: 9.3 dBm
    • LO: 12.3 dBm
    • HI: 18.4 dBm
    • Voltage Protection: Status - DC 60 V, continuous AC 300 V peak, 2 secs
    • Continuity (into 600Ω): DC 52 V
    • Tone Mode: 250 DC or peak AC volts
    • Electrical Battery: 120 hrs, typical

  • GTIN:

    0849160008958
