Platinum Tools TG220K1 Professional Tone and Probe Kit - ABN Clips with Belt Pouch

ITEM #: PLAT-TG220K1 MFG #: TG220K1

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$133.47

Our Price:

$126.79

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TG220K1 - Overview

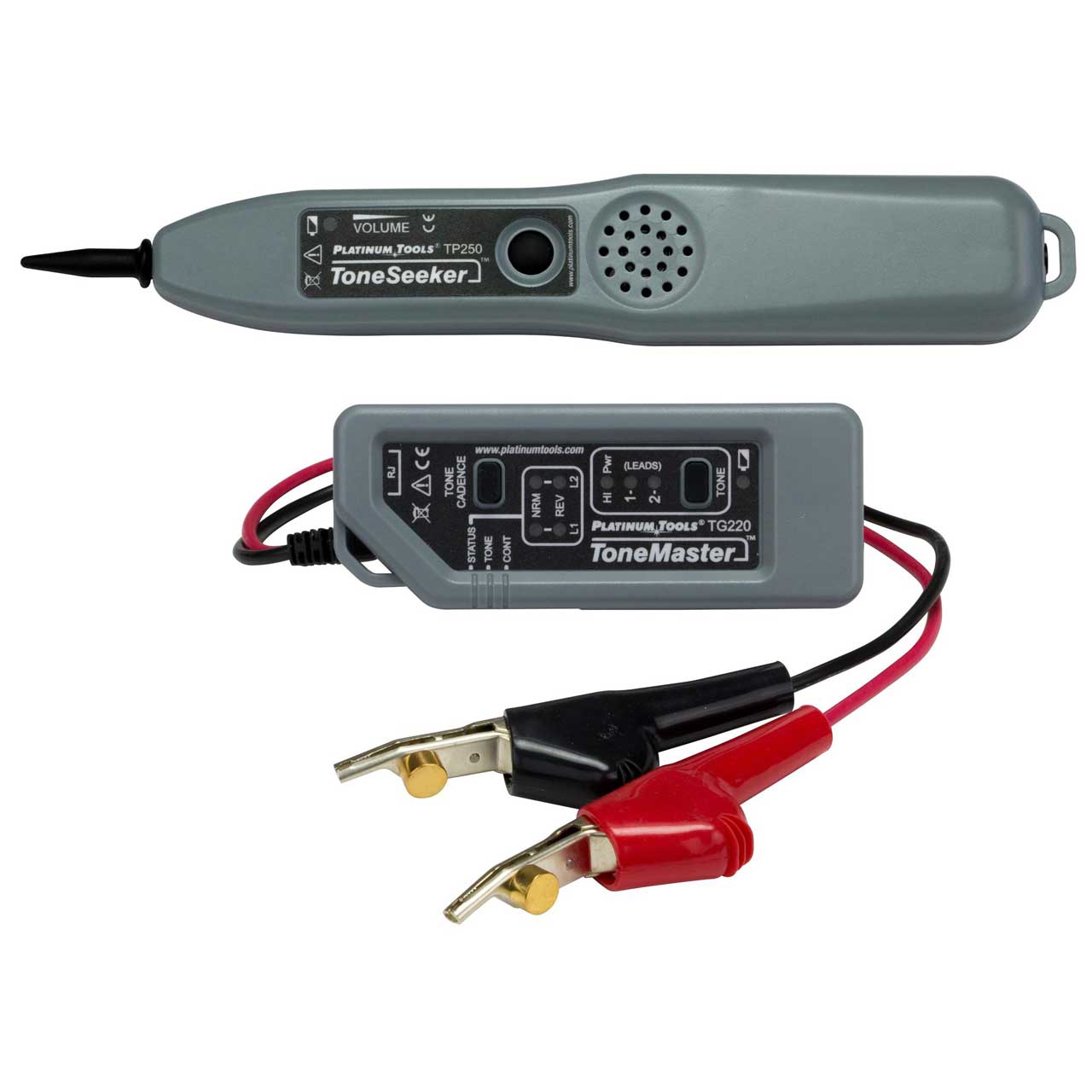

The Platinum Tools TG220K1 professional tone and probe kit gives technicians a high-powered tone generator with alligator clips and a high-quality tone tracing probe. The ToneMaster high-powered tone generator enables signal detection over 20 miles away and makes tracing through walls and enclosures easier with multiple tones and power levels suited for network, signal wire, coax, and telephone cable applications. Four tone amplitude levels include normal and half, high-powered normal and half, with the half amplitude unbalanced for stronger signal effect on twisted pairs. In addition, depending on test requirements, three distinctly different tones can be selected from the front panel. Paired with the ToneSeeker tracer the ToneMaster makes easy work of tracing and locating cables and cable ends. This kit also includes a No-Fault, RJ12 cable to connect your ToneMaster to either RJ11 or RJ45 jacks and a Tone and Probe Belt Pouch to easily store your ToneMaster and ToneSeeker.

  • Features:

    • ToneMaster High Power Tone Generator
    • 700% more power than standard tone generators
    • Unbalanced tone mode supports longer distances on UTP cables
    • Constant amplitude output ensures no signal decrease as battery
    • discharges
    • Auto-off for battery conservation
    • Full talk battery to power a dry line
    • Tone may be added in any mode - phone sets without a monitor
    • feature can pick up tone
    • Models available with molded-in alligator clips or molded-in angled
    • bed-of-nails (ABN) clips

  • Specifications:

    • High Power Tone Generator Specifications
    • Tone Frequencies: Dual 1,165 Hz and 874 Hz
    • Two single tones: 1,165 Hz and 874 Hz
    • Tone Power: Typical (into 600Ω, new battery to 5.0 V)
    • LO: 3.6 dBm
    • HI: 9.3 dBm
    • LO: 12.3 dBm
    • HI: 18.4 dBm
    • Voltage Protection: Status - DC 60 V, continuous AC 300 V peak, 2 secs
    • Continuity (into 600Ω): DC 52 V
    • Tone Mode: 250 DC or peak AC volts
    • Electrical Battery Life: 120 hrs, typical

      ToneSeeker Tone Tracer Probe
    • Tone Sensitivity Input Impedance: 10MΩ (to internal ground, inaccessible
    • outside the case)
    • Probe Tip Resistance (min): 10KΩ/square (bulk resistance)
    • Frequency Range: 340 Hz - 1.6K Hz
    • Electrical Battery Life (one 9 V alkaline, 540 mA-hr, not included): 15 hrs, typical

  • Item Includes:

    • ToneMaster™ High Powered Tone Generator
    • ToneSeeker™ Tone Tracer Probe
    • No Fault, RJ12 Cable
    • Tone and Probe Belt Pouch

  • GTIN:

    0849160008989
