Platinum Tools TP250C ToneSeeker Tone Tracer Probe

ITEM #: PLAT-TP250C MFG #: TP250C

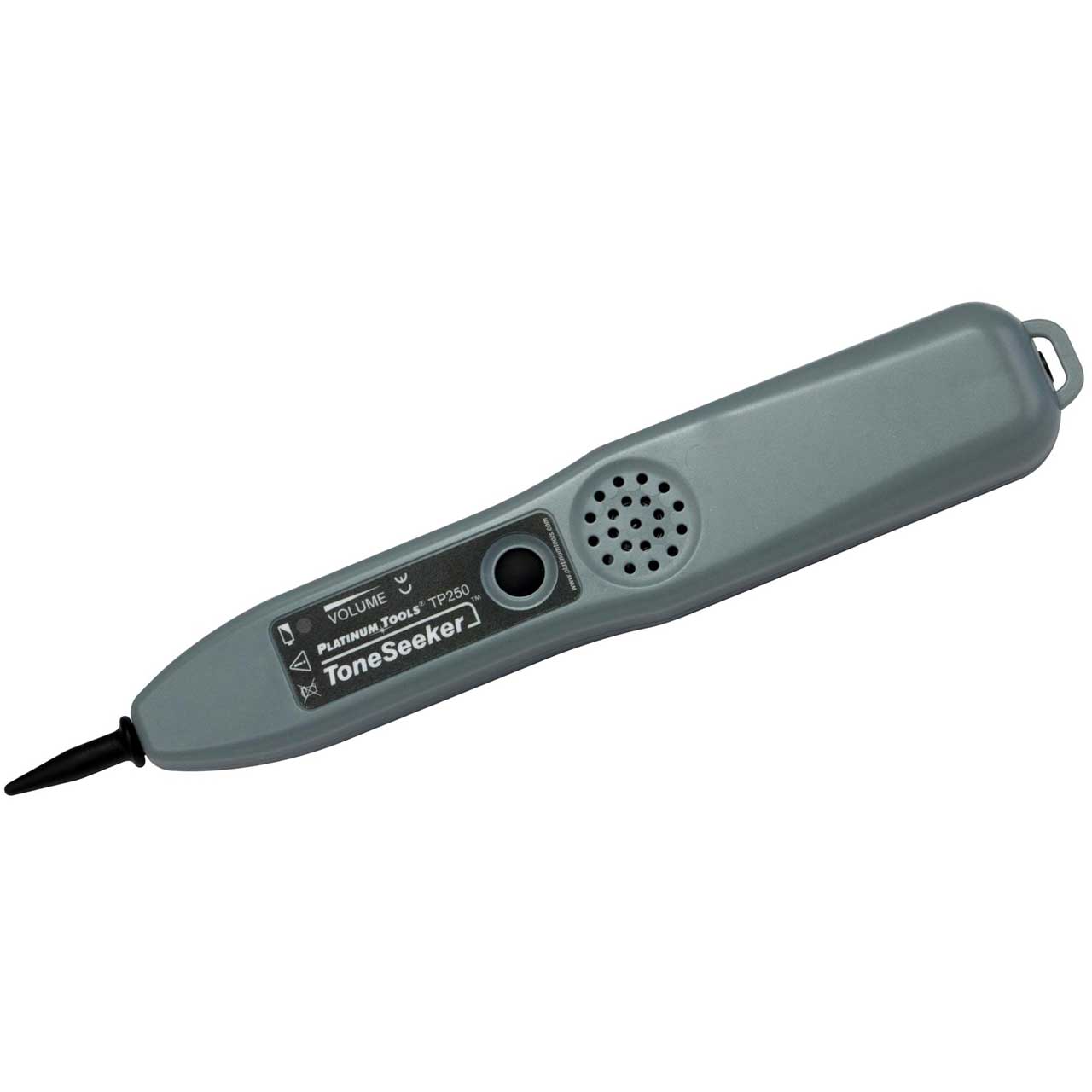

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$52.23

Our Price:

$49.61

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TP250C - Overview

The Platinum Tools TP250C tone tracer is an ergonomic, high-sensitivity probe for field service professionals. Used in conjunction with any analog tone generator, the ToneSeeker identifies wire and cable without having to make direct metallic contact with the conductor. Compatible with any analog tone generator, the ToneSeeker emits a clear and loud tone as a cable is traced. Frequency filtering blocks out background noise and the auto-off extends battery life. The surface area and shape of the replaceable tip is optimized to detect weak tones and to penetrate wire bundles to make wire tracing easy.

  • Features:

    • Comfortable ergonomic shape, balanced weight
    • Volume control
    • Tip replacement without opening case
    • Battery-low indicator
    • Slender profile to fit in any tool pouch
    • Lanyard attachment point

  • Specifications:

    • Tone Sensitivity Input Impedance: 10MΩ (to internal ground, inaccessible
    • outside the case)
    • Probe Tip Resistance (min): 10KΩ/square (bulk resistance)
    • Frequency Range: 340 Hz - 1.6K Hz
    • Electrical Battery Life (one 9 V alkaline, 540 mA-hr, not included): 15 hrs, typical

  • GTIN:

    0849160008965
