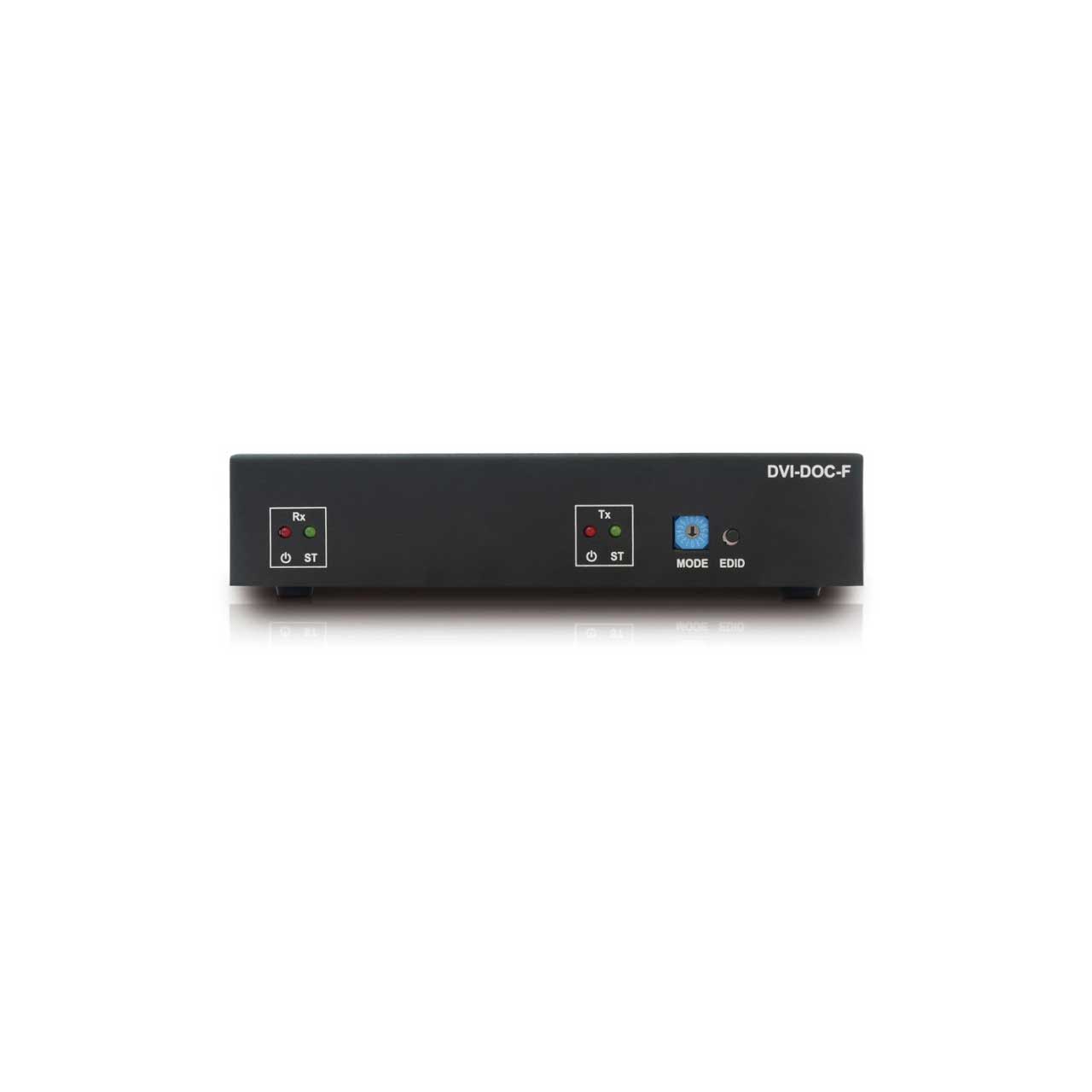

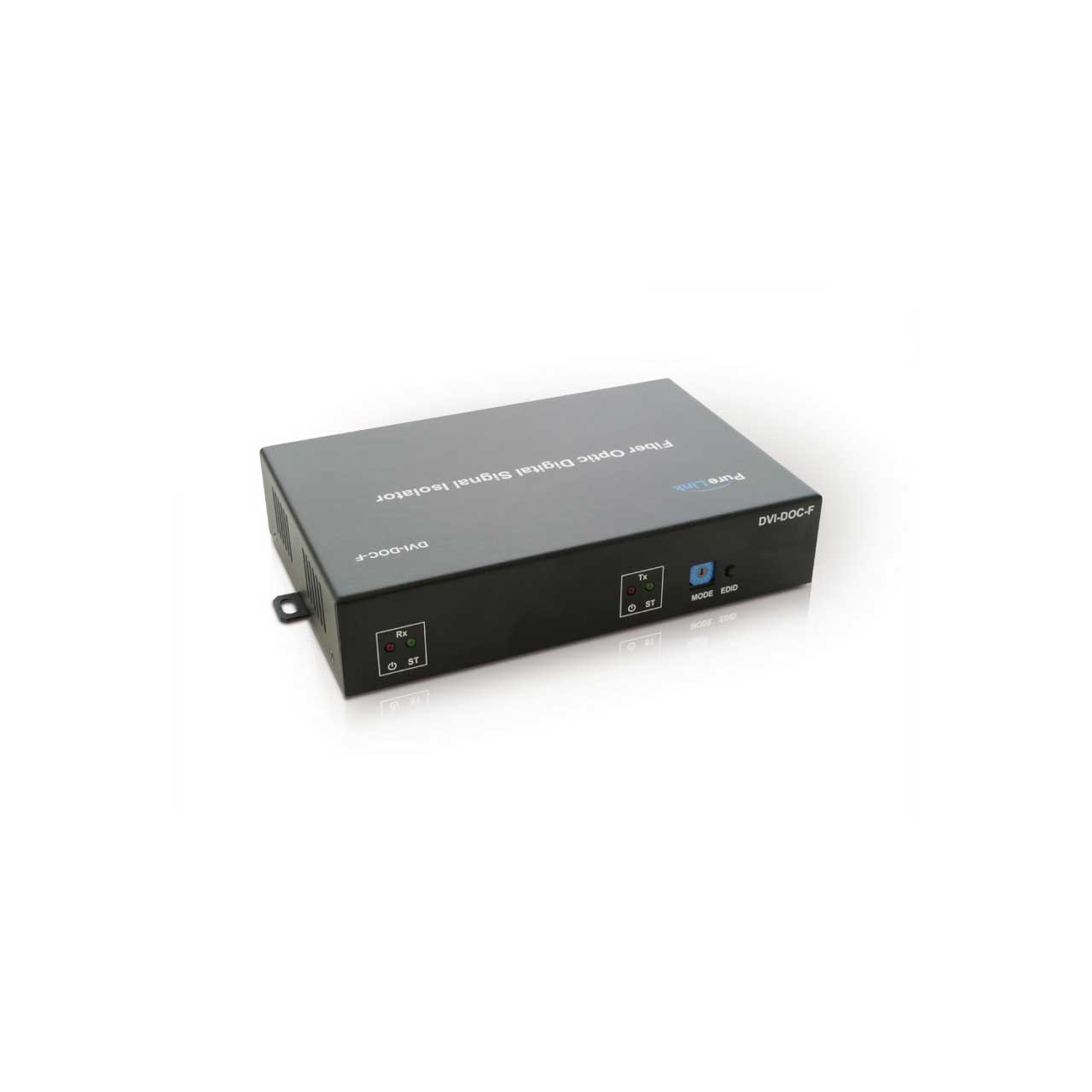

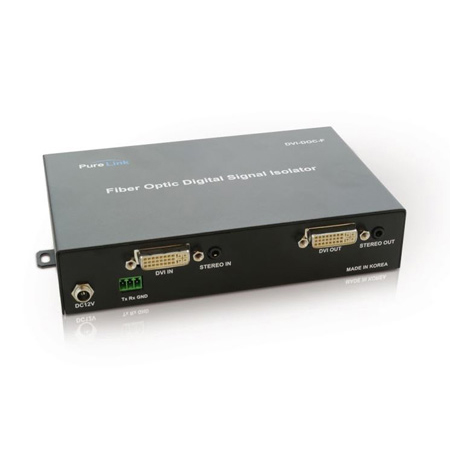

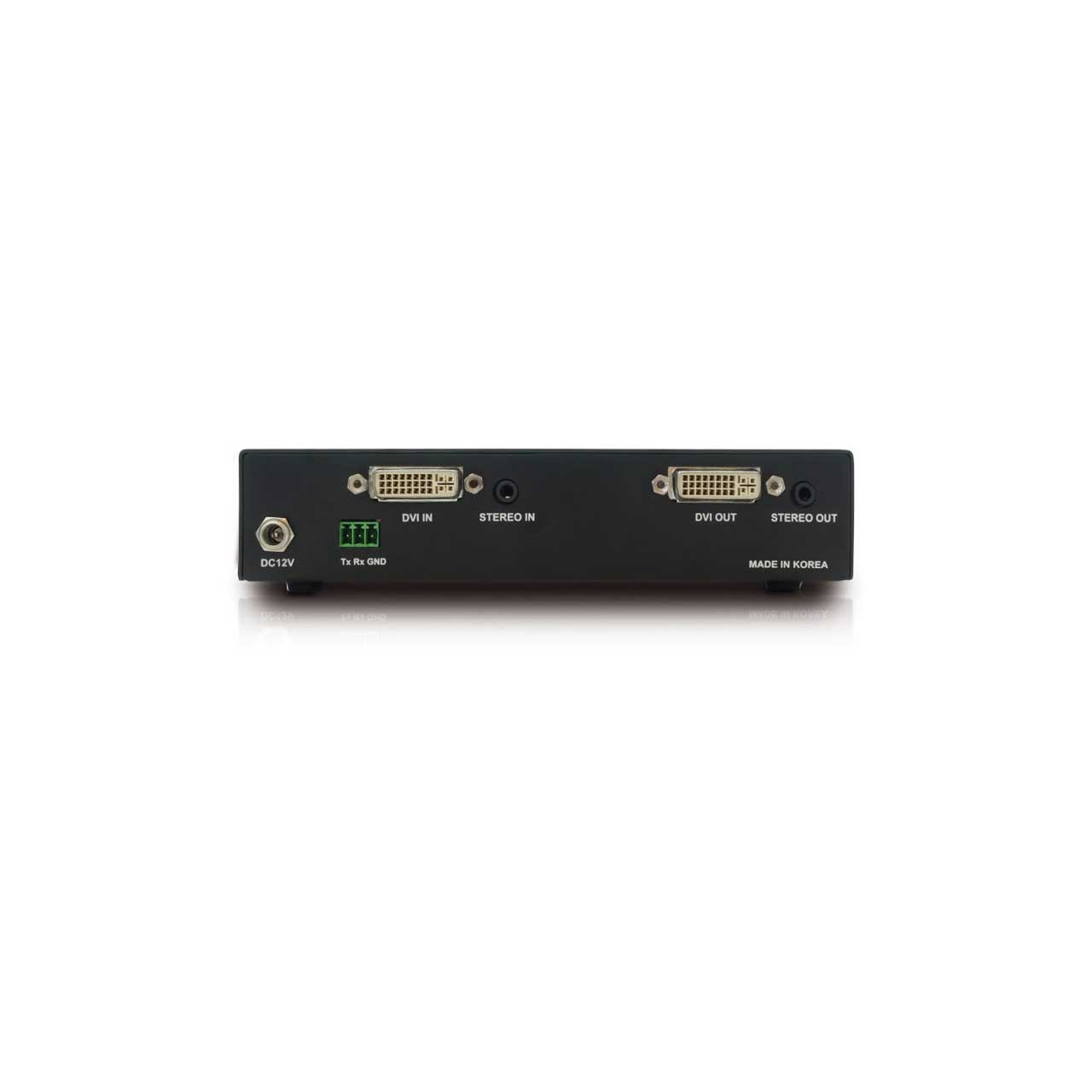

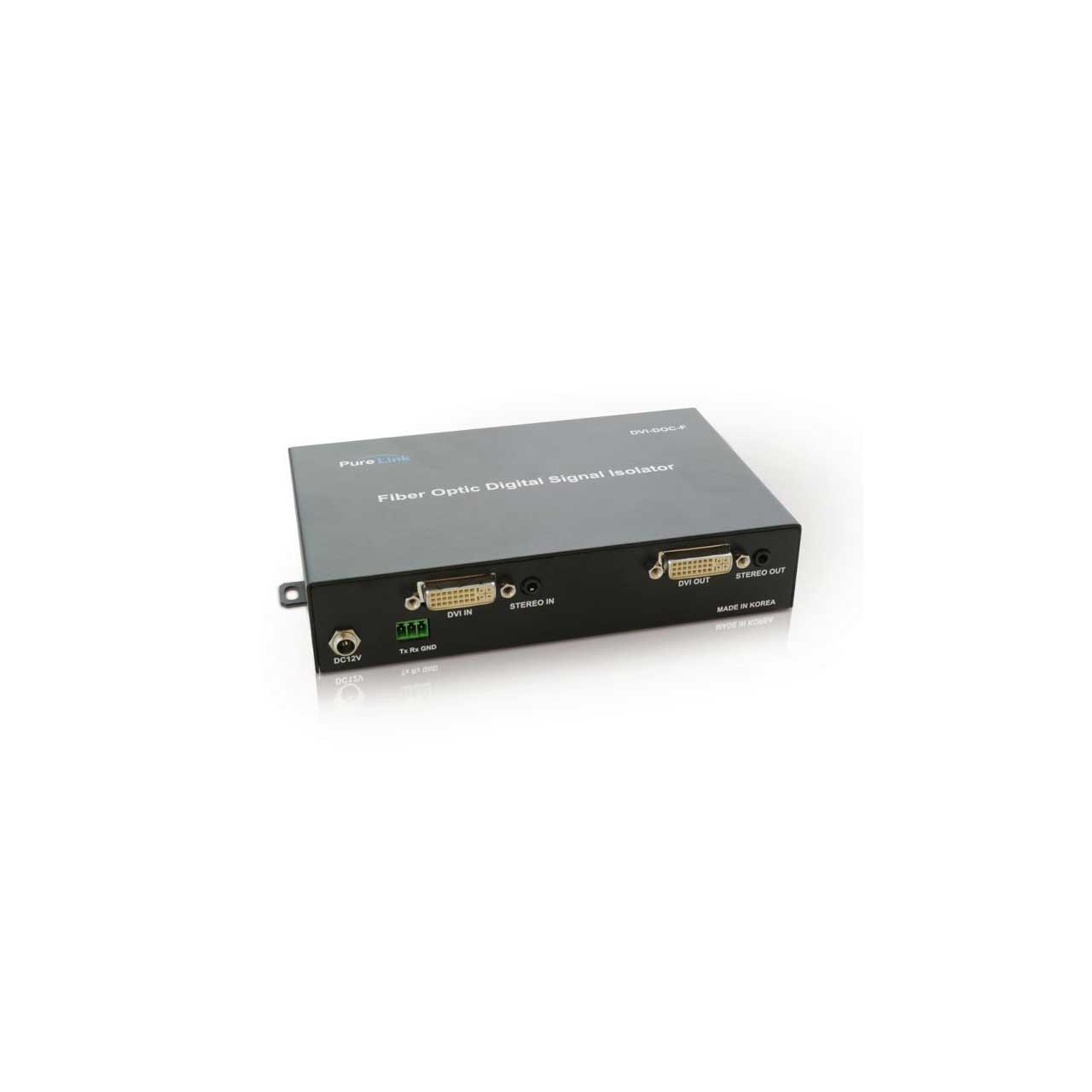

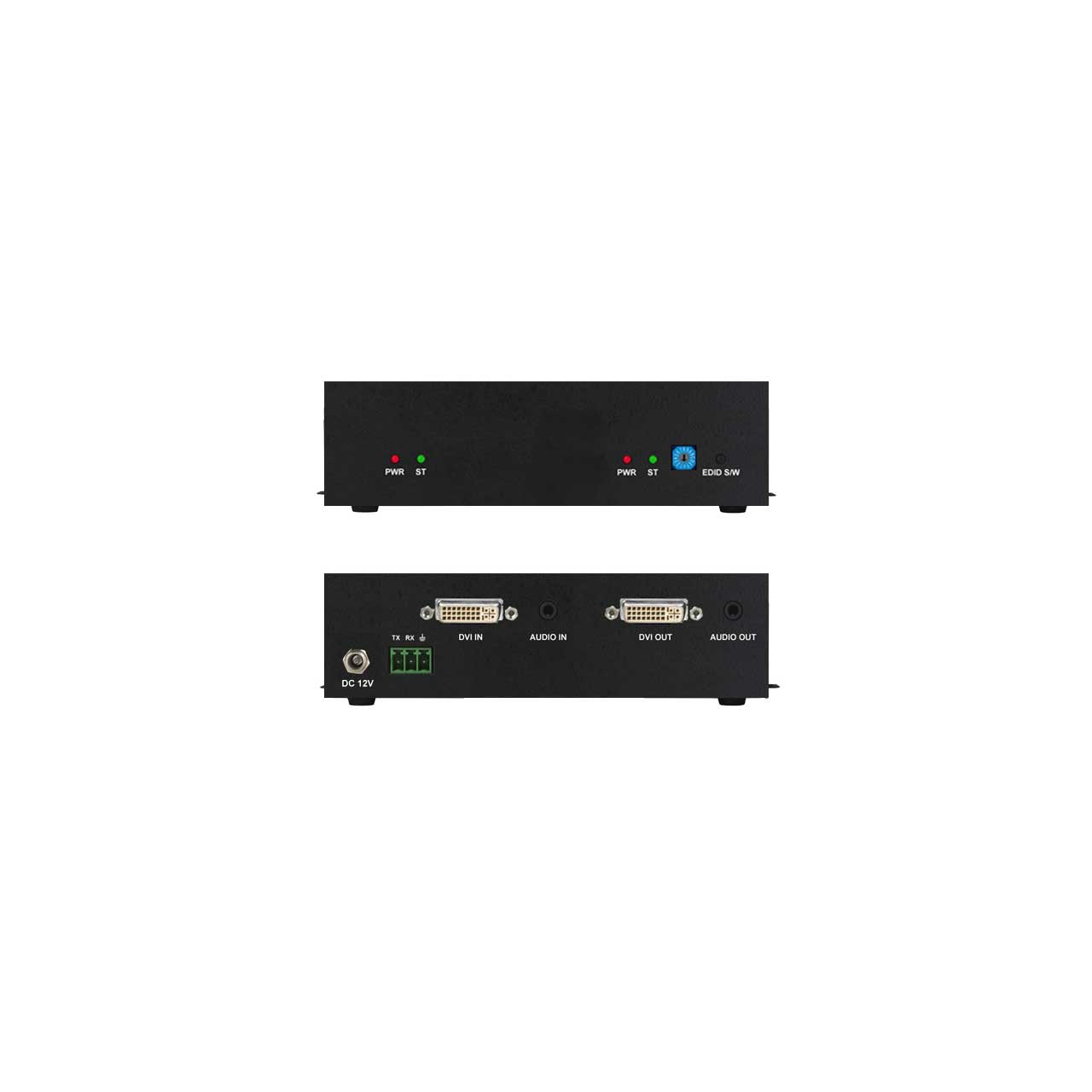

PureLink DVI-DOC-F Fiber Optic Digital Signal Isolator

DVI-DOC-F - Overview

• Features:

  • DVI + 3.5mm Stereo Audio Signal Isolator with Pixel Re-Clocking
  • Pure Fiber Optic Interconnection to prevent any possible harmonic resonance
  • Signal On/Off control for high security environments
  • Plug and Play
  • Fully compatible with DDWG DVI standard
  • HDMI compatible (with DVI to HDMI adapter)
  • HDMI v1.3, with support for Deep Color and 7.1-channel Dolby TruHD and DTS MasterHD


• Specifications:

  • General Technical Specification of DVI-DOC-F
  • Input Signal : Digital RGB(DVI), Single Link, 3.5mm Analog Stereo Audio
  • Output Signal : Digital RGB(DVI), Single Link, 3.5mm Analog Stereo Audio
  • Supporting Display Resolutions : VGA(640x480)~HDTV(1920x1080) | WUXGA(1920x1200)
  • Max. Distance : Max. 100ft (30m)
  • Connector Type
  • Input : 29 PIN DVI-I Connector
  • Output : 29 PIN DVI-I Connector
  • Audio :3.5mm Stereo Jack
  • Power : 2mm DC Connector
  • RS-232 : 3 PIN Phoenix Connector
  • Power Supply : DC 12V, 3.0A, Consumption: DC 12V, 6.36 Max
  • Dimension (WxDxH) : 6.88 x 4.5 x 1.0 in. | 174.63 x 114.3 x 25.4 mm
  • Weight : 0.8 lbs (0.36 kg)


• Item Includes:

  • DVI-DOC-F Module
  • DC 12V Power Supply
  • User Manual


• Warranty:

  • 2 Years
