West Penn 303GY0500 3C 18G Standard Shield PVC JKT Audio/Control Cable - 500 Foot

ITEM #: WP-303GY-0500 MFG #: 303GY0500

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$176.70

Our Price:

$142.97

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

303GY0500 - Overview

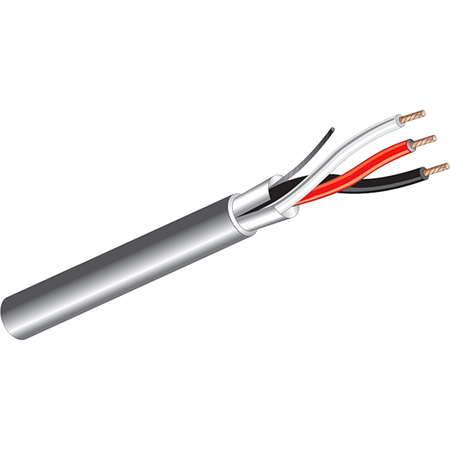

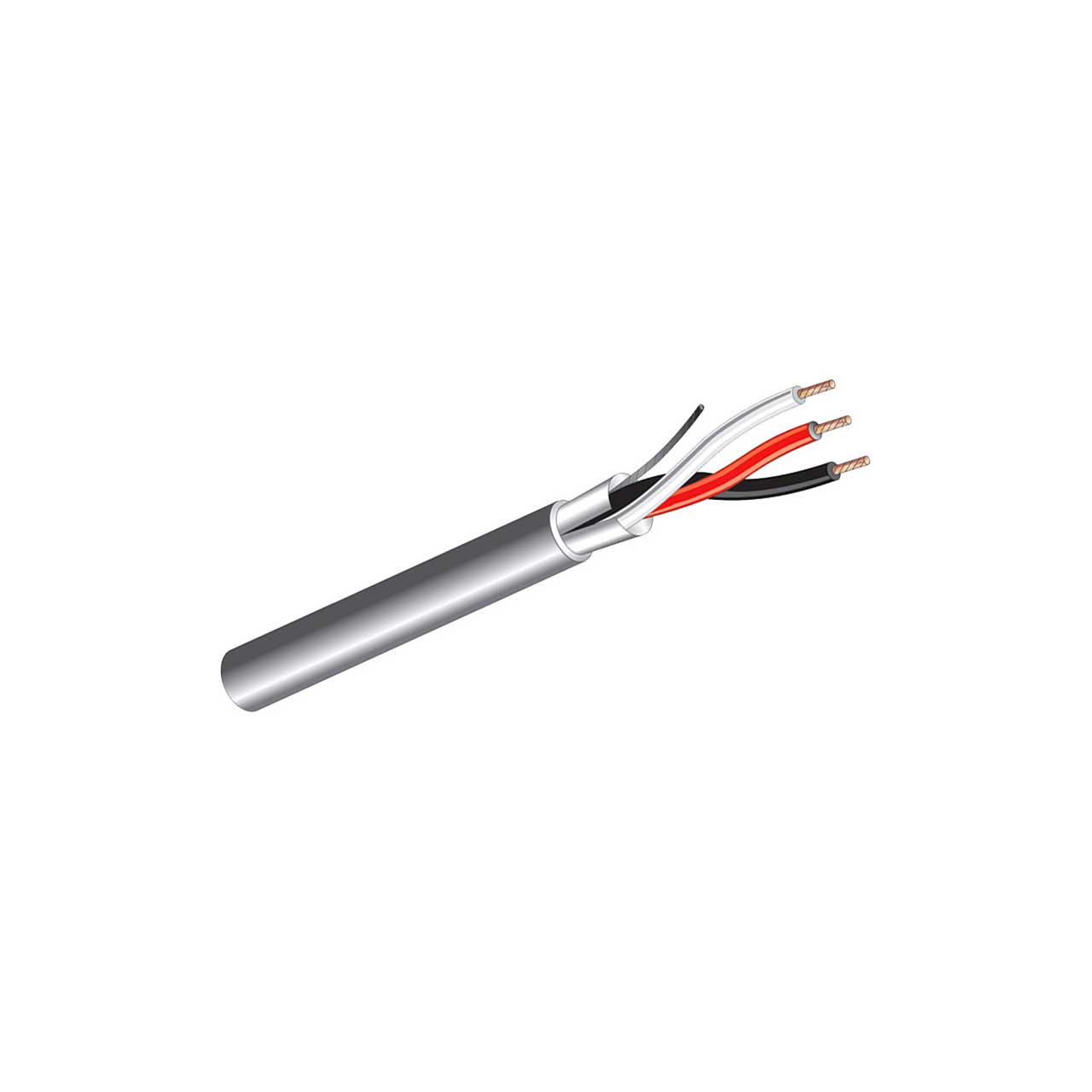

West Penn 303GY0500 is a 500 foot 3 conductor 18 AWG shielded gray cable.

  • Specifications:

    • Number of Conductors: 3
    • AWG Size: 18
    • Conductor Stranding: 7x26
    • Conductor Type Bare: copper
    • Nominal DCR: 6.2 Ohm/1000ft
    • Insulation Type: Polypropylene - PP
    • Insulation Thickness: 0.008 in
    • Insulation Color Code: 1.Black,2.Red,3.White
    • Shield Type Overall: 100% Aluminum Foil
    • Drain Wire Type: Tinned Copper
    • Drain Wire AWG: 24 AWG
    • Nom. Cap. Between Conductors: 40 pF/ft
    • Nom. Cap. Conductor to Shield: 79 pF/ft
    • Jacket Type: PVC
    • Jacket Thickness: 0.017 in
    • Nominal Cable: O.D. 0.174 in
    • Plenum: No
    • Pull Tension: 66 lbs
    • Bend Radius: 1.566 in
    • Cable Weight: 31 lbs


  • GTIN:

    0612825052395
