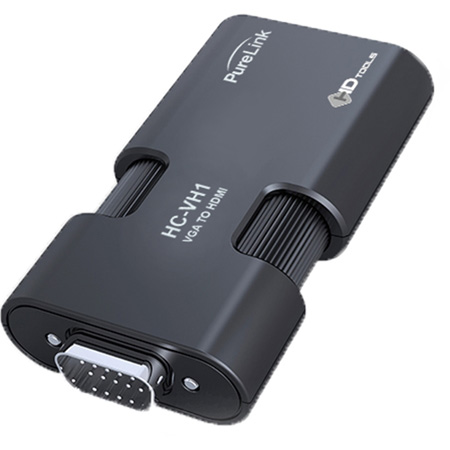

PureLink HC-VH1 VGA to HDMI Converter with Audio

HC-VH1 - Overview

• Features:

  • Converts VGA signals to high definition HDMI with stereo audio
  • Supports output resolutions up to 1080p@60Hz
  • Embeds audio signals into the HDMI signal
  • Maximum data transfer rate up to 6.75Gbps for quick error-free transmission
  • Can be powered directly from the VGA source


• Specifications:

  • Supported VGA Input Resolution
  • 640x480 @ 60Hz
  • 800x600 @ 60Hz
  • 1024x768 @ 60Hz
  • 1280x720 @ 60Hz
  • 1280x768 @ 60Hz
  • 1360x768 @ 60Hz
  • 1440x900 @ 60Hz
  • 1600x1200 @ 60Hz
  • 1680x1050 @ 60Hz
  • 1920x1080 @ 60Hz
    *HC-VH1 is a pass through converter, the output resolution is the same as the input resolution.


  • Connections:
    VGA Input
    3.5mm Analog Audio Input
    HDMI Signal Output
    DC 5V Input
  • Power: From VGA port and/or USB port
  • DDC Signal: 5Vp-p (TTL)
  • Resolution: Up to 1080p60Hz
  • TMDS Signal: 0.5 - 1.0Vp-p
  • Audio: Via 3.5mm to HDMI
  • Consumption: Less than 2W
  • Product Dimensions: 0.7" x 1.8" x 3.4" (17.5mm x 45.8mm x 85.5mm)
  • Shipping Weight: 1.5lbs


• Item Includes:

  • 1x HC-VH1
  • 1x User manual


• Warranty:

  • 2 Year Limited Warranty
