Palmer Audio PAN03PASS 19 Inch DI Box 4-channel passive

ITEM #: PLM-PAN03PASS MFG #: PAN03PASS

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$229.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PAN03PASS - Overview

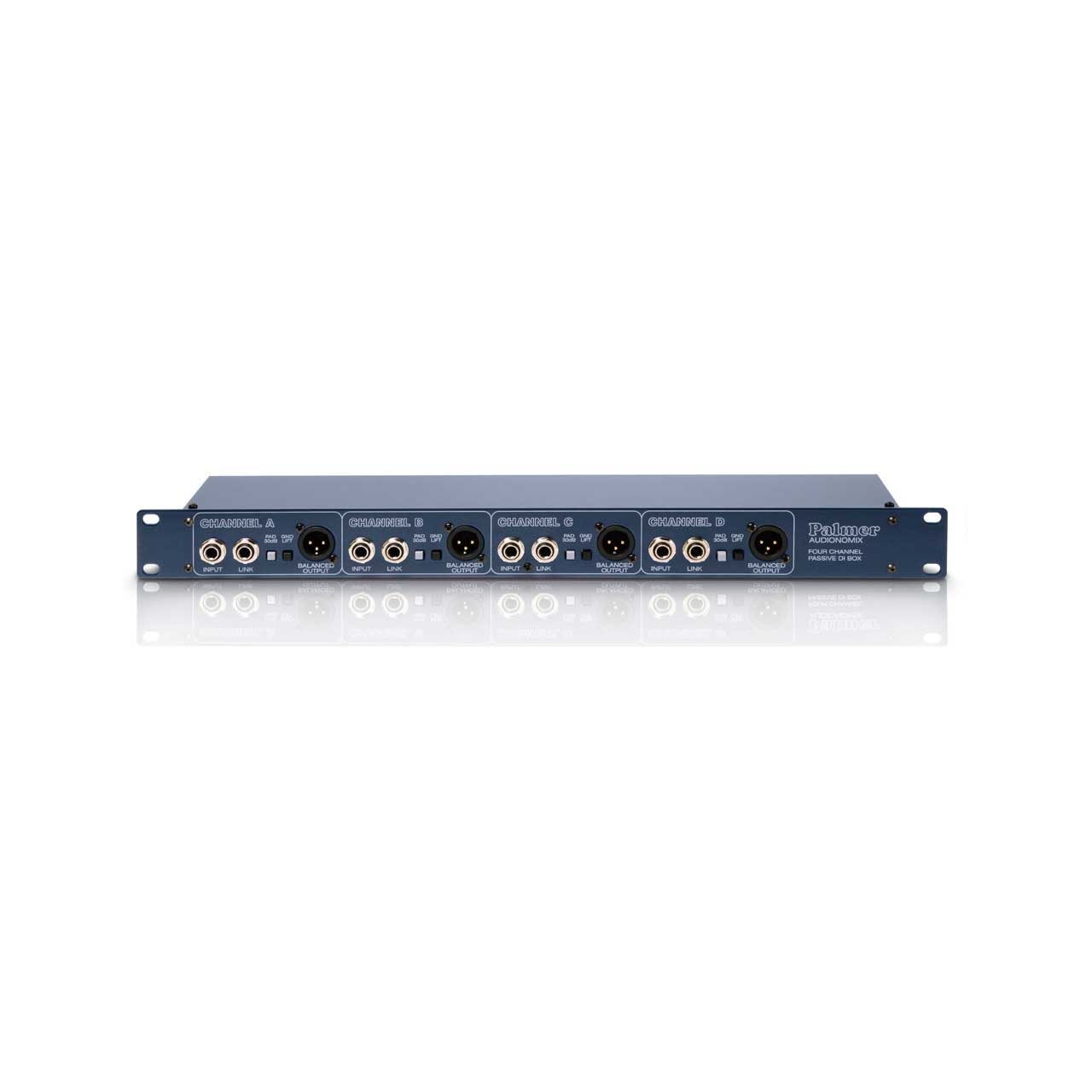

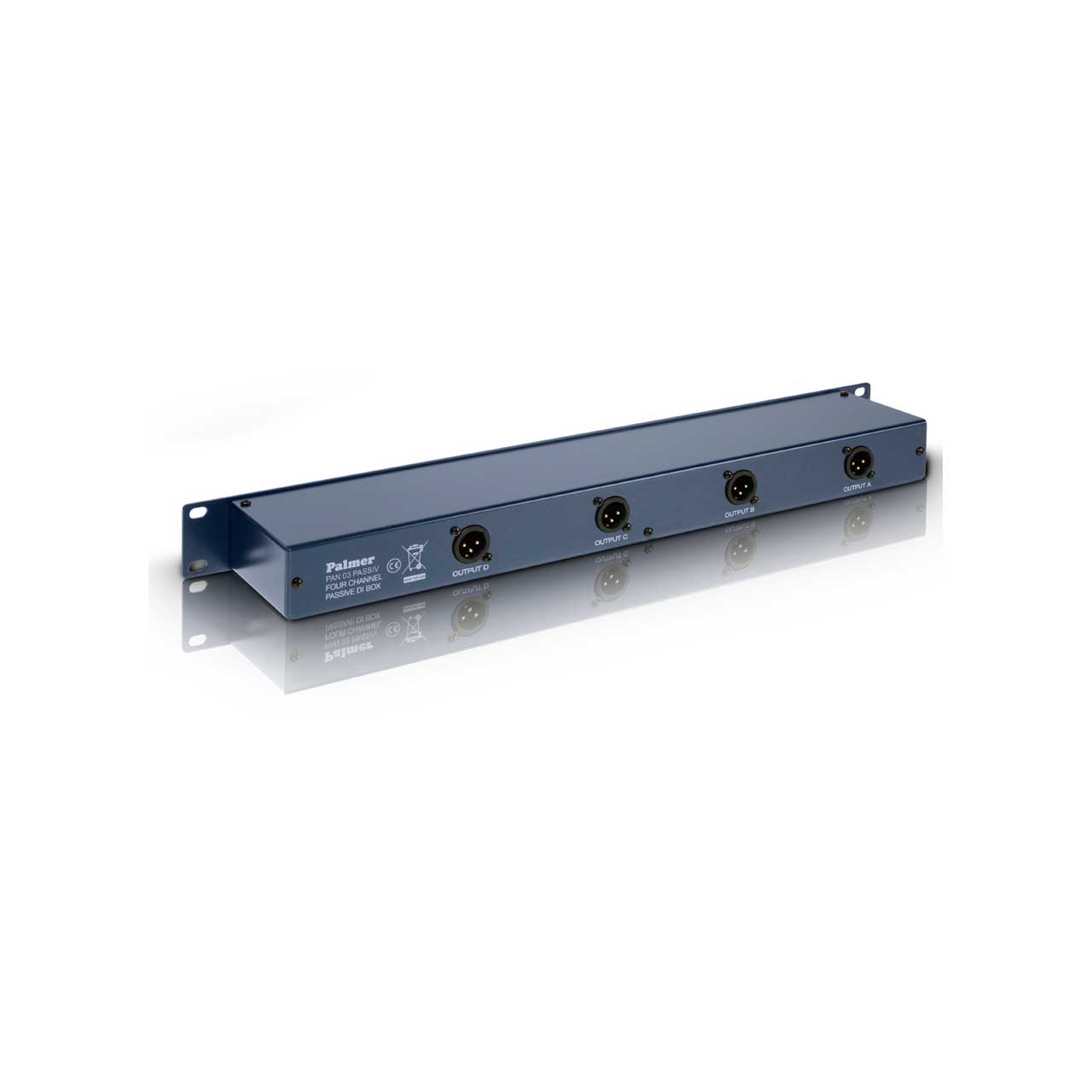

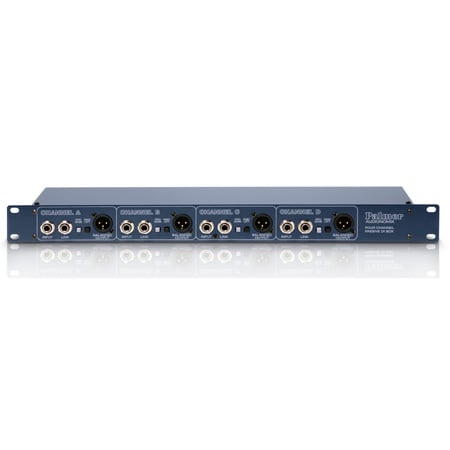

Passive 4-channel DI BOX in a 19" housing. Each channel has a jack input with a parallel output for looping the signal through. An attenuation switch (-30 dB) permits connection of a line or speaker signal at the user's choice. The specifications are identical with those of the PAN 01. All connections and switches are on the 1 U front panel; the XLR output is additionally present as a parallel socket on the rear panel.

  • Features:

    • 4 channel Passive DI Box + 19" Rack Mount Chassis + Front panel access to connections and switches

  • Specifications:

    • Product type: DI box
    • Type: passive
    • Channels: 4
    • Inputs: 4
    • input connectors: 6.3 mm Jack
    • max. input level: + 54 dBu
    • input impedance: ((at) 60 Hz) 1 M Ohm(s)
    • input pad: 0 / -30 dB
    • Outputs: 4 (+ 4 Parallel outs)
    • THRU outputs/channel: 1
    • output connectors: XLR, 6.3 mm Jack
    • max. output level: + 54 dB
    • output impedance: 600 Ohm(s)
    • frequency response: 10 - 40000 Hz
    • transformer balanced: yes
    • Ratio: 10 : 1
    • controls: attenuation, ground lift
    • cabinet material: sheet steel
    • Cabinet / Housing surface: powder coated

  • GTIN:

    4049521108846
