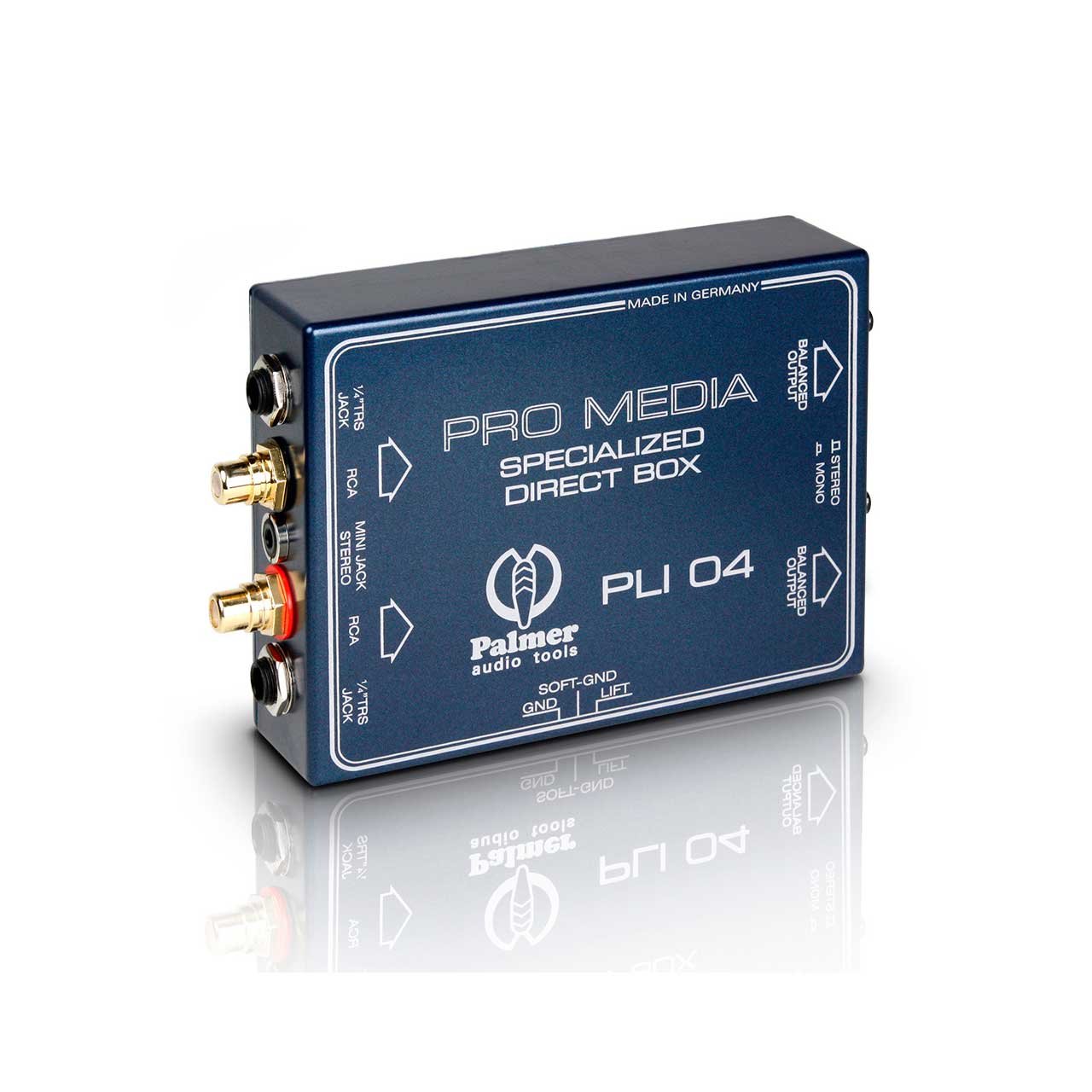

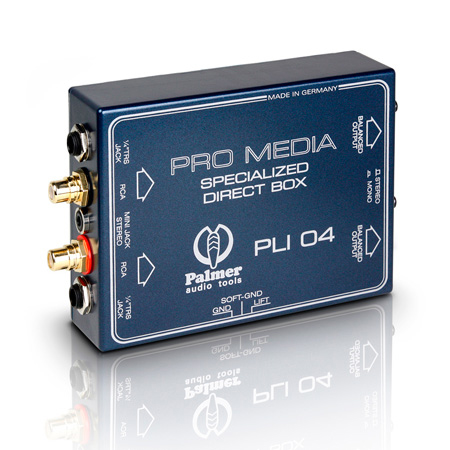

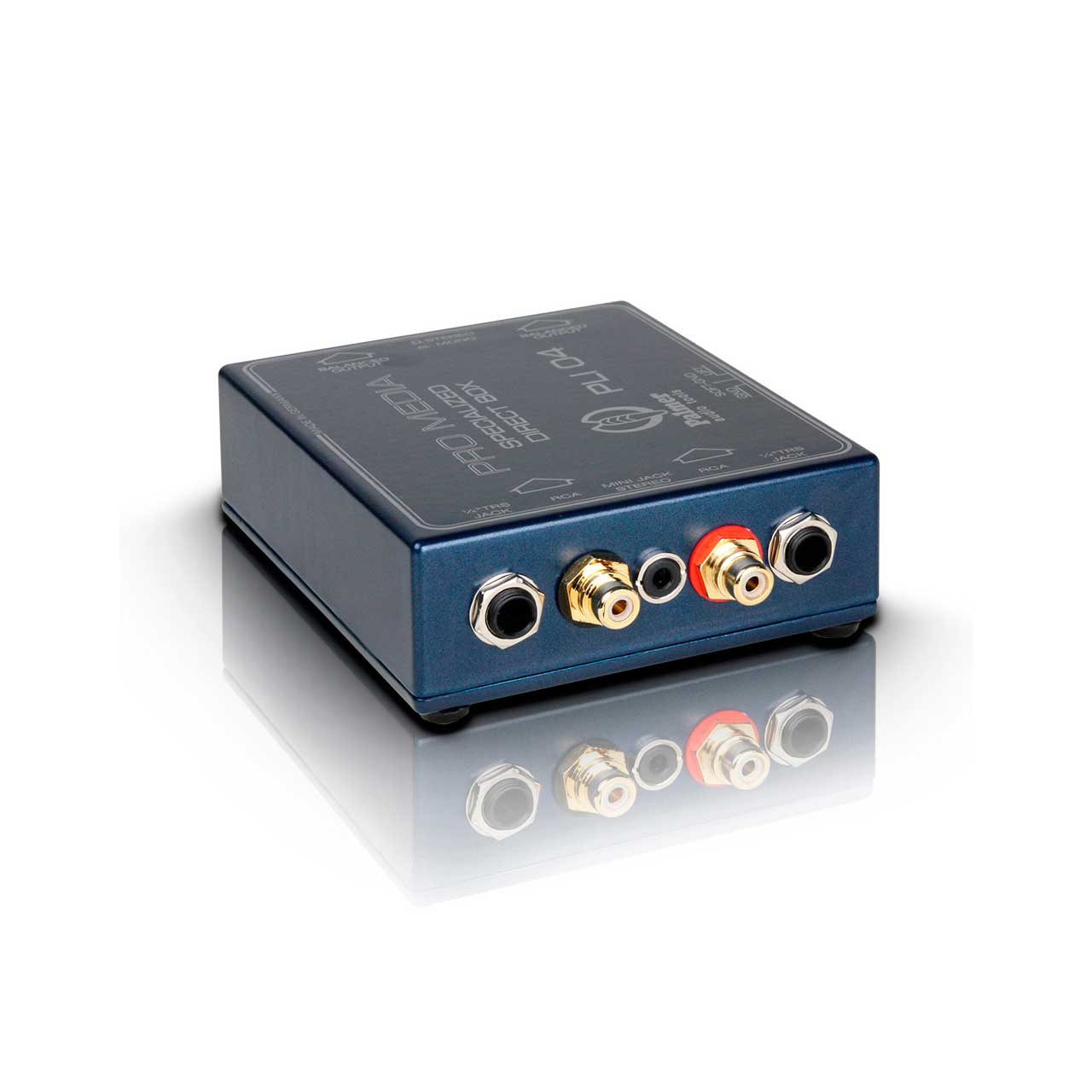

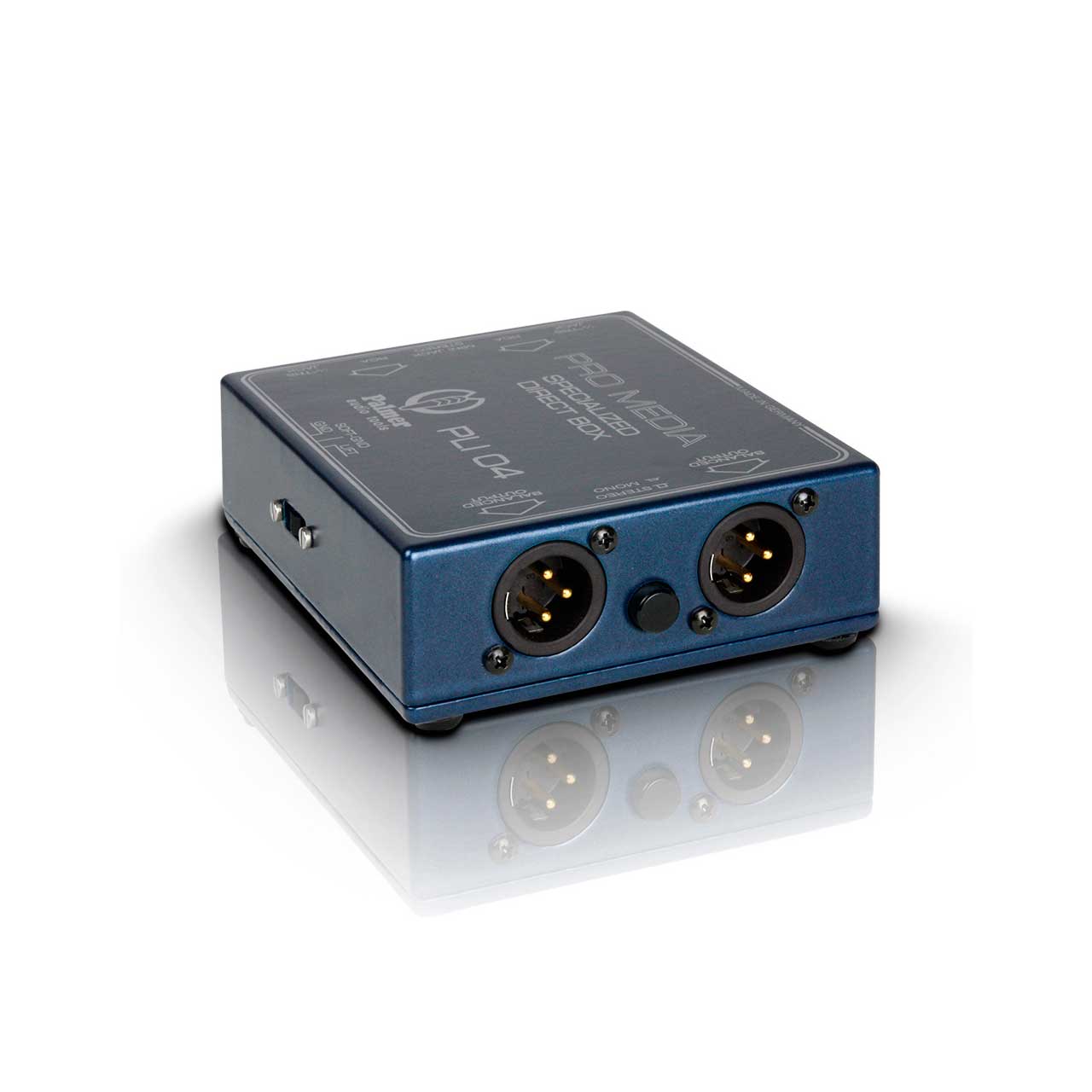

Palmer Audio PLI04 Media DI Box 2 Channel for PC and Laptop

ITEM #: PLM-PLI04 MFG #: PLI04

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$199.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PLI04 - Overview

PRO MEDIA DI/ PLI-04. With the new PRO MEDIA DI/ PLI-04, Palmer introduces a DI-box, produced with the discerning needs of the computer-age media in mind. Using this uncomplicated method, personal computers and other consumer equipment with unbalanced outputs can be converted to balanced, in order to carry out, e.g., a presentation over a professional PA system. The PLI-04 accommodates all the common input types, TRS jacks accepting mono or stereo plugs, RCA phono sockets and a 3.5mm stereo jack input for use with the headphone output of a Laptop or similar device. The outputs are conventional transformer balanced XLR sockets, as used in professional PA systems, guaranteeing an electrically decoupled signal, a prerequisite to ensure noise-free operation. One other special feature which should not be forgotten! Although the PLI-04 is primarily a stereo unit, it can be switched to mono, with the two stereo signals summed and fed to both XLR outputs. The PLI-04 manifests a mechanically robust unit combined with outstanding technical specifications, adding to the list of high quality products that have come to be expected from Palmer.

  • Features:

    • 2 channel DI Box for PC and Laptop + Converts unbalanced outputs to balanced outputs + Can be switched to mono

  • Specifications:

    • Product type: line isolator
    • Type: passive
    • Channels: 2
    • Inputs: 5
    • input connectors: 3.5 mm TRS, 2 x RCA, 2 x 6.3 mm TS
    • input type: unbalanced
    • input impedance: Bei 600 Ohm Last 6 k Ohm(s)
    • max. input level: + 6 dBu
    • Outputs: 2
    • output connectors: 2 x XLR
    • output type: balanced
    • output impedance: 600 Ohm(s)
    • max. output level: + 6 dB
    • transformer balanced: yes
    • Ratio: 3,16 : 1
    • Frequency response: 20 - 20.000 Hz
    • controls: mono/stereo, ground lift
    • cabinet material: die-cast aluminium
    • Cabinet / Housing surface: powder coated

  • GTIN:

    4049521049347
