Palmer Audio STUDIMON5 Powered 5 Inch Nearfield Studio Monitor - Each

ITEM #: PLM-PSTUDIMON5 MFG #: PAL-PSTUDIMON5

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$199.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PAL-PSTUDIMON5 - Overview

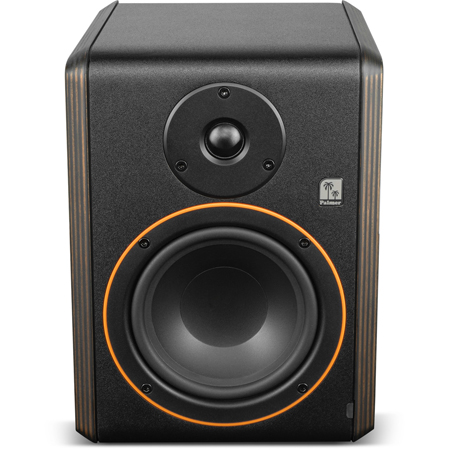

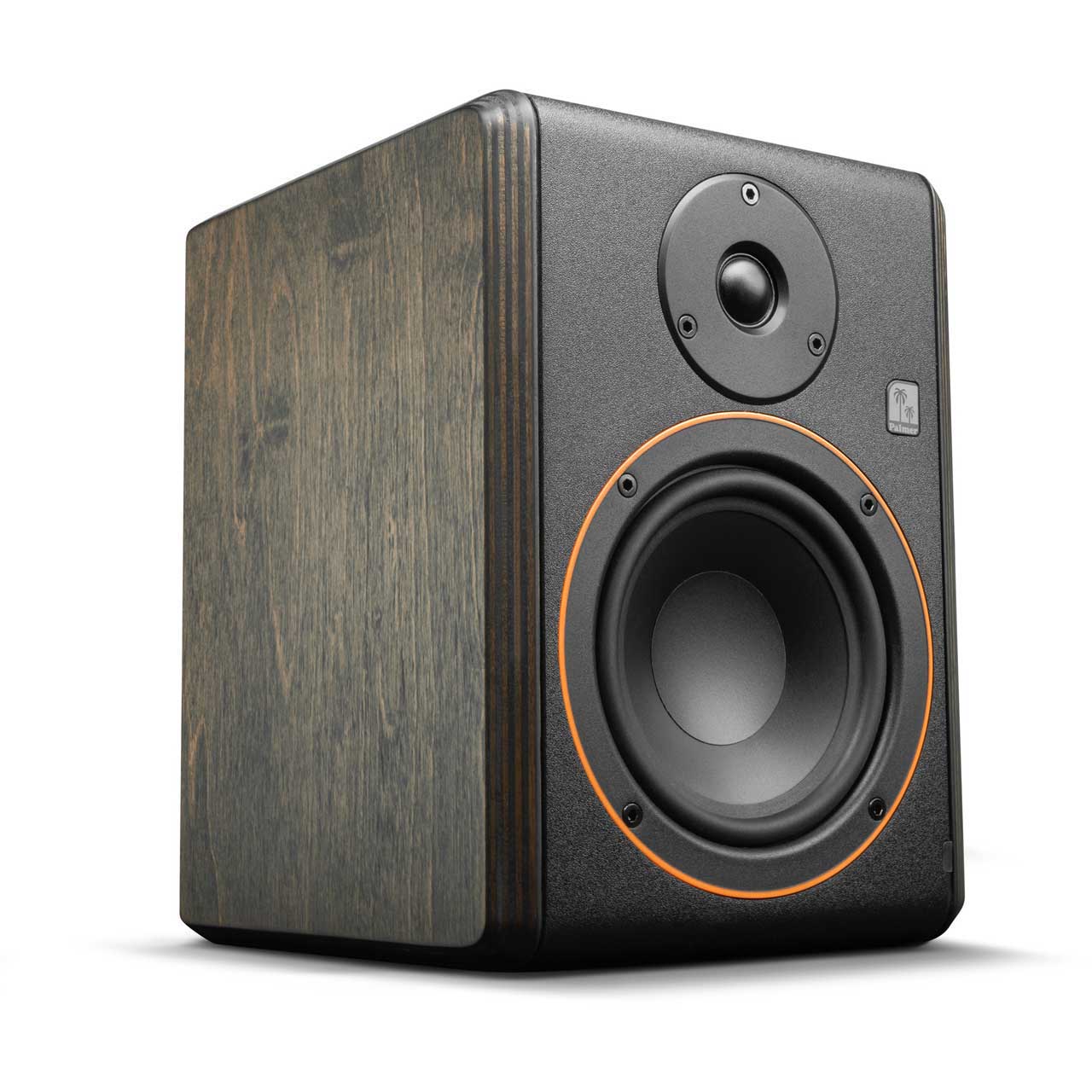

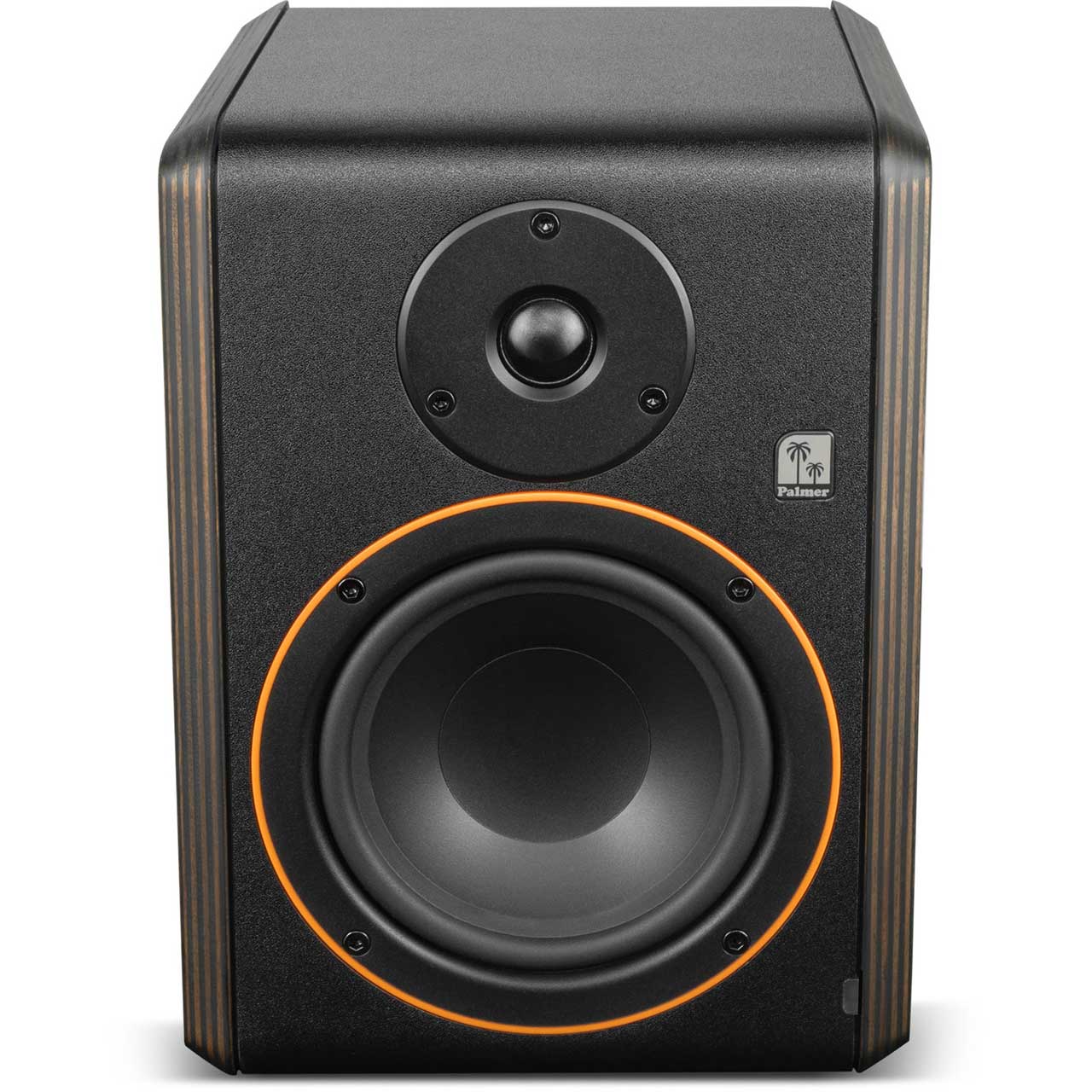

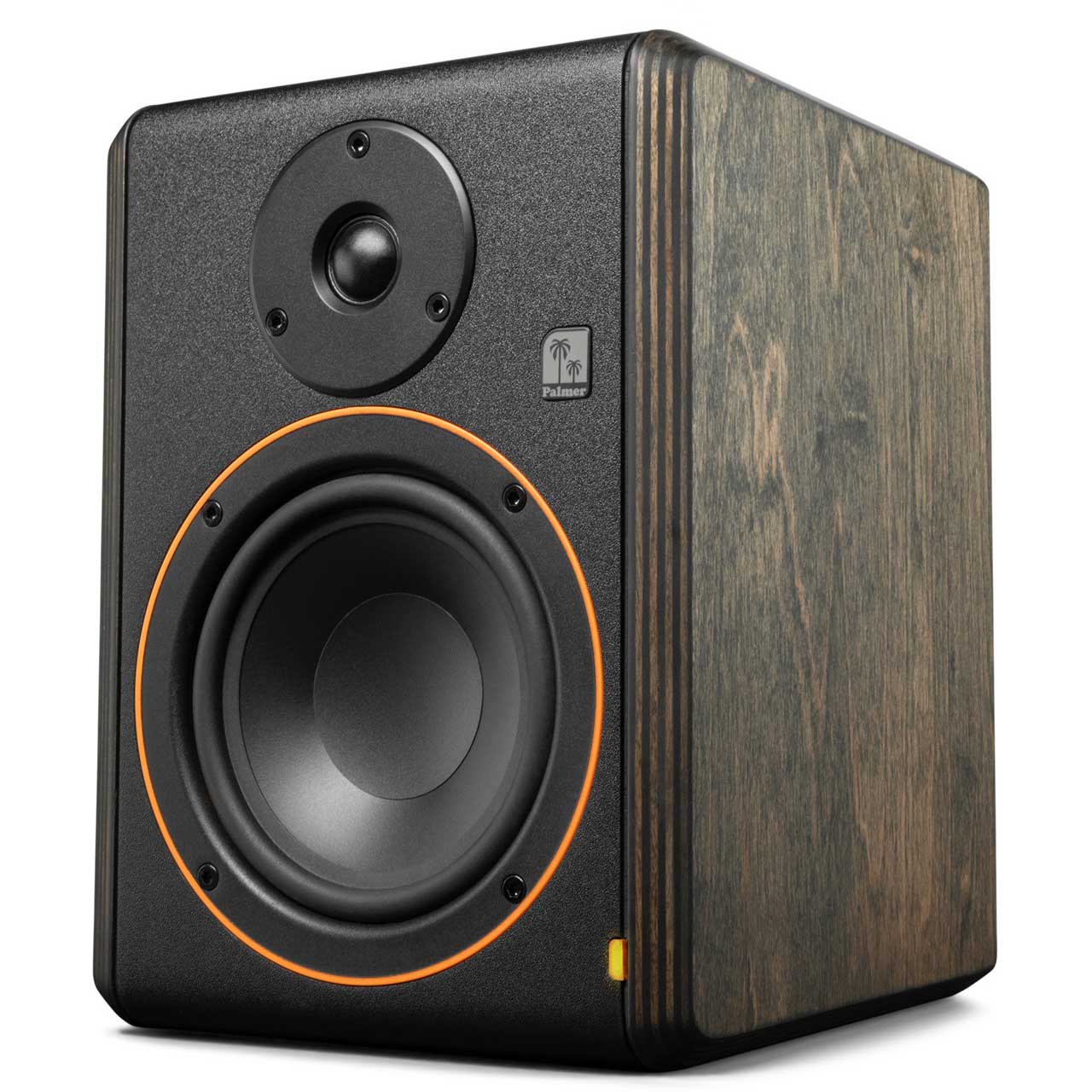

Compact yet powerful, the Palmer STUDIOMON 5 is a bi-amped reference class nearfield studio monitor that looks the part, too. It features a magnetically shielded 5” low frequency driver with rubber surround, a 0.75” silk-dome tweeter and a rear reflex port for extended low frequency response. Driven by 30 watt class AB amplifiers each, the transducers deliver your mixes accurately with excellent dynamics and transient response. The STUDIOMON 5 provides balanced XLR and 6.35 mm TRS inputs to maintain signal integrity and a convenient volume control. What’s more, the speaker’s looks match those of the Palmer MONICON series monitor controllers.

Sold Individually!

  • Features:

    • 5" woofer and 0.75" soft-dome tweeter
    • Bass reflex design
    • Bi-amped, 2 x 30 watts RMS
    • Frequency response 70 Hz - 20 kHz

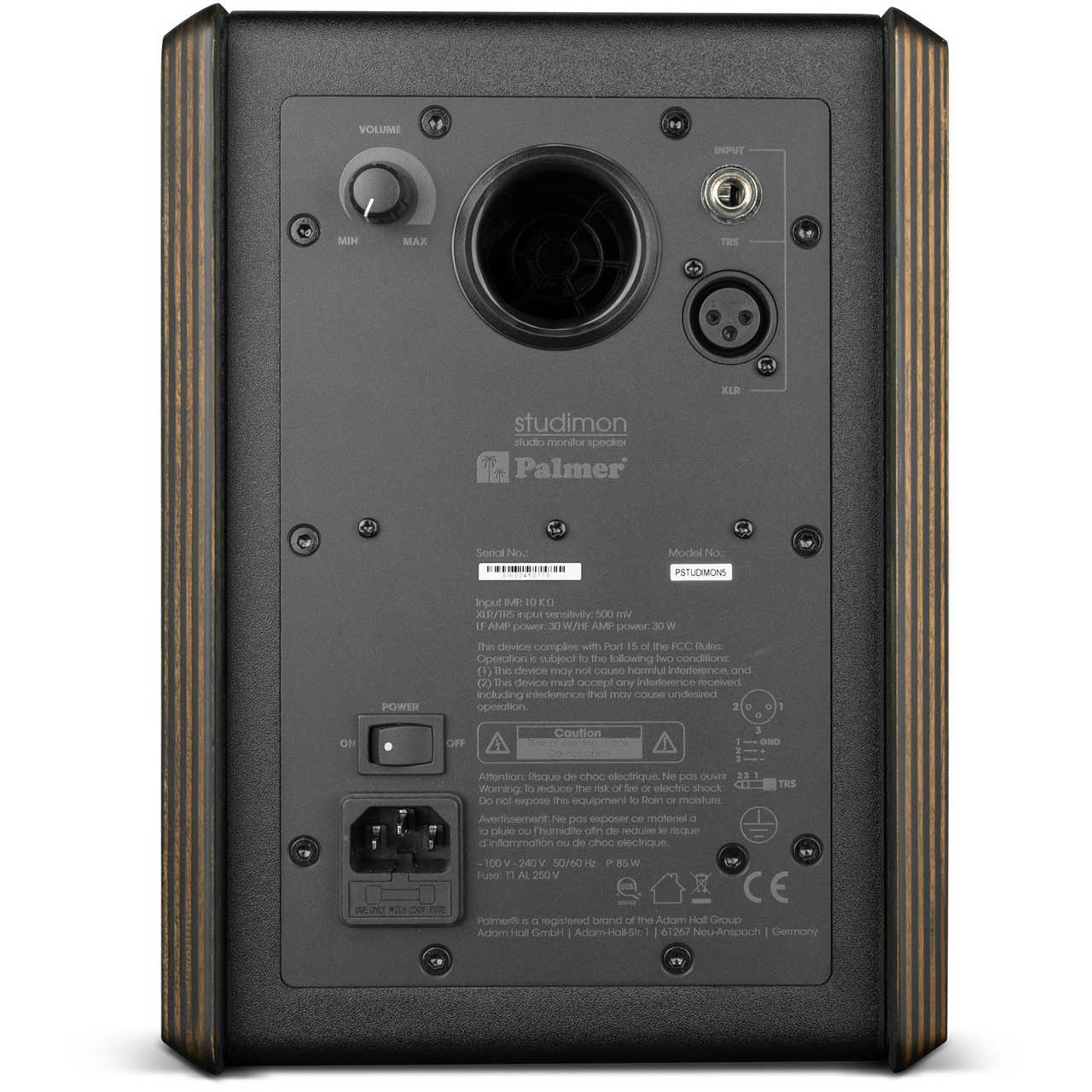

    • Balanced XLR and 6.35 mm TRS inputs
    • Compact dimensions
    • Elegant and rigid enclosure construction

  • Specifications:

    • Product type: Reference Nearfield Studio Monitor
    • Type: active
    • Configuration: 2 Way Bassreflex
    • Woofer Diameter: 1x 5" Polypropylen with rubbersurround, magnetic shielding,vented magnetic motor
    • Tweeter Diameter: 0,75" Softdome
    • Amplifier Class: Class A/B
    • Directivity: 120 x 120 °
    • Output Power: 2 x 30 Watt RMS (Woofer Amp 30 Watt/Tweeter AMP 30 Watt)
    • Frequency Response: 70 - 20 000 Hz(-3dB)
    • Cut off frequency: 2500 Hz
    • Filter: Analog 24dB Linkwitz Riley filter (with 2 stage Gyrator EQ)
    • Input Impedance: 10 kOhm
    • Max. SPL: 110 dbU bei 1 Khz
    • Signal to Noise Ratio: 85dB
    • Protection Circuits: Short Cut, thermal shutdown
    • Operating Controls: Volume control, Power Switch(On/Off)
    • Line Inputs: 6,3 mm TRS , XLR
    • Power Supply: SPSU, 100 V AC - 240 V AC, 50 - 60 Hz
    • Power Consumption: 85 W
    • Enclosure Construction: 15 mm Plywood stained / MDF/ Black Vinyl Wrap
    • Dimensions (W x H x D): 190 x 268 x 215 mm
    • Weight: 3.84 kg

  • Warranty:

    • 5 Years

  • GTIN:

    4049521402890
