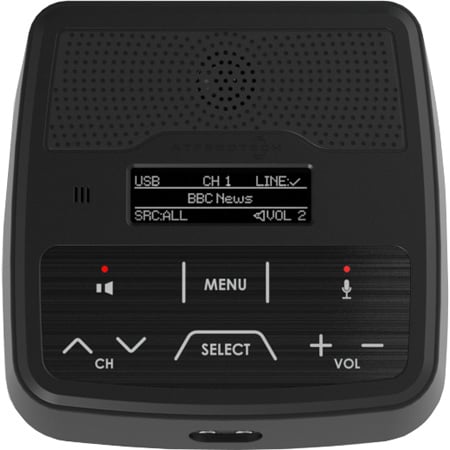

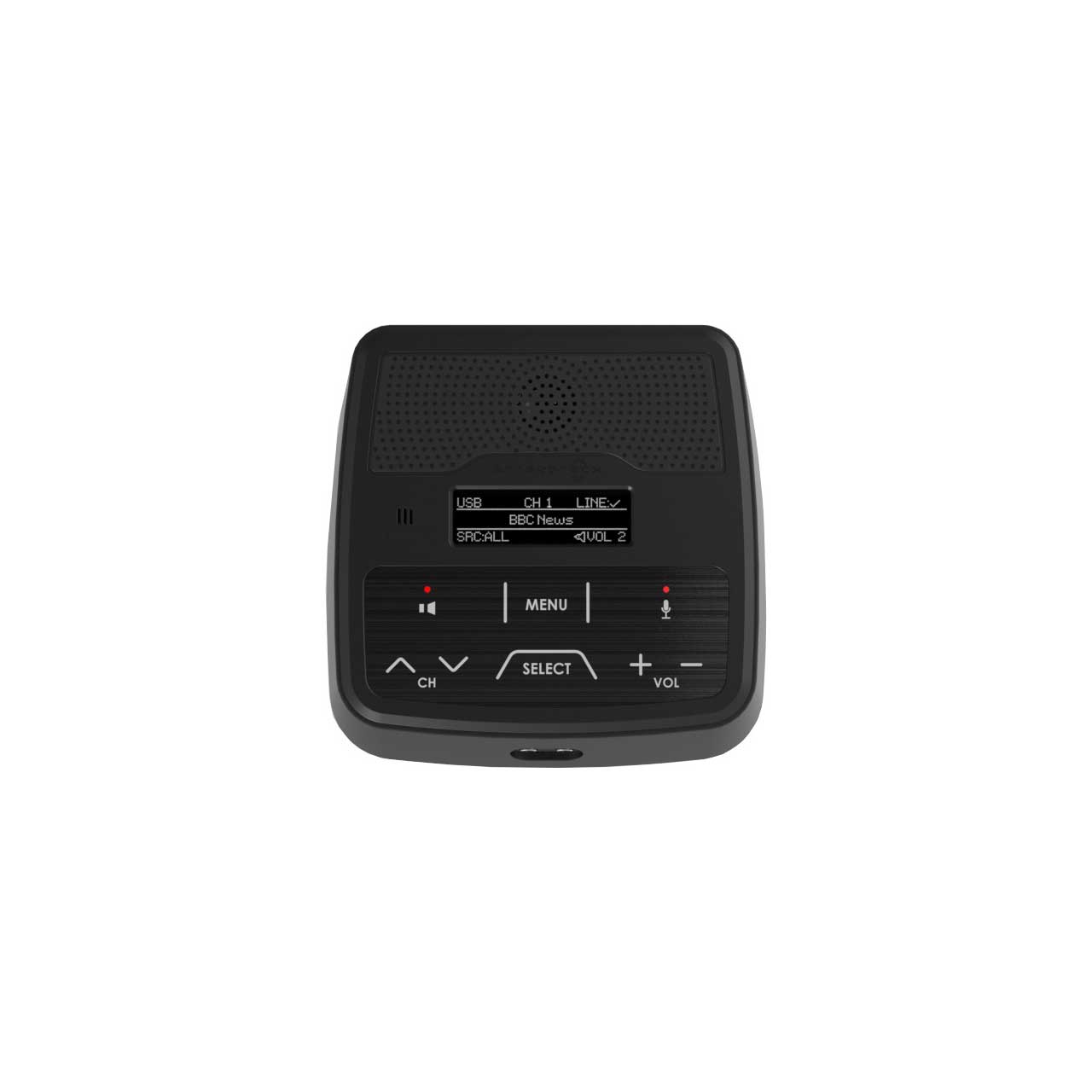

Attero Tech unDNEMO 64 Channel Desktop Audio Monitor with USB

UNDNEMO - Overview

• Features:

  • Analog audio connectivity for analog headsets
  • Easy user monitoring of up to 64 Dante channels through built-in speaker or headphone interface
  • Daisy chaining for Dante audio data
  • Powered by either IEEE 802.3af PoE or a +24VDC from an external supply
  • Intuitive user interface and USB driverless connectivity


• Specifications:

  Audio Inputs
  • Input Types: Internal electret microphone
  • External electret headset microphone connectivity with internal bias (3.5mm T-S)
  • Line Input: 3.5mm TRS
  • Input Impedance: Line Input: 10kOhm
  • Maximum Input Levels: Line Input: +12dBu
  • Mic Bias Voltage: 1.65V

    Audio Input Performance
  • THD+N: Line Input: <0.02% @ 1kHz
  • Frequency Response: Line Input: 20Hz - 20kHz, +/- 1dB

    Audio Outputs
  • Speaker Type: Internal 1" Driver
  • Attenuation Range Software controlled volume (1 to 10(max), 6dB per step)
  • Headphone Output Stereo 3.5mm TRS
  • Maximum Output Levels: Speaker: 1W @ max volume
  • Headphone: 1Vrms into 32 Ohms (minimum load)

    Audio Output Performance
  • THD+N: <0.01% @ 1kHz, input signal 3dB below maximum
  • Frequency Response Headphone: 20Hz - 20kHz +/- 1dB

    Dante Network
  • Physical Level: Ethernet
  • Connector(s): Dual RJ-45
  • Cable Quality: CAT-5e or better
  • Transmission Speed: 1000 Mbps
  • Supported Sample Rates 48kHz
  • Minimum Dante Network Latency 1ms

    Power Requirements
  • PoE 802.3af PoE PD compliant
  • External Power 24V DC, center positive barrel jack, 6.0mm OD / 2.0mm ID
  • Power Consumption < 6W Max
  • Cable Quality: CAT-5e or better

    Product Compliance
  • FCC CFR 47 Parts 15B, ICES-003, CE (EN55022), RoHS, REACH

    Physical Dimensions
  • Width: 6.45"
  • Height: 2.6"
  • Depth: 6.23"
  • Weight: 1.13 lbs

    Environmental Specifications
  • Operating Temperature: 0 to 40 C


• Warranty:

  • 5 Year
