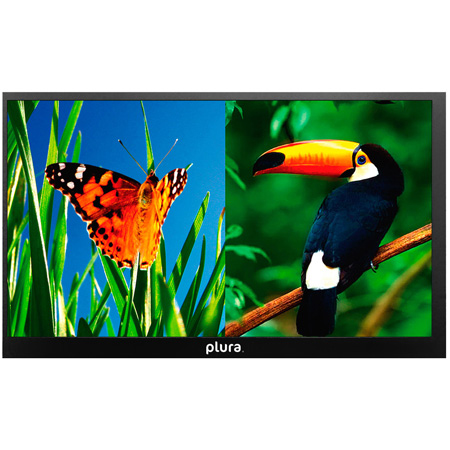

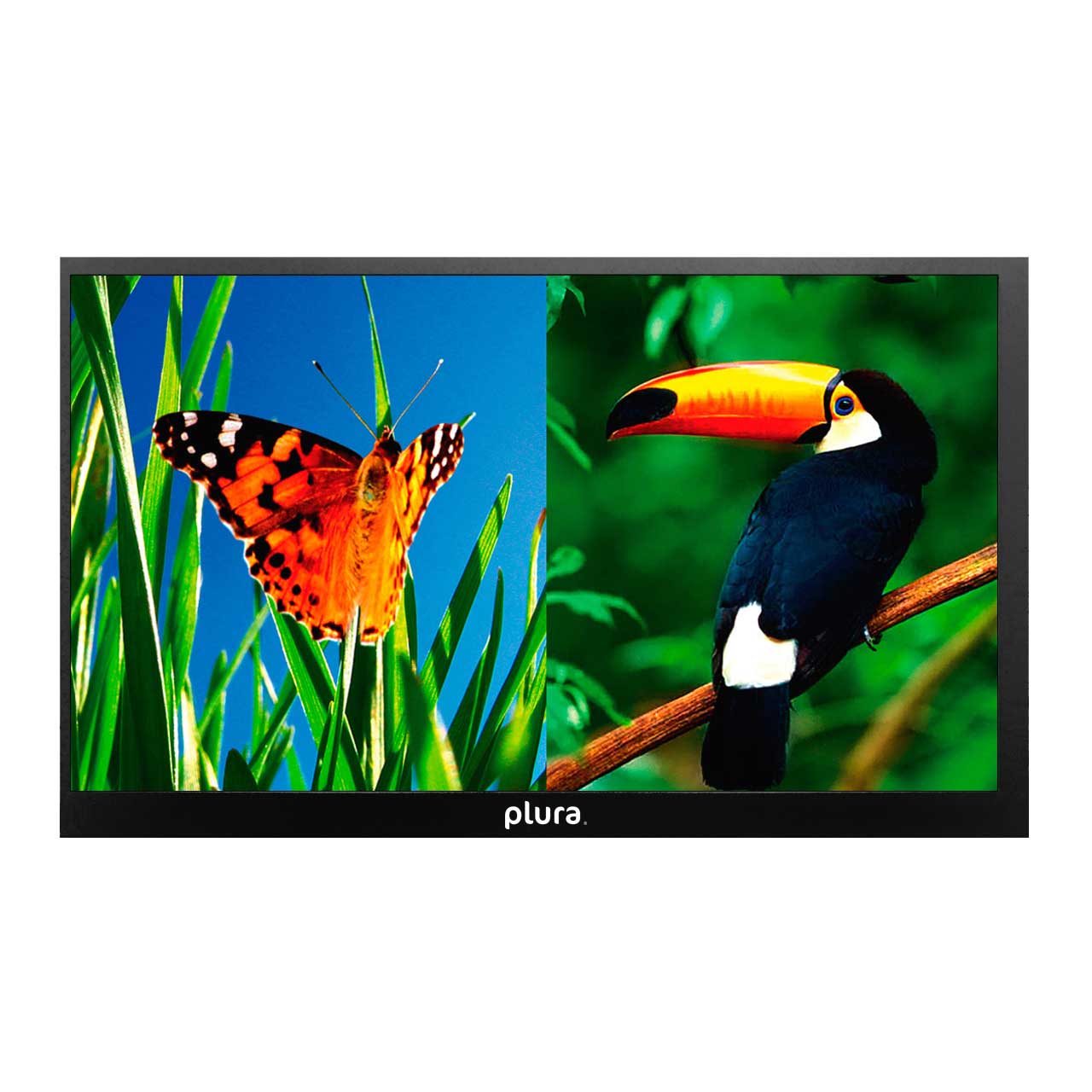

Plura LCM-147-3G 10x 47 Inch Broadcast Monitor Narrow Bezel (1920x1080) - 3G

LCM-147-3G - Overview

• Features:

  • LCM-147, FULL HD 47" 1920 x 1080 True 10 bit LED Panel
  • 3Gb/s ready - 1080/60P
  • 2 x Auto-detect with active loops (3Gb/s ~ 1.485Gb/s ~ 270Mb/s)
  • RGB, YUV, Y/C, Composite, UXGA, DVI & HDMI (HDCP)
  • Complies with EBU-2330 TECH, SMPTE-C and ITU-R BT.709 standards
  • (ICAC) - Plura Intelligent Connection for Alignment & Calibration
  • Cutting edge De-interlacing and Scaling Technology
  • Fast Response Time for high Motion Video
  • 12 Bit Color Processing
  • 178 Viewing Angle Display
  • Color Temperature - User adjustable (11000K TO 3200K)
  • Various and User defined Markers Display, Safe Area in HD & SD
  • Picture and Picture (PaP), Picture in Picture (PiP) Display / Blend
  • Third-party Tally systems support
  • Underscan / Overscan / Normal / Zoom
  • Internal Test pattern Mode
  • Ethernet & Serial Wall Remote Control
  • Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)


• Specifications:

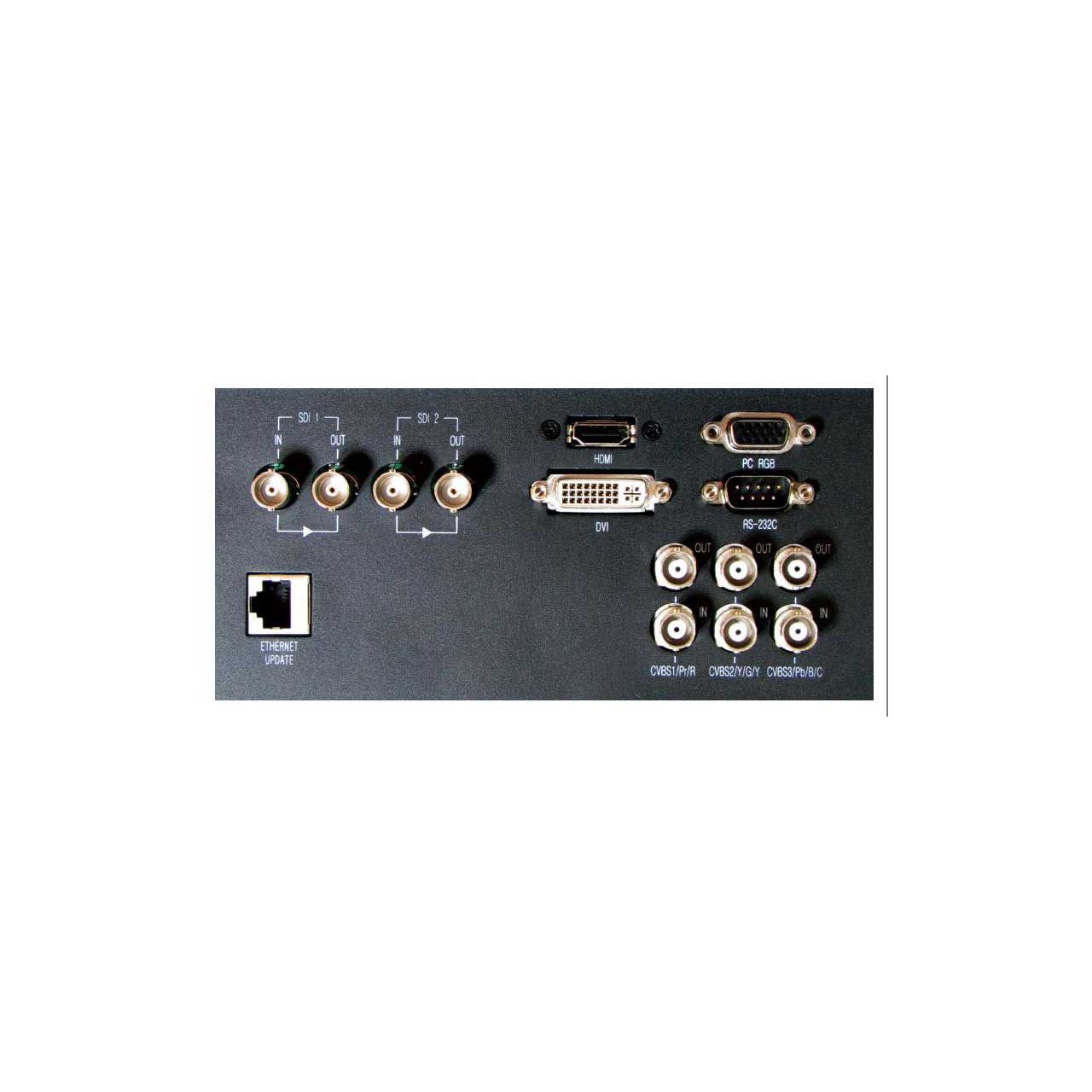

  • Input: 1 x HDMI HDMI In (With HDCP), 19 Pin Female, 1 x DVI DVI In, 24 Pin Female, 2 x HD-SD 3G HD/SD-SDI Two Inputs, Dual Link, 1 x D-Sub RGBHV (VGA) In, 15 Pin Female, 2 x 9 P D -Sub RS-232 In./Out, 9 Pin Male, 3 x BNC Component In (Y, Pb, Pr), 2 x BNC S-Video In (Y,C), 1 x BNC Composite In (CVBS)
  • Output: 2 HD/SD-SDI 3 G HD/SD-SDI Two Outputs Input Signal
  • Input Signal: DVI 640 x 480 up to 1920 x 1080, HDMI 640 x 480 up to 1920 x 1080, PC-RGB 640 x 480 up to 1920 x 1080, SOG sync support, HD-SDI 3G Signal (LEVEL A/B)
  • Analog Input: Spec. Composite 1.0Vp-p (With Sync), S-Video Y : 1.0Vp-p, C : 0.7Vp-p, Component Y: 1.0Vp-p, Pb : 0.7Vp-p, Pr : 0.7Vp-p, D-Sub 1.0Vpp (With Sync)
  • Color Coordinate Color space: EBU,SMPTE-C,IBT-709, NTSC, Native
  • Size: 47"
  • Resolution: 1920 X 1080 (16:9)
  • Pixel Pitch: 0.5415 (H) x 0.5415 (V) mm
  • Color: 1,073 M Colors
  • Viewing Angle: (deg) R/L:178, U/D:178
  • Contrast 4000 : 1
  • Display Area: 1040.48 x 585.27 (mm)
  • Power Requirements: AC100-230V,50/60Hz
  • ATC for Reliability: Automatic Temperature Control, 80 x 25mm BLDC Cooling Fan x 2 pcs
  • Operating Temperature and Humidity: 32°F~104°F, 20% ~ 80% RH
  • Weight: 50 Lbs
