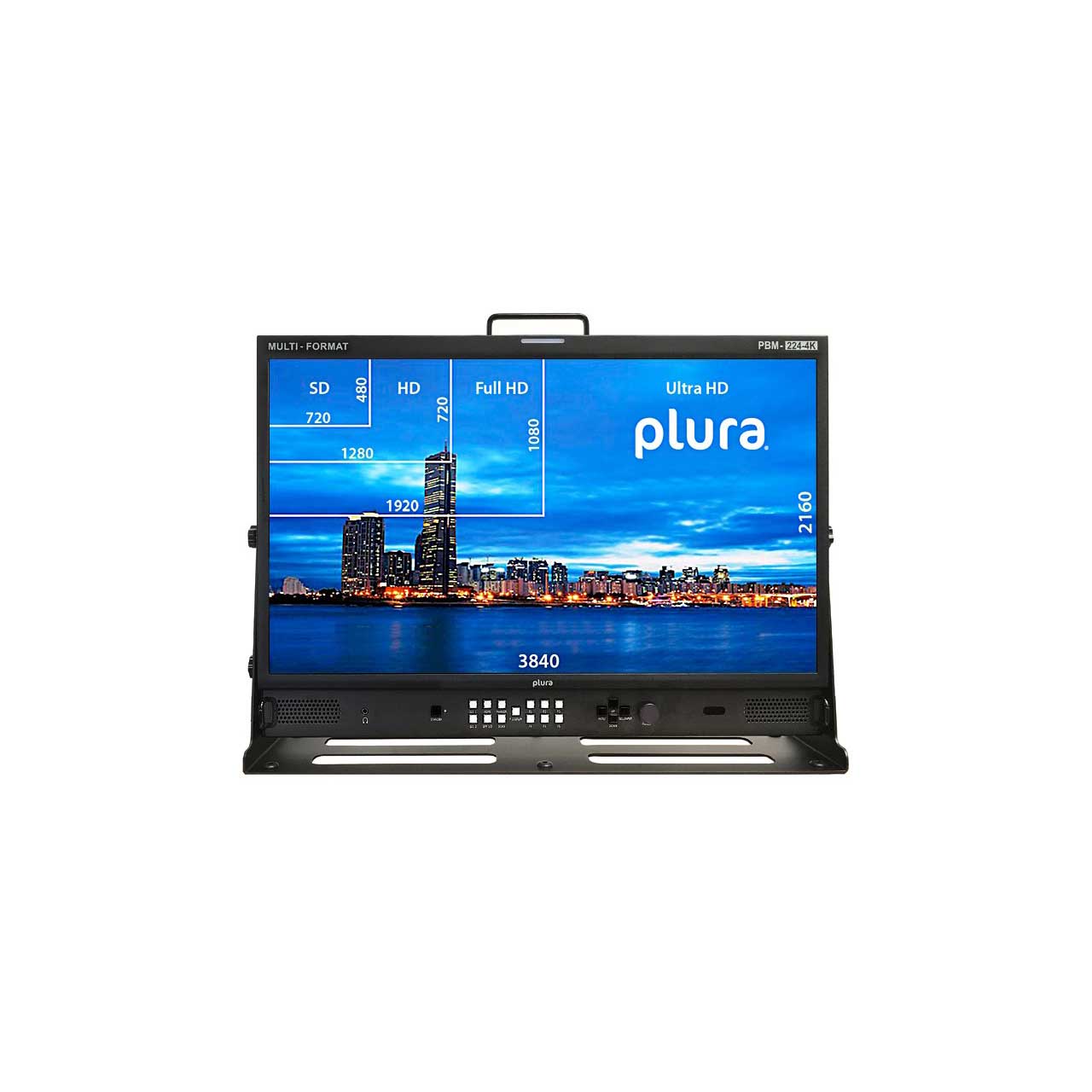

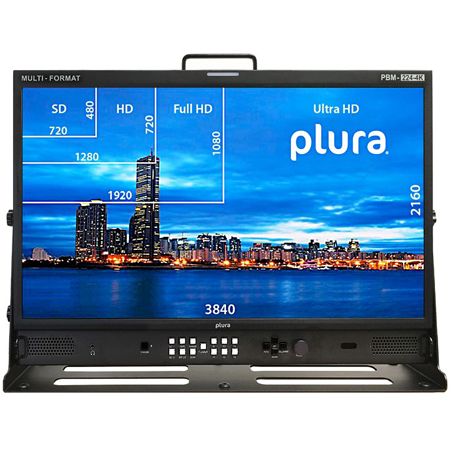

Plura PBM-224-4K 24 Inch 4K Broadcast Monitor (3840 x 2160)

ITEM #: PLUR-PBM-224-4K MFG #: PBM-224-4K

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$10,499.00

Our Price:

$9,974.05

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


PBM-224-4K - Overview

The Plura PBM-4K-UHD Series brings together the exceptional built-in feature set Plura monitors are known for, with quadruple the resolution, detail and performance to give production facilities an edge in ultra HD monitoring.

The PBM-4K-UHD Series supports resolutions up to 3840 x 2160, focuses on delivering the highly, accurate color representation and stunning picture consistency that high-end production applications require.

The PBM-4K-UHD Series supports SMPTE 2082 and other earlier, industry standards. 2 x 12G/3G/HD-SDI inputs with active loop, 1 x SFP slot to support multiple IP and fiber I/O standards. 1 x HDMI 2.0. in addition to all other legacy I/O.

The PBM-4K-UHD Series will suit any studio or mobile production workflow, and will be especially valuable to our customers in sports applications that lack affordable options for 4K monitors. However our customers can rest assured that buying a 4K monitor today will give them the flexibility to work across multiple formats.

The Plura 4K Series will also feature the traditional software redefined feature set built into most Plura monitors, including intelligent connections for calibration alignment, adjustable colorimetry, gamma correction and audio monitoring - all accessible from an intuitive menu offering smooth navigation. Using Plura's unique ICAC tool, production staff members can quickly and automatically calibrate multiple color-related elements across the entire monitor network over IP, including the 4K Series.

  • Features:

    • 4K - UHD Ready!
    • 10 bit panel color depth
    • Supports SMPTE-ST-2082
    • Supports UHD HDMI 2.0
    • (ICAC) - Plura Intelligent Connection for Alignment & Calibration
    • Cutting edge De-interlacing and Scaling Technology
    • Fast Response Time for high motion video
    • RGB 12 bit Digital Signal Processing
    • 178 degree Viewing Angle Display

  • Specifications:

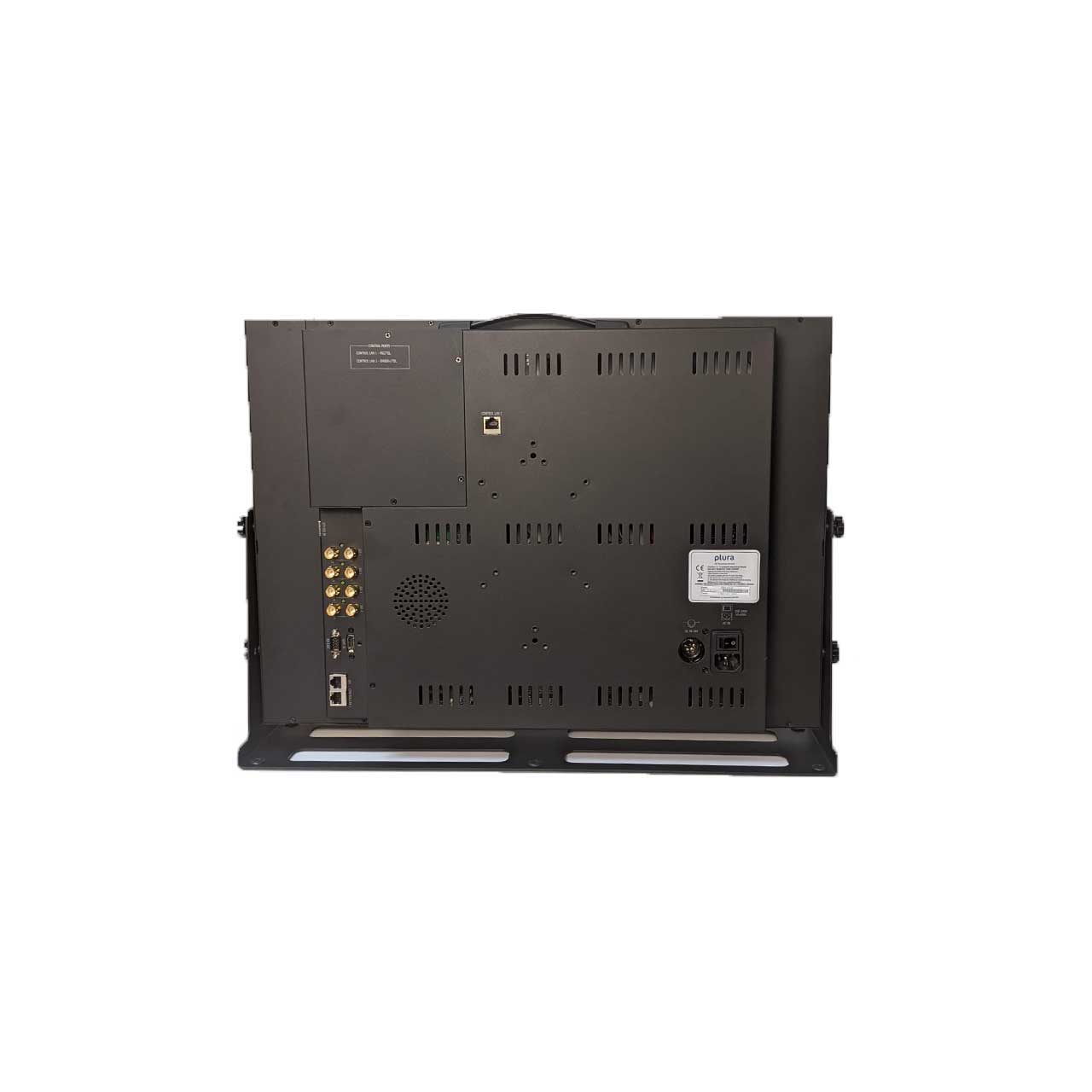

    • Input/Output
    • SDI Input: 2EA, Serial Digital, 12G/3G/HD-SDI BNC Jack
    • Display Port: 1EA, DP, C connector female
    • HDMI: 1EA, HDMI, 19pin Female
    • SDI Output: 2EA, Serial Digital, 12G/3G/HD-SDI BNC Jack

      Digital Input Format
    • SMPTE- ST 2082: 3840x2160 (23.98/24/25/29.97/30/50/59.94/60p)
    • SMPTE 428.1M: 2048x1080P ( 24/25)
    • SMPTE-425M(3G): 1920x1080P (50/60)
    • SMPTE-260M: 1920x1035i(60/59.94)
    • SMPTE-292M: 1920x1080i (50/59.94/60), 1920x1080P (30Psf/25Psf/24Psf/30/25/24)
    • SMPTE 296M: 1280x720P (50/59.94/60)
    • SMPTE 259M/C: 480i(59.94), 576i(50)
    • UHD HDMI: 480P / 720P /1080P /2160P

      Audio Input/Output
    • SDI Audio Input: Embedded HD/SD-SDI Audio
    • HDMI Audio Input: Embedded Audio
    • Speaker Output: Internal Speaker (Stereo) 3W + 3W
    • Ear-phone Output: 1EA, L/R Stereo, 3.5mm pin jack

      I/O Port
    • GPI: RJ-45 8 Pin (Programmable for General Purpose Input)
    • ETHERNET: ETHERNET (System Control) Firmware upgrade
    • USB: Firmware upgrade
    • RS232: D-sub 9 pin female /Firmware Upgrade

      LCD
    • Size: 23.8" Diagonal
    • Aspect Ratio: 16 : 9
    • Resolution: 3840 x 2160
    • Display Color: 1.07 Billion Colors
    • Brightness: 350cd/m2
    • Contrast Ratio: 1000:1 (Typical)
    • Response Time: Tr=7ms / Tf=7ms
    • Viewing Angle (deg): Horizontal: 178 (Typ.) Vertical 178 (Typ.)

      Physical
    • Power Requirements: AC 100V - 240 V (60/50Hz)
    • Power Consumption: 2.2A - 1.1A (230W)
    • Operating Temperature: 32°F - 104°F
    • Operating Humidity: 10% RH - 85%RH ( Non Condensed)
    • Storage Temperature: 14° - 176°F
    • Storage Humidity: 10% RH - 85%RH ( Non Condensed)
    • Weight (without Stand and Packing): 22.0lbs
    • Dimension (WxHxD) without Box and Stand: 21.8" x 16.1" x 3.9"
    • Packing Dimension: 26" x 20.6" x 8.7"
