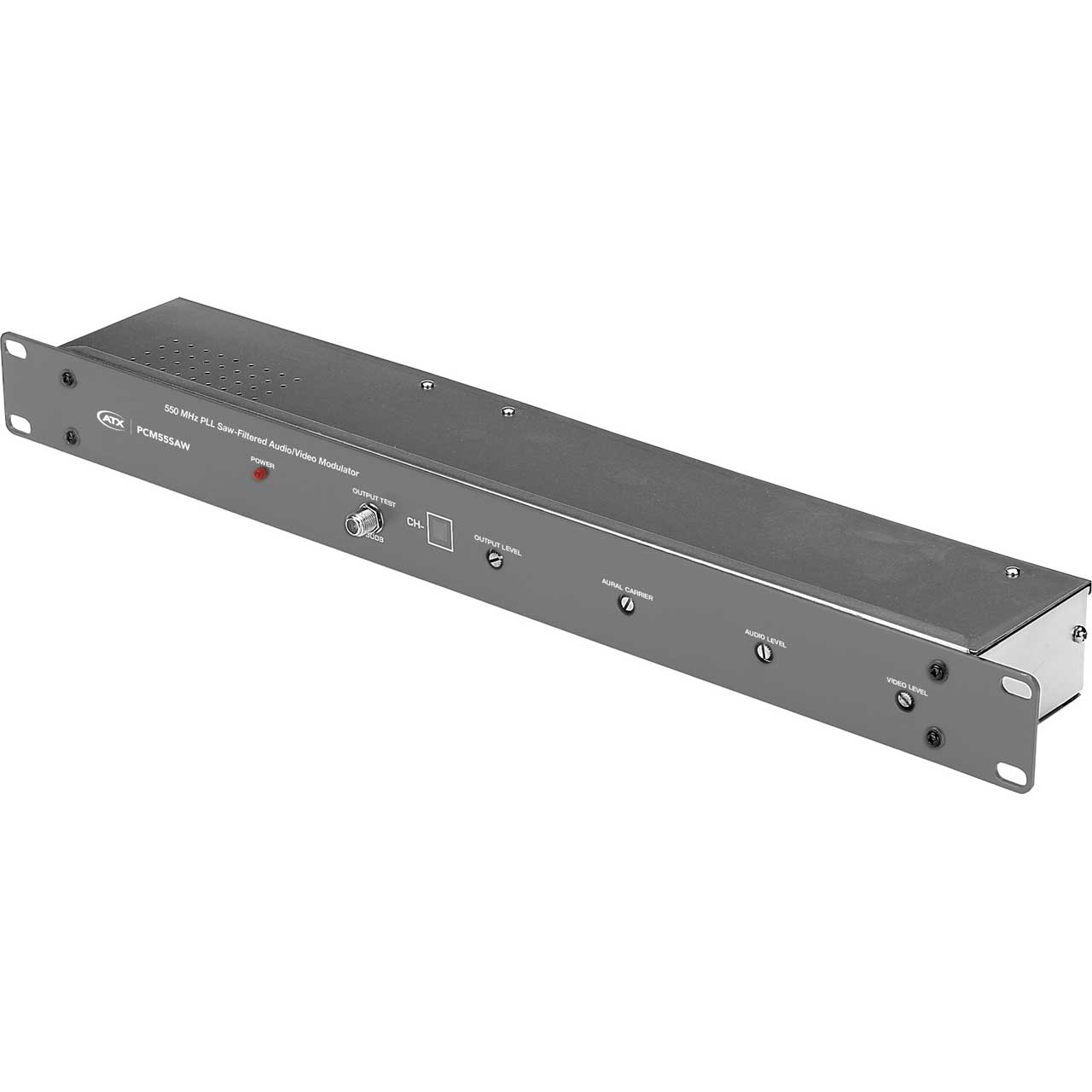

ATX Networks PCM55SAW 550 MHz Channelized-Agile PLL SAW-Filtered A/V Modulator - Channel 2

PCM55SAW CH2 - Overview

• Features:

  • 55 dBmV minimum output for a 64 dB in-band carrier to noise ratio provides superior picture quality
  • 82 Channel frequency range 54 MHz to 550 MHz (CATV 2~13, A1~A5, A~PPP)
  • SAW filtered IF for superior adjacent channel performance enables drop-in channel expansion
  • BTSC Stereo compatible pre-emphasis disable switch provides pass-through for stereo signals
  • Front panel controls and a convenient -30 ± 10 dbMv output test point
  • IRC and HRC offsets available for frequency settings in systems using offset channels
  • Auxiliary AC outlet for convenience
  • Optional PAL format channels available
  • UL Approved


• Specifications:

  • Output Frequency Range: 54 MHz to 550 MHz
  • RF Output Level: 55 dBmV
  • Carrier to Noise (In-band): 64 dB
  • Carrier to Noise (Out of band): 67 dB
  • Spurious Output: > -60 dBc with A/V ratio @ -15 dB
  • Video Frequency Response: ± 1.5 dB
  • Video Signal to Noise: 60 dB
  • Audio Input Type: Monaural/MTS Baseband
  • Audio Frequency Response: 50 to 15,000 Hz
  • Video Input Connection: 75Ω F-Female
  • Audio Input Connection: 600Ω F-Female Unbalanced
  • RF Output Connection: 75Ω F-Female
  • Voltage Input: 120VAC
  • Power Output Receptacle: Yes
  • Dimensions (WxDxH): 19 x 3 x 1.75"
  • Weight: 3.6Lbs
