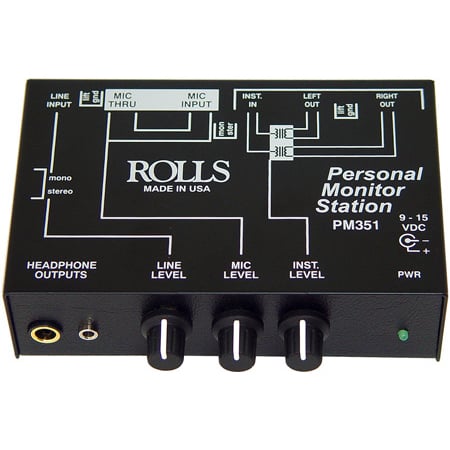

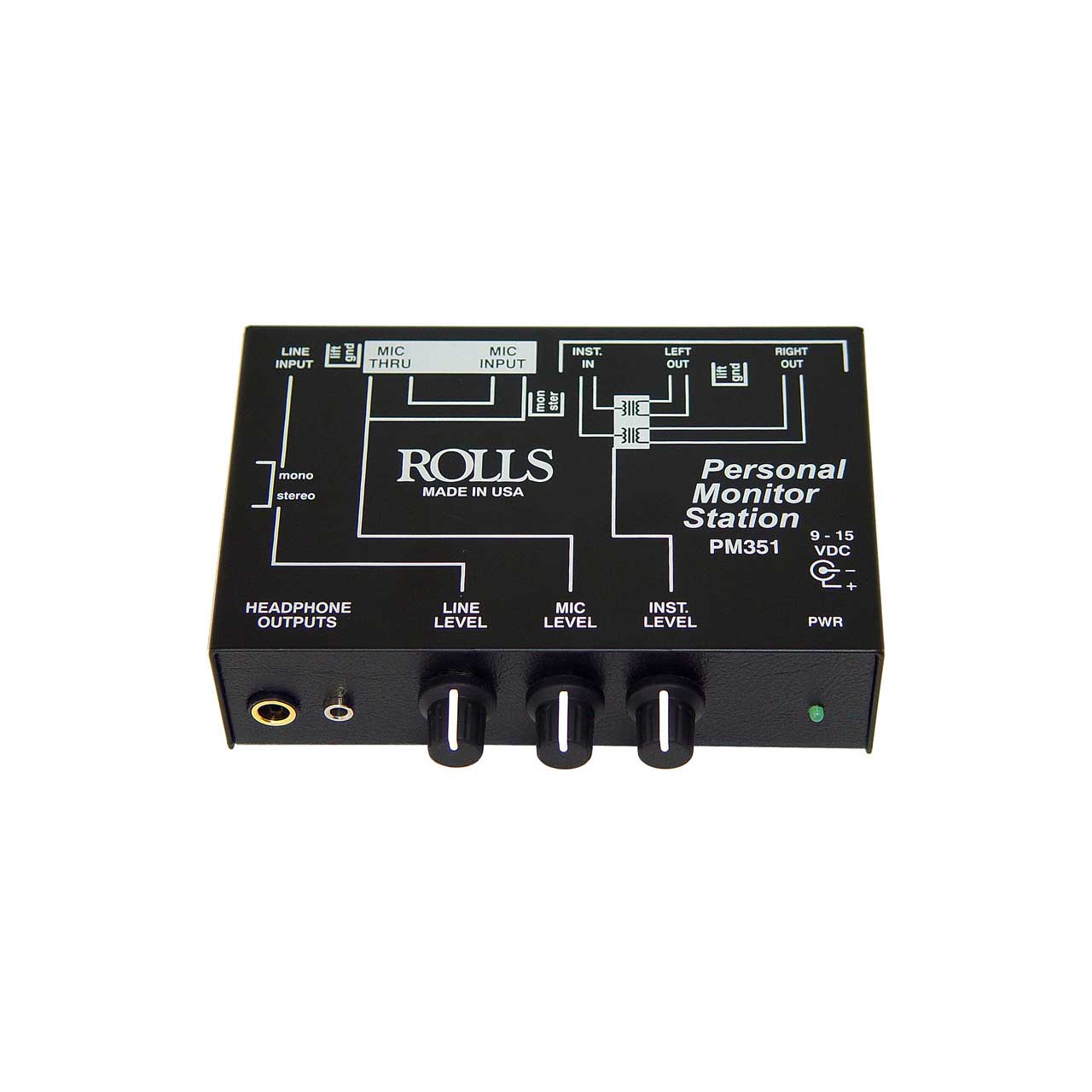

Rolls PM351 Personal Monitor Station

ITEM #: PM351 MFG #: PM351

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$149.00

Our Price:

$119.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PM351 - Overview

The Rolls PM351, like its predecessor the PM350b, is a personal monitoring device with a 1/4" TRS stereo/mono Line Input,a single XLR Microphone input and hard-wired XLR pass-through, and a 1/4" stereo/mono Instrument input with two transformer-balanced and isolated XLR Outputs. All three of these inputs are also routed via individual Level controls, to a 1/4" and an 1/8" (3.5mm) Phone Output. The Mic Through, and Instument outputs have jumpered Ground Lifts for elimination of ground hum.

The PM351 is ideal for live bands and church musicians, as well as studio musicians and singers. Having the ability to monitor a main mix along with the musician's voice and their instrument make the PM351 an effective and versatile tool.

  • Features:

    • 1/4" TRS stereo/mono Monitor inputs
    • XLR Mic Input w/pass-through
    • 1/4" TRS stereo input
    • All mix to 1/4" and 1/8" outputs
    • Individual Level controls
    • Stereo balanced Instrument DI outputs

  • Specifications:

    • Max Input Level: -20 dB XLR, +40 dB Line, +15 dB Instrument
    • Inst. Input Impedance: 50 ohms
    • Inst. Output Freq. Response: 10 - 30 kHz +/- 3 dB
    • Output Impedance (Headphone): 10 ohms
    • Output Impedance (Instrument): 2 ea; 100 ohms balanced
    • Gain: 20 dB 1/4", 50 dB XLR
    • Headphone Freq. Response: 20 - 20 kHz
    • S/N Ratio: 90 dB
    • Power: 9 - 16 VDC
    • Size (W x H x D): 4.5" x 3.3" x 1.5"
    • Weight: 1 lb (.45 Kg)

  • GTIN:

    0675889035100
