VT1512-IP - Overview

Vertical strip style power distribution unit (PDU) / surge protector with local area network and BlueBOLT cloud control

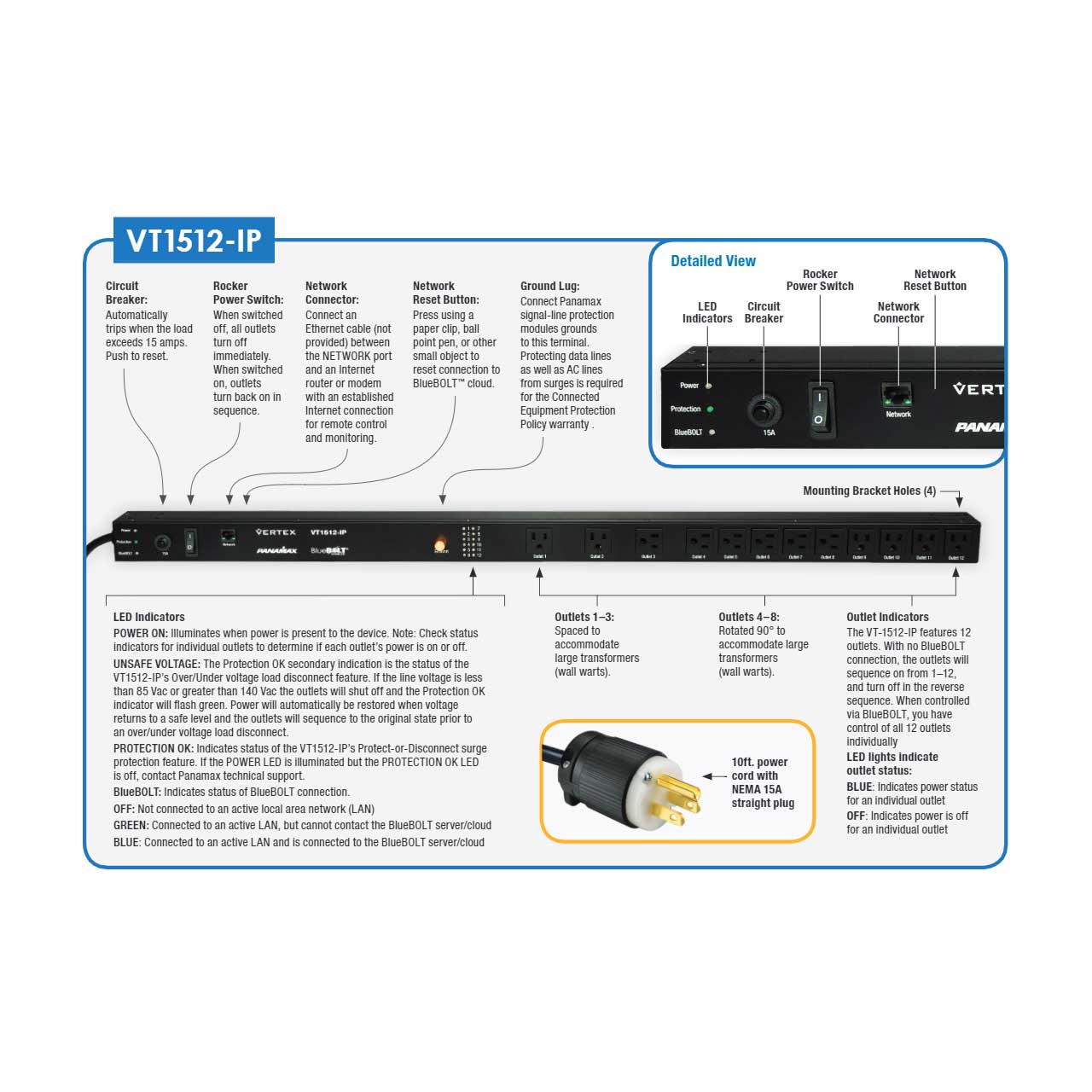

The Panamax VT1512-IP is a BlueBOLT enabled slim form factor vertical rack power conditioner and power sequencer. The VT1512-IP is a full featured power conditioner providing protection and filtration for maximum longevity and performance of connected equipment. BlueBOLT enabled, the VT1512-IP allows remote reboot of 12 individually controlled outlets, as well as the ability to monitor energy use, set alerts, program scheduled commands, network pings with conditioner reboots. For non-Cloud applications the VT1512-IP has an embedded webpage for control and programming, or you can use a LAN for secure control via an ELAN or other 3rd party control system.

  • Features:

    • Protect-or-Disconnect surge protection
    • Standard EMI/RFI Filtration
    • Over/Under voltage load disconnect
    • Power Sequencing
    • IP Monitoring and Control - BlueBOLT enabled for IP monitoring and control
    • 12 individually controlled outlets, 3 spaced for wall warts, 6 turned 90°
    • Ground lug to attach Panamax signal-line protection modules
    • Steel chassis
    • Sleek design ideal for vertical mounting to an equipment rack with included brackets
    • 10 foot power cord with removable plug to customize length
    • 15A Capacity with circuit breaker
    • 3 year limited product warranty with $5,000,000 Connected Equipment Protection Policy when used with Panamax signal-line protection modules.

  • Specifications:

    • AC Power: 20Vac, 50/60Hz
    • Total Outlets: 12
    • Total Current Capacity: 15A (1800W)
    • Voltage Protection Rating (UL 1449 4th Edition, 3,000A): L-N 500V, L-G 500V, N-G 500V
    • Protection Modes: L-N, L-G, N-G
    • Initial Clamping Level: 200V Peak, 141 RMS
    • Energy Dissipation: 200 Joules
    • Peak Impulse Current: 12,000
    • Protect-or-Disconnect: Yes
    • Thermal Fusing: Yes
    • Cord Length: Captive 10ft. cord with removable NEMA 5-15P for length customization
    • Temperature: 0° C -+ 40° C (+32°F -+ 104°F)
    • Operating Humidity: 0 - 90% non-condensing
    • Over-voltage load disconnect: 40 Vac
    • Under-voltage load disconnect: 85 Vac
    • Filtration Technology Standard: RFI/EMI Filtration
    • Filtration Rating: 18dB@100kHz ,53dB@1MHz, 18dB-53dB@100kHz-1MHz

  • Warranty:

    • 3 year limited product warranty

  • GTIN:

    0050616010344
