Point Source Audio SERIES9 Omni IP57 Earmount Mic with ENDURE Lemo-style Connector - Beige

ITEM #: POI-EO-9WL-SKBE MFG #: EO-9WL-SK-BE

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Point Source Audio
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$569.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

EO-9WL-SK-BE - Overview

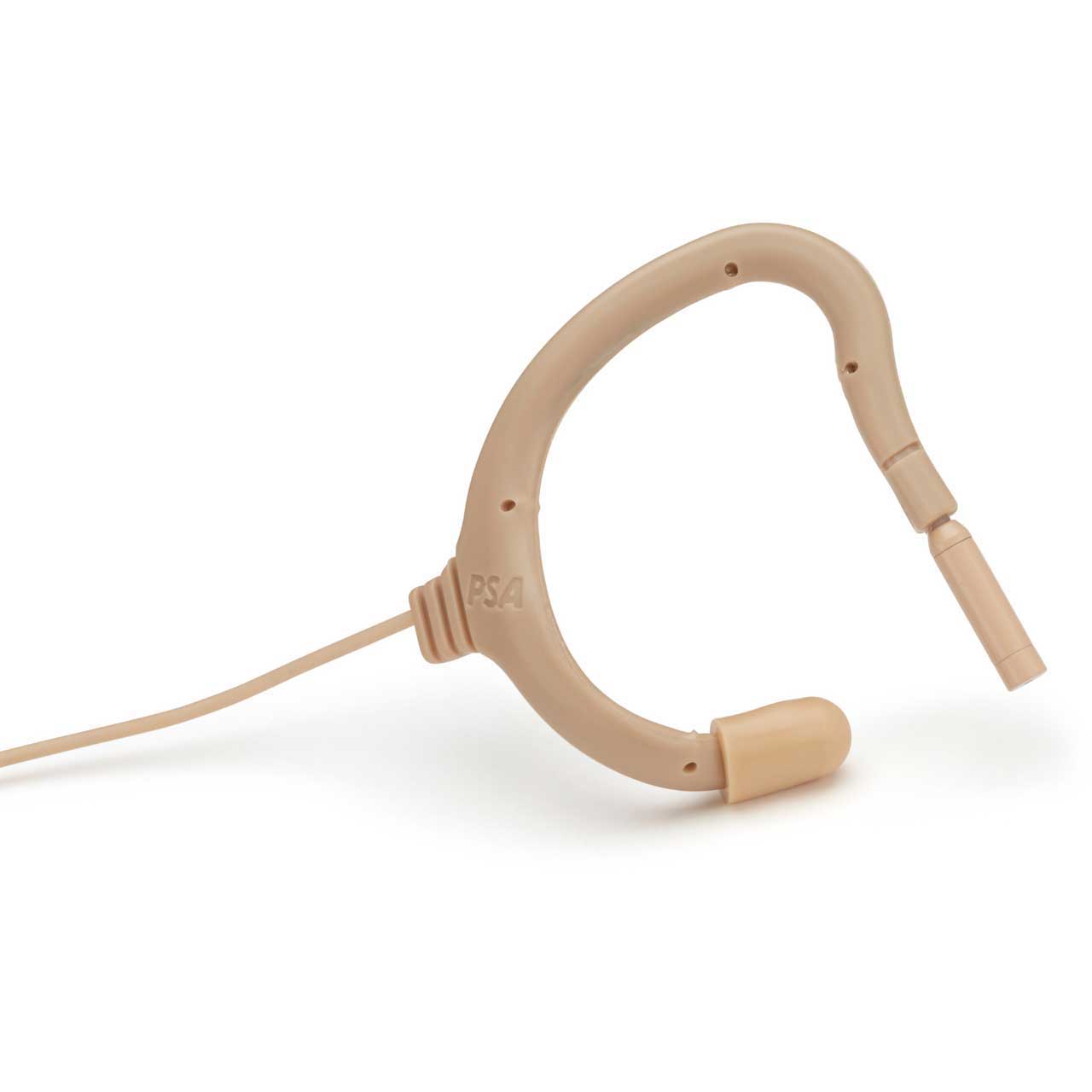

The Point Source Audio EO-9WL is an ultra low-profile, high max SPL miniature Omnidirectional Earmount Microphone. The EMBRACE™ earmounts can be bent, shaped and trimmed for a precise fit in seconds (some assembly required.) The mic element is IP 57 waterproof rated to protect against water, sweat and makeup. The termination has their proprietary ENDURE™ Lemo-style connector hardwired for Sennheiser SK, Lectrosonics SSM, Wisycom, and Shure. Includes matchhing left and right side earmounts, microphone, cable clip, windscreen, 24-month warranty. Color: Beige.

  • Features:

    • Includes microphone and left/right Earmount
    • Bendable and trimmable for a custom fit
    • Accepts theatrical color markers for camouflaging
    • Mic element measures only 4 mm in diameter
    • IP 57 waterproof rated
    • 142 dB max SPL
    • -39 dB sensitivity
    • Cable length of 1.7 meter
    • Available in colors beige, brown or black

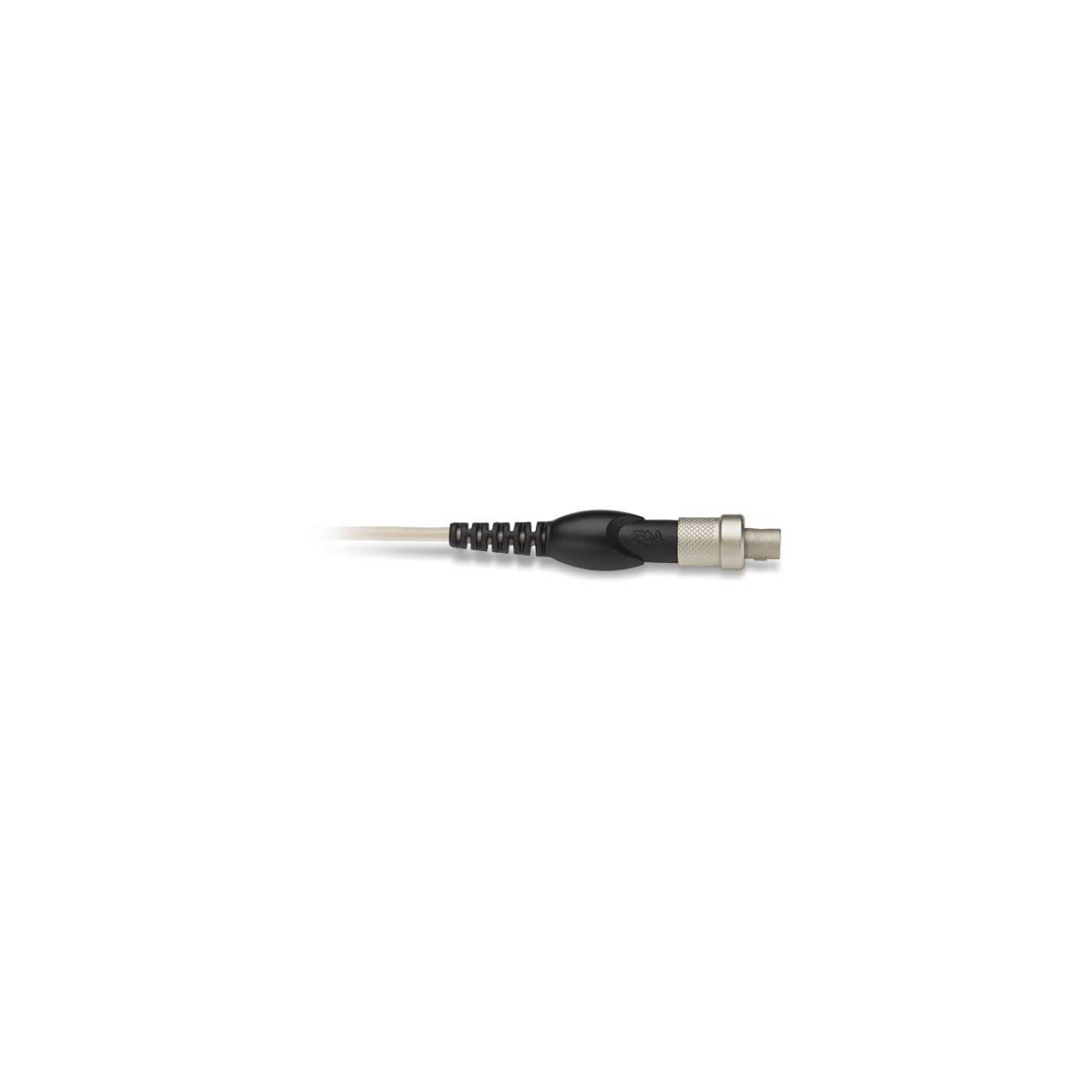

    • Equipped with proprietary ENDURE™ hardwired connector


  • Specifications:

    • Element: Back Electret Condenser
    • Pattern: Omnidirectional
    • Frequency: 20Hz - 20kHz
    • Sensitivity: -39dB 1V/Pa (± 3dB at 1kHz)
    • Maximum SPL: 142 dB SPL
    • Output Impedance: 1300 Ω (at 1kHz)
    • Operating Voltage: 1 - 10 V
    • Element Diameter: 4 mm x 15 mm
    • Cable Length: 1.7 m + connector
    • IP Waterproof Rating: IP 57
    • Cleaning Agent: 70% Isopropyl Alcohol
    • Net Weight: 0.6 oz.
    • Color options: Beige, Brown or Black
    • Connector Type: Hardwired
    • Connector Options: Proprietary ENDURE hardwired connector in 3-pin Lemo, 4-pin TA4F, or 3.5 mm
    • Boom Flexibility: N/A
    • Mic Placement: Left or Right
    • Headframe Sizing: N/A
    • Included Accessories: 2 color matched EMBRACE earmounts, windscreen, cable clip, storage box
    • Certifications: RoHS compliant
    • CE Labeled: Labeled CE compliant per directive 2014/30/EU


  • Warranty:

    • 24 Months
