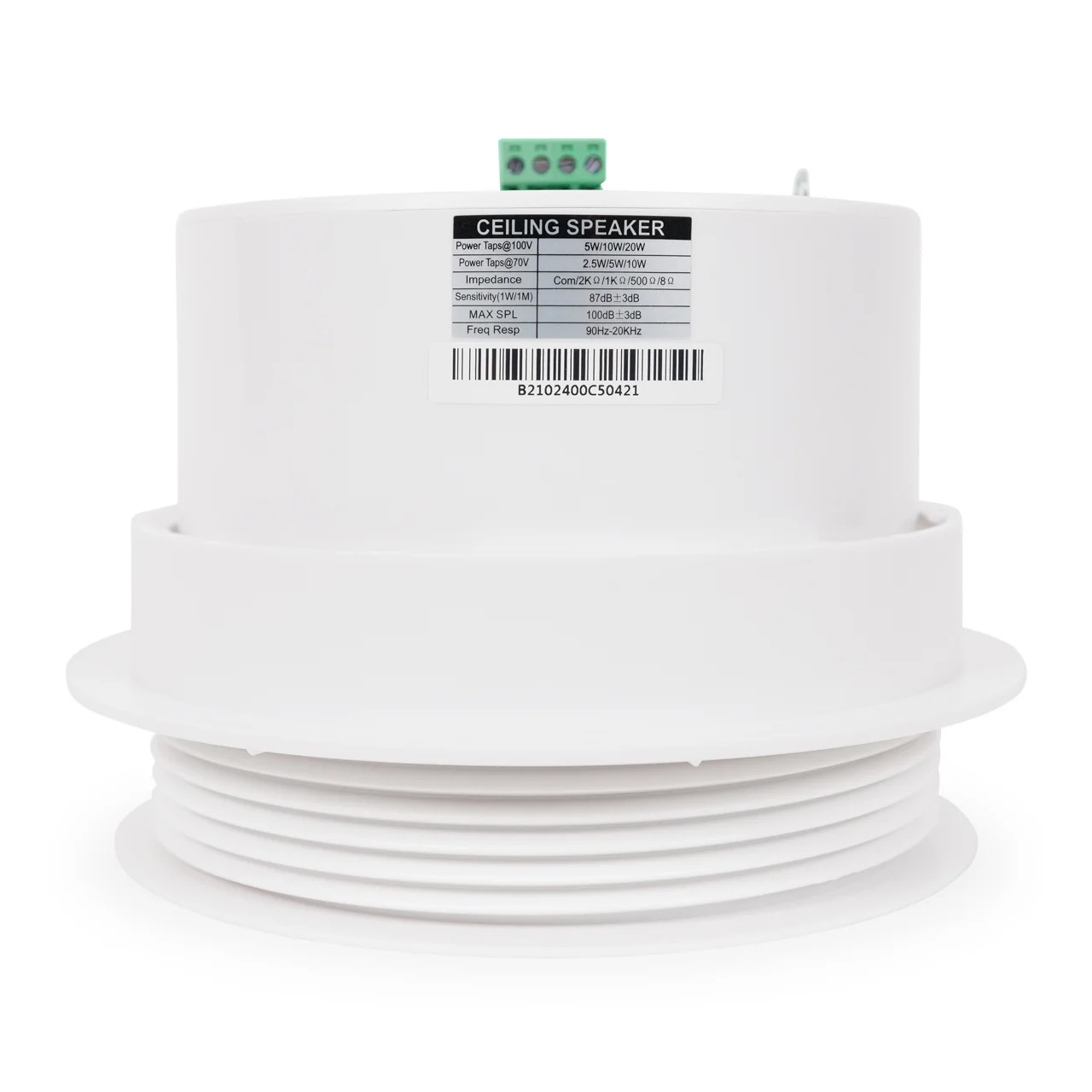

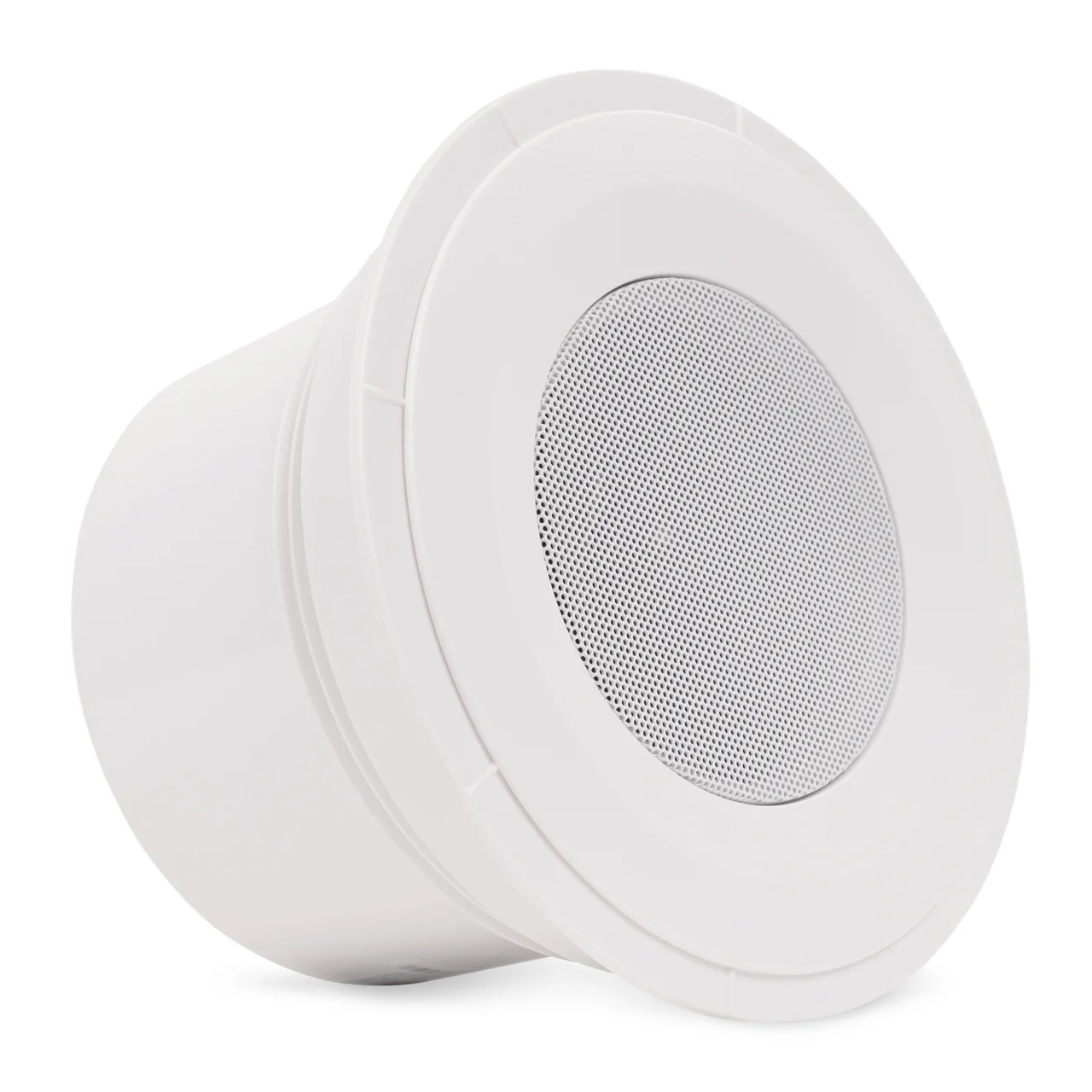

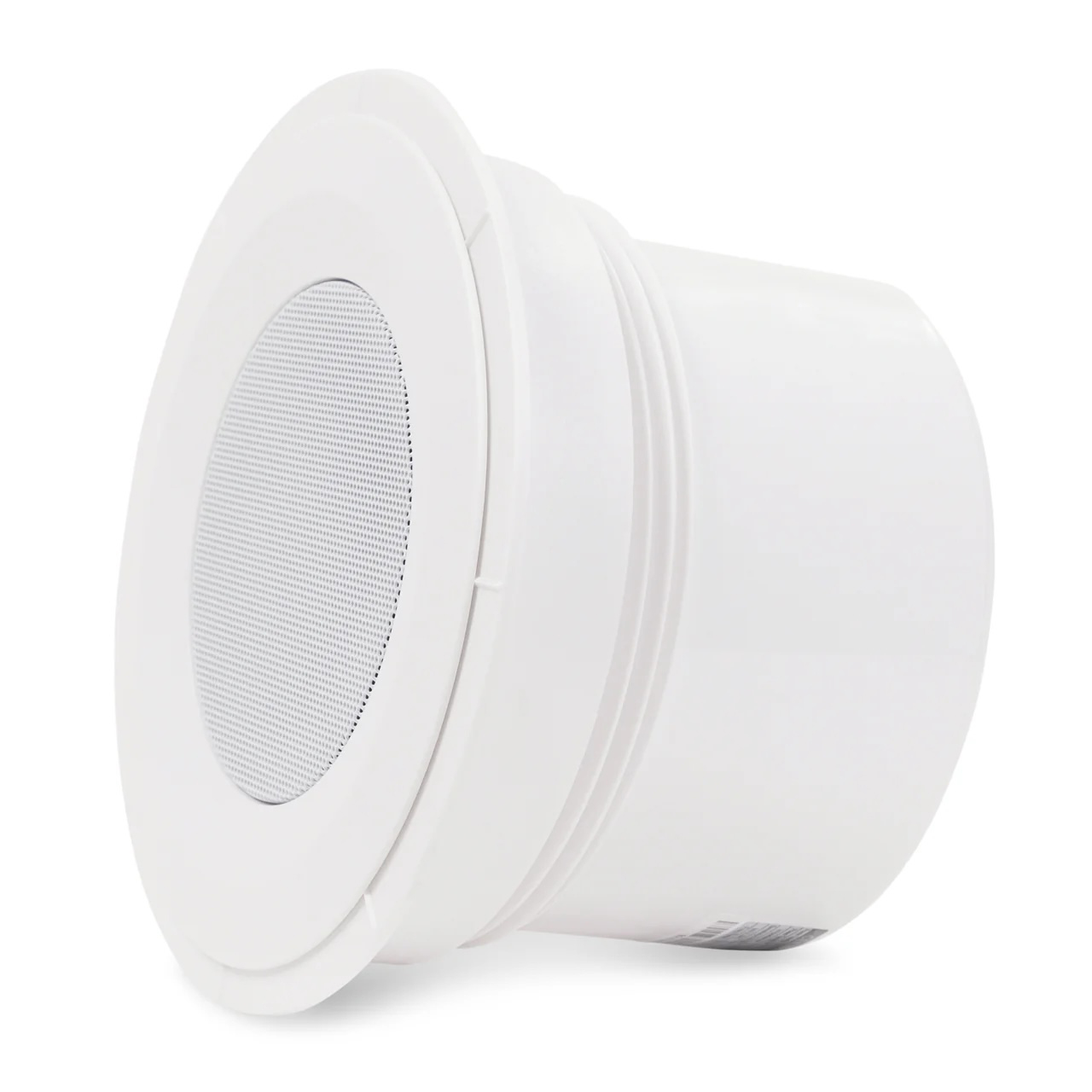

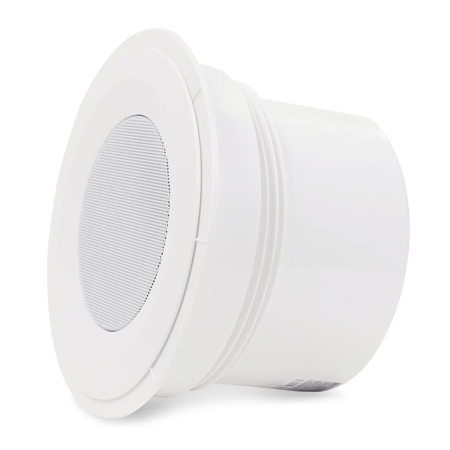

Pure Resonance Audio PRA-C5 Micro 4 Inch 70 Volt Commercial Ceiling Mount Speaker with EZ Mount Ring

ITEM #: PRAC-C5 MFG #: PRAC-C5

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$107.99

Our Price:

$89.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PRAC-C5 - Overview

    Robust Sound, Small Footprint!

    The Pure Resonance Audio C5 is a 4 inch, micro, 70-volt, ceiling mount speaker in a compact, lightweight, and recessed design that seamlessly blends into the ceiling. The C5 achieves a smaller footprint while maintaining robust, high-quality sound ideal for background and foreground music, paging, or sound masking in commercial environments. The intelligently engineered enclosure contains a full-range 4" driver that delivers 90Hz - 20kHz frequency response and 91dB sensitivity. Featuring a built-in 70V/100V transformer with an 8-ohm bypass, this 70V ceiling speaker is perfect for offices, retail stores, restaurants, hospitality venues, reception areas, waiting rooms, and a wide range of business applications. The C5 is quick and easy to install with the included screw-on Easy-Mounting ring.

    Full-Range Audio Coverage
    The C5's micro enclosure contains a 4" paper cone driver with a butyl rubber surround, intelligently engineered for quality performance, long-lasting durability, and consistent reliability. This commercial ceiling speaker boasts a 91dB sound pressure level (SPL) sensitivity, a 90Hz - 20kHz frequency response, and a 10-watt power handling capability. The C5 maintains a 120° x 120° coverage of robust audio with superb vocal intelligibility and full-range music reproduction.

    Quick and Versatile Installation
    The C5's micro enclosure contains a 4" paper cone driver with a butyl rubber surround, intelligently engineered for quality performance, long-lasting durability, and consistent reliability. This commercial ceiling speaker boasts a 91dB sound pressure level (SPL) sensitivity, a 90Hz - 20kHz frequency response, and a 10-watt power handling capability. The C5 maintains a 120° x 120° coverage of robust audio with superb vocal intelligibility and full-range music reproduction.

    • Features:

      • Compact and lightweight recessed design seamlessly blends into the ceiling
      • Achieves a smaller footprint while maintaining robust quality sound
      • 70 Volt / 100 Volt transformer switch with selectable 8Ω bypass
      • 91dB sensitivity provides quality sound
      • Quick & easy installation with included Easy-Mounting threaded mounting ring

    • Specifications:

      • RMS Power Rating: 10 Watt
      • Frequency Response: 90Hz - 20kHz
      • Low Frequency (-10 dB): 120Hz - 20kHz
      • Impedance: 8 Ohms
      • Maximum Input Voltage: 12.8V, 20W into 8Ω

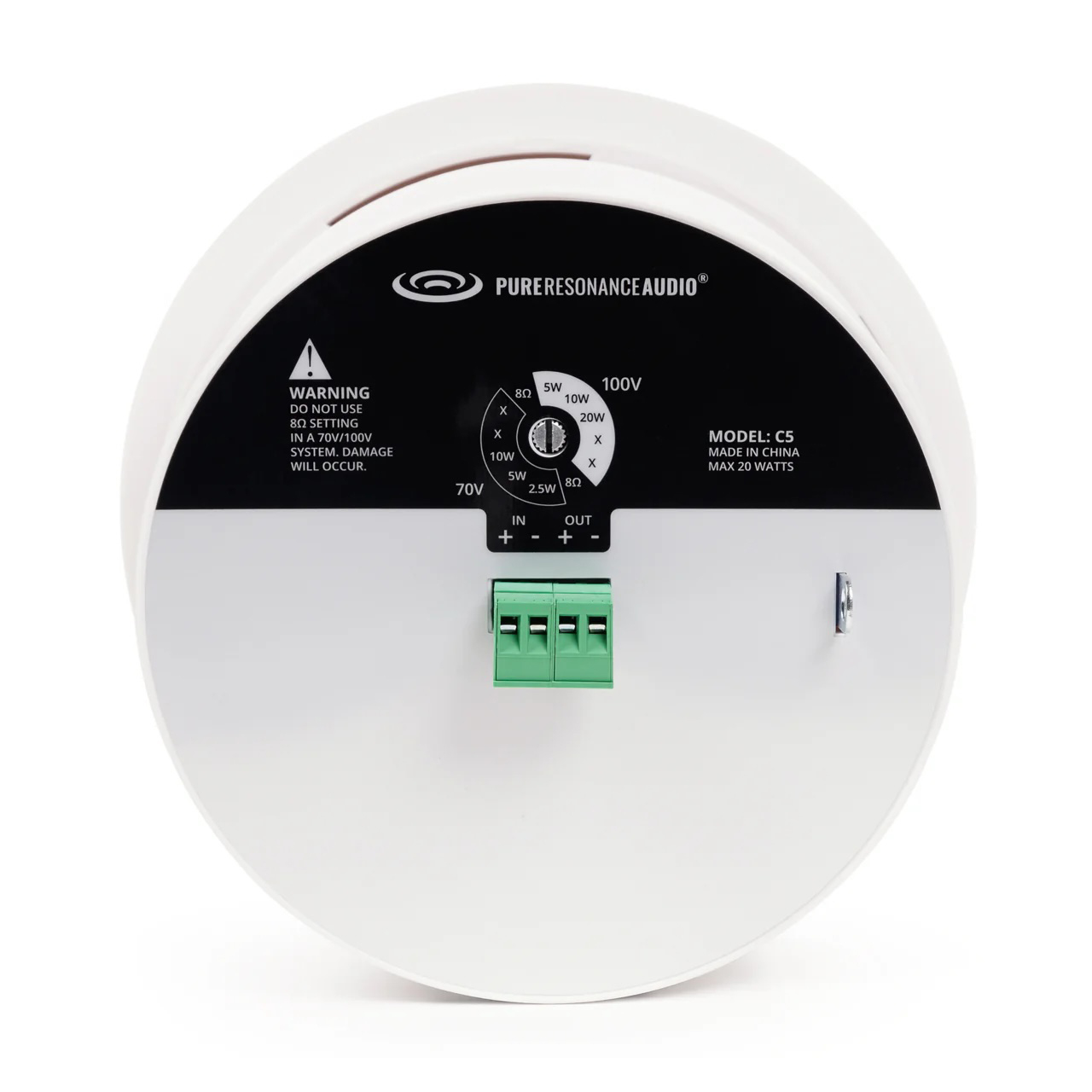

      • Transformer Taps:
        - 2.5W, 5W, 10W @ 70V
        - 5W, 10W, 20W @ 100V
        - 8 Ohm Bypass
      • Transducer: Full-range 4" driver
      • Material: Paper cone driver with butyl rubber surround
      • Nominal Coverage Angle: 120° x 120°
      • 180° Coverage Angle: 84dB ±3dB
      • 140° Coverage Angle: 86dB ±3dB
      • Sensitivity SPL: 91dB ±3dB
      • Maximum SPL: 104dB ±3dB
      • Cutout Size: 6.25" (158.75mm)
      • Easy-Mounting Ring (Dia): 7.46" (189.4mm)
      • Mounting Depth:
        - 5.24" (132.84mm) without connector
        - 5.51" (139.83mm) with connector
      • Overall Dimensions (Dia x D):
        - 6.7" (170.2mm) x 5.32" (135mm) without connector
        - 6.7" (170.2mm) x 5.55" (141mm) with connector
      • Weight: 2.93lbs (1.33kg)
      • Shipping Weight: 3.24lbs (1.47kg)

    • Item Includes:

      • 1x C5 4" 70-Volt Ceiling Mount Speaker
      • 1x Threaded Easy-Mounting Ring

    • Warranty:

      • 2 Years

    • GTIN:

      0810538039249
