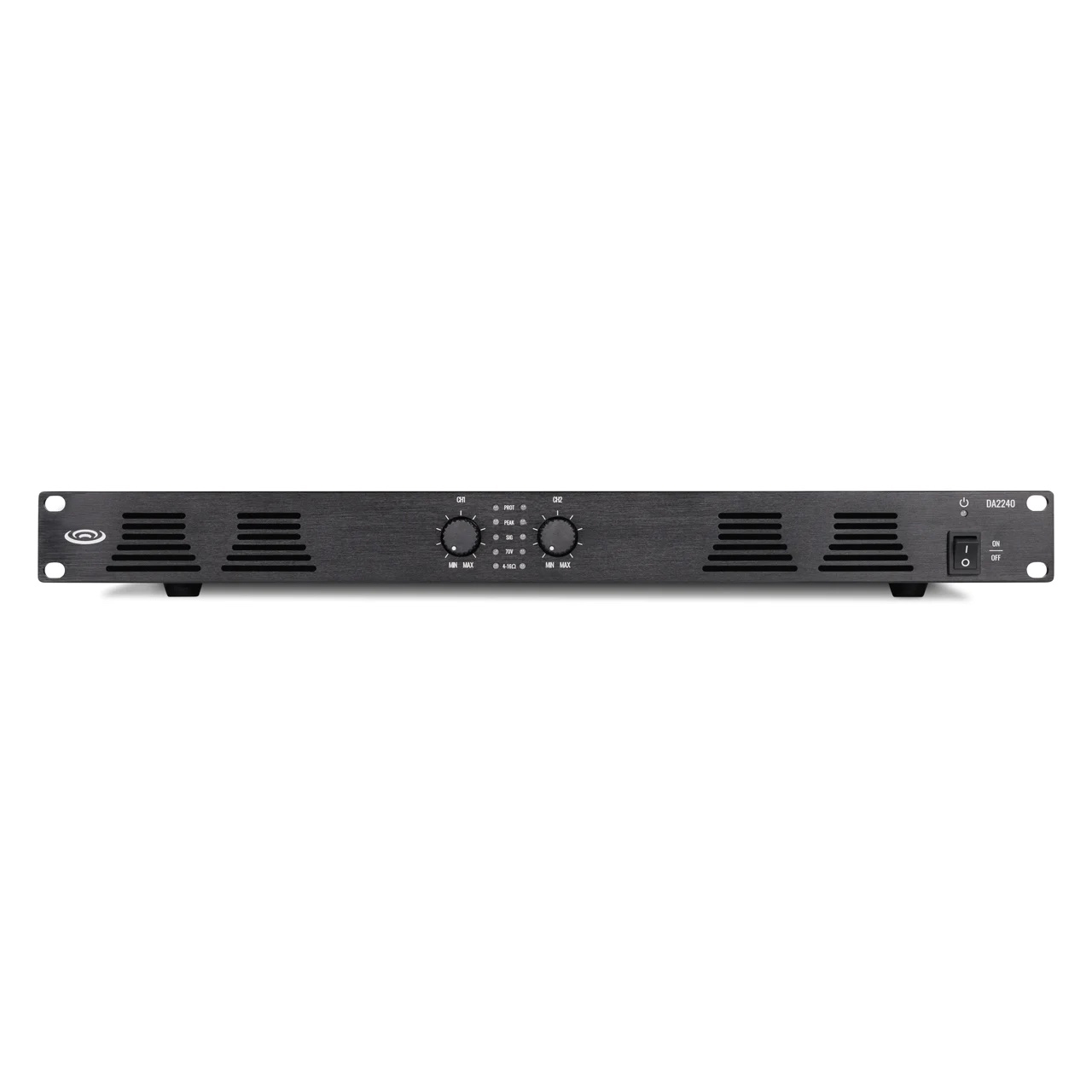

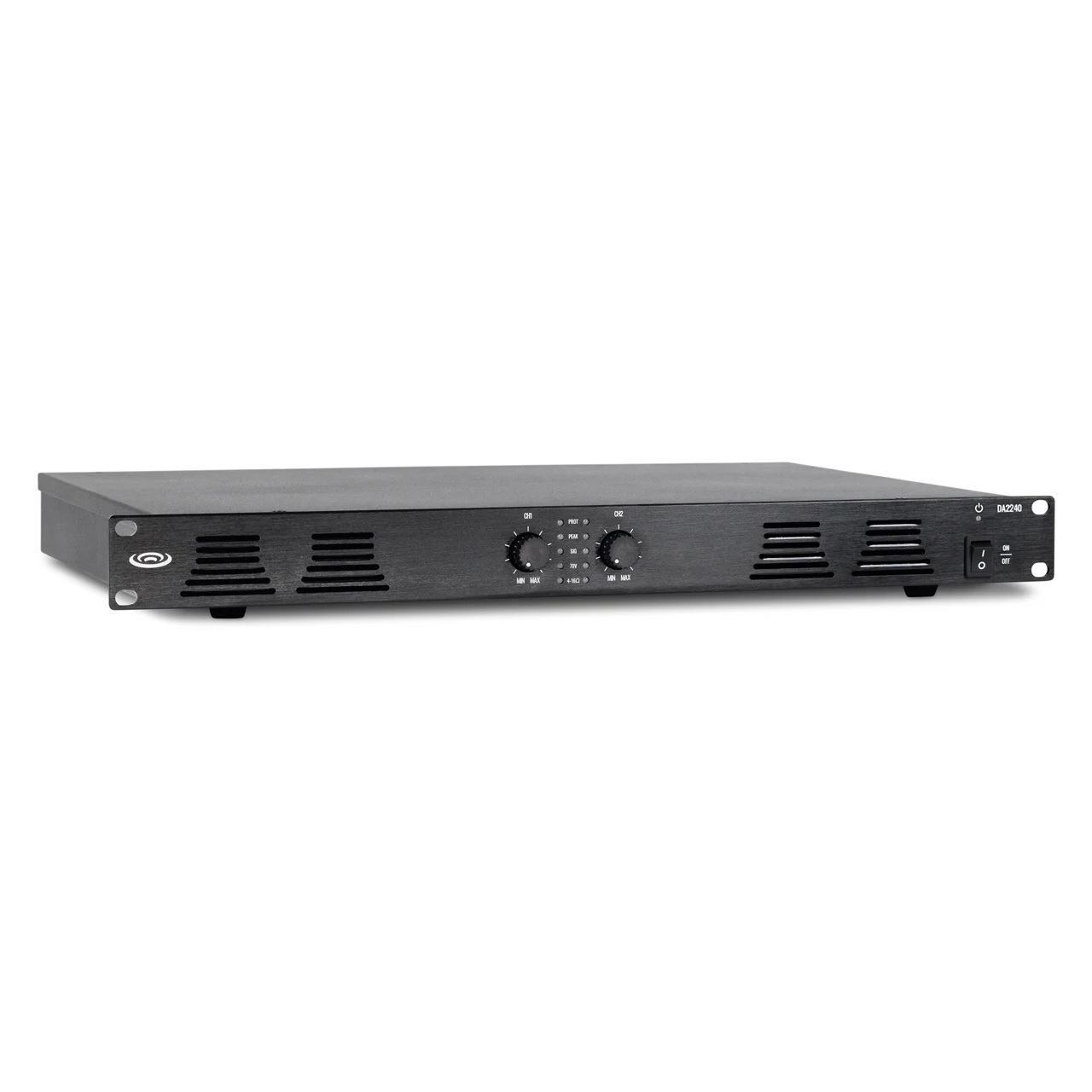

The Pure Resonance Audio DA2240 is a dual-impedance 2-channel Class-D power amplifier with a built-in high-efficiency selectable impedance power supply. Each powerful 240-watt channel has an independent 70V/4-16Ω switch allowing them to simultaneously use a different impedance, delivering more flexibility in various commercial applications. This high-performance rack mount audio amplifier is a cost-effective solution housed in a standard 1RU 19" lightweight chassis. The DA2240 features short-circuit, overload, and overheating protection with cooling fans to provide heat dissipation, maintaining safe operation in environments with long working hours.
2-Channel Rack Mount Power Amplifier
The Pure Resonance Audio DA2240 is a compact, simple-to-use dual-impedance 2-channel audio amplifier with a powerful 240 Watts per channel. This rack mount power amplifier adopts a professional high-performance Class-D amplifying circuit and a built-in high-efficiency selectable impedance power supply. With low power loss and heat output, the DA2240 can drive longer and louder.
Dual-Impedance
Unique among audio power amplifiers, each channel has a 4-16 ohms and 70-volt output terminal switch independent of the other channel. Allowing one channel to service a high-impedance (70V) distributed audio system while the other channel can power low-impedance (4-16Ω) speakers. This exclusive function provides contractors with extreme versatility and reduces the number of amplifiers required. Housed in a rugged and lightweight 1RU standard 19-inch industrial chassis design, this rack mount audio amplifier is built for installed sound applications.
Highly Efficient
High-performance switching power supply and Class-D type power amplifier provides 85% efficiency with low power loss and heat output.
Dual-Impedance

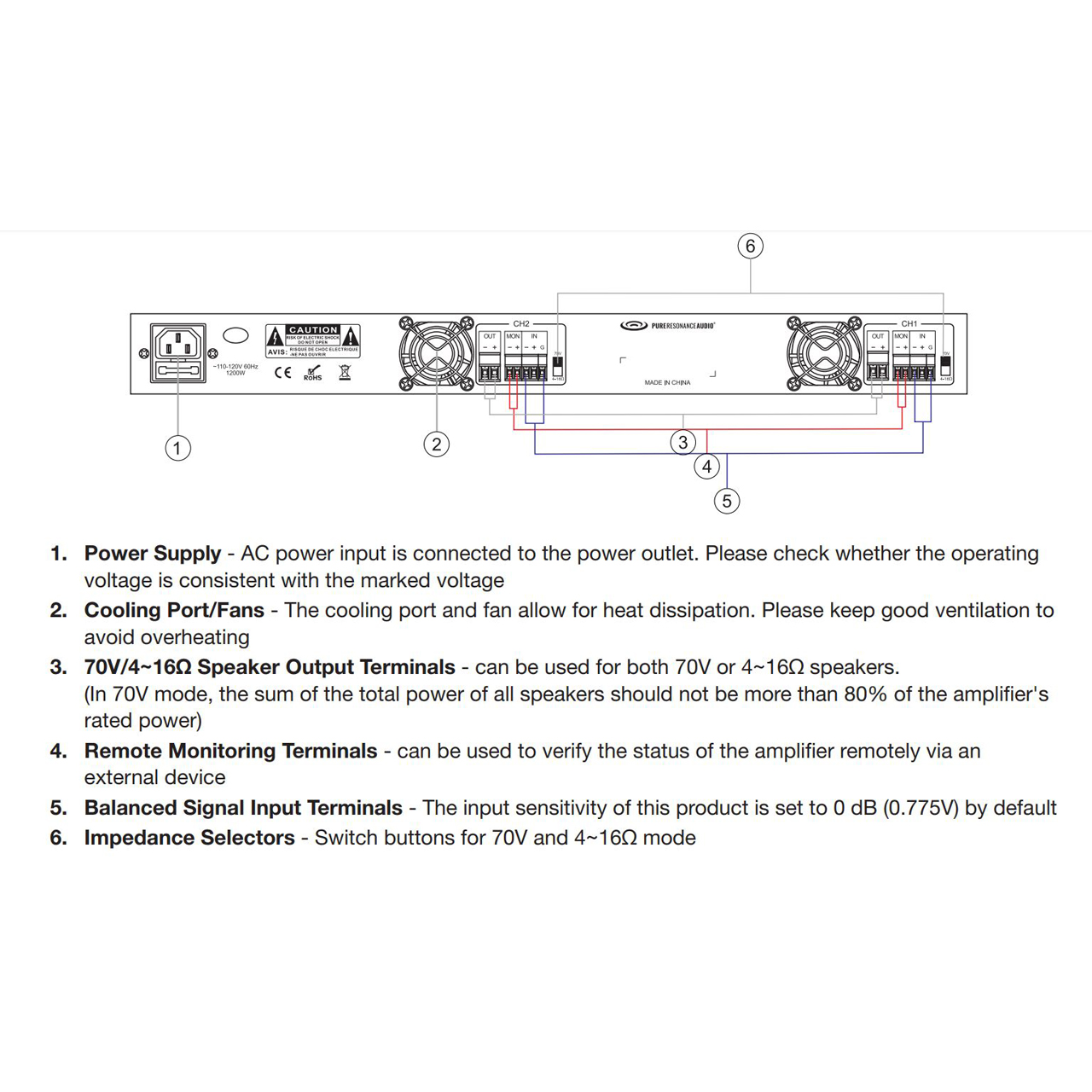

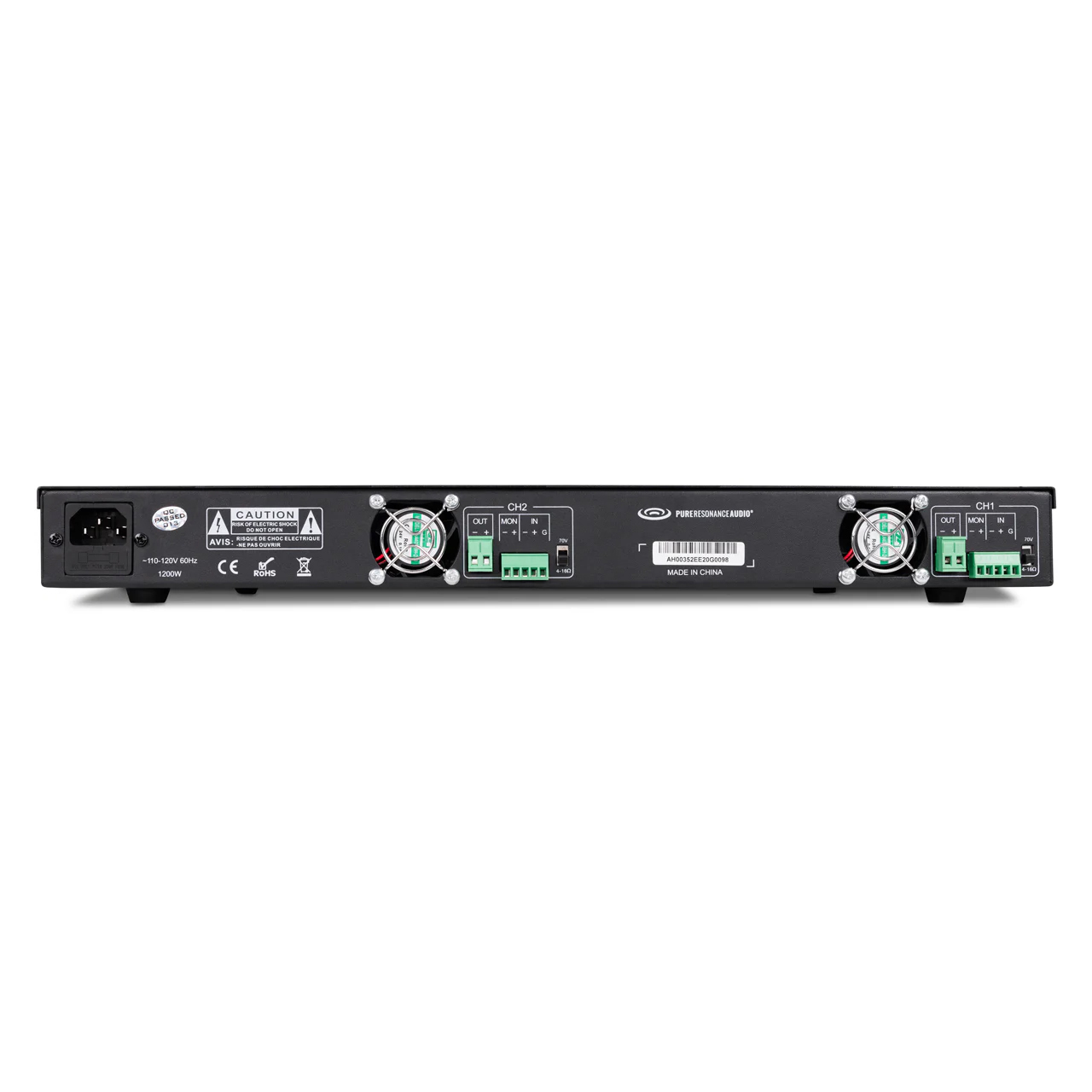

Unique dual-impedance operation with independent 4-16O and 70V output terminal switches enables each channel to use a different impedance simultaneously. The balanced inputs and outputs feature detachable Euroblock terminals.
Powerful
Two 240-watt channels (at 70V and 4Ω) with 70-volt and 4, 8, or 16-ohm output switches.
Compact Size
Compact, lightweight, yet durable 1 rack unit 19-inch industrial chassis with a clean, intuitive design.
Works Long Hours
Automatic cooling fans effectively dissipate heat, ensuring safe and reliable operation even in harsh conditions over extended periods of time.
Safeguard Protected
High temperature, overload, and short circuit protection with signal, peak clipping, protection, and power supply indicator lights.
