PRISMBASERACKKIT - Overview

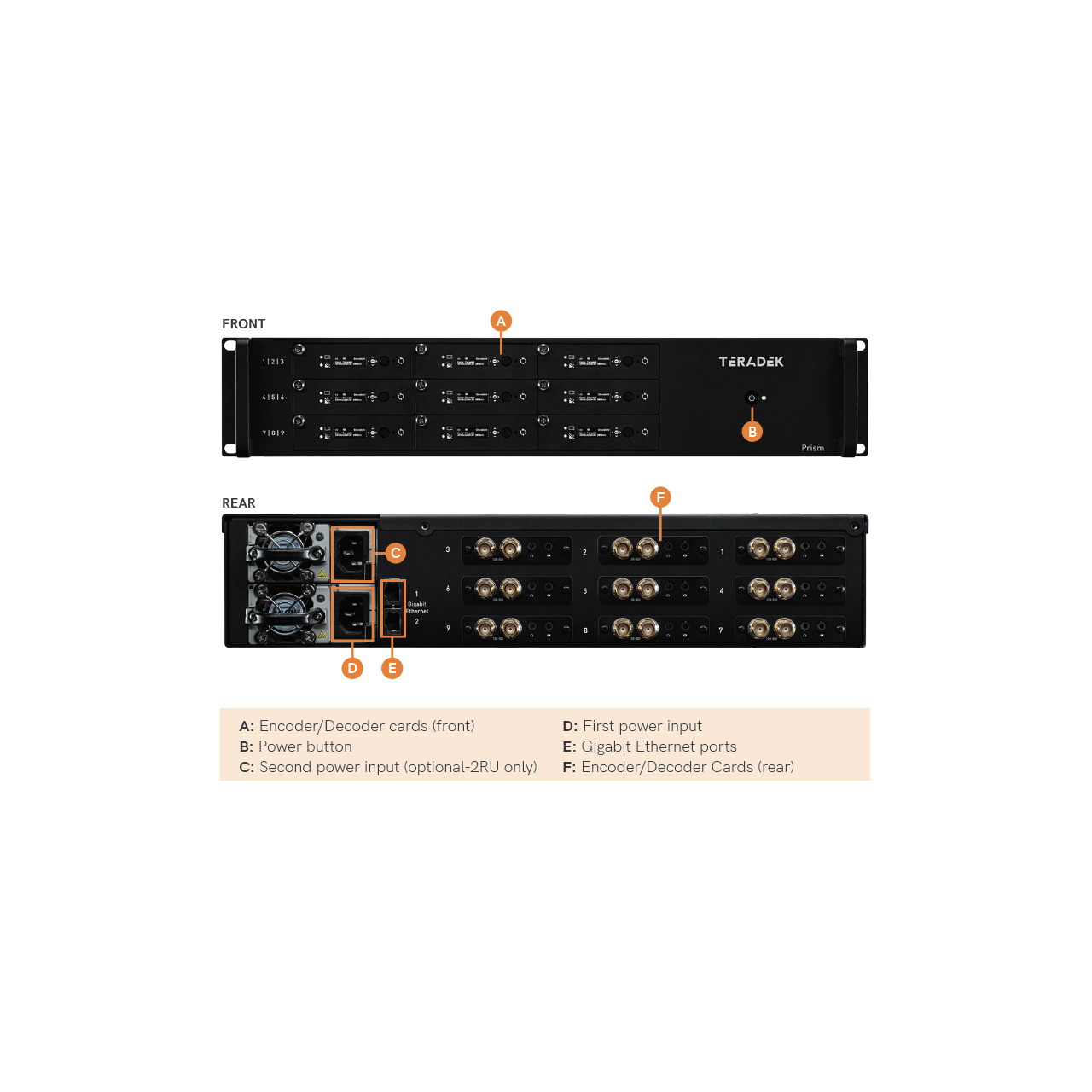

Prism 802 Base Rack System 2RU
The Teradek 10-2802 Prism 802 Base Rack System elevates your production workflow with industry leading, low-latency 4K HDR video. Designed to perform in mission-critical scenarios, Prism's dependability and adaptability shines in IP video deployments of any size and complexity. Encoder / Decoder cards sold separately.

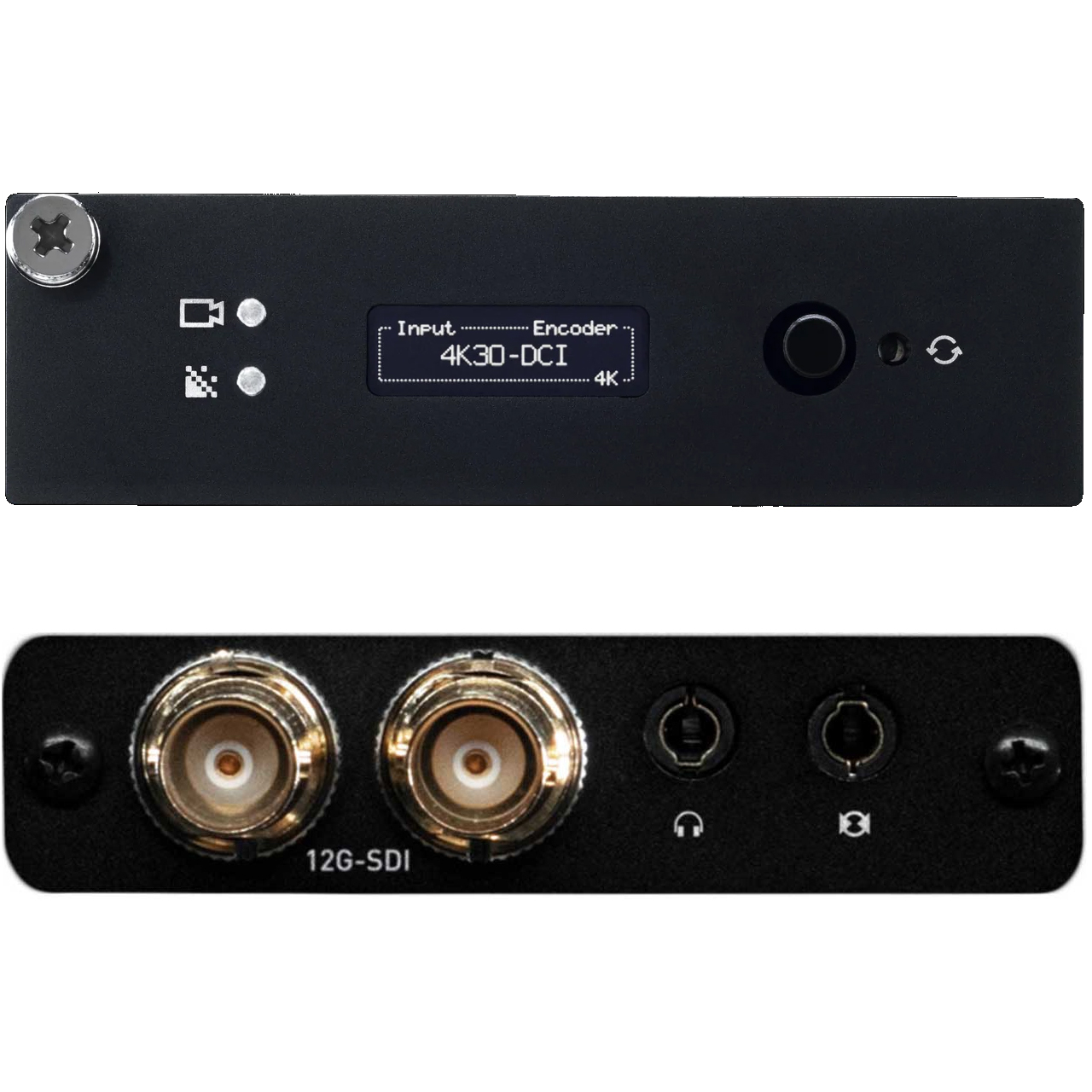

Prism 853 4K 10-Bit HEVC/AVC 12G-SDI Encoder Card
The Teradek 10-2853 Prism 853 4K 10-Bit HEVC/AVC 12G-SDI Encoder Card is an industry leading, low-latency blade encoder for Prism 1RU and 2RU rack mount systems. Supports 4K, 10-bit, 4:2:2 video encoding in a high density format. Can transmit video to Prism, Cube, Slice, Core, and T-Rax decoders.

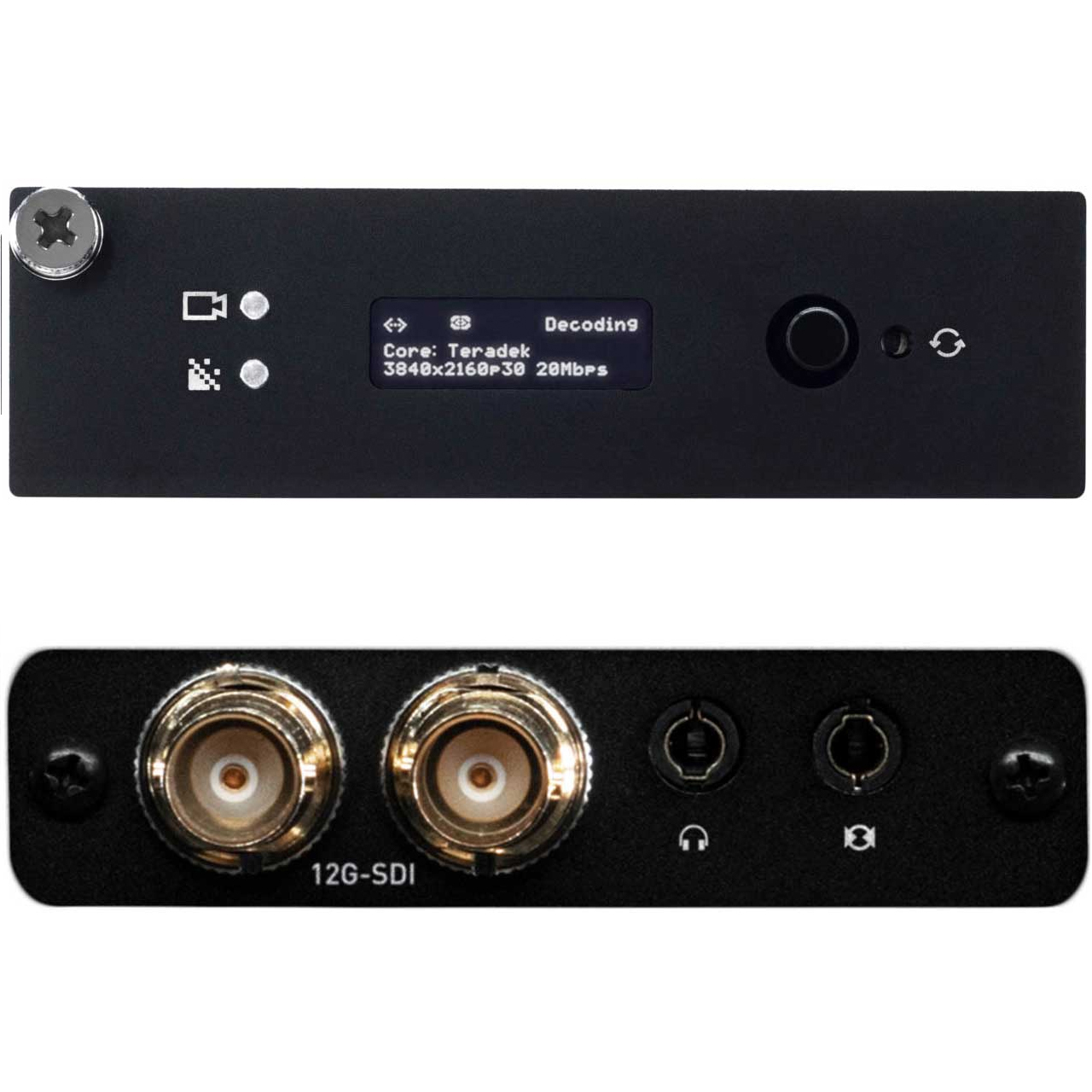

Prism 873 4K 10bit HEVC/AVC 12G-SDI Decoder Card
The Teradek 10-2873 Prism 873 4K 10bit HEVC/AVC 12G-SDI Decoder Card is an industry leading, low-latency blade decoder for Prism 1RU and 2RU rack mount systems. Supports 4K, 10-bit, 4:2:2 video decoding in a high density format. Can receive video from Prism, Cube, Slice, Core, and T-Rax encoders.

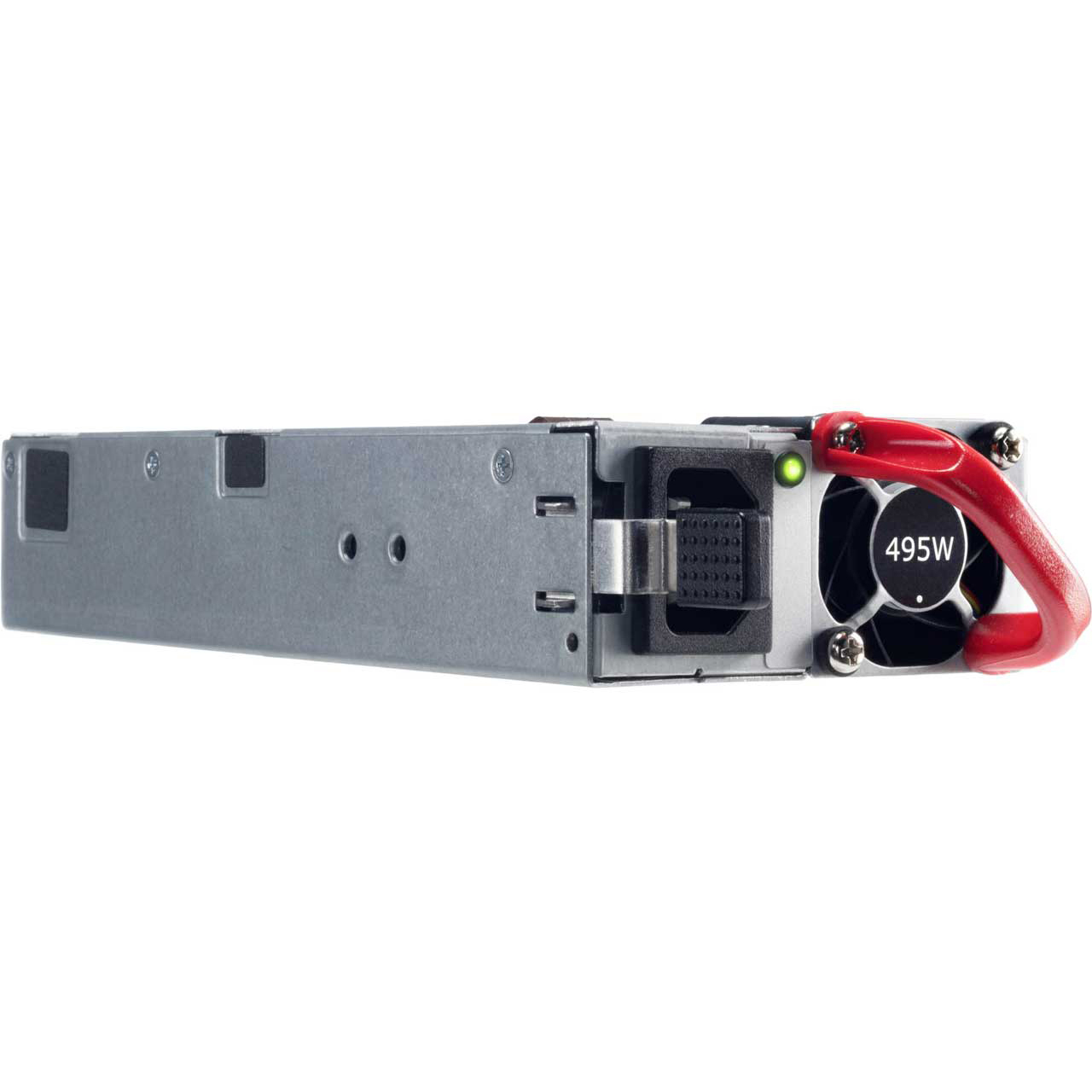

Prism Redundant Power Supply 495W
The Teradek 10-2810 is a power supply for Prism 1RU/2RU rack-mount systems.

Features:
- 2RU rack mount chassis for Prism encoder and decoder cards
- Supports up to 9 Prism encoder and/or decoder cards
- Dual gigabit Ethernet ports
- HEVC / H.264 compression
- Supports encoding up to 2160p60
- HDR ready: 10-bit, 4:2:2
- Protocols: SRT, MPEG-TS, RTMP(S)
- 12G-SDI input and looping output
- 3.5mm analog audio input and output
Specifications:
- Prism 802 Base Rack System 2U
- Switches: On/Off
- Ethernet: 2x 10/100/1000 Ethernet ports
- Power Input: Up to 2x 110/240V AC Power Input, Hot Swappable 495W Power Supply
- Nominal Power Consumption: 15W + 15W per Codec Card
- Dimensions (WxDxH): 17" x 12.1" x 3.5" (431.8mm x 307.3mm x 88.9mm)
- Weight: 8.90lbs (4040g)
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Construction: Milled/Bent aluminum

  Prism 853 4K 10-Bit HEVC/AVC 12G-SDI Encoder Card
- Video Inputs: 1x SD/HD/3G/6G/12G-SDI (75 Ω BNC)
- Hdr Support: 10-bit, 4:2:2
- Genlock Input: 75 Ω BNC (From Chassis)
- Video Outputs: 1x SD/HD/3G/6G/12G-SDI (75 Ω BNC)
- Supported Resolutions:
  - 4Kp 23.98/24/25/29.97/30/50/59.94/60
  - 1080p 23.98/24/25/29.97/30/50/59.94/60
  - 1080i 50/59.94/60
  - 1080PsF 23/24/25/29/30
  - 720p 50/59.94/60
  - 576i 480i

  Video Processing
- ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
- AVC: Baseline, Main, High, High10, High 4:2:2 up to 5.2 level
- ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
- HEVC: Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier
- Supported Video Bitrate: 250 Kbps to 85 mbps
- Video Format Conversion Support: Built in Video Scaler and Deinterlacer
- Color Correction: None

  Protocol Support
- Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
- Supported Video Transport Protocols: RTMP/RTMPS, MPEG-TS, Secure Reliable Transport (SRT)
- Remote Control: Teradek Core

  Audio Processing
- Audio Compression: AAC-LC

  Audio Inputs
- Embedded, 8 channels
- 3.5mm Stereo Line Level Analog

  Audio Outputs
- Embedded, 2 channels
- 3.5mm Stereo Line Level Analog

  Interfaces
- Configuration Interfaces: Feature-rich Web UI for configuration and control, 0.9" OLED Status Display w/ Nav control, Video LED, ENC/DEC LED
- Switches: Reset Switch

  Power
- Power Input: Powered By Chassis
- Nominal Power Consumption: Up to 15W per card

  Prism 873 4K 10bit HEVC/AVC 12G-SDI Decoder Card
- HDR Support: 10-bit, 4:2:2
- Genlock Input: 75Ω BNC (From Chassis)
- Video Outputs: 2x SD/HD/3G/6G/12G-SDI (75 Ω BNC)
- Supported Resolutions:
  - 4Kp 23.98/24/25/29.97/30/50/59.94/60
  - 1080p 23.98/24/25/29.97/30/50/59.94/60
  - 1080i 50/59.94/60
  - 1080PsF 23/24/25/29/30
  - 720p 50/59.94/60
  - 576i 480i

  Video Processing
- ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
- AVC: Baseline, Main, High, High10, High 4:2:2 up to 5.2 level
- ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
- HEVC: Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier
- Supported Video Bitrate: 250 Kbps to 85 mbps
- Video Format Conversion Support: Built in Video Scaler and Deinterlacer
- Color Correction: None

  Protocol Support
- Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
- Supported Video Transport Protocols: SRT, MPEG-TS
- Remote Control: Teradek Core

  Audio Processing
- Audio Compression: AAC-LC

  Audio Inputs
- Embedded, 8 channels

  Audio Outputs
- Embedded, 2 channels
- 3.5mm Stereo Line Level Analog

  Interfaces
- Configuration Interfaces: Feature-rich Web UI for configuration and control. 0.9" OLED Status Display with Nav control, Video LED, ENC/DEC LED
- Switches: Reset Switch

  Power
- Power Input: Powered By Chassis
- Nominal Power Consumption: Up to 15W per card

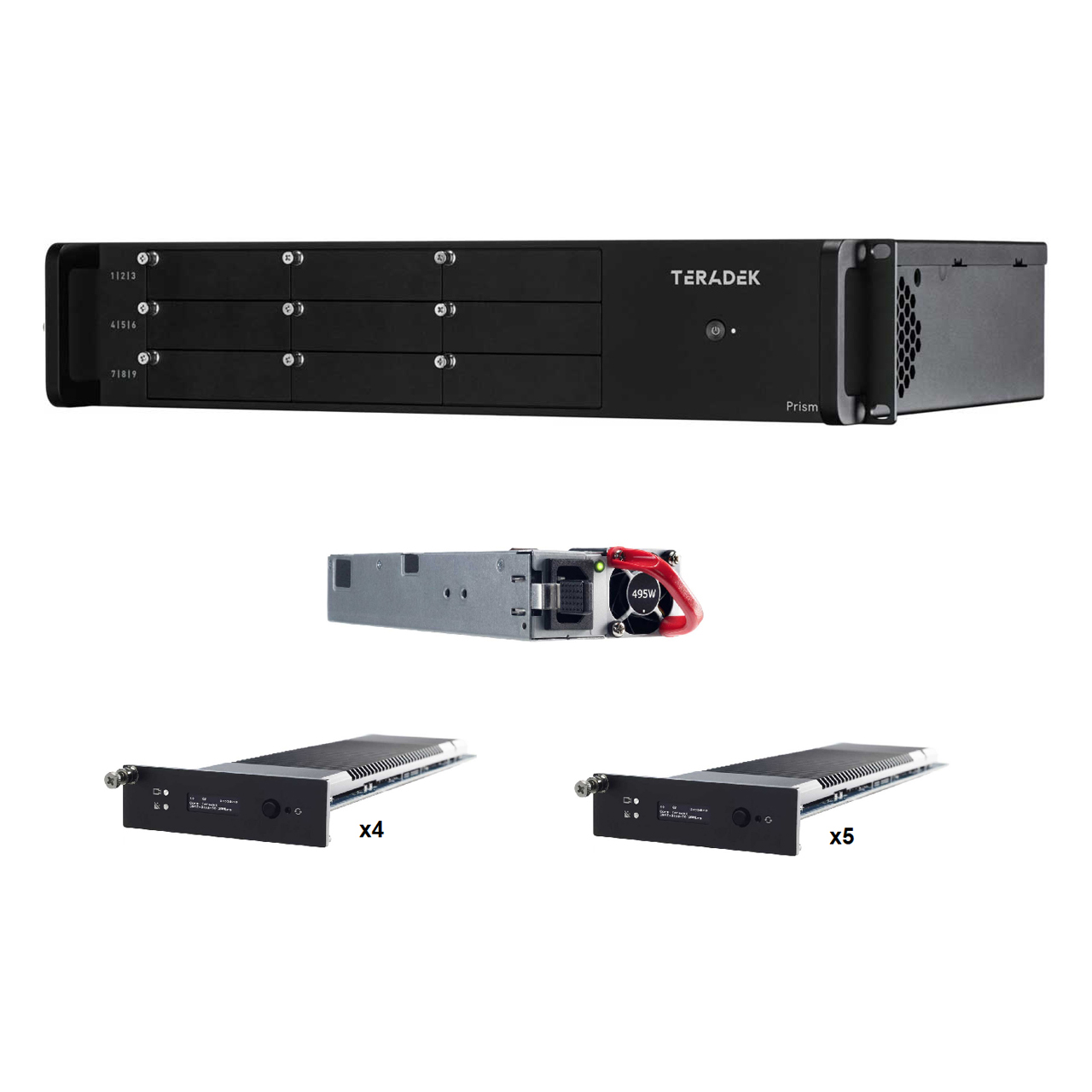

Item Includes:
- 1x Teradek 10-2802 Prism 802 Base Rack System 2U
- 4x 10-2853 Prism 853 4K 10-Bit HEVC/AVC 12G-SDI Encoder Cards
- 5x 10-2873 Prism 873 4K 10bit HEVC/AVC 12G-SDI Decoder Cards
- 1x Prism Redundant Power Supply 495W
