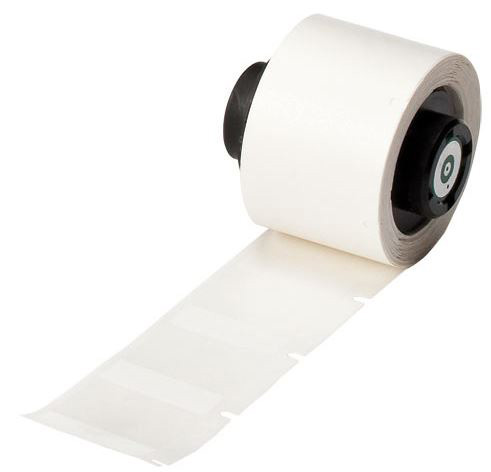

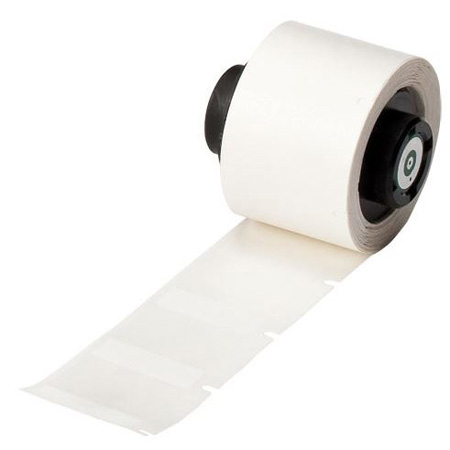

Brady Portable Thermal Labels For Brady TLS 2200 TLS-PC Link BMP71 BMP61 Labelers

18372 - Overview

• Specifications:

  • Part Number: PTL-19-423
  • Acceptable Ribbon Series: R6210, R4410 (colors)
  • Adhesive: Permanent Acrylic
  • After Process: Yes, this material will work with this application
  • Agency Approval(s)/Compliance: UL Recognized, CSA Approved, AGA Approved, Halogen-Free (DIN VDE 0472/parts 815)
  • Application: Component ID, Equipment ID, Barcoding, Asset Tracking, Rating Plates, General Purpose ID
  • Board Application: Through Hole - Top
  • Brady Material Number: B-423
  • Brand: WorkHorse Series
  • Color: White
  • Description: TLS 2200®/TLS PC Link® Labels
  • Finish: Gloss
  • Height (in): 1.000"
  • Height (mm): 25.400 mm
  • Label Type/Style: Label
  • Material Description: Permanent Polyester
  • Material Type: Polyester
  • Max Characters Per Line For Font #2: 24
  • Max Lines of Text For Font #2: 10
  • Panel Application: General Identification

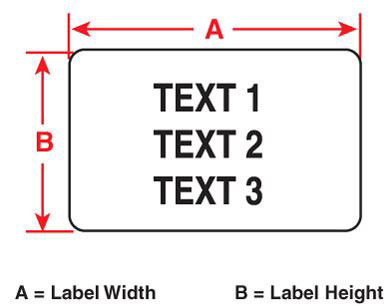

  • Printable Area (in): 1.000" W x 1.000" H
  • Printable Area (mm): 25.400 mm W x 25.400 mm H
  • Printer Compatibility: TLS 2200, TLS-PC Link, BMP71, BMP61
  • Product Number: 18372
  • Qty Per Row: 1
  • QTY/UOM: 250/Roll
  • Recommended Ribbon Series: R6010
  • Safety Catalog: pg. 312
  • Suggested Ribbon Part#: R6010
  • Surface: Smooth
  • Through Hole Technology: No, this material does not work with this application
  • Width (in): 1.000"
  • Width (mm): 25.400 mm


• GTIN:

  0662820183723
