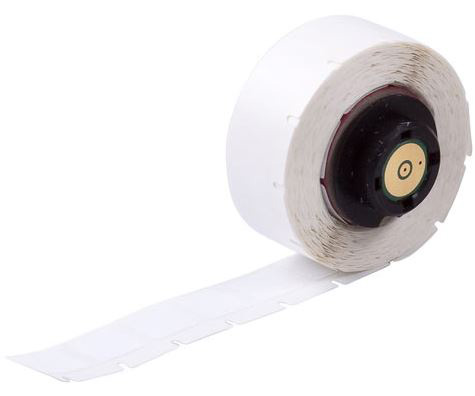

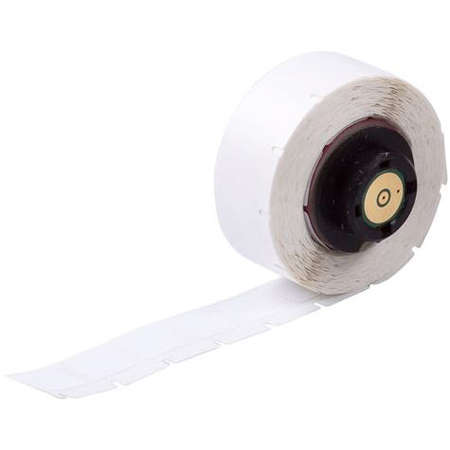

Brady PTL-7-422 .5 Inch x .5 Inch Labels For Brady TLS 2200 TLS-PC Link BMP71 BMP61 Labelers

18668 - Overview

• Specifications:

  • Part Number: PTL-7-422
  • Acceptable Ribbon Series: R6210, R4410 (colors)
  • Adhesive: Permanent Acrylic
  • After Process: Yes, this material will work with this application
  • Agency Approval(s)/Compliance: UL Recognized, CSA Approved
  • Application: Component ID, Equipment ID, Barcoding, Panel ID, Voice/Data ID, Asset Tracking, Rating Plates, General Purpose ID
  • Board Application: Through Hole - Top
  • Brady Material Number: B-422
  • Brand: ToughBond Series
  • Color: White
  • Description: TLS 2200® /TLS PC Link® Labels
  • Finish: Gloss
  • Height (in): 0.500"
  • Height (mm): 12.700 mm
  • Label Type/Style: Label
  • Material Description: Permanent Polyester
  • Material Type: Polyester
  • Max Characters Per Line For Font #2: 11
  • Max Lines of Text For Font #2: 5
  • Panel Application: General Identification
  • Printable Area (in): 0.500" W x 0.500" H
  • Printable Area (mm): 12.700 mm W x 12.700 mm H
  • Printer Compatibility: TLS 2200, TLS-PC Link, BMP71, BMP61
  • Product Number: 18668
  • Qty Per Row: 1
  • QTY/UOM: 500/Roll
  • Recommended Ribbon Series: R6010
  • Safety Catalog: pg. 313
  • Suggested Ribbon Part#: R6010
  • Surface: Smooth, Textured/Rough
  • Surface Mount Technology (SMT): No, this material does not work with this application
  • Through Hole Technology: No, this material does not work with this application
  • Voice/Data Application: Patch Panel - ID Port, Outlet/Jack ID, Location ID, 1-6 Outlet Faceplates
  • Width (in): 0.500"
  • Width (mm): 12.700 mm


• GTIN:

  0662820186687
