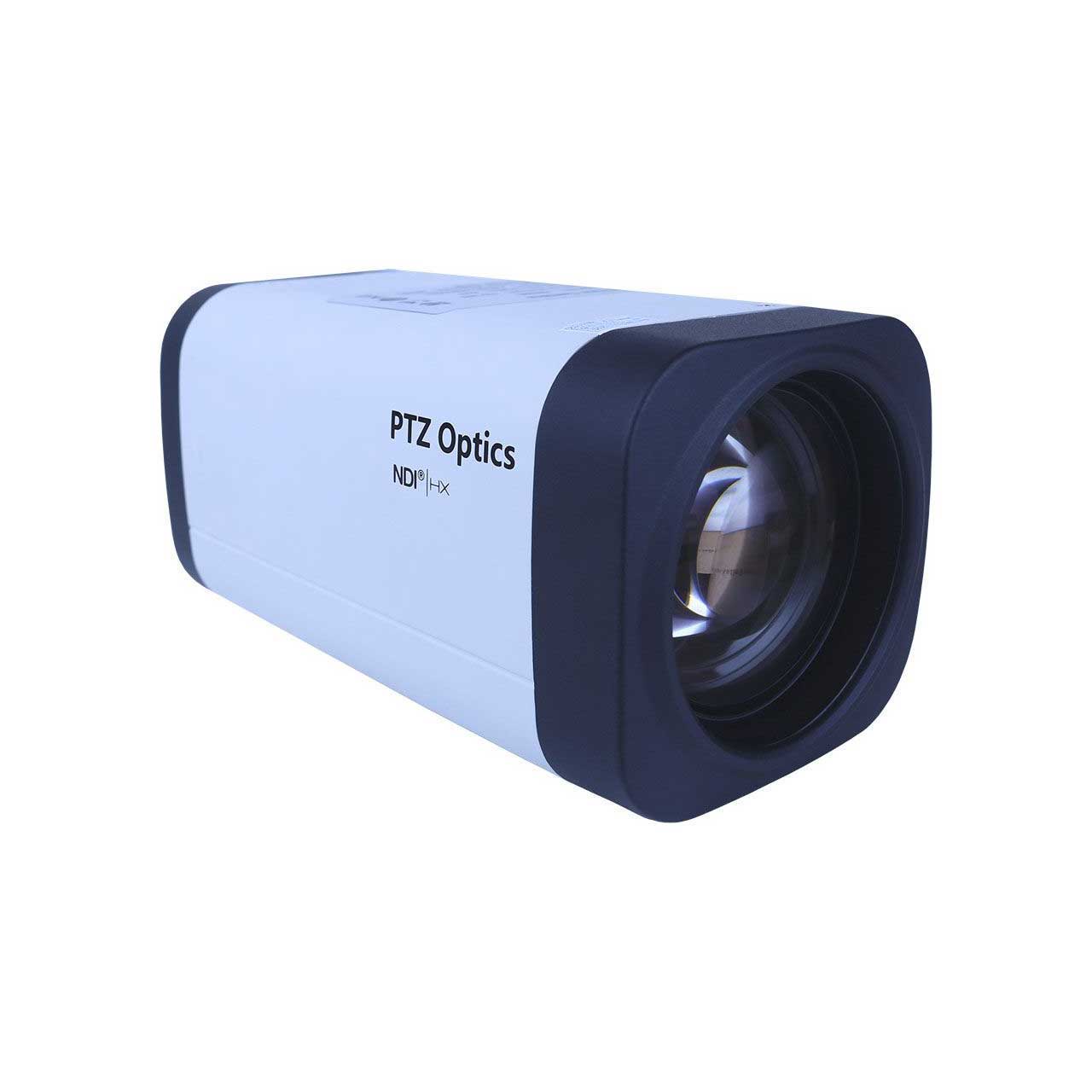

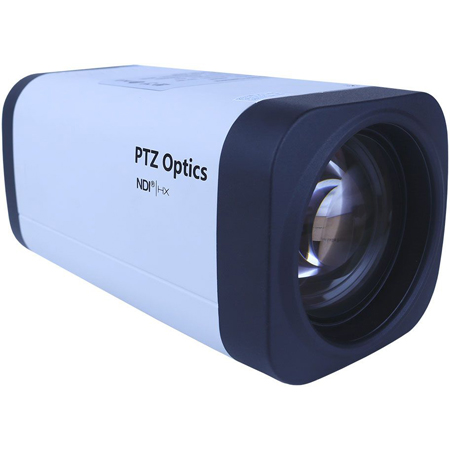

PTZOptics PT12X-NDI-ZCAM 1080p NDI/HX ZCam for Static POV with 12x Optical Zoom -White

PT12X-NDI-ZCAM - Overview

• Features:

  • Panasonic 1/2.7" HD CMOS Sensor
  • 3G-SDI & NDI|HX High Definition Video Output
  • H.264, H.265, & MJPEG IP streaming output (dual stream)
  • AAC Audio encoding over IP
  • High performance in low light scenarios
  • Full 1920x1080p HD Resolutions up to 60 FPS via SDI (30 FPS over NDI)
  • 3G-SDI, & NDI or IP streaming (Both simultaneously)
  • Std 1/4-20 female thread for camera mounting (bottom)
  • PoE (Power over Ethernet) or 12VDC
  • RTMP, RTSP, and NDI|HX
  • Hold left button on Menu Navigation for 5+ seconds to toggle Dynamic or Static IP addressing
  • 5-year warranty
  • Photobooth capable


• Specifications:

  • Camera & Lens
  • Video Sensor: 1/2.7" CMOS, 2.07 Mega Pixels
  • Frame Rates:
    - 1080p-60/50/30/25, 1080i-60/50,
    - 720p-60/50
    - (IP Stream limited to 30 fps)
  • Focal Length: 12x, F4.42mm-88.5mm, F1.8-F2.8
  • Lens Zoom: 12x
  • Field of View: 72.5°
  • Min Lux: 0.05 Lux (@F1.8, AGC ON)
  • Shutter Speed: 1/30s - 1/10000s
  • SNR: =55dB
  • Vertical Flip & Mirror: Supported
  • Horizontal Field of View: 6.9° (tele) to 72.5° (wide)
  • Vertical Field of View: 3.9° (tele) to 44.8°(wide)
  • Working Environment: Indoor

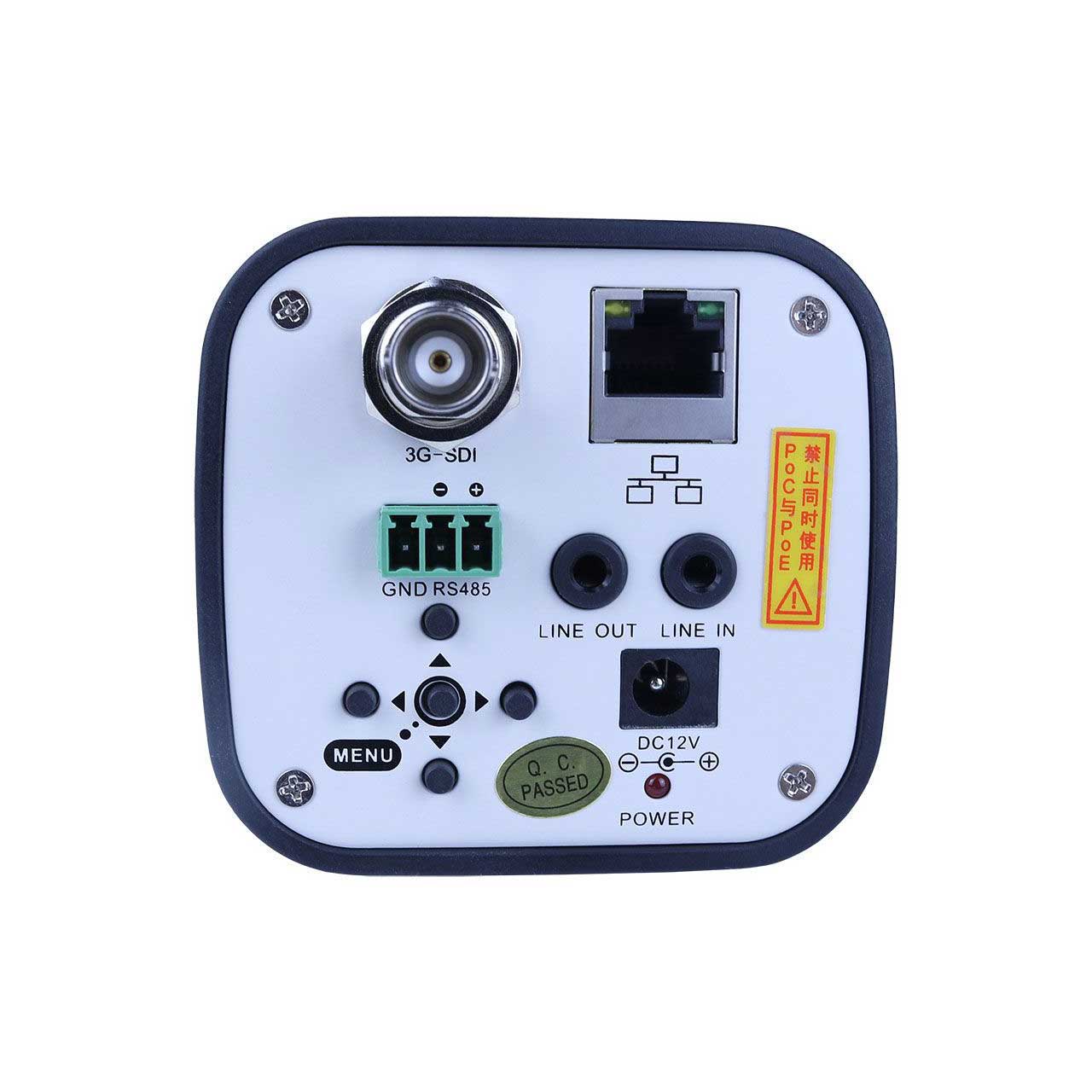

    Rear Board Connectors
  • Video Output Interface: 3G-SDI, NDI|HX
  • Communication Interface: RS485 VISCA, Pelco-D, Pelco-P
  • Power Supply Interface: JEITA type Power Adapter (DC in 12V)
  • Baud Rate: 2400/4800/9600 bits

    Physical Specifications
  • Dimensions (in.): 3.1W x 2.9H x 5.7D (6.3" D w/ SDI)
  • Camera Weight: 1.45 lbs
  • Box Dimensions (in.): 10W x 5D x 5H
  • Box Weight: 2.0 lbs


• Item Includes:

  • 1x 12X NDI|HX ZCAM Camera
  • 1x Power Adapter
  • 1x PoE Splitter*
  • 1x Quick Start Guide
    *PoE Splitters are included with serial numbers vg02250001 and beyond.


• Warranty:

  • 5 Year Warranty
