TALLY4-BMD - Overview

Add tally lights to a Blackmagic Design ATEM switcher!

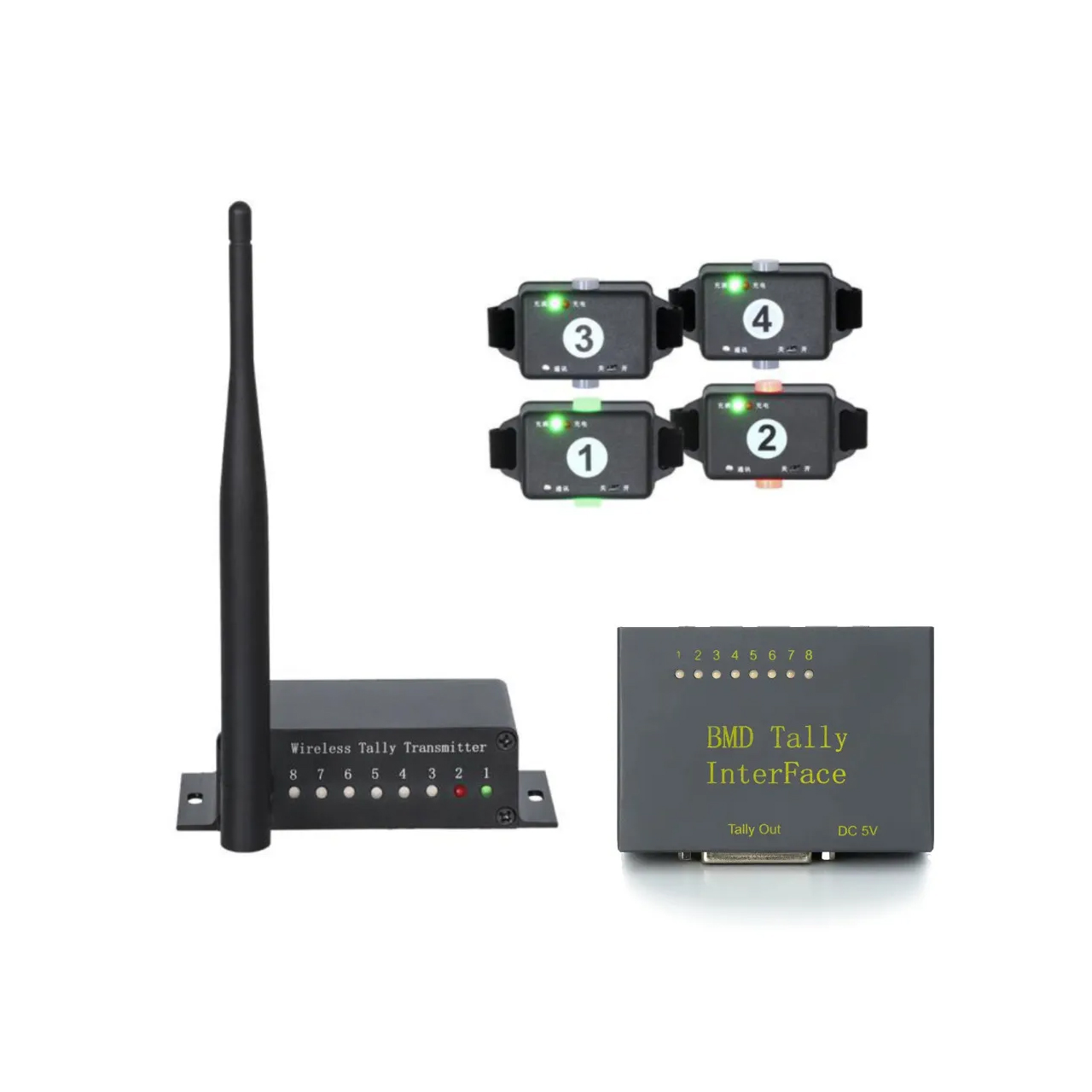

PTZCam TALLY4-BMD for ATEM switchers lets you add four wireless tally lights to any camera and control them with any Blackmagic ATEM switcher. The kit includes 4 lights, a BMD interface switch, and a wireless host station.

The included DB25 cable connects the host unit to the BMD tally interface to control the tally lights via a Blackmagic Design ATEM switcher up to 984' away. You can also use vMIX and other control surfaces (all items sold separately) in combination for ultimate flexibility. The built-in long-life Li-Ion batteries charge with the included USB cable. Tally lights include a shoe mount and hook-and-loop strap and the units low transmission power avoids interfering with other wireless equipment.

PLEASE NOTE: This product contains Lithium-Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • 984 foot transmission range
    • Designed for Blackmagic ATEM Switchers
    • Super-bright Red and Green lights for Program and Preview
    • Tally Lights numbered 1-4
    • BMD interface features 4 Ethernet Ports to connect to ATEM Switchers
    • Easy and Straighforward Set-Up
    • Lights charge by USB - Long lasting!

  • Specifications:

    • General
    • Compatibility:
      - PTZCam Switch N8 Controller
      - Switchblade Systems VMC12 Control Panel

      Inputs/Outputs
    • USB I/O: 1x Micro-USB (Power Only) Female Input
    • Wireless: 2.4GHz Radio/RF built-in

      Power
    • Battery Chemistry: Lithium-Ion (Built-In Battery)
    • Battery Capacity: 2000mAh
    • DC Input Power: 5 VDC
    • Power Consumption: 500mW
    • Operating Current: 400mA

      Physical
    • Mounting:
      - 1x Shoe Adapter on Each Light
      - 1x Hook-and-Loop on Each Light
    • Dimensions:
      - 4.13" x 2.56" x 0.7" (104.9mm x 65.02mm x 17.8mm)(Host)
      - 2.6" x 1.4" x 0.7" (67.3mm x 36mm x 18.8mm)(Light)
    • Weight:
      - 17.6oz (500g)(Host)
      - 7.1oz (200g)(Light)

  • Item Includes:

    • 1x Blackmagic Design Tally Interface
    • 4x Tally Light with built-in rechargable Li-Ion Battery, shoe mount and hook-and-loop strap
    • 1x Power Adapter
    • 1x Micro-USB Power Cable Set
    • 1x Wireless Host Station
    • 1x DB25 Cable

  • Warranty:

    • 1-Year

  • GTIN:

    0601946496652
