    PT20X-SE-WH-G3 - Overview

    Feature-Packed and Built to Scale
    Built on the award-winning PTZOptics camera line, the PTZ and auto-tracking features you love are now more within reach than ever. The PTZOptics Move SE combines HDMI, SDI, USB and IP outputs - plus NDI®|HX upgradeability - all into a single camera. Ideal for live streaming and video production, the Move SE offers high-quality video with a resolution of 1080p at 60fps. And with SONY CMOS image sensors, you can count on great image quality even in low-light scenarios.

    Designed with You - and the Future - in Mind
    Experience a more intelligent video production workflow with the Move SE's updated user interface and feature set that continually expands based on user feedback. Plus, PTZOptics' one-click firmware updates make it easy to future-proof your investment, with new capabilities continuing to come online as the platform evolves over time. And with 12x, 20x, and 30x optical zoom options, plus PoE, the Move SE can fit seamlessly into any production scenario.

    Pan, Tilt, Zoom, Track.
    With the Move SE's auto-tracking features, users can control their production from behind the scenes - or right in front of them. Plus, the Move SE's Presenter-LockT auto-tracking features allow users to lock into a specific person, even while other people are in frame, and switch between on-stage presenters with the click of a button. In addition to the Move SE's auto-tracking features, users also have access to PTZOptics' latest Web UI, updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.

    From hardware to software, the options for camera control are endless - allowing you to take charge of your camera in a way that fits your workflow.

    Perfect for Public Spaces
    With safety and ease of use in mind, the Move SE includes IR remote control receivers on both the front and back of the camera, so operators can control the camera's movements from any angle. And for added security in public spaces, the Move SE is equipped with a Kensington lock to deter theft and ensure peace of mind. Whether you're using the Move SE in a classroom, public courtroom, or shared meeting space, you can rest easy knowing that it's built to handle the demands of any public setting.

    • Features:

      • Built-In Auto-Tracking
      • Advanced White Balance Modes
      • Wide Dynamic Range
      • Full Frame Rates: 1080p-60/50/30/25/59.94/29.97, 1080i-60/50/59.94, 720p-60/50/59.94
      • Up to 1080p Resolution @ 60fps
      • SRT Support
      • 2D & 3D Noise Reduction
      • 5 Year Parts & Labor Manufacturer Warranty

    • Specifications:

      • Image Sensor & Lens
      • Video Sensor: 1/2.8", CMOS, Effective Pixel: 2.07M
      • Resolution and Frame Rate: 1080p-60/50/30/25/59.94/29.97, 1080i-60/50/59.94, 720p-60/50/59.94
      • Digital Zoom: Off (1920x1080), 2X (960x540), 3X (640x360), 4X, (480x270), 8X (240x135), 16X (128x72)
      • Min. Lux: 0.5 Lux @ (F1.8, AGC ON)
      • Shutter: 1/30s ~ 1/10000s
      • Lens: 20x: f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8
      • White Balance: Auto, Indoor, Outdoor, One Push, Manual, VAR
      • Backlight Compensation: Supported
      • Digital Noise Reduction: 2D & 3D Digital Noise Reductions
      • Field of View: 20x: Horizontal: 3.4° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide)(wide)

        Pan/Tilt Movement
      • Pan Movement: ±170°
      • Pan Speed: 1.7° ~ 100°/s
      • Tilt Movement: +90° to -30
      • Tilt Speed: 1.7° ~ 69.9°
      • Image Flip, Mirror and Freeze: Supported
      • Presets: 255 Presets
      • Preset Accuracy: 0.1°

        Power Options
      • Power Supply: DC 12V
      • Input Power: 2A (Max)

        Physical Specifications
      • Material: Aluminum, Plastic
      • Color: White and Gray
      • Dimensions (W x D x H): 5.6" W x 6.7" D 6.5" H (7.88" H max height w/ tilt up)
      • Weight: 3.2 lbs. (1.445 kg)
      • Working Environment: Indoor
      • Operating Temperature: 14°F ~ 104°F (-10°C to 40°C)
      • Storage Temperature: -40°F ~ 140°F (-40°C to 60°C)

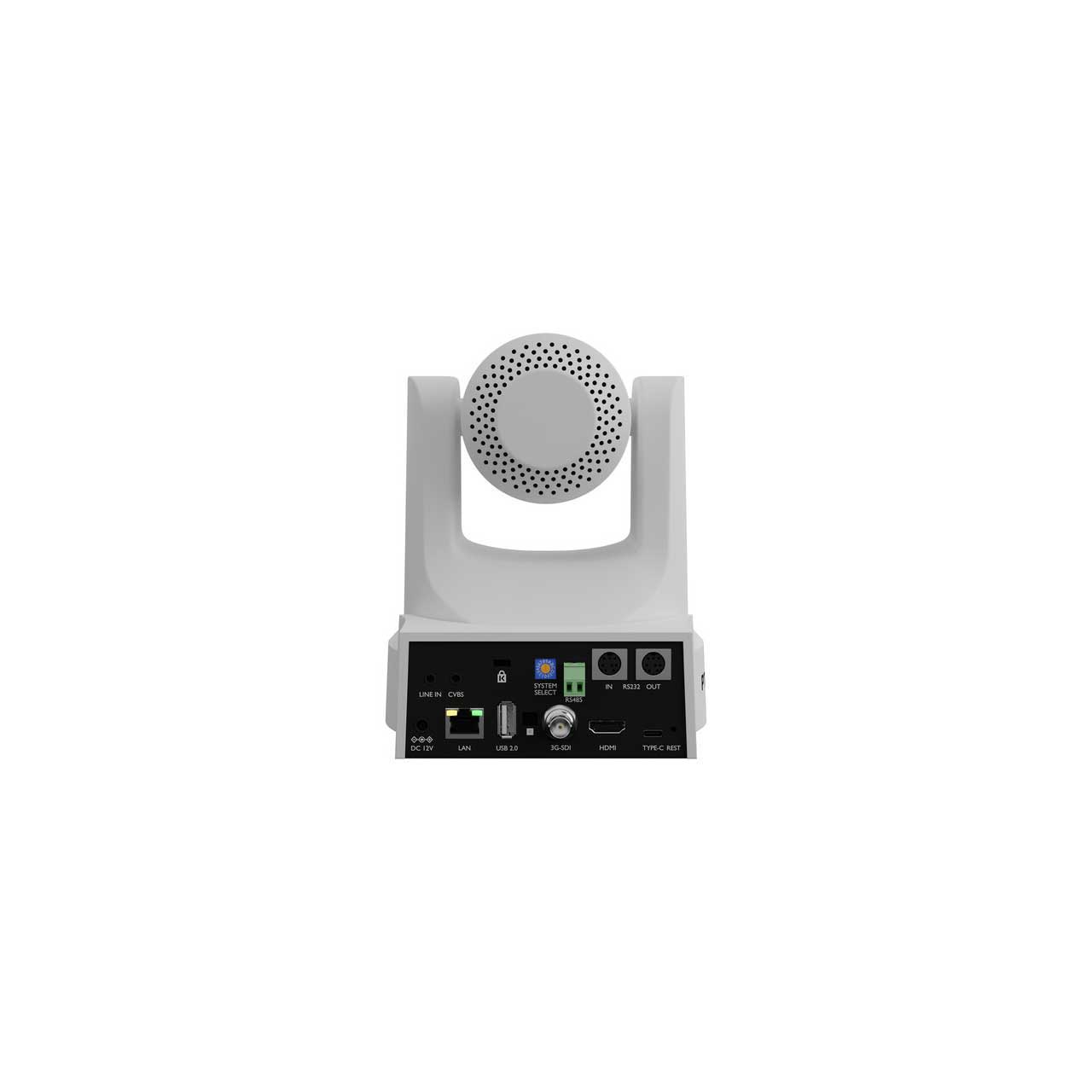

        Rear Board Connectors
      • HD Video Output
        1x RJ45: 10/100 Adaptive Ethernet Port 424M standard
        1x HDMI: version 1.3
        1x 3G-SDI: BNC type, 800mVP-p, 75Ω, along to SMPTE 424M standard, USB 3.0 Type C
        1x USB 3.0 Type C
      • Audio Interface
        1x 3.5mm Line level Input
      • Communication Interface
        1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
        1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
        1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
      • IR
        4x IR Addresses, Max distance 30ft / 9m
      • Power Jack
        JEITA type (DC IN 12V)

    • Item Includes:

      • 1x Camera
      • 1x AC Power Supply
      • 1x USB C-A Cable
      • 1x RS232 Cable
      • 1x Quick Start Guide
      • 1x IR Remote
      • 2x AA Batteries
