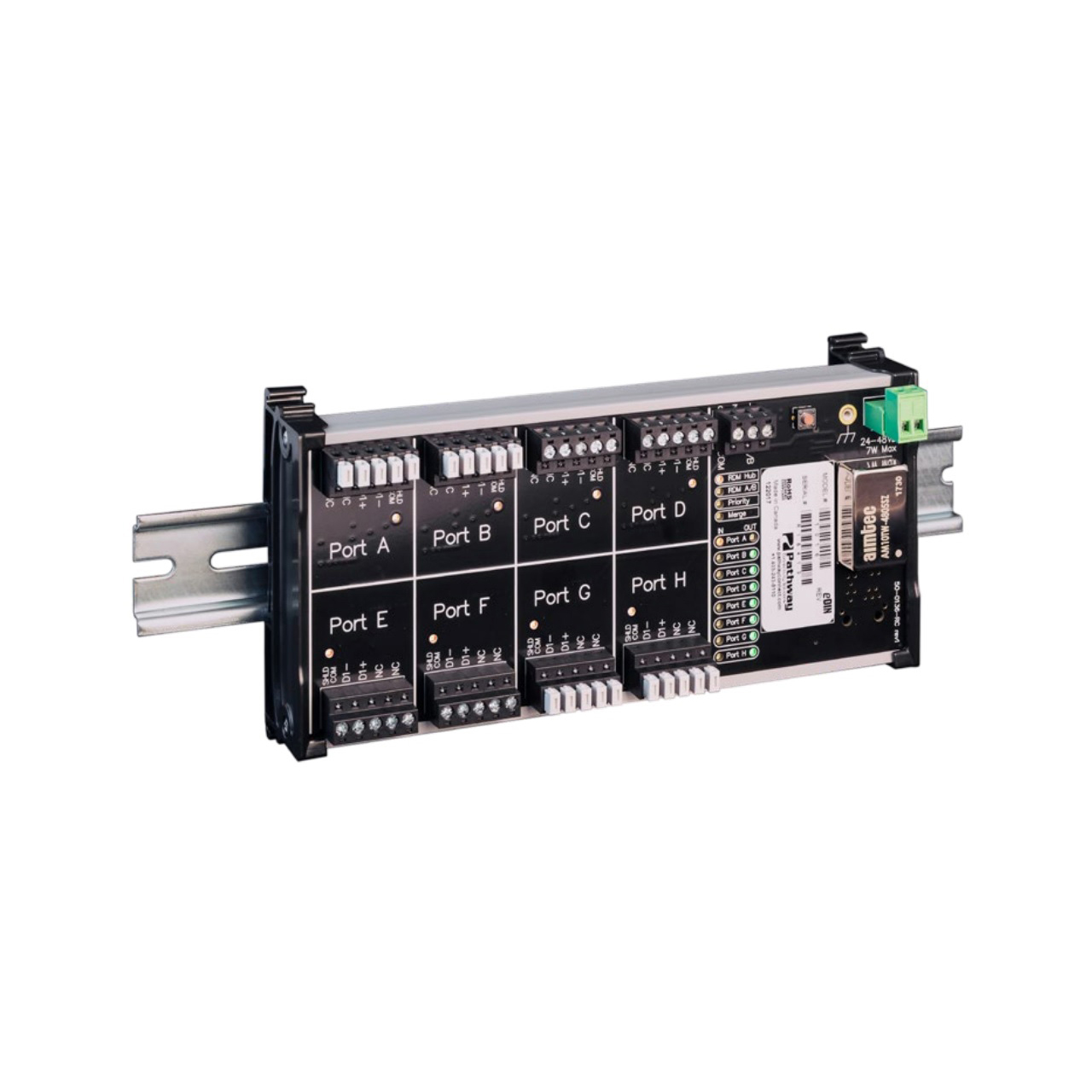

The Pathway DIN 8-port RDM Hub PWREP DIN P8 RDMHUB brings flexibility to single universe DMX512 distribution systems.
Through the use of automatic DMX512 sensing across four operating modes, any port may detect a roving DMX512 source and act as an input; two inputs may be merged together; the user may select between inputs; or a priority scheme may be invoked.
The module is RDM discoverable and configurable, as well as daisy-chainable.

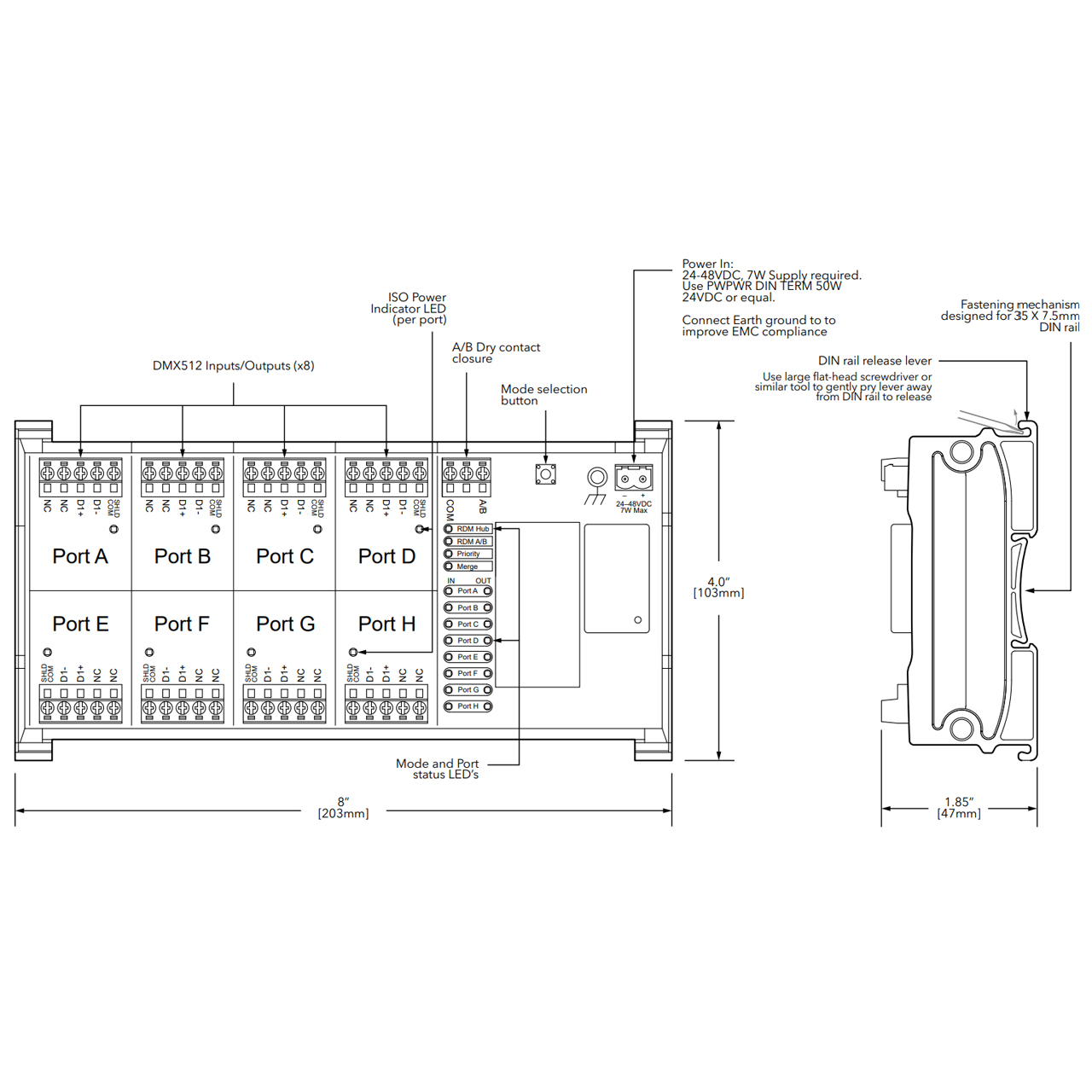

Connections
The PWREP DIN P8 RDMHUB DMX/RDM Hub features terminal strips that can be removed from the card to facilitate easy wiring replacement.
The PWREP DIN P8 RDMHUB will operate on a range of voltages from 24-48 volts DC, with a maximum power consumption of 7 Watts. Observe the correct polarity when wiring the power IN terminal plug. The earth ground terminal must be connected to the enclosure's chassis or electrical ground terminal to improve EMC compliance.
DMX512 (DMX) connections consist of a shield and data pair. Connect DATA+ and DATA- to D1+ and D1-.
