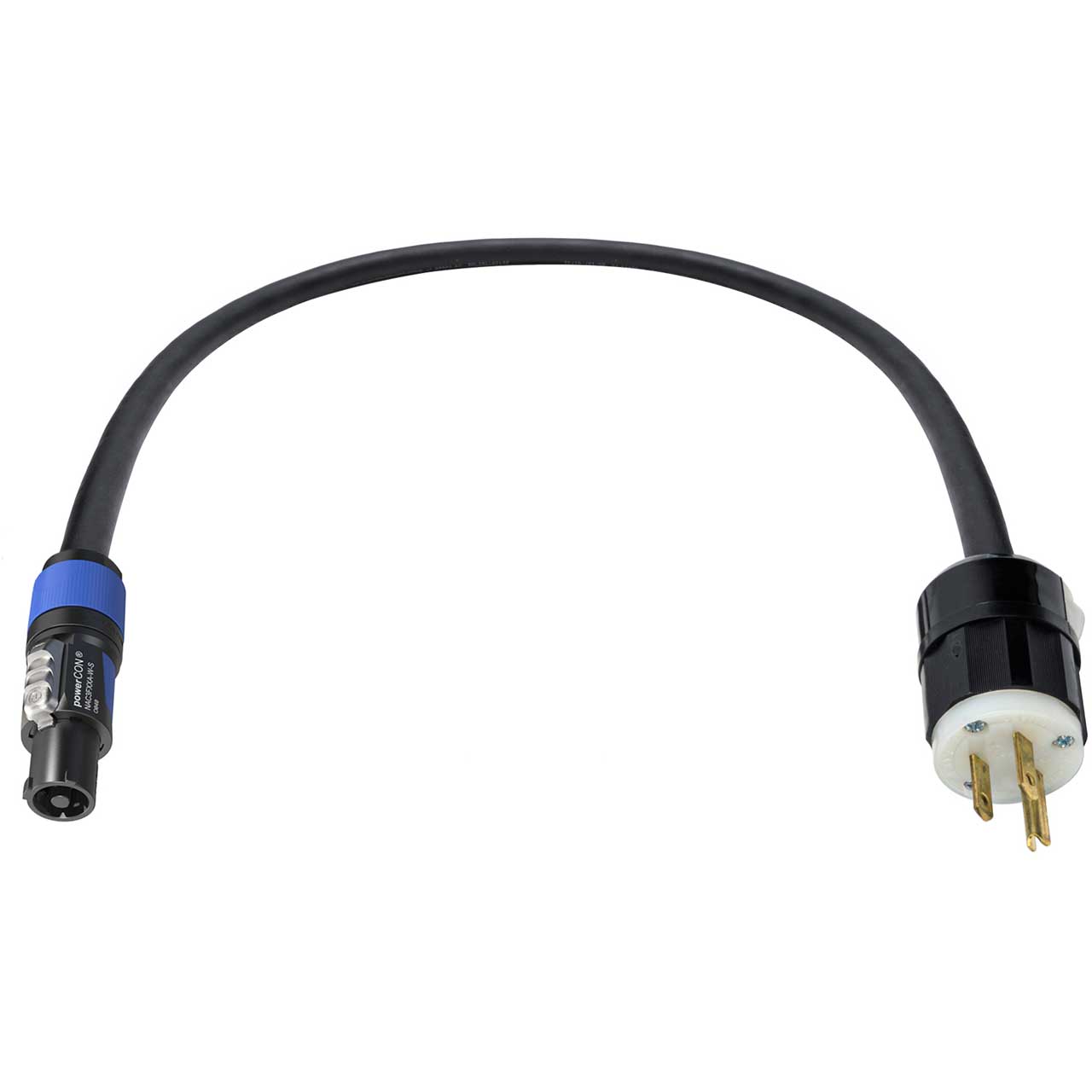

Laird Neutrik powerCON Locking 3-Pole 15-Amp Type A to Edison AC Wall Plug Power Cable - 6 Foot

ITEM #: PWRCN-ACIN-6 MFG #: PWRCN-ACIN-6

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$43.49

Our Price:

$38.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PWRCN-ACIN-6 - Overview

powerCON® is a lockable 3 pole equipment (AC) connector with contacts for line, neutral, and premating safety grounds. It is rated at 15A/250V ac. Color coded for easy identification, powerCONr offers power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating. The contacts are designed to prevent damage from arcing when disconnected while under load. The cable is a 300V 12 AWG UL Listed 3 Conductor TPrene Jacketed Heavy Duty Power Cord - Black. Professionally assembled in our in-house cable shop for powering various Mackie, Turbosound, JBL and other gear that utilize the Neutrik powerCON® connector.

  • Features:

    • Neutrik powerCON® XX Series
    • NEMA 5-15P AC Plug
    • PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable
    • Flexibility in Low Temperatures
    • IP 20 Rated
    • Water and Oil Resistant
    • Fully Annealed Stranded Bare Copper Conductors for Strength and Abrasion Resistance

  • Specifications:

    • PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable:
    • UL Listed 3 Conductor Jacketed Heavy Duty Power Cord
    • TPrene Jacket - Black
    • 3 conductor colors: Black, White and Green

      Leviton 5266-C AC Plug Cable End:
    • 15 Amp
    • 125V
    • NEMA 5-15P

      Neutrik NAC3FXXA-W-S powerCON® XX Series:
    • Contact Resistance: ≤2 mΩ
    • Dielectric Strength: > 3 kVac (after mating cycle)
    • Insulation Resistance: > 10 GΩ (initially)
    • Number of Electrical Contacts: 2 + PE
    • Lifetime: typically 5000 mating cycles
    • Flammability: UL 94 V-0
    • Protection Class: IP20
    • Temperature Range: -33°F to 80°F
    • Rating Europe: EN 60320-1: 16A 250V AC, CBC
    • Rating USA/Canada: cUL 60320-1: 20 A 127 V AC, CBC

  • Warranty:

    • 1 Year
