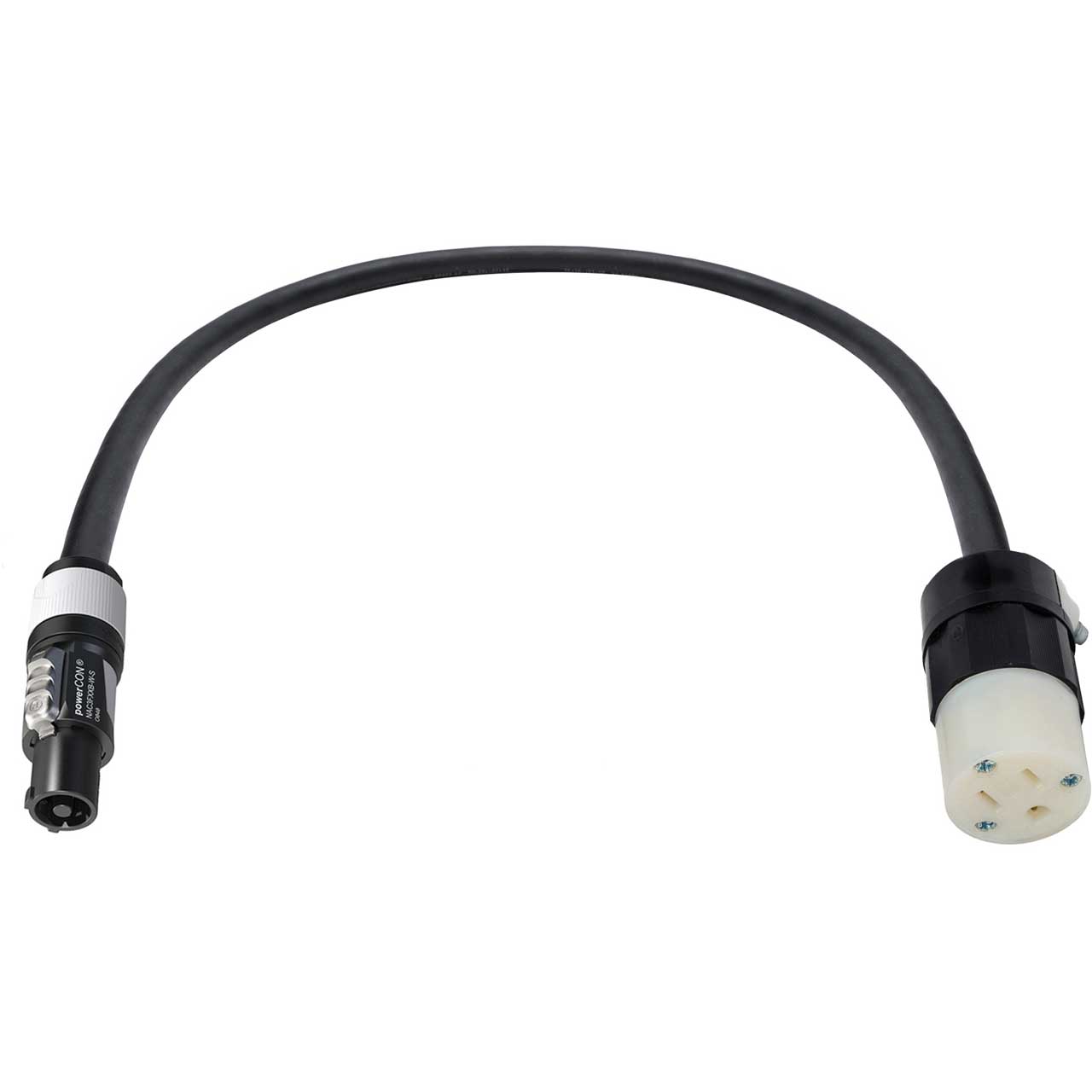

Laird NEUTRIK powerCON 3-Pole 15-Amp Type B to Edison AC Female Receptacle Power Cable - 3 Foot

PWRCN-ACOUT-3 - Overview

• Features:

  • High-Quality Neutrik powerCON connectors
  • NEMA 5-15P AC Plug
  • PWR-12/3-TP - SJOOW - 300V 12 AWG Heavy Duty Power Cable
  • Resistant to oil, ozone, weathering effects, grease, water, and UV Radiation
  • Circuit Breaking Capability when mated with powerCON Series receptacles


• Specifications:

  PWR-12/3-TP:
  • Cable Type: SJOOW
  • Number of Conductors x AWG: 3x12
  • Cable Insulation: Rubber (EPR)
  • Outer Jacket: Rubber (CPE) Black
  • Nom. Outer Diameter: 0.45in (11.45mm)
  • Current Carrying Capacity: 25
  • Nom Voltage: AC U 300V
  • Temperature:
    •Flexing: -4°F to 194°F (-20°C to +90°C)
    •Static: -40°F to 194°F (-40°C to +90°C)
  • Min Bend Radius:
    •Flexing: 4.5in (114.5mm)
    •Static: 2.7in (68.7mm)

    Neutrik Connectors:
  • Contact Resistance: ≤ 2 mΩ
  • Dielectric Strength: > 3 kVac (after mating cycles)
  • Insulation Resistance: > 10 GΩ (initially)
  • Lifetime: 5'000 mating cycles
  • Locking Device: Twist lock
  • Protection Class: IP20

    Leviton NEMA 5-15 plug/socket:
  • Amperage: 15 Amp
  • Voltage: 125 Volt
  • Body Material: Impact Modified Nylon


• Warranty:

  • 1 Year
