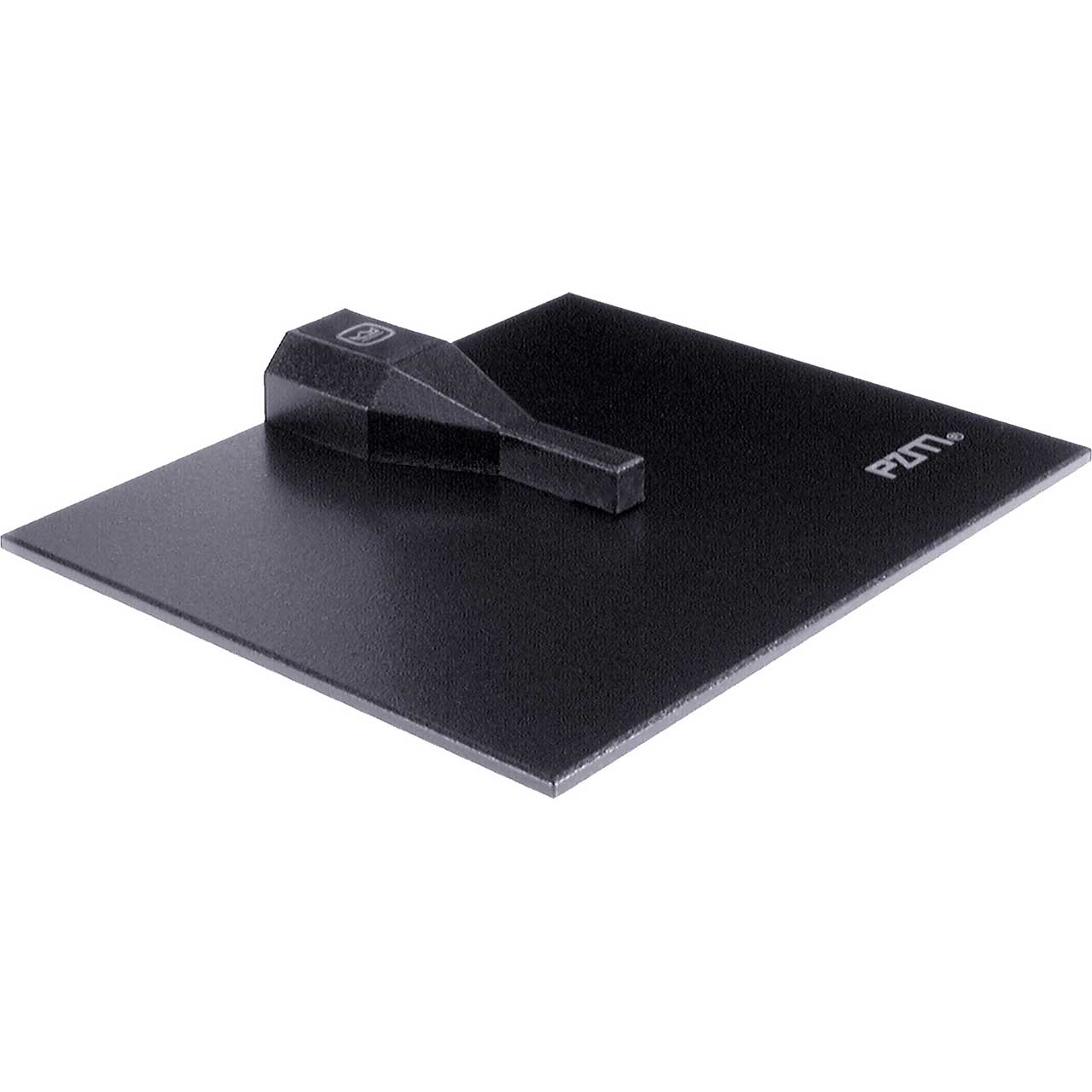

The Crown PZM-30D is a Pressure Zone Microphone with a detachable cable. It is designed for professional recording, sound reinforcement and broadcasting. It has many applications, from miking full orchestras or individual musical instruments to security or teleconferencing.
It has a switchable dual frequency response: rising (R) or fl at (F). The "rising" position adds brilliance. This makes it useful wherever a crisp attack is desired, such as on percussion, drums, or piano. The user can get a bright sound without boosting high frequencies on the recording console; the result is lower noise. The "flat" position provides a smooth, flat, high-frequency response for natural sound reproduction.
The PZM-30D is sturdy and reliable because it can be used with a rugged detachable cable. Its low profile, unobtrusive appearance is appreciated in conference rooms, as well as on television, film and video productions.
The output is a male 3-pin XLR-type, balanced and low impedance, which permits long cable runs without hum pickup or high-frequency loss.
Like other Pressure Zone Microphones, the PZM-30D utilize the Pressure Recording Process in which a miniature condenser microphone capsule is positioned very close to a sound-reflecting plate or boundary. The capsule is mounted in the "Pressure Zone" just above the boundary, a region where sound coming directly from the sound source combines in phase with sound reflected off the boundary. The benefits are excellent clarity and "reach," a hemispherical polar pattern, uncolored off-axis response, and a wide smooth frequency response free of phase interference.
