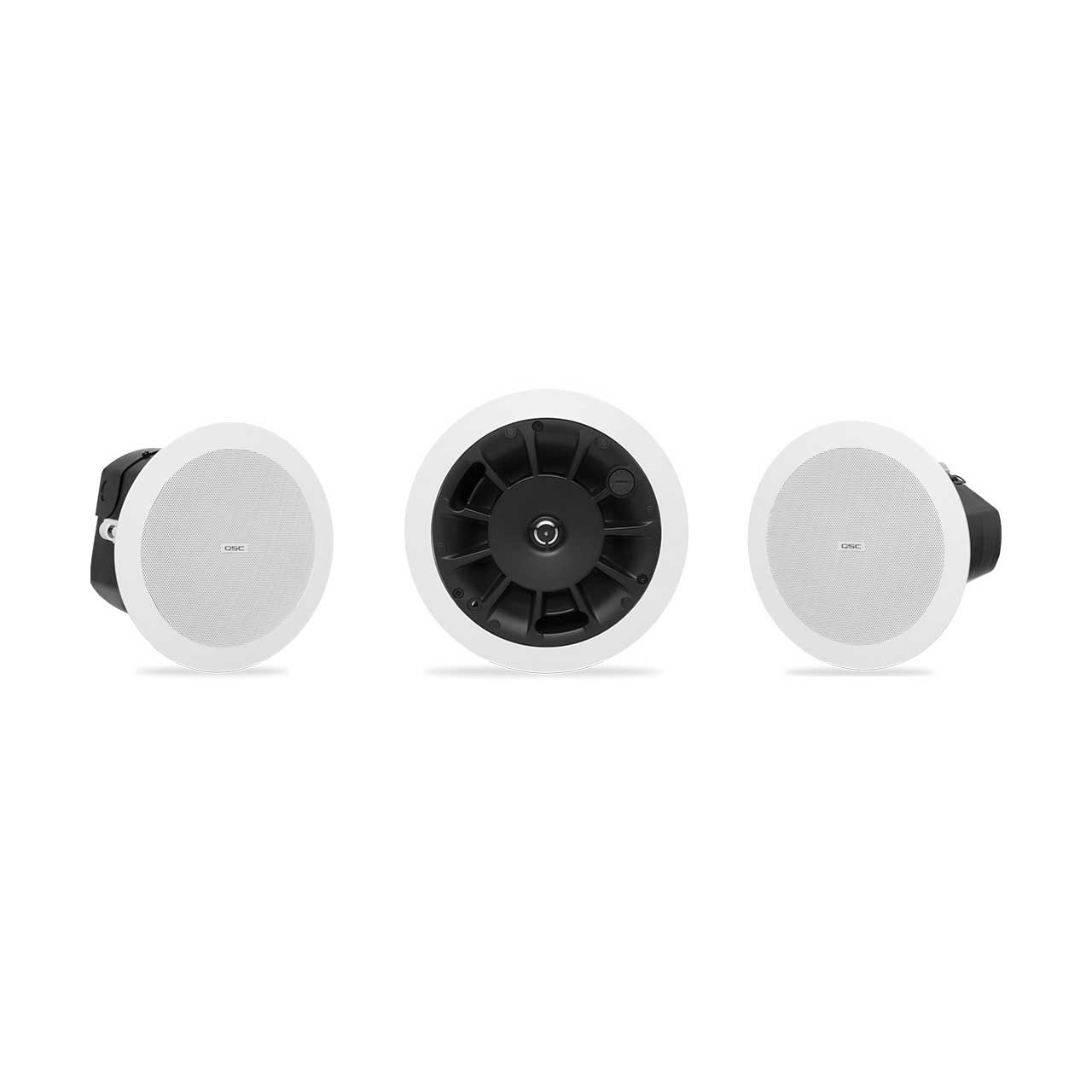

QSC AD-C4T-WH 4.5-Inch Premium Two Way Ceiling Loudspeaker - White - Pair

QSC-AD-C4T-WH - Overview

• Features:

  • Consistent tonal characteristics across the entire AcousticDesign family in both surface or ceiling applications
  • DMT (Directivity Matched Transition) waveguide ensures smooth, uniform frequency response over the coverage area

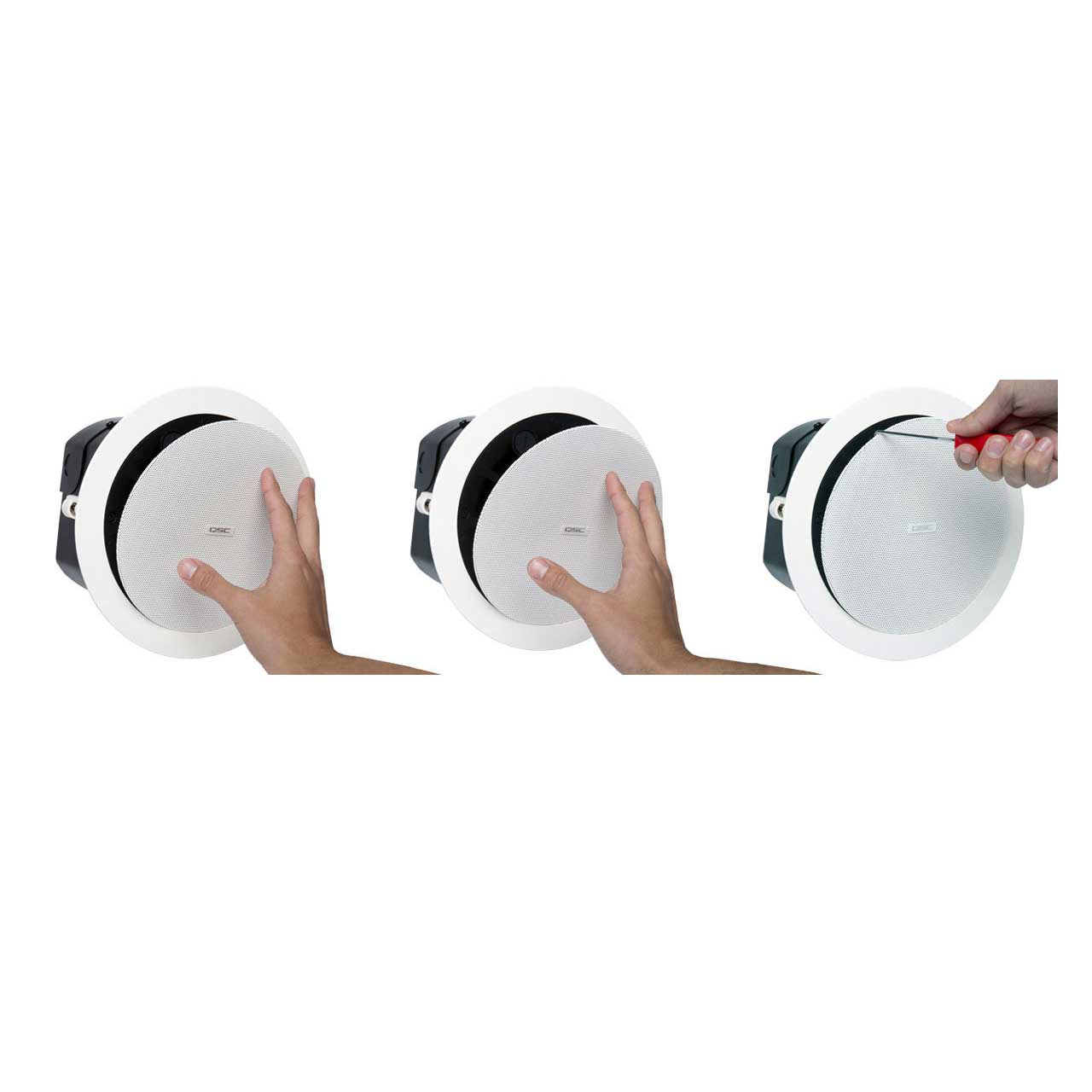

  • Snap-fit magnetic grille

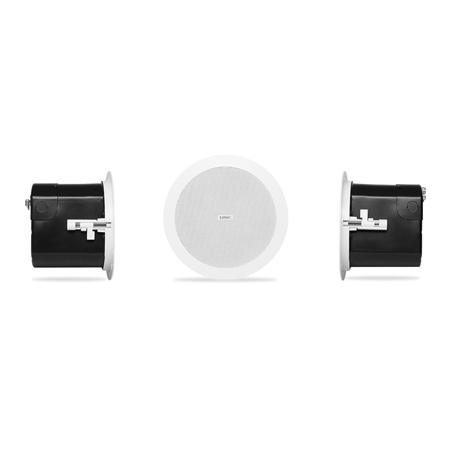

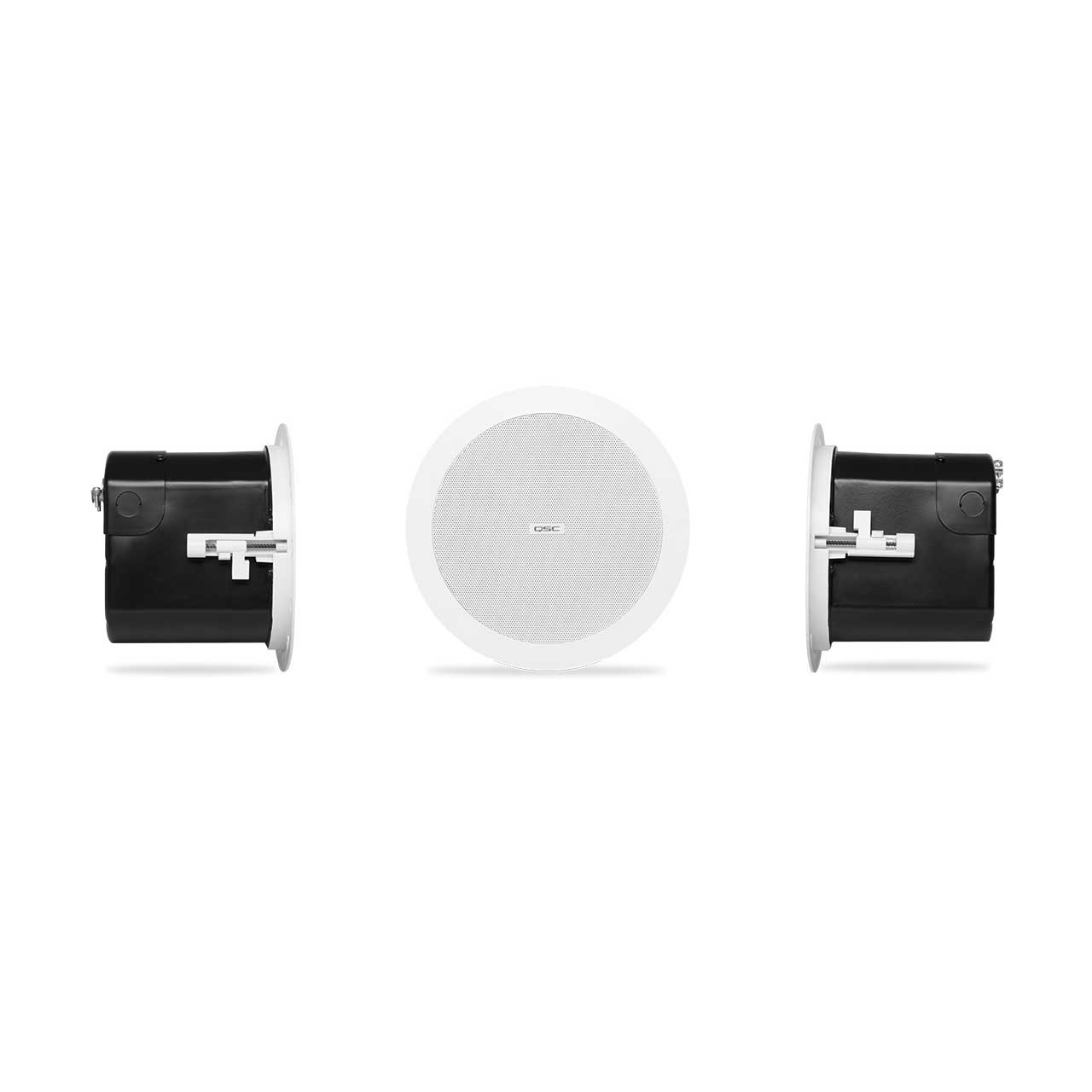

  • 3x double stepped, long travel dog-ear blind mount system
  • Advanced Intrinsic Correction voicings available via Q-SYS networked audio processing platforms, including CXD amplifiers
  • Low-saturation and low-loss 70/100V transformers with 16Ω bypass
  • Blemish-free removable logo
  • Removable conduit cover plate, also available as accessory for pre-install wiring
  • UL1480 and UL2043 certified EN54-24 Type A (pending)
  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, & BIM information available online


• Specifications:

  • Effective Frequency Range: 60Hz - 20kHz
  • Rated Noise Power/Voltage: 30 watts/22 volts (rms)
  • Sensitivity (dB): 87.5
  • Rated Coverage (-6 dB): 150° conical DMT
  • Coverage Angle by Frequency: 500Hz 1000Hz 2000Hz 4000Hz
  • Conical Coverage: 160°, 155°, 150°, 140°. One-third octave frequency band contribution at full power using 100V maximum tap (Hz/dB): 500/57.4; 630/57.4; 800/57.4; 1000/57.4; 1250/57.4; 1600/57.4; 2000/57.4; 2500/57.4; 3150/57.4; 4000/57.4
  • Directivity Factor (Q): 4.5
  • Directivity Index (DI) [dB]: 6.5
  • Maximum Continuous SPL [dB]: 102
  • Maximum Peak SPL [dB]: 108
  • Nominal Impedance (ohms): 16
  • Recommended Amplifier: 60 watts
  • Transformer Taps/Impedance:: 16Ω (in bypass setting); 3.75W (70V); 7.5W (100V) Tap: 1333Ω; 7.5W (70V); 15W (100V) Tap: 667Ω; 15W (70V); 30W (100V) Tap: 333Ω; 30W (70V); N/A (100V) Tap: 167Ω
  • LF Transducer: 114mm (4.5") weather resistant paper cone woofer
  • HF Transducer: 25mm (1") aluminum dome tweeter
  • Input Connector Type: Euroblock connector with parallel output
  • Enclosure Material: ABS baffle on powder coated steel back can
  • Grille Material: Powder coated steel
  • Ingress Protection: IP-54
  • Operating Environment: Designed for indoor use
  • Operating Temperature Range: -4°F - 122°F (-20°C - 50°C)
  • Cutout Dimension: Ø 195mm (Ø 7.68")
  • Net Weight: 6.4lbs (2.9kg)
  • Product Dimensions (Diameter x Height): Ø 230mm x 176mm [Ø 9.06" x 6.93"]
  • Shipping Weight: 20.5lbs (9.3kg)(pair packed)
  • Shipping Dimensions (HxWxD): 11" x 28" x 12.5" (279mm x 711mm x 318mm)(pair packed)
  • Optional Accessories: AD-MR4 (pre-install mud ring); AD-CC4 (pre-install conduit cover)
  • Safety Agency: EN54-24: 2008 type A (No. pending)


• Item Includes:

  • 1x C-ring and tile rails
  • 1x Rail screws
  • 1x Euroblock connector
  • 1x Cut-out template
  • 1x Grill


• Warranty:

  • 3 years


• GTIN:

  0684284067531
