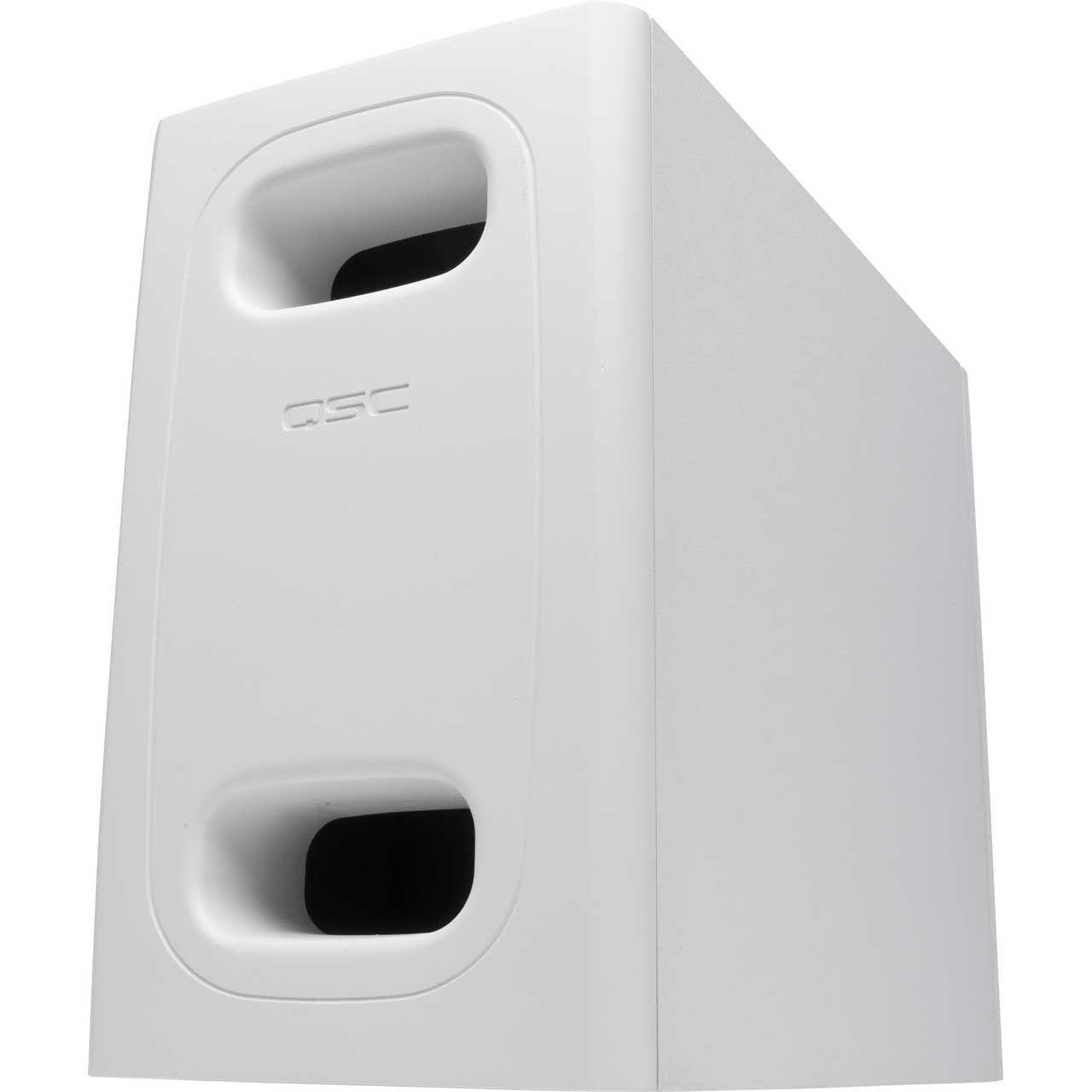

QSC AD-S.SUB 6.5-inch Dual Voice Coil Small Format Surface Subwoofer - White

ITEM #: QSC-AD-S-SUB-WE MFG #: AD-S.SUB-WH

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$574.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AD-S.SUB-WH - Overview

The QSC AD-S.SUB is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings.

The AcousticDesign Series offers integrators a premium quality installed sound solution where performance, consistent coverage, and aesthetics are paramount. Specifically designed to maintain a consistent tonal characteristic across the entire family inceiling, surface, and pendant enclosures, the AcousticDesign Series allows integrators seamless transitions within blended installations.

The AcousticDesign Series SUB/SAT loudspeakers have been specifically designed to be mix-and-match capable. Any combination of satellites may be paired with any subwoofer in the SUB/SAT line.

The AD-S.SUB features a high quality 6.5-inch weather treated paper cone woofer on a dual voice-coil for improved thermal dissipation and higher output within a small form factor.

The accurate frequency response of the AD-S.SUB is maintained even in 70 / 100 V applications by use of a low-loss, lowsaturation 100 W transformer with selectable taps, including 4 Ω bypass in mono mode.

The AD-S.SUB includes built-in high-pass filtered outputs for connecting up to four AcousticDesign Series satellite loudspeakers. This feature greatly reduces system setup, amplifier channel count, and allows for ease of wiring.

  • Features:

    • Dual voice-coil for improved thermal dissipation and higher output
    • Low saturation and low-loss 70/100 V transformers in mono mode
    • Low-Z mono or stereo configurable
    • 4x built-in high-pass filtered outputs
    • Locking 4-pole Euroblock connectors
    • Reversible rear panel cover with cable tie anchors
    • Reversible V-wall mount hardware
    • Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
    • Available in black (RAL 9011) or white (RAL 9010)

  • Specifications:

    • LF transducer: 6.5-inch (165 mm) dual voice coil weather treated paper cone woofer
    • Effective frequency range: 45 Hz - 150 Hz
    • Rated noise power / voltage: 100 W / 20 V (rms)
    • Sensitivity [dB] (rated @ 1 W, 1 m): 86
    • Coverage (-6 dB) [°]: Omni
    • Maximum SPL [dB](continuous / peak): 100 / 106
    • Recommended amplifier: 100 W
    • Transformer taps / impedance: 70 V: 100, 50, 25, 12.5 W (mono only); 100 V: 100, 50, 25 W (mono only)
    • Bypass: 4 Ω mono or 8 Ω + 8 Ω stereo

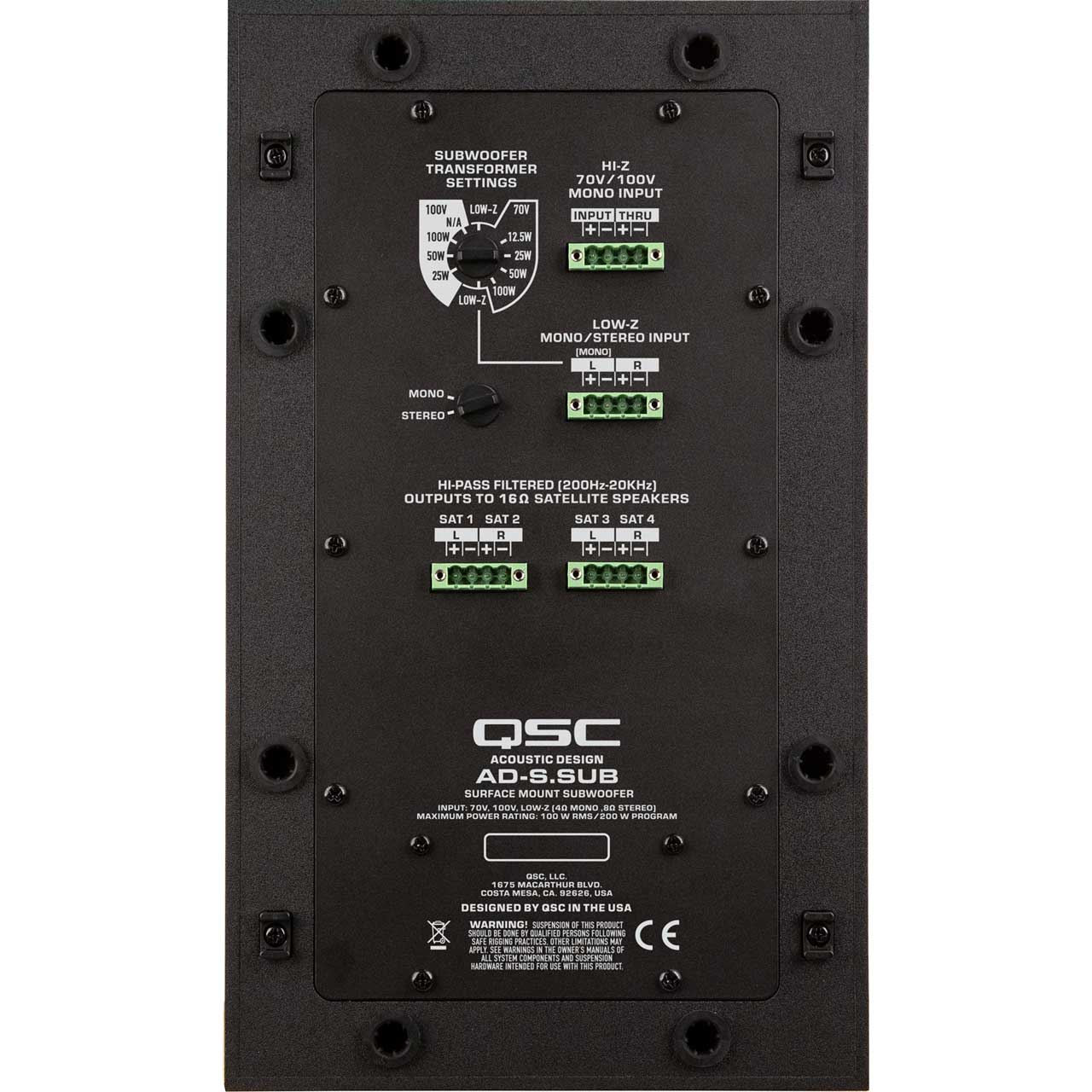

    • Connectors: Hi-Z mono input: 4-pole Euroblock with thru output
    • Low-Z input: 4-pole Euroblock, left (mono) and right
    • Hi-pass mono output: x2 4-Pole Euroblock for x4 satellites
    • Enclosure material: Vinyl wrapped medium density fiberboard
    • Port baffle / cover panel: ABS
    • Operating environment: Designed for indoor use
    • Operating temperature range: -4 to 122° F (-20 to 50° C)
    • Net weight: 23.6 lb (10.7 kg)
    • Product dimensions (Ø x H): 13.8 x 8.2 x 17-inch (350 x 209 x 432 mm)
    • Included accessories: V-wall bracket, 4x euroblock connector, rear cover panel, adhesive rubber feet
    • Safety agency: Transformer UL registered per UL1876, ROHS, CE compliant

  • Item Includes:

    • V-wall bracket
    • 4x euroblock connector
    • Rear cover panel
    • Adhesive rubber feet

  • GTIN:

    0684284075932
