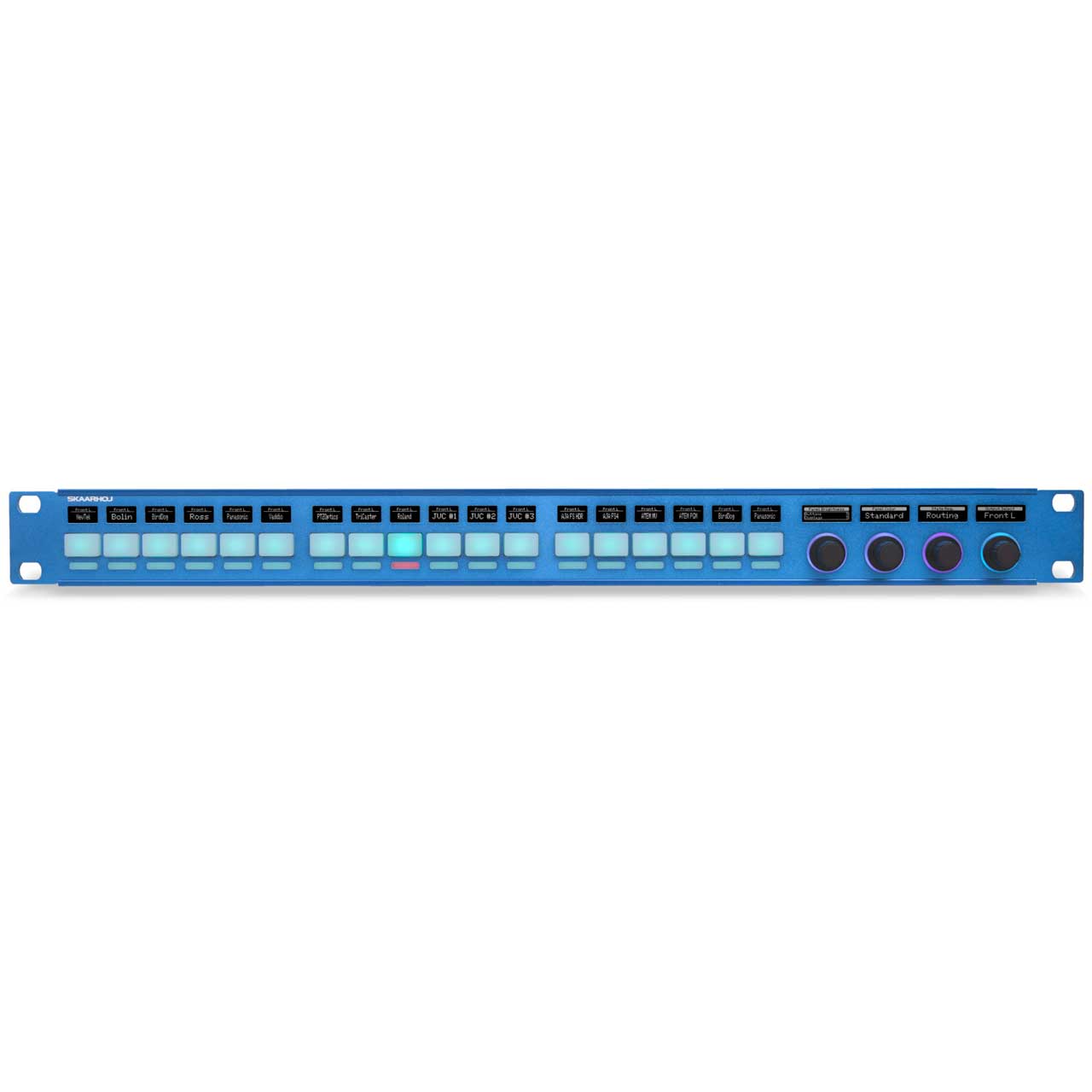

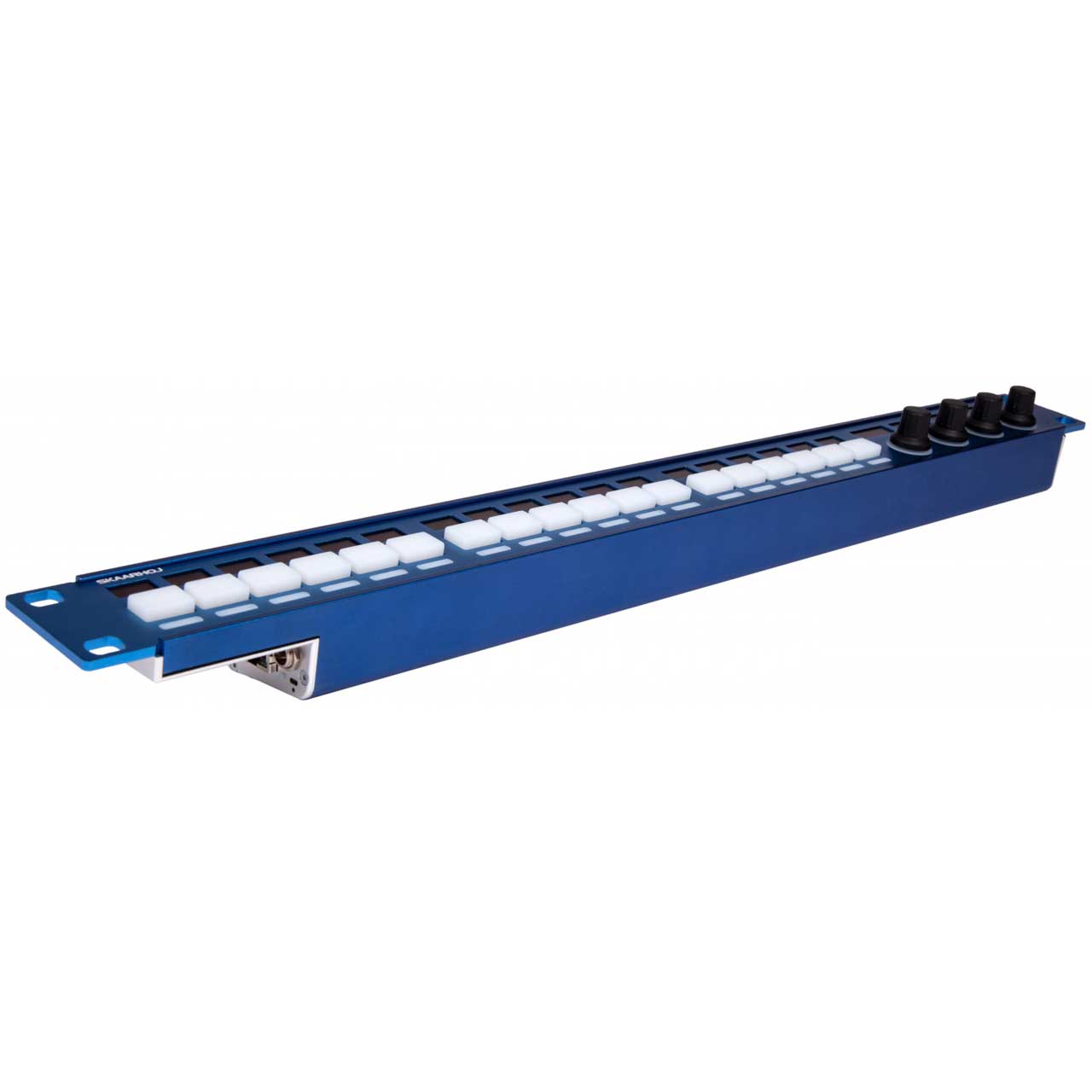

Skaarhoj RACK-CONTROL-UNO-V1 Rack Control with 18 Four-way Buttons and Four Back-lit Encoders

ITEM #: RACKCONTROLUNOV1 MFG #: RACK-CONTROL-UNO-V1

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the RACKCONTROLUNOV1

RACK-CONTROL-UNO-V1 - Overview

Fits perfectly in your rack. Sits perfectly on your table! Simply amazing.

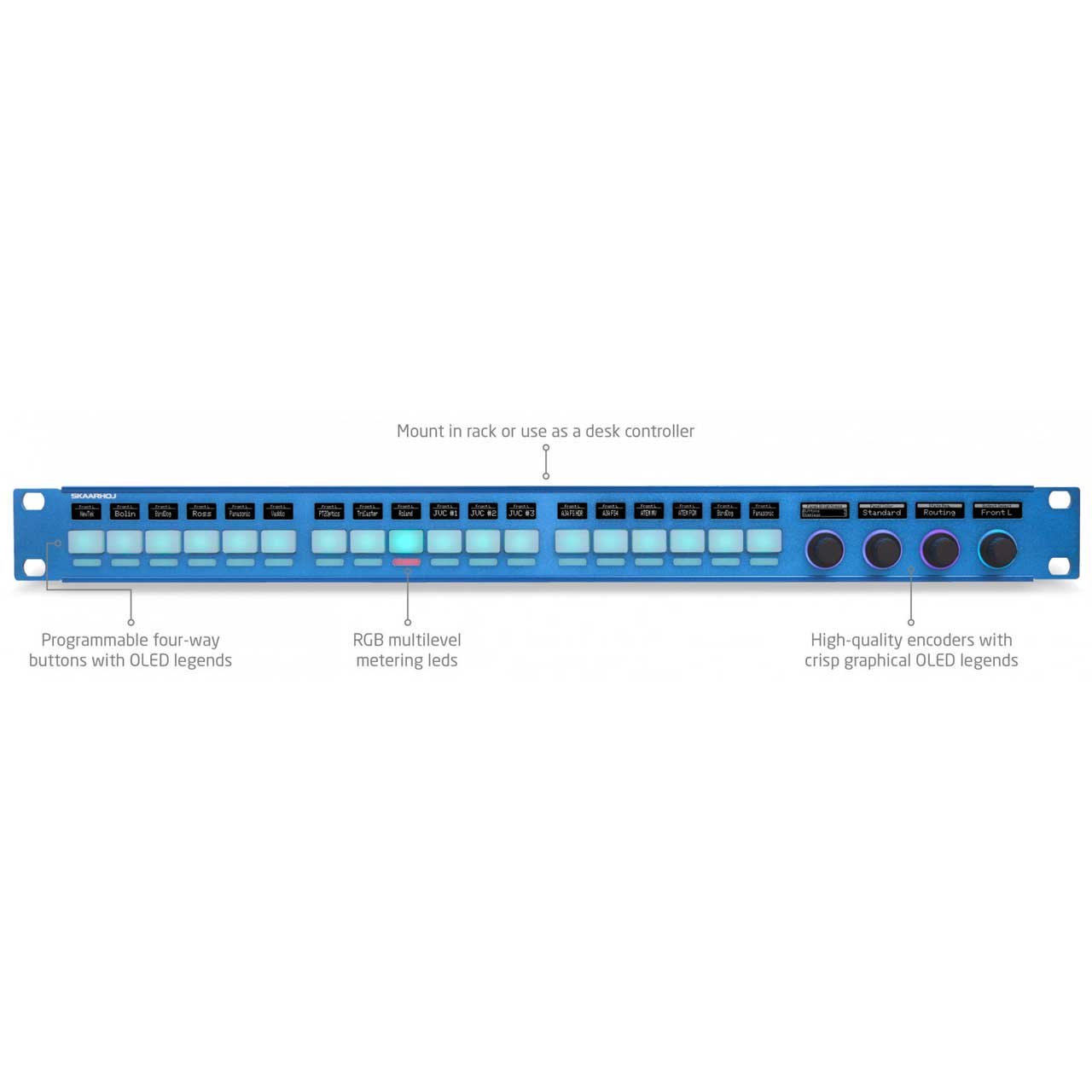

Rack Control Uno has 18 awesome four-way buttons and four backlit encoders - all with RGB coloring and crisp, graphical OLED displays for function legends for universal control of multiple 3rd party devices.Implements full RCP control for Panasonics AU-EVA1 cinematic camera, enabling it to be used in live production environments with centralized CCU control. Control up to 4 cameras.

Please note that this product does not support ATEM Constellation HD series. To use this product with Constellation series add Blue Pill Server to the network or purchase Blue Pill Inside controller.

  • Features:

    • UniSketch OS
    • Universal control of multiple 3rd party devices
    • Flexible user configuration
    • IP-based remote control, can be powered by PoE
    • Modular multi-surface system
    • Programmable four-way buttons with OLED displays
    • RGB multi-level metering LEDs for VU, state indication and tally
    • Backlit encoders with crisp graphical OLED displays
    • Ethernet with PoE (IEEE802.3af)
    • Designed and built in Denmark


  • Specifications:

    • Hardware
    • 4-way Buttons: 18
    • Encoders: 4
    • RGB multilevel metering leds: 18
    • Customizable OLED screens: 22
    • Weight: 1.13 lb( 516 g)
    • Dimensions (LxWxH): 19.01 in (483 mm) x 1.7 in (44 mm) x 1.5 in (40 mm)

      Connectivity
    • Programming Port: Ethernet (or Micro USB for setting manual IP)
    • Networking Port: RJ45 Ethernet
    • Power Supply: 12V

      Operation
    • Power Consumtion 4.68 Watt
    • Operating System: UniSketch OS


  • Item Includes:

    • 1x Rack Control Uno
    • 1x USB 2.0 Programming Cable
    • 1x 12 V Power Supply


  • Warranty:

    • 1-Year Limited Warranty


  • GTIN:

    0787907719203
