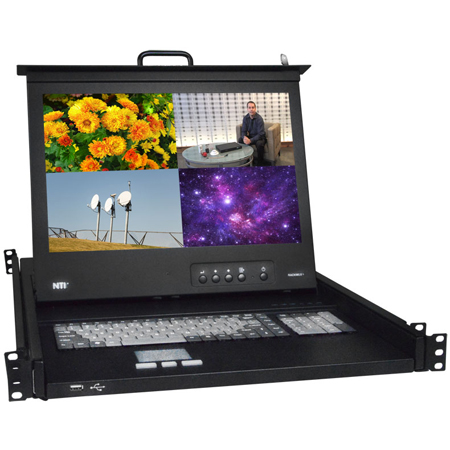

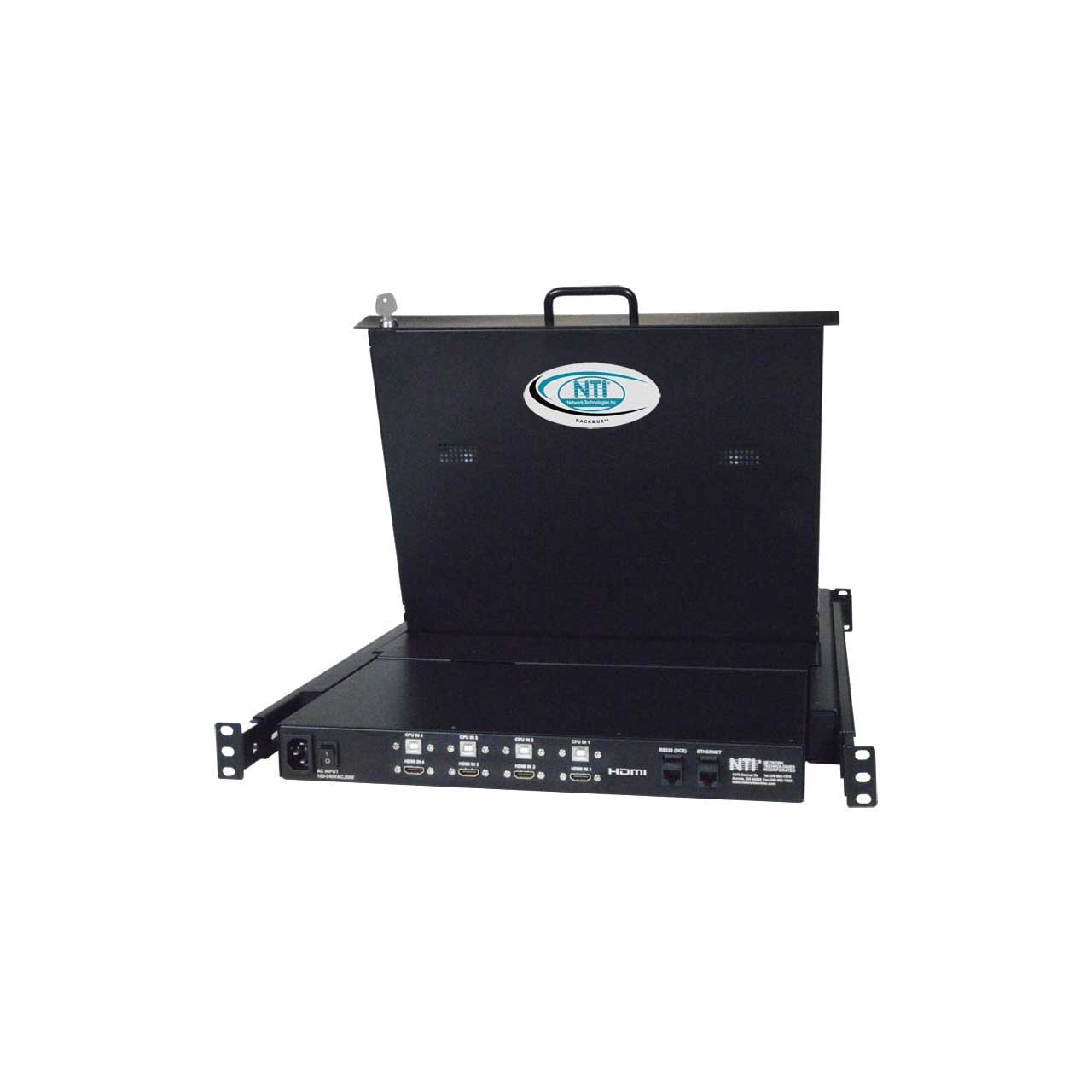

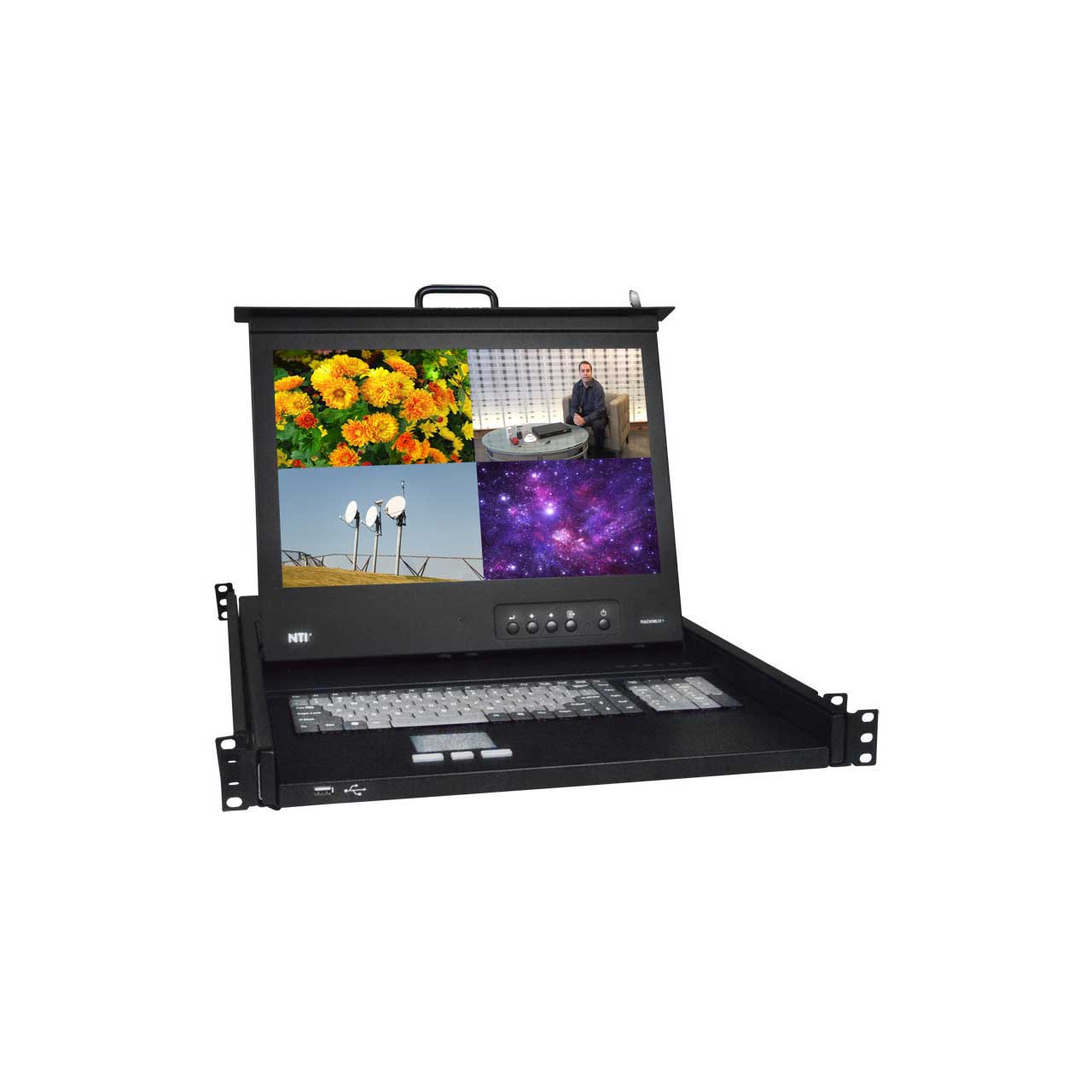

NTI RACKMUX-D17HR-N-SUSBHD4 Rackmount KVM Drawer with HDMI Multiviewer & USB KVM Switch

RACKMUX-D17HR-N-SUSBHD4 - Overview

• Features:

  • Available with forward-folding 17.1" Active Matrix LCD DVI flat panel monitor
  • Video Resolution: 1920x1200
  • Integrated HDMI multiviewer and USB KVM switch
  • Simultaneously display video from four different computers on the KVM drawer's LCD display
  • Quad, Picture in Picture, Full Screen, and Custom display modes
  • Control up to 4 USB enabled computers with HDMI/DVI outputs
  • Any DVI source or display can be connected by using DVI-HD-xx-MM cable (not included)
  • Use DVI-HD-CNVTR DVI + Audio to HDMI Converters to pass and independently switch audio signals to the drawer
  • Torque-friction hinges - monitor does not wobble, spring, or slam shut
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad
  • Three-button touchpad mouse supports single-finger gestures
  • Rugged steel construction with durable powder coat finish
  • LCD auto-shutoff in closed position
  • Drawer locks into place when open to prevent it from sliding in and out of the rack
  • Cable management tray included


• Specifications:

  • Power
  • 100 to 240 VAC at 50 or 60 Hz via IEC connector

    Dimensions
  • WxDxH: 19 x 27.5 x 1.75" (483 x 699 x 44mm)
  • Handle adds an additional 1.5" to the depth when monitor is in closed position
  • Cable management tray adds an additional 3" to the depth
  • Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep
  • Drawer locks into place when open to prevent it from sliding in and out of the rack
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL

    Regulatory Approvals
  • CE, RoHS
  • TAA compliant

    Environmental
  • Operating temperature: 32° to 104°F (0° to 40°C)
  • Storage temperature: -4° to 140°F (-20° to 60°C)
  • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH


• Item Includes:

  • 1x KVM Drawer
  • 1x IEC Power Cord, country-specific
  • 1x DB9 female to RJ45 female adapter
  • 1x 5-ft CAT5 patch cable
  • 1x Single-person installation mounting kit


• Warranty:

  • 2 Years
