RCF COMPACT M 06 Passive 6 Inch 2-way Compact Speaker - 100 W RMS Power Handling - 116 dB max SPL - Black

ITEM #: RCF-CM-06 MFG #: COMPACT M 06

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$699.00

Our Price:

$429.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


COMPACT M 06 - Overview

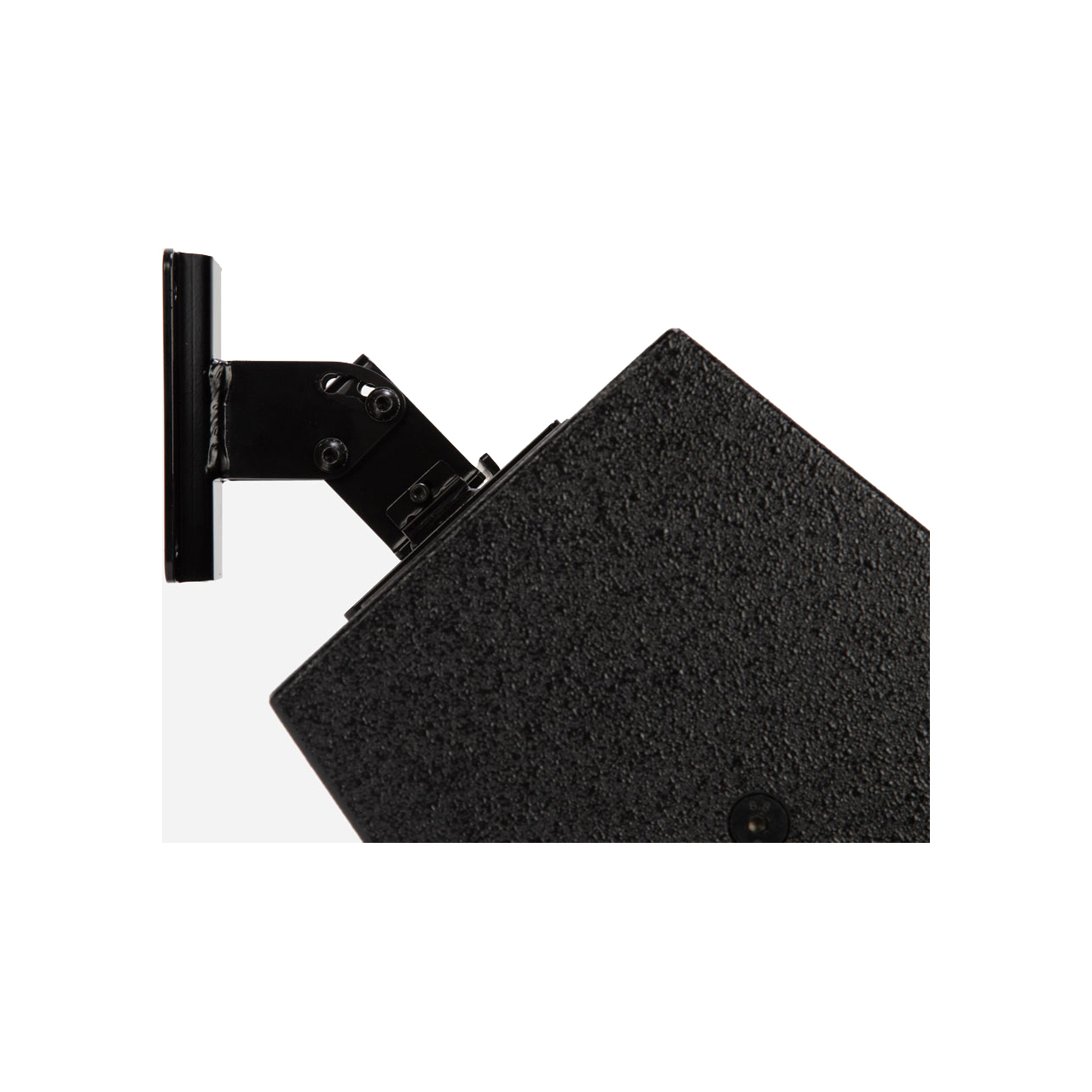

The RCF COMPACT M 06 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. The M 06 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided neodymium dome tweeter. The SPL level of low-distortion audio the M 06 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 06 suitable for almost any environment, even with architectural constraints. Optional mounting accessories allow using M 06 on wall or ceiling installations.

Multipurpose Sound
Elegant design aesthetic, multiple formats and RCF signature sound quality that allows to deliver a supreme audio experience in any application, from restaurant and retail shops to clubs, corporate spaces and venues.


Engage Your Customers
Compact dimensions and impressive size/weight to SPL output ratio. These are the features that will allow your audience enjoying an immersive musical experience.

Improve the Audio Atmosphere
Music supports engagement and improves the feeling of hospitality in the environment, especially if the perceived sound quality is higher. This is the aim of RCF Compact M Series - optimal performance in both background music and high powered foreground audio.

Smooth Installation
Compact M speakers sticks to the functionality and style of the Italian design, always in harmony with any type of interiors. With a complete range of solid wood cabinets, multiple rigging points and accessories, installation time is minimal. The EUROBLOCK connection panel can be replaced with female Neutrik SpeakON connection panel in seconds.

  • Features:

    • 100 W RMS power handling
    • 116 dB max SPL
    • 60Hz - 20kHz frequency range
    • 120° x 80° constant directivity coverage angle

  • Specifications:

      Acoustics
    • Frequency Response (-10dB): 60Hz - 20kHz
    • Max SPL @ 1m: 116dB
    • Horizontal Coverage Angle: 120°
    • Vertical Coverage Angle: 80°
    • Directivity Index Q: 7
    • System Sensitivity: 90dB

      Power
    • Amplification: Full Range
    • Nominal Impedance: 8Ω
    • Power Handling: 100W
    • Peak Power Handling: 400W PEAK
    • Protections: Dynamic active mosfet
    • Crossover Frequencies: 2200Hz
    • Recommended Amplifiers: DMA 162, DMA 162P, DMA 504, DMA 82

      Transducers
    • Dome Tweeter: 1 x 1.3" neo, 1.0" v.c
    • Woofer: 1 x 6.0", 1.5" v.c

      Input/Output

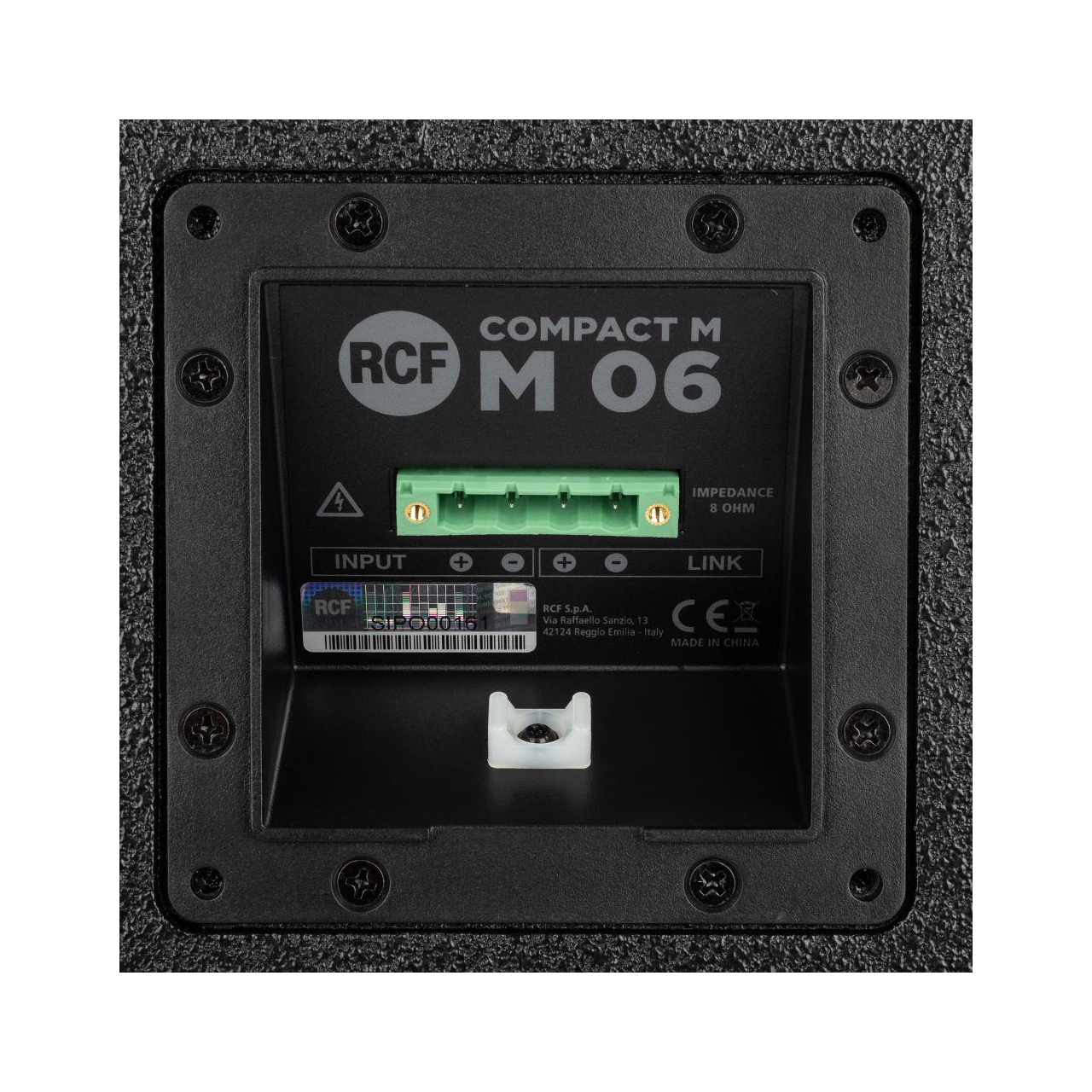

    • Input Connectors: Euroblock
    • Output Connectors: Euroblock

      Physical
    • Cabinet/Case Material: Plywood
    • Hardware: 4 x M6, 2 x M8
    • Grille: Steel with clothing
    • Color: Black - RAL 9005

      Weight/Dimensions
    • Height: 14.37" (365mm)
    • Width: 8.31" (211mm)
    • Depth: 9.13" (232mm)
    • Weight: 5.12.13lbs (5kg)
    • Package Height: 15.2" (386mm)
    • Package Width: 10.08" (256mm)
    • Package Depth: 9.25" (235mm)
    • Package Weight: 15.43lbs (7kg)

  • GTIN:

    8024530017781
