RDL D-J1 Microphone Input Assembly

ITEM #: RDL-D-J1 MFG #: D-J1

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$90.88

Our Price:

$68.16

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


D-J1 - Overview

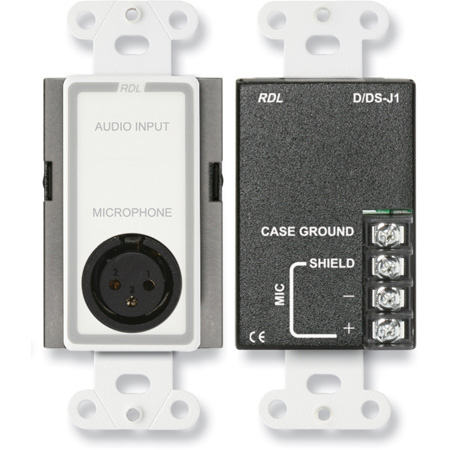

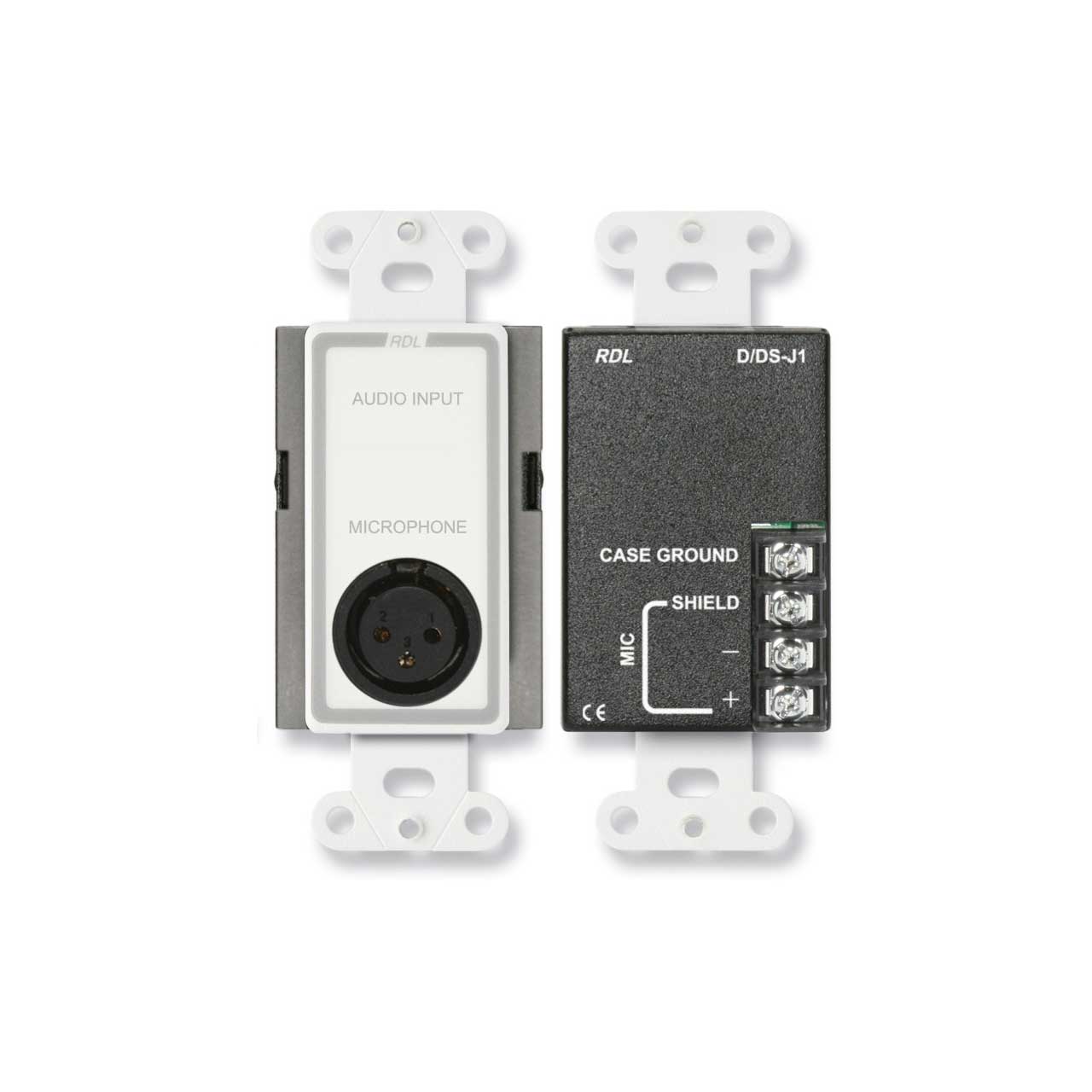

The D SERIES-J1 is a complete microphone input panel assembly. Connections to the female front‑panel XLR jack are made on a rear barrier block. Four terminals are provided: CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2) and - (XLR pin 3). The installer may install a jumper between the SHIELD connection and CASE GROUND if desired. The back of the D SERIES-J1 is finished with a metal enclosure clearly labeled for easy installation.The D SERIES-J1 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.

  • Features:

    • Wall Mounted Microphone Input Panel
    • XLR Input Connector with Gold Contacts
    • Barrier Block Wiring Connections
    • Ground-Lift Terminals on Barrier Block

  • Specifications:

    • Input Connector: XLR female gold contacts
    • Output Connector: Barrier block
    • Output Connections (4): CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3)
    • Power Requirement: Passive
    • Dimensions: Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm
    • Mounting Box Req.: Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm
    • Package Type: Cardboard Box
    • Package Dimensions: 3.625 x 4.625 x 2.125 in.
    • Shipping Weight: 0.43 lbs.
    • WEEE weight: 0.28 lbs.
    • Tariff code: 8536.69.4030

  • GTIN:

    0813721015242
