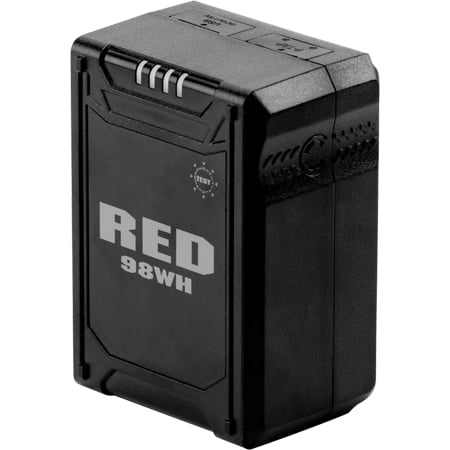

RED Camera 740-0053 REDVOLT MICRO-V 98Wh Battery Pack For RED V-RAPTOR

ITEM #: REDC-740-0053 MFG #: 740-0053

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$325.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


740-0053 - Overview

REDVOLT® MICRO-V
Designed specifically for RED camera systems, the REDVOLT® MICRO-V is the perfect compact and capable solution for your V-RAPTOR and accessories. With a 98Wh flight-safe capacity, the REDVOLT MICRO-V Battery packs a big punch in a very small package. Weighing barely over 1 lb and measuring 3.93" x 2.82" x 1.94", along with 12Amp cells for high output, it's the perfect compact and capable option to power your V-RAPTOR and accessories.

Future upgrades via firmware will include features such as the ability for batteries to communicate with the V-RAPTOR and allow monitoring of its current power draw for safe use with accessories, including those attached to P-Tap or power outputs.

Note: REDVOLT MICRO-V was designed in partnership with Core SWX and is compatible with most cameras/modules that accept V-Lock batteries. Also not compatible with KOMODO® but may be compatible with DSMC®, DSMC2®, RED RANGER® camera systems with a compatible V-Lock module.

  • Specifications:

    • Battery Type: Rechargeable Lithium-Ion Battery
    • Battery Capacity: 6600mAh / 98Wh
    • Output Voltage: 14.8 VDC
    • Operating Temperature: 10°C~45°C (50°F~113°F)
    • Charging Temperature: 0°C~40°C (32°F~104°F)
    • Storage Temperature: 20°C~50°C (68°F~122°F)
    • Charger Compatibility: RED Compact Dual V-Lock Charger
    • Dimensions: Height: 3.93 in. (99.80 mm), Width: 2.82 in. (71.6 mm), Depth: 1.94 in. (49.2 mm)
    • Weight: Approximately 1.2 lbs (544.3 g)

  • Item Includes:

    • 1x RED Camera 740-0053 REDVOLT MICRO-V 98Wh Battery Pack
