RhinoGuard RG513A-RB 5-Channel 1.3 Inch Cable Protector - 30000lbs Axle Load Capacity - Red Lid/Black Base

ITEM #: RHI-RG513A-RB MFG #: RG513A-RB

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$244.74

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


RG513A-RB - Overview

Introducing the RhinoGuard™ 5-Channel Cable Protectors, built on decades of experience, expertise, and knowledge of what it takes to manufacture the best product on the market. Crafted using state-of-the-art Reaction Injection Molding (RIM) manufacturing, RhinoGuard's cable protectors are up to 25% lighter than competitors, making them easier to handle without sacrificing strength. Made from high-quality polyurethane, they offer exceptional load capacity, impact absorption, and resistance to oil, fuels, and lubricants. With features like snap-on/off lids, a diamond tread pattern for improved traction, and compatibility with other brands, our cable protectors set the standard for safety and convenience. RhinoGuard™ is ideal for use in the Entertainment, Temp Power, O&G, Utility, Construction, and Industrial markets.

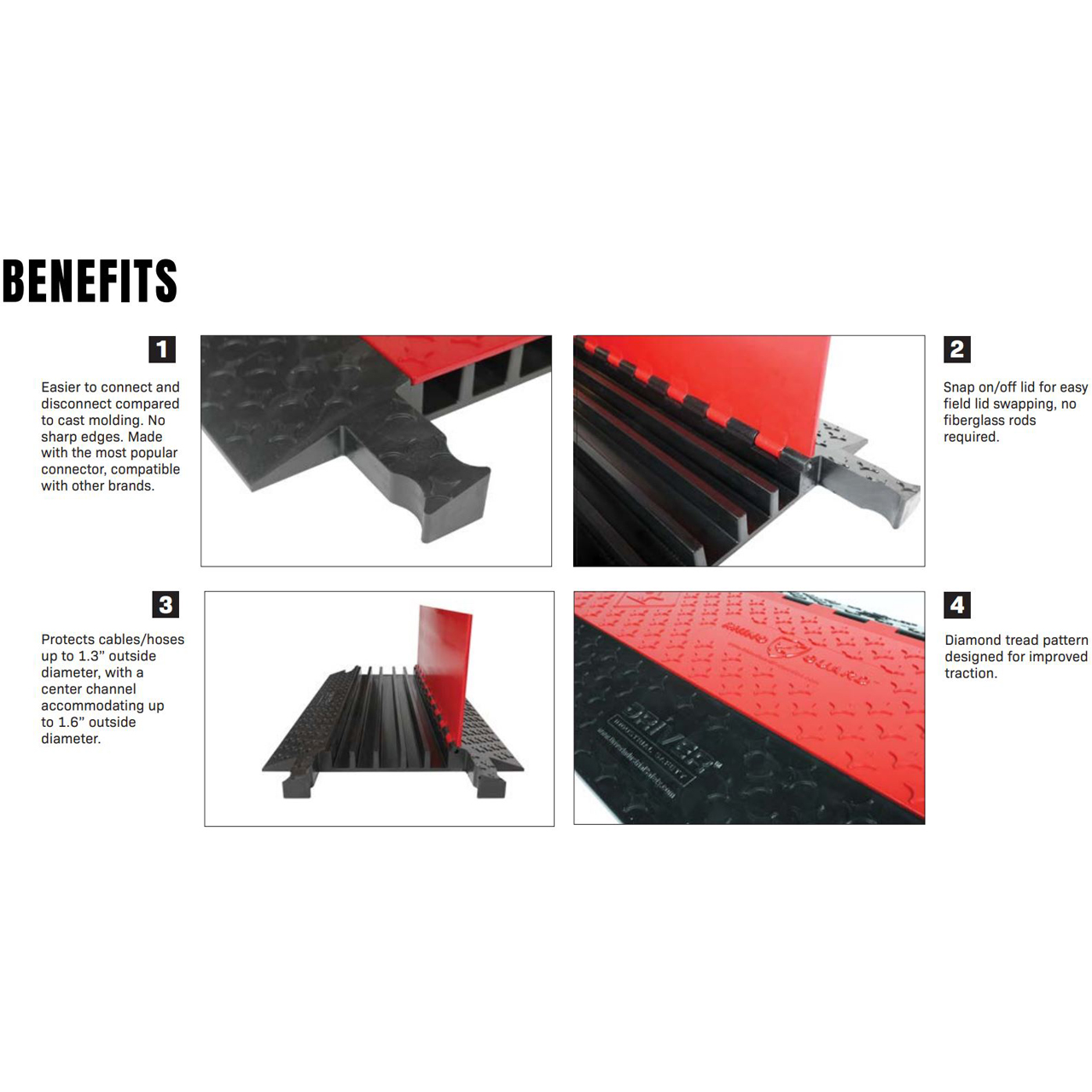

  • Features:

    • Superior Reaction Injection Molding (RIM): Produces lighter-weight parts with a higher strength-to-weight ratio. Up to 25% lighter than other cast models on the market.
    • Consistent, High-Quality Parts: Easier to connect and disconnect compared to cast molding. Premium aesthetic appearance with no sharp edges, making it safer to handle.
    • Compatibility and Material Advantages: Made with the most popular connector, compatible with other brands. Polyurethane material offers higher load capacity/impact absorption, non-conductivity, lighter weight, and UV stabilized/weather resistance.

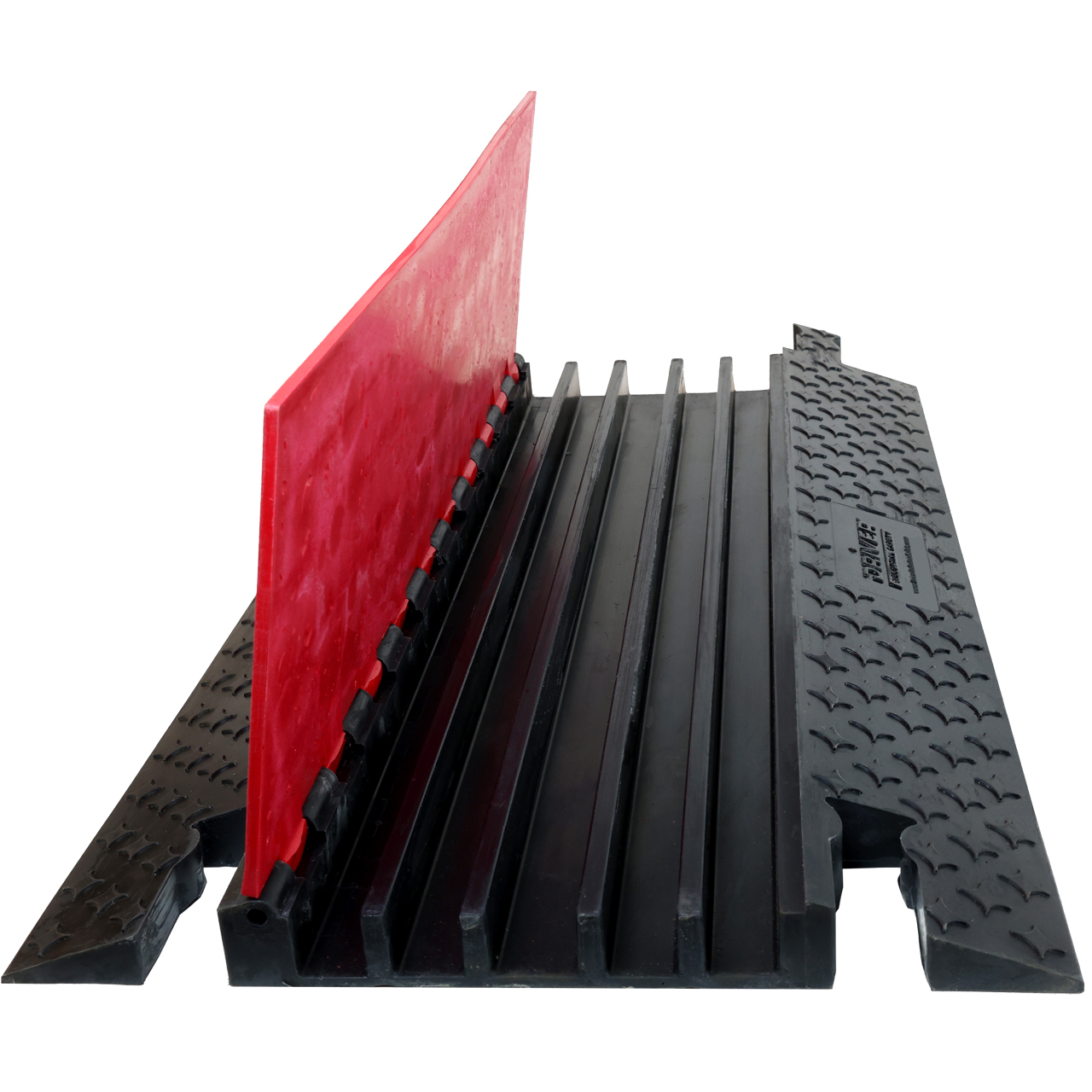

    • Functional Design: Snap on/off lid for easy field lid swapping, no fiberglass rods required. Protects cables/hoses up to 1.3" outside diameter (ideal for 4/O cable), with a center channel accommodating up to 1.6" outside diameter (ideal for #2 AWG 5-wire banded sets).
    • Safety and Performance Features: Diamond tread pattern designed for improved traction. Protects cables and hoses effectively.
    • Customization Options: Custom colors and logos are available, allowing for personalization.

  • Specifications:

    • Number of Channels: 5
    • Load Capacity Per Axle: 30,000lbs
    • Load Capacity Per Tire: 15,000lbs
    • Length: 36.0"
    • Width: 19.8"
    • Height: 2.0"
    • Weight: 21.0lbs
    • Max Cable Outside Diameter (Inches): 1.32", 1.6" (Center Channel)

  • Item Includes:

    • 1x RhinoGuard RG513A-RB 5-Channel 1.3 Inch Cable Protector - 30000lbs Axle Load Capacity - Red Lid/Black Base
