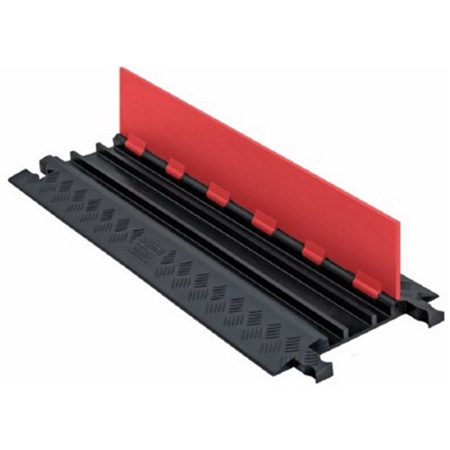

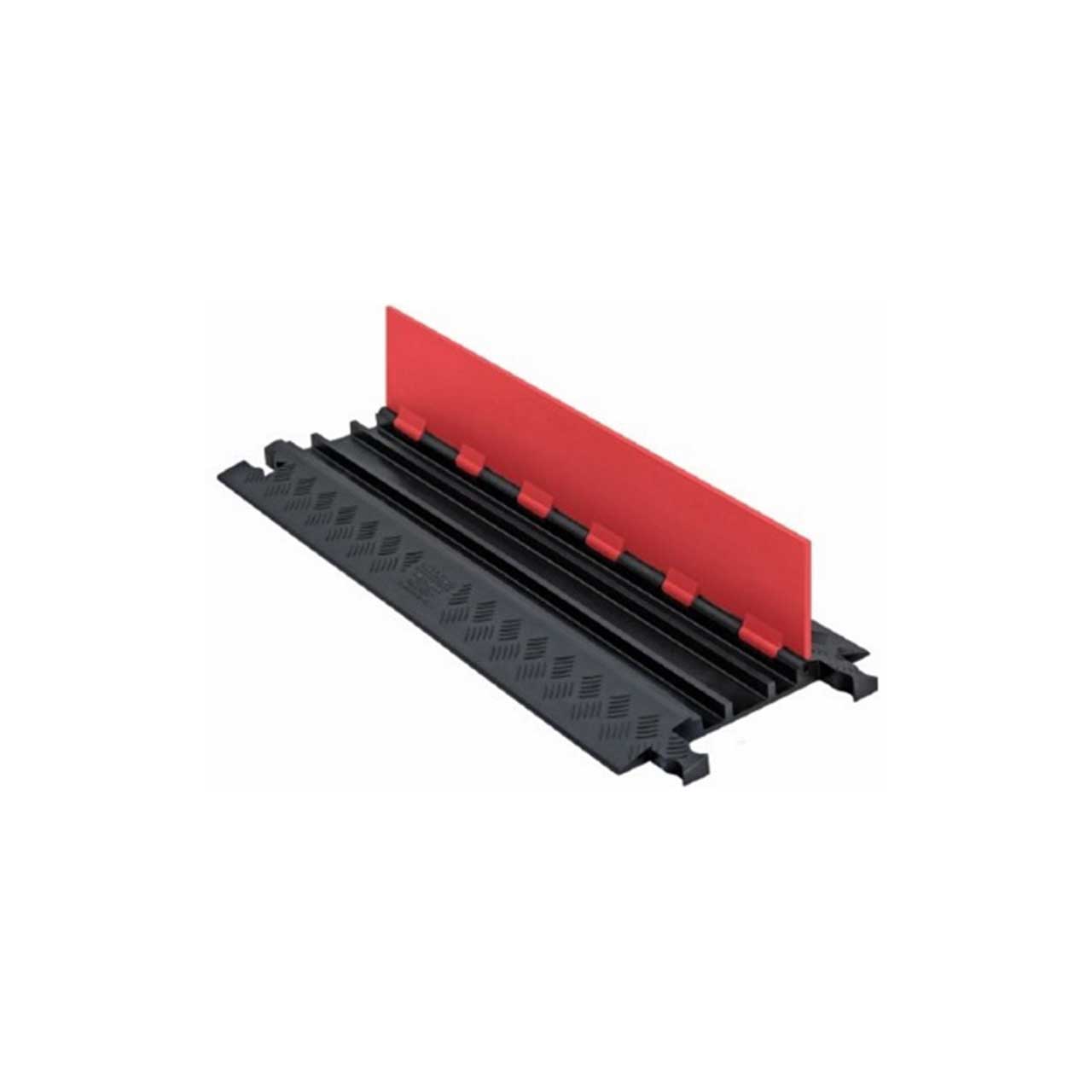

Guard Dog Low Profile 5-Channel Cable Protector with Standard Ramps for .75 Inch Lines - 3 Foot - Orange Lid/Black Base

ITEM #: GD5X75-ST-OB MFG #: GD5X75-ST-OB

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$253.49

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


GD5X75-ST-OB - Overview

Heavy duty Guard Dog Low Profile Cable Protectors are ideal for stage, studio, and broadcast applications. They provide a safe and easy crossing for vehicle and pedestrian traffic and are perfect for valuable electrical and delicate multi-media electronic cables. These low profile protectors with Dog-Bone connectors feature Standard ramps (also available with low angle ADA Compliant ramps). Multiple channels allow cable/hose lines to be separated in their own protective channels while ramps allow effortless crossing.

Protects cables and lines with an outside diameter up to .75 inches.

WARNING: This product can expose you to chemicals including Carbon Black, Titanium Dioxide, Formaldehyde, Benzyl Butyl Phthalate (BBP), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

  • Features:

    • Protects cables and hoses up to .75" outside dia.
    • Dog-Bone® Connectors to extend to any desired length
    • Reinforced hinged lid for easy cable placement
    • With standard ramps
    • Patented 5-bar tread surface for maximum traction
    • Modular interlocking design for easy setup

  • Specifications:

    • Load Capacity Per Axle: 48,000 lbs
    • Load Capacity Per Tire: 24,000 lbs
    • Length (Inches): 36
    • Width (Inches): 16.9
    • Height (Inches): 1.25
    • Max Cable Outside Diameter (Inches): 0.75
    • Number of Channels: 5-Channels
    • Connector Type: Dog Bone Connector
    • Channel Width: 1.28

  • Item Includes:

    • 1x Guard Dog Low Profile 5-Channel Cable Protector with Standard Ramps for .75 Inch Lines - 3 Foot - Orange Lid/Black Base

  • GTIN:

    0812958005897
