Canare RJC6A-F4PH CAT6A U/FTP 23AWG Cable - Supports HDBaseT3.0 - 4K60P 4:4:4 up to 328 Feet - Black - 656 Foot/200m

Name: Canare RJC6A-F4PH CAT6A U/FTP 23AWG Cable - Supports HDBaseT3.0 - 4K60P 4:4:4 up to 328 Feet - Black - 656 Foot/200m
Brand: Canare
SKU: RJC6A-F4PH-656
Price: 629.00 USD
Availability: PreSale

ITEM #: RJC6A-F4PH-656 MFG #: RJC6A-F4PH

Canare

List Price:

$704.00

Our Price:

$629.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

RJC6A-F4PH - Overview

The Canare RJC6A-F4PH is a CAT6A U/FTP Cable that supports HDBaseT 3.0 and is capable of 4K 60P 4:4:4 up to 328feet/100 meters.

HDBaseT 3.0 enables long-reach distribution of uncompressed HDMI 2.0 4K@60 4:4:4 (18Gbps), while guaranteeing a plug-and-play, future-proof and interoperable network. Fully backward compatible with previous HDBaseT specifications.

U/FTP: Unshielded with Foiled Twisted Pairs
This type of cable has no overall shielding but the individual twisted pairs are wrapped in a foil screen, offering some protection from EMI and crosstalk from adjacent pairs and other cables.

Features:
- CAT6A U/FTP cable
- HDBaseT 3.0 certified
- Supports 4K 60P 4:4:4 up to 100 meters
- Type of use: Fixed installation
- Twisted 23 AWG solid conductors
- Length markings on jacket
Specifications:

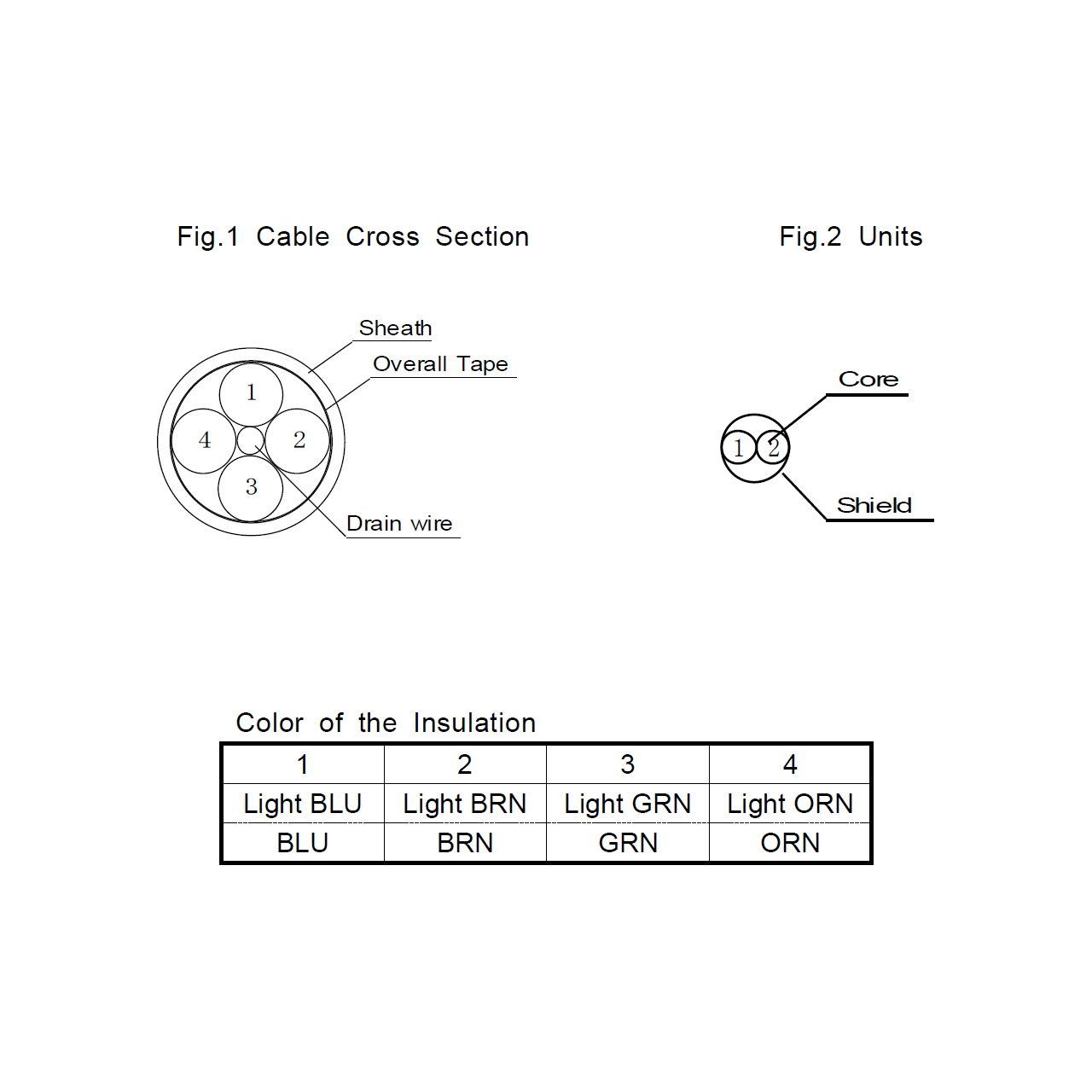

- Shield type: Each pair of foil (U/FTP)
- Length: 656 Feet/200m
- Nom. O.D.: 7.6mm
- Weight: 24.25lb

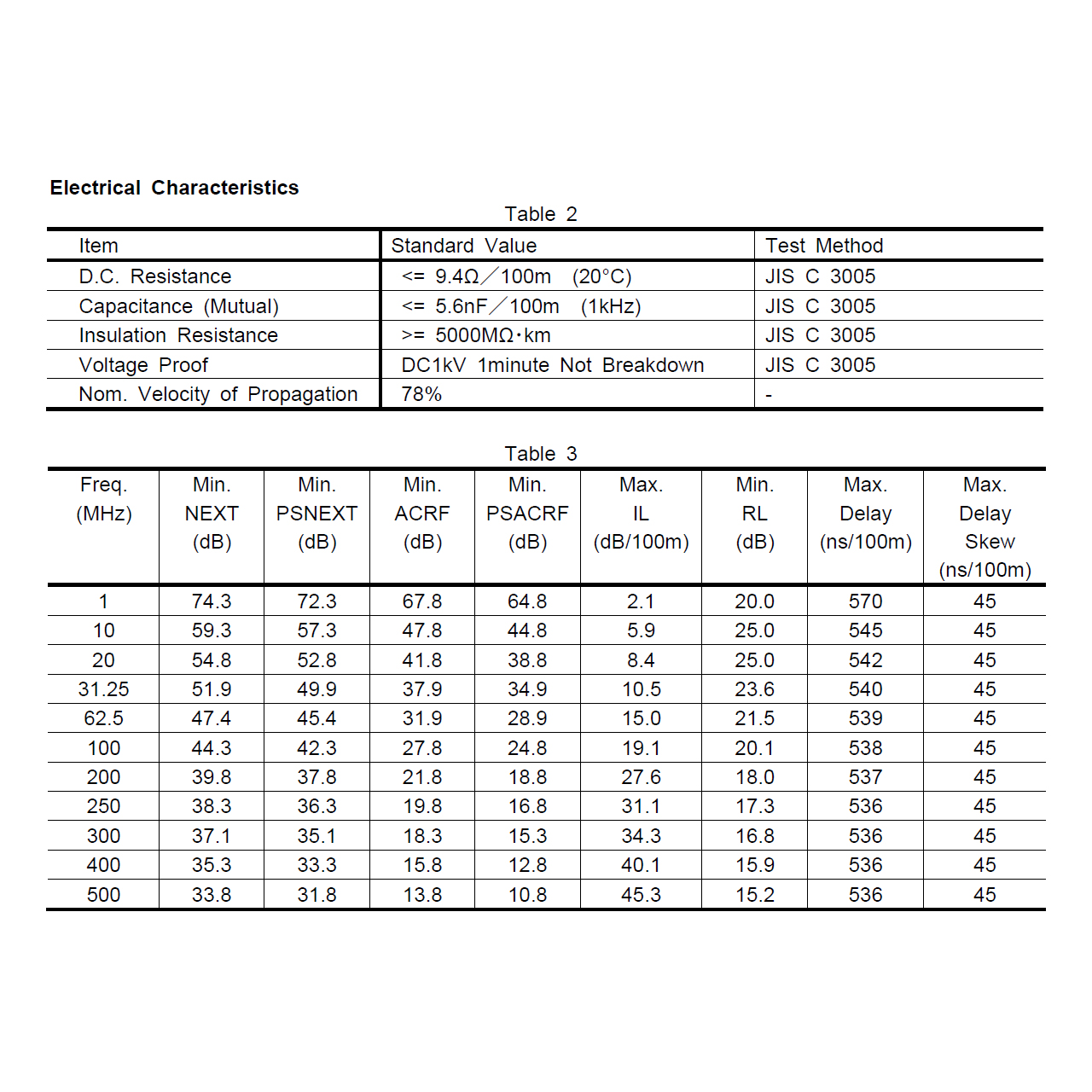

- Cross sec. area & composition - mm²/(AWG) Q'ty/mm: 0.27(23) 1/0.59A
- DCR ohm/100m: 9.4
- Impedance: 100Ω
- Insertion loss: 100 MHz: 19.1 / 250 MHz: 31.1 / 500 MHz: 45.3
Item Includes:
- 1x Canare RJC6A-F4PH CAT6A U/FTP 23AWG Cable - HDBaseT3.0 Premium - 4K60P 4:4:4 up to 328 Feet - Black - 656 Foot/200m
