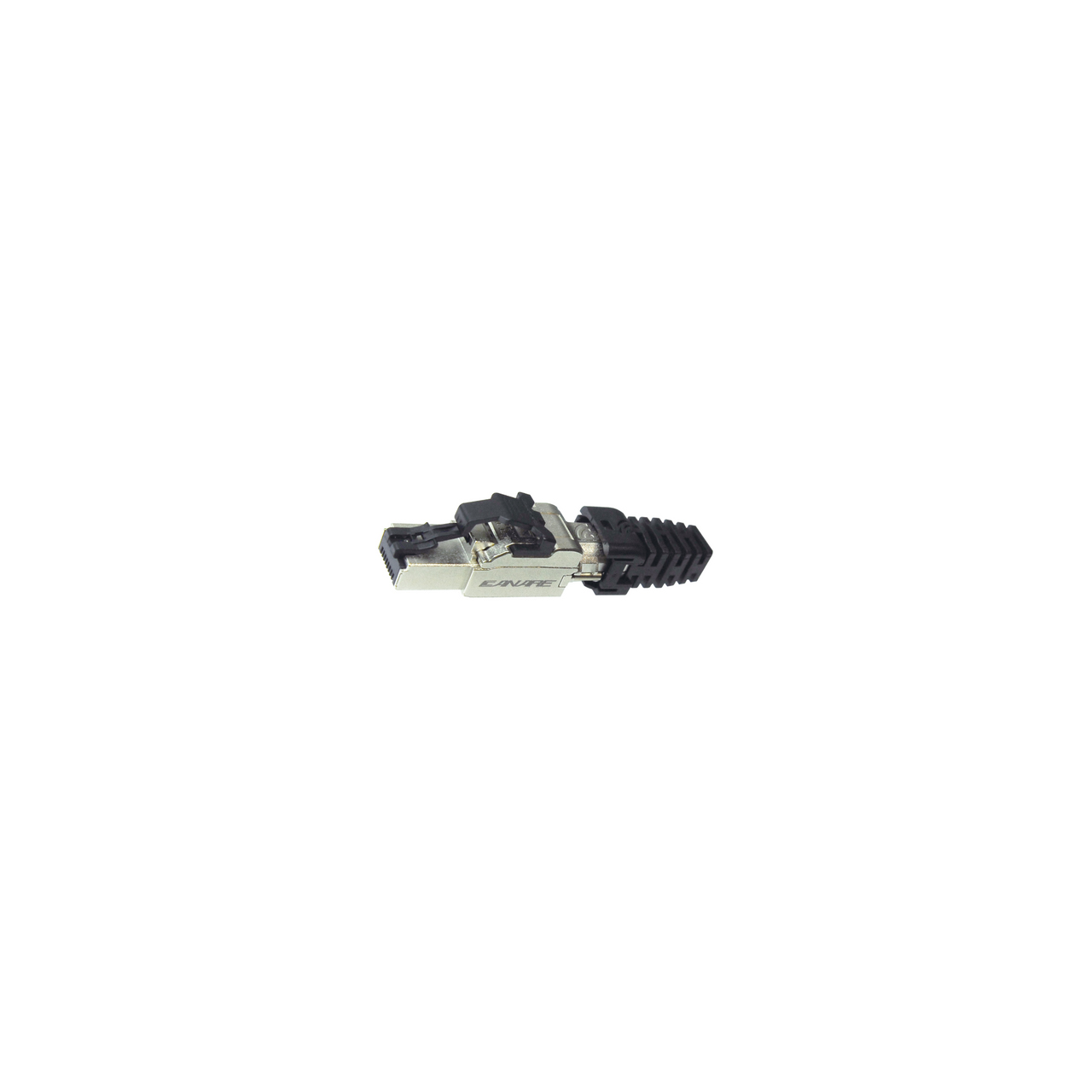

Canare RJSP-6AFT RJ45 Tool-Less Field Termination Modular Plug for Canare RJC6A-F4PH Cat6A U/FTP Cable

RJSP-6AFT - Overview

• Features:

  • Suitable for CAT6A U/FTP Cable "RJC6A-F4PH"
  • No special tooling required.
  • Removal latch button construction prevents accidental disconnections.
  • IDC Style, field termination ready.
  • Time-saving and efficient on-site assembly.


• Specifications:

  • Applicable Standard: ANSI/TIA-568-C.2 Cat6A, ISO 11801, ANSI/TIA-1096-A, IEC 60603-7
  • Nominal Impedance Differential: 100Ω
  • Weight: Approx 0.04lb
  • Applicable Cable Diameter: 6.0~7.7mm
  • Applicable Insulator Diameter: 0.8~1.47mm
  • Applicable Conductor Diameter: 26AWG~23AWG (Stranded wire/Single wire)
  • PoE Standard: Meet PoE+ (IEEE802. 3at), PoE++ (IEEE802. 3bt)
  • Operating Temperature: -20~+60°C
  • Operating Humidity: 90%RH or less
  • Insulation resistance: 500MΩ or more
  • Voltage proof: Without any damage such as electric breakdown etc.
  • Contact resistance - Between contacts: 20mΩ or less
  • Return loss: Meet ANSI/TIA-568-C.2 Cat6A and ISO/IEC 11801 Class EA
  • NEXT: Meet ANSI/TIA-568-C.2 Cat6A and ISO/IEC 11801 Class EAMeet ANSI/TIA-568-C.2 Cat6A and ISO/IEC 11801 Class EA
  • Intermatability: To be engaged without any abnormality.
  • Insertion and withdrawal forces: Insertion force: 20N or less. Withdrawal force: 20N or less
  • Mechanical operation (repeated): Contact resistance: 20 mΩ or less change from initial


• Item Includes:

  • 1x Canare RJSP-6AFT RJ45 Field Termination Modular Plug for Cat6A U/FTP
