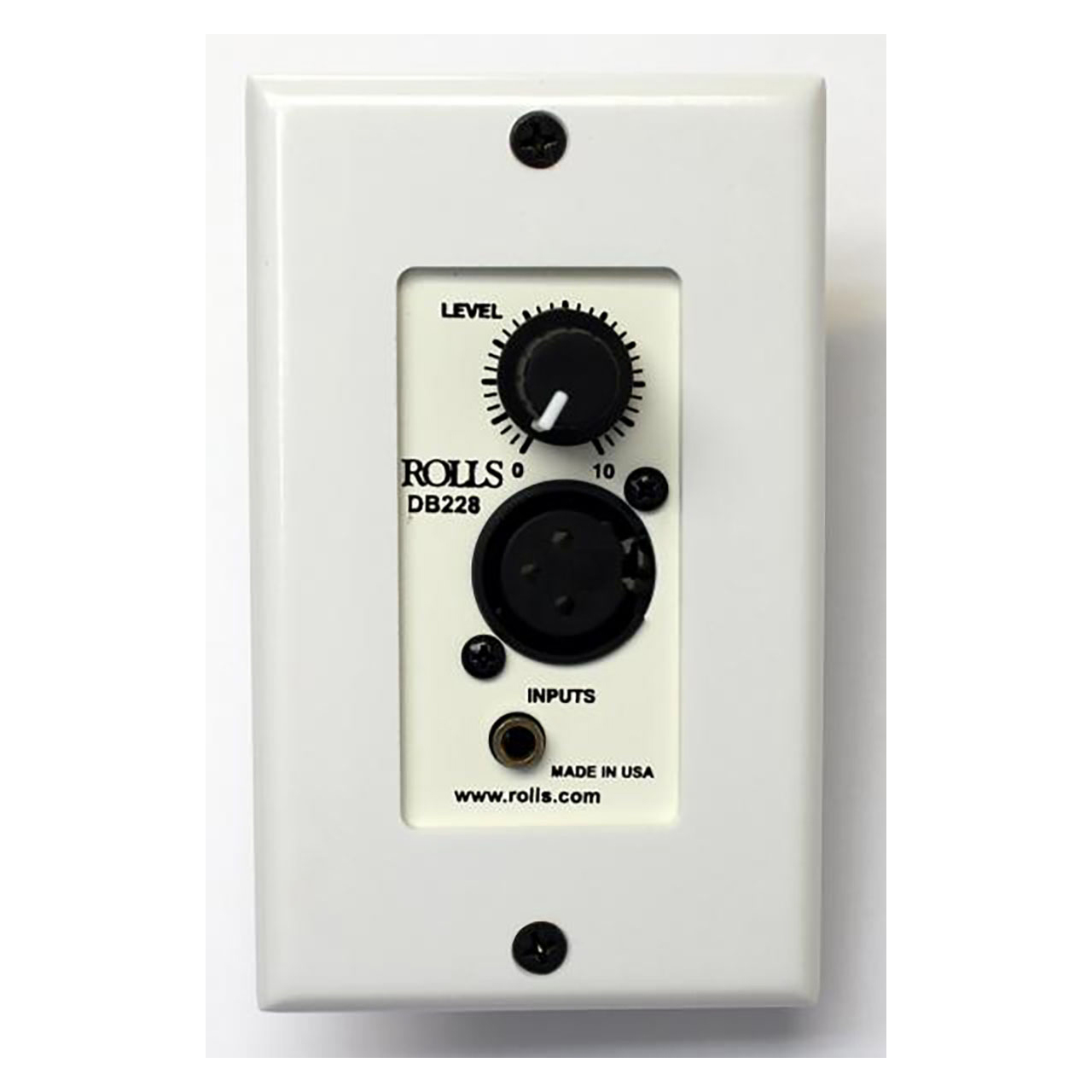

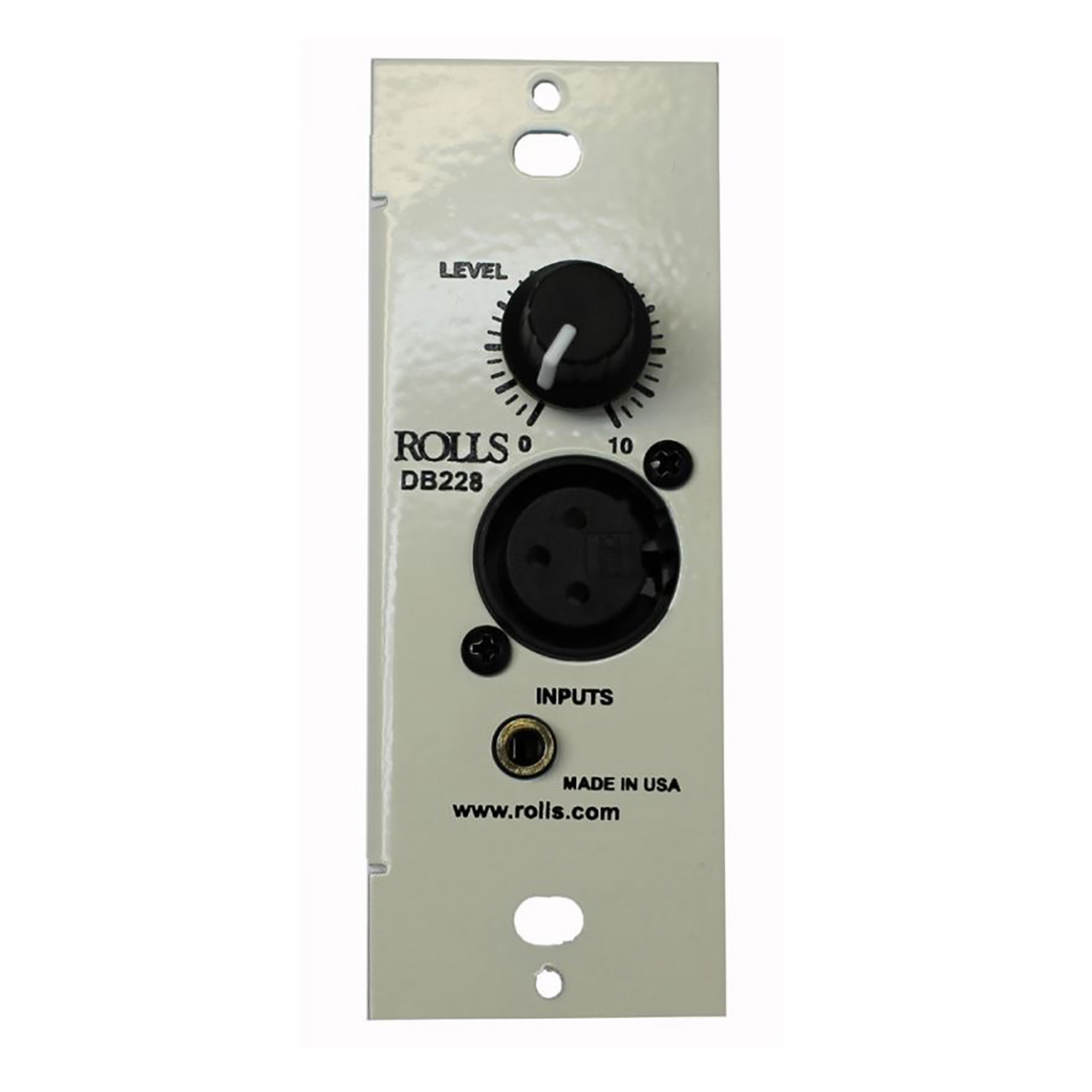

Rolls DB228 Wall Direct Interface - Connects Unbalanced Stereo Devices to Balanced Systems

DB228 - Overview

• Features:

  • Transformer isolation device
  • No power required
  • Stereo 1/8" (3.5mm) Input
  • Balanced plugable barrier strip Output Connector
  • Level Control adjusts both inputs
  • 3.5mm R and L mix to Mono
  • Level Control adjusts both inputs
  • Output is a screw terminal plugable strip
  • Mounting for standard electrical wall box (not included)
  • Trim is for standard Decora wall plate (not included)


• Specifications:

  • XLR Input Impedance: 600Ω
  • 3.5mm Input Impedance: 20KΩ
  • Frequency Response: 50Hz - 20kHz ±3dB
  • Weight: 0.25lbs
  • Dimensions (WxHxD): 1.5" x 4.13" x 1.5"
  • Inputs:
    - XLR balanced input
    - 3.5mm Tip-Ring-Sleeve jack


• Item Includes:

  • 1x Rolls Corporation DB228 Wall Direct Interface


• Warranty:

  • 1 Year Limited Warranty
