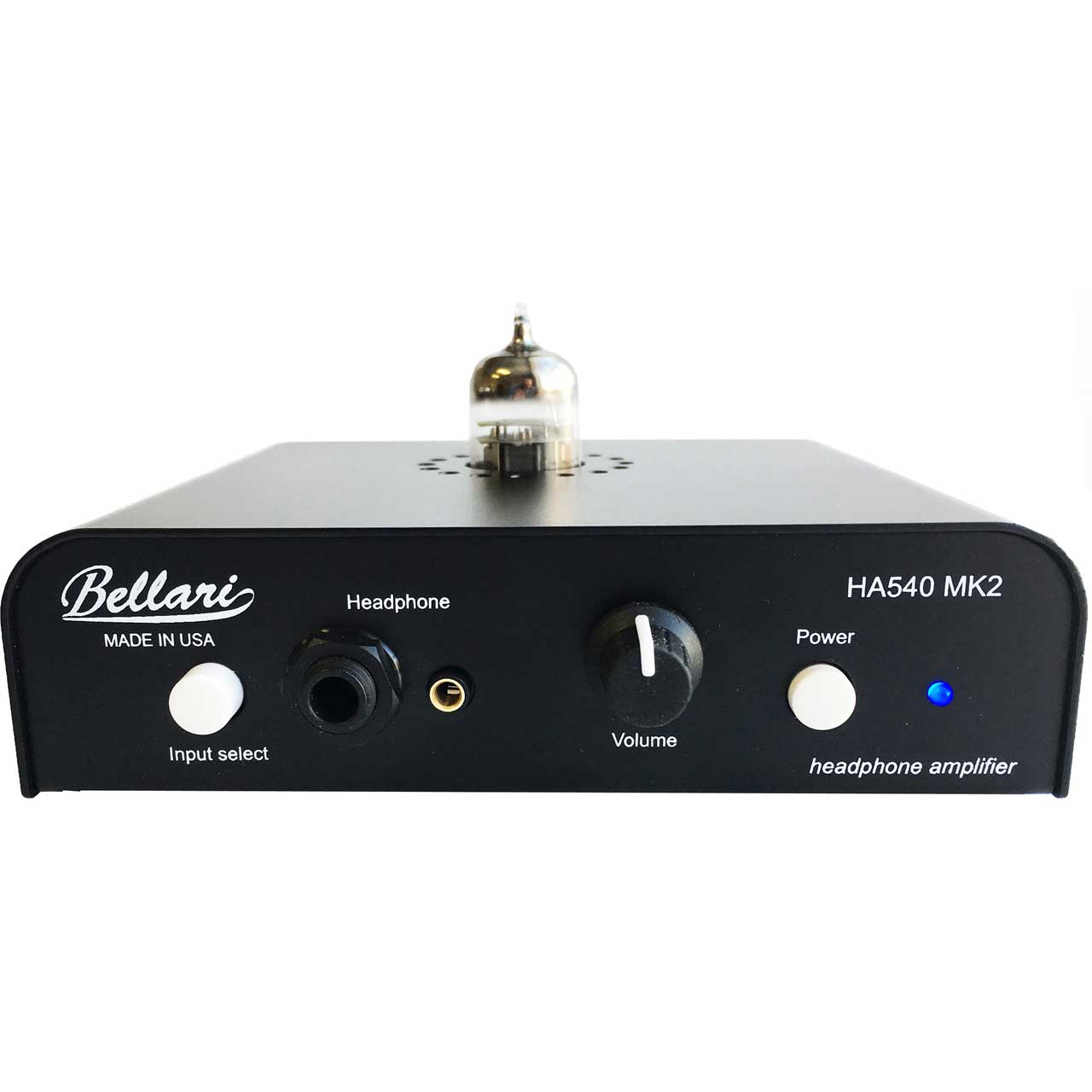

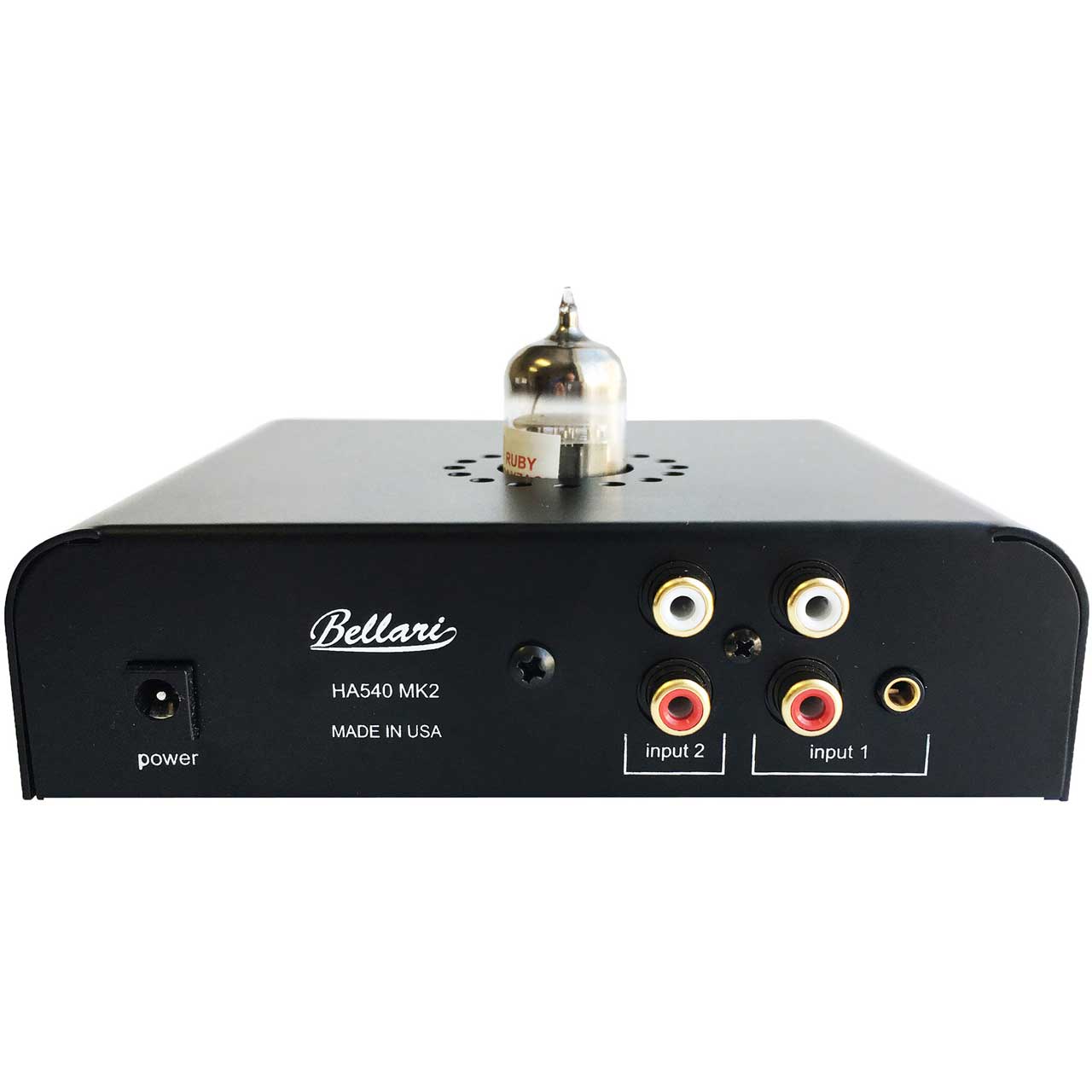

Bellari HA540 MK2 Class A Tube Headphone Amp

ITEM #: RLS-HA540-MK2 MFG #: HA540 MK2

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$299.00

Our Price:

$199.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


HA540 MK2 - Overview

The Bellari HA540 MK2 is a audiophile grade headphone amplifier. The all class A signal path ensures smooth clean analog audio. The 0 feedback design means smooth natural analog response. It features 2 input paths and high gain for MP3 players, ipod, etc. and a low gain path from audio selectors, mixers, satellite receivers, etc.. It also features direct into the tube grid coupling for no loss or distortion. The unit is included with a universal power supply for use most anywhere in the world.

  • Features:

    • Direct to the grid coupling
    • Zero feedback, what comes out is what went in, nothing "extra"
    • Over 200V plate voltage
    • 2 switchable input channels
    • Output jacks for both 1/4" and 3.5mm connectors
    • Both 3.5mm and gold RCA input jacks
    • Universal power supply
    • Made in USA

  • Specifications:

    • Input Impedance: 47kΩ
    • Max Output Gain: 19.6dB
    • THD: 0.04%, 20Hz - 20kHz, @ 1V RMS
    • S/N Ratio: 85dB, unweighted
    • Indicator: 1 Power LED
    • Max Output Power: 332mW/side, 664mW/Channel (30Ω)
    • Frequency Response: 6Hz - 51kHz ±3dB
    • Phase Shift (In to Out):
    • Crosstalk: -75dB
    • Headphone impedance: 8Ω - 2000Ω
    • Input Connectors:
      CH 1: RCA, 3.5mm, Stereo
      CH 2: RCA
    • Outputs: 1/4", 3.5mm TRS Stereo jacks
    • Power: 15 VDC, 500mA
    • Size: 6" x 2.5" x 5.4"
    • Weight: 2lbs

  • Item Includes:

    • Bellari HA540 MK2
    • 15V power supply (PN PS27s)
    • Owner's Manual

  • GTIN:

    0675889054002
