Bellari HA543 Headphone Amplifier

HA543 - Overview

• Features:

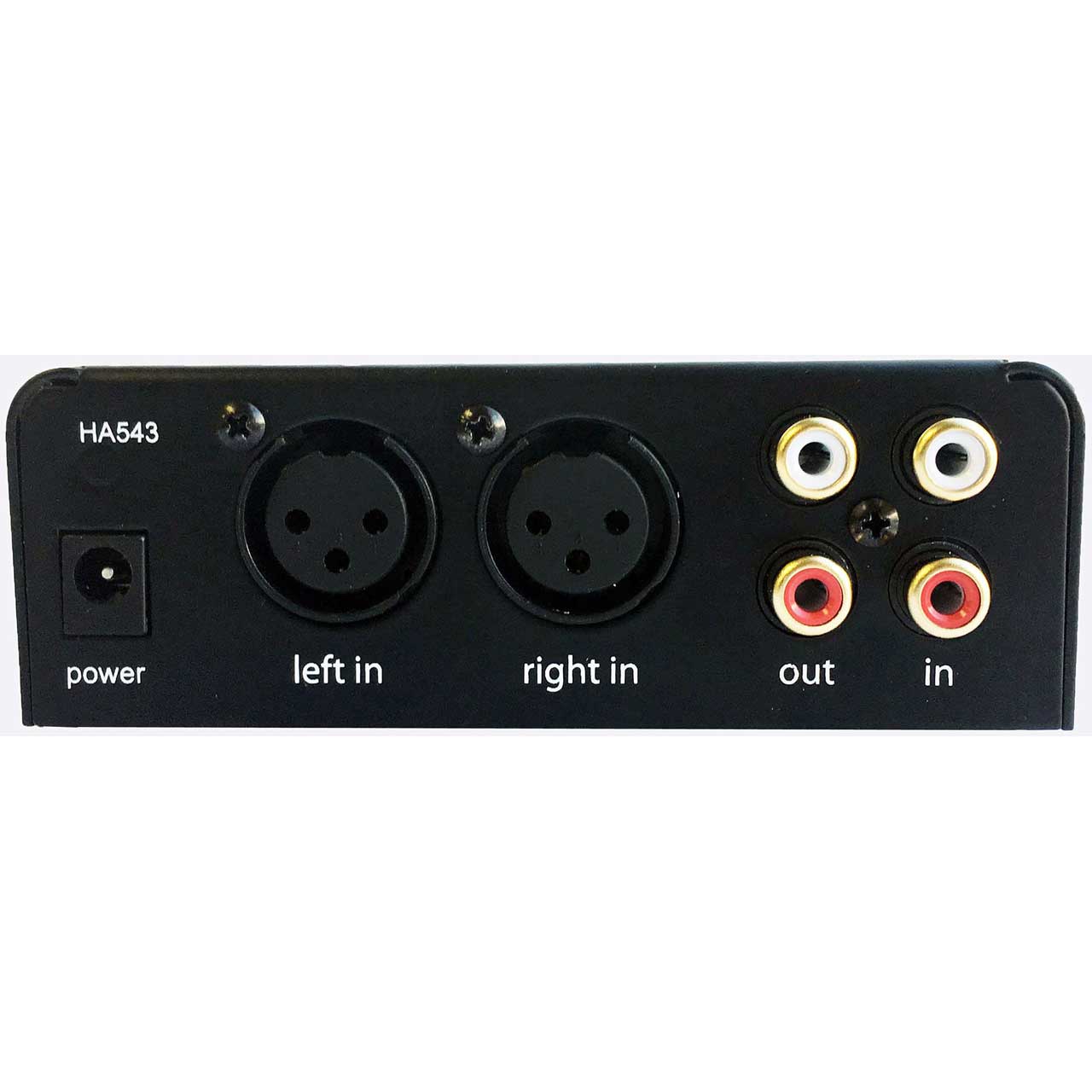

  • Stereo XLR balanced inputs

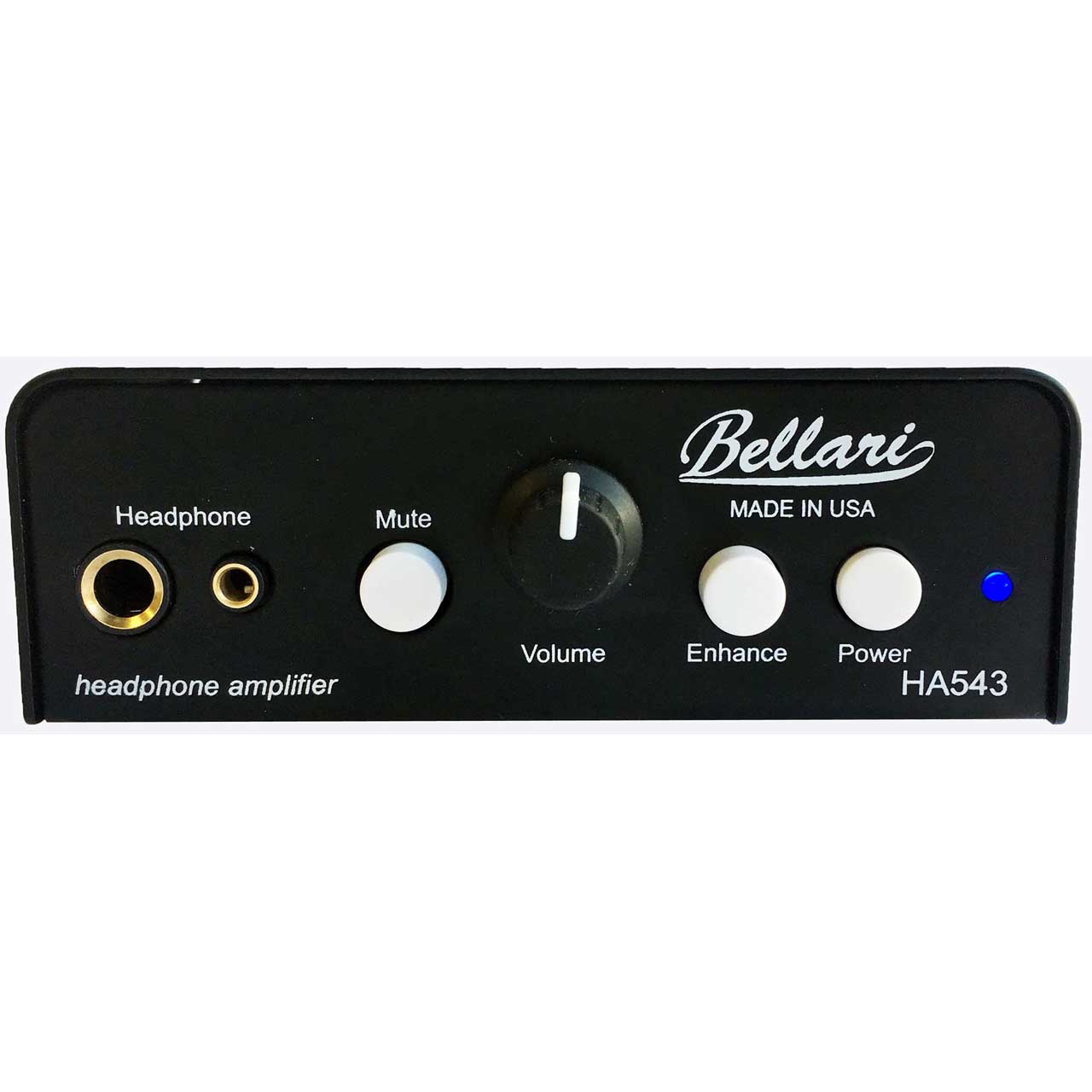

  • 1/4" and 3.5mm headphone outputs
  • Pass thru (RCA out) that also works when using the XLR inputs
  • Mute, Power switch and Enhance feature
  • Made in USA


• Specifications:

  • Input Impedance: 10kΩ unbalanced - 20kΩ balanced
  • Max Input Level: 14dBV
  • Input Connectors: RCA, XLR balanced
  • Outputs: 1/4" TRS & 3.5mm TRS stereo jacks
  • Max Gain: 20dB
  • Output Power: 326 mW/side, 652 mW/channel (62Ω)
  • Frequency Response: 3Hz - 59kHz ±3dB
  • S/N Ratio: 92dB
  • THD: <.008%
  • IMD: <.008%
  • Phase Shift (In to Out): less than 10°
  • Slew Rate: 2V per microsecond
  • Crosstalk: -75dB
  • Power: VDC (Power Supply Included)
  • Weight: 1lb
  • Size: 4.5" x 1.5" x 3"
  • Headphone Impedance: 8Ω - 600Ω


• Item Includes:

  • Bellari HA543
  • 15V power supply (PN: PS27s)
  • Owner's manual


• GTIN:

  0675889005431
