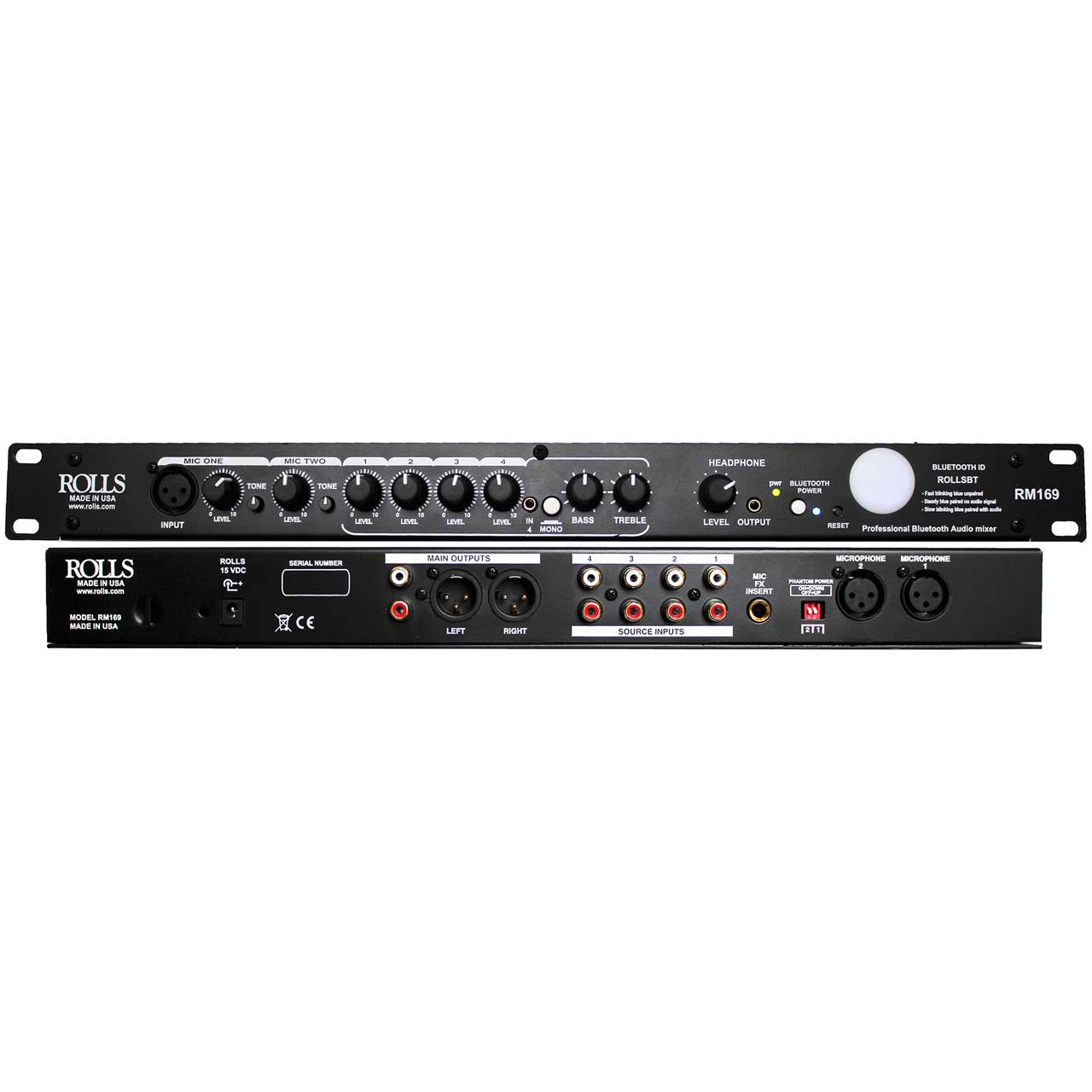

Rolls RM169 Professional 6-Channel 1RU Rackmount Audio Mixer with Bluetooth

ITEM #: RLS-RM169 MFG #: RM169

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$279.00

Our Price:

$219.00

Availability: In Stock
iAvailability Description Popup


RM169 - Overview

The ROLLS RM169 is a six channel Professional 1RU audio mixer with Bluetooth input. Two microphone inputs, and four stereo line RCA inputs, the RM169 is ideal for any installation where space is a consideration, without compromising audio quality. The Bluetooth input has extended range and exceptional audio quality. RCA and XLR balanced outputs jacks make the RM169 perfect for any application.

  • Specifications:

    • Input Impedance:
      Mic: 600 Ohms XLR balanced
      Source: 22K Ohms RCA
      Mic Insert: 22K Ohms 1/4" TRS insert
    • Max Input Level:
      Mic: -14 dBV Mic level
      Source: 24 dBV
    • Headphone Output Impedance: >8 Ohms
    • Total In/Out Connectors: 5: XLR, 5: Stereo RCA, 1: 1/4" TRS, 2: 3.5mm
    • Phantom Power: +15 VDC
    • Output Level: +17 dBV max
    • Output Impedance: 100 Ohms Balanced
    • Max Gain:
      Mic: 60dB
      Source: 26dB
    • Tone Controls:
      ±12 dB 100Hz Bass
      ±12 dB 11kHz Treble
    • Noise Floor: -80dB
    • THD: <.025%
    • S/N Ratio: 96dB
    • Dimensions: 19 x 1.75 x 4 (48.3 x 4.5 x 10cm)
    • Weight: 5Lbs (2.3kg)

  • GTIN:

    0675889001693
