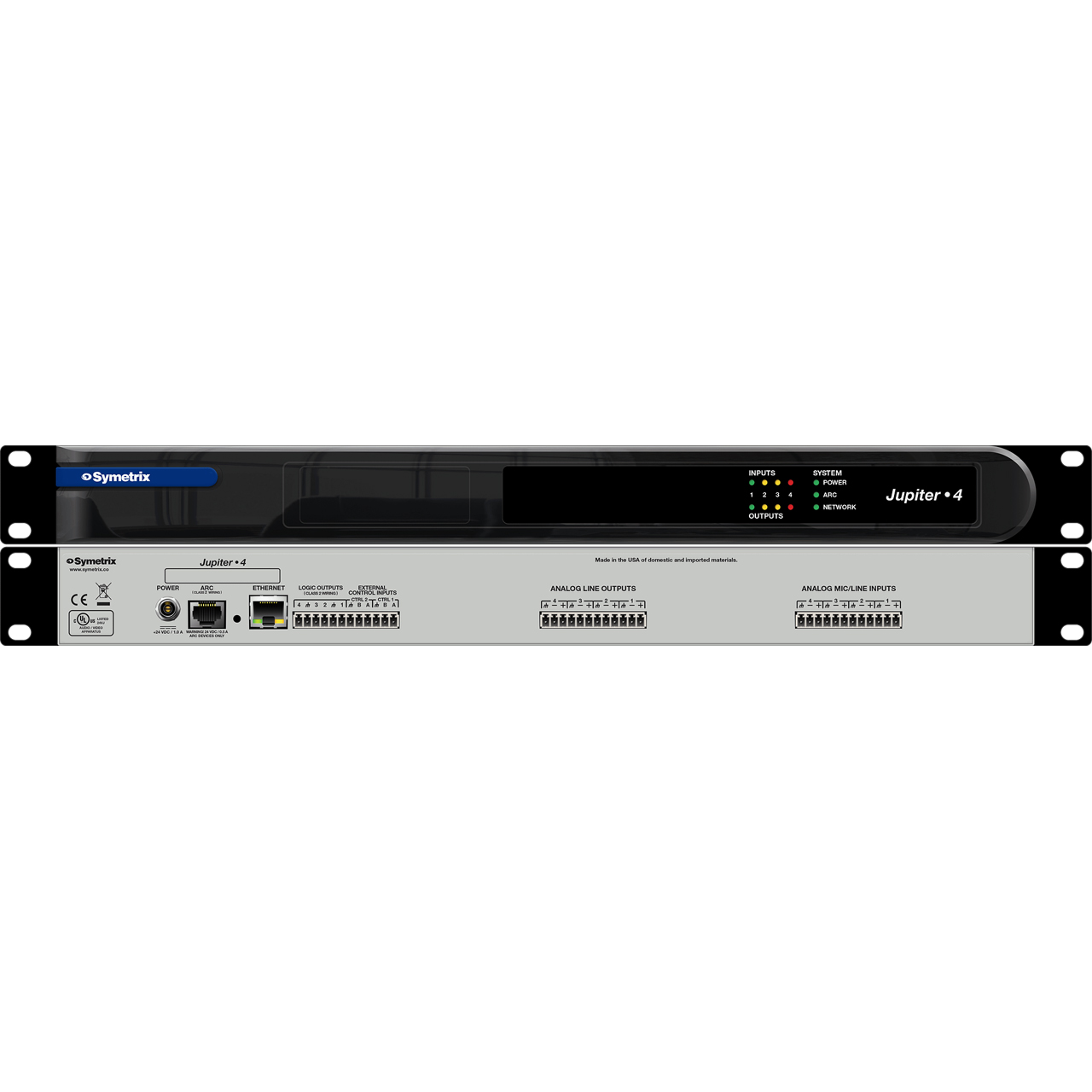

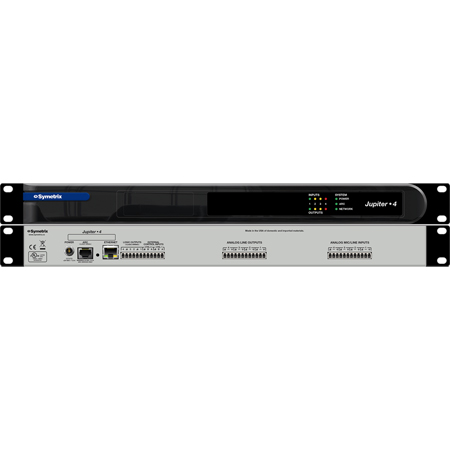

Symetrix JUPITER 4 App-based Digital Signal Processor - 4 Mic/LIne In - 4 LIne Out - ARC

JUPITER 4 - Overview

• Features:

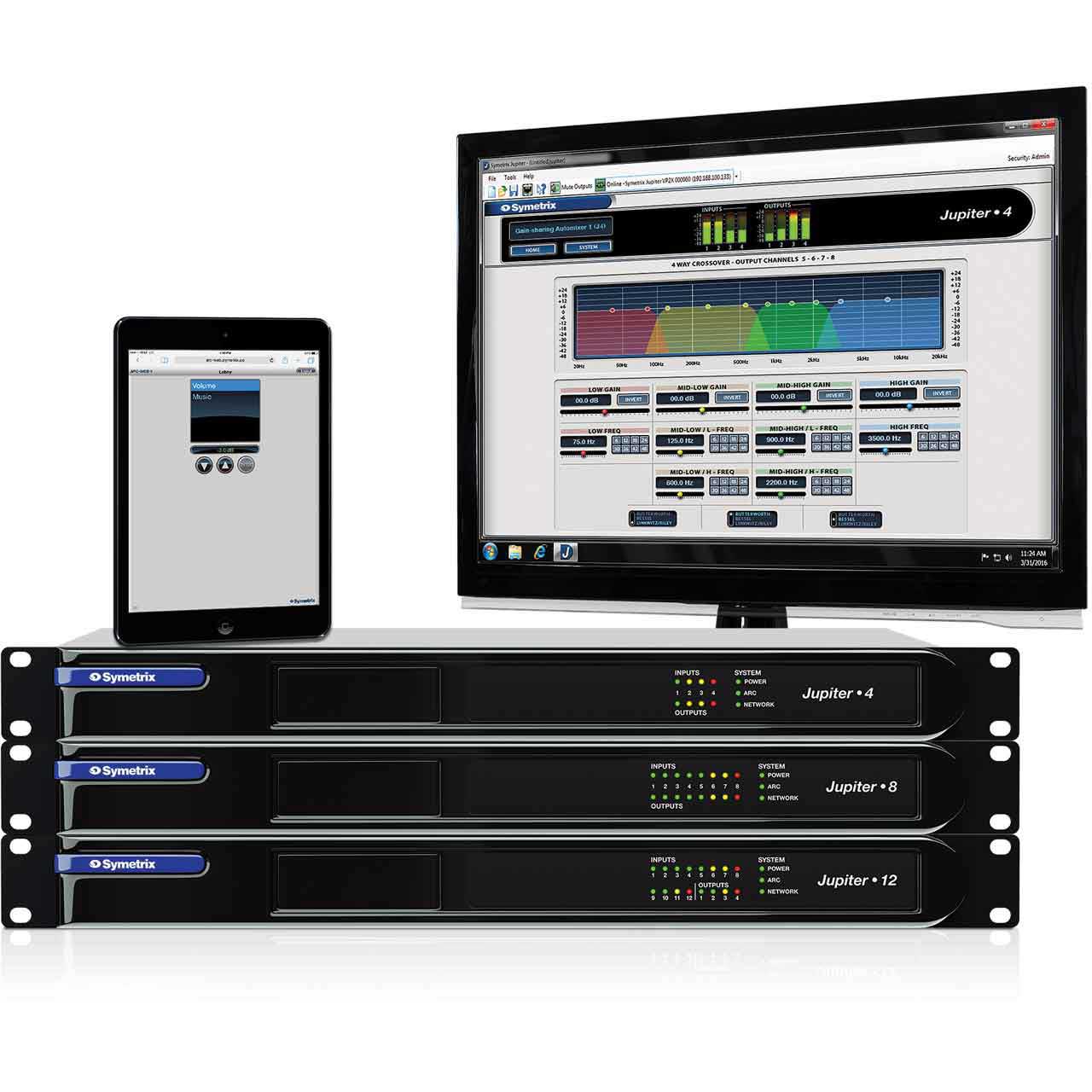

  • An Innovative and Unique Approach to DSP
  • Turn-key Designs Cover a Wide Range of Applications
  • 85 Downloadble Apps
  • Near Zero Programming Time for Rapid Deploymnet


• Specifications:

  • Inputs

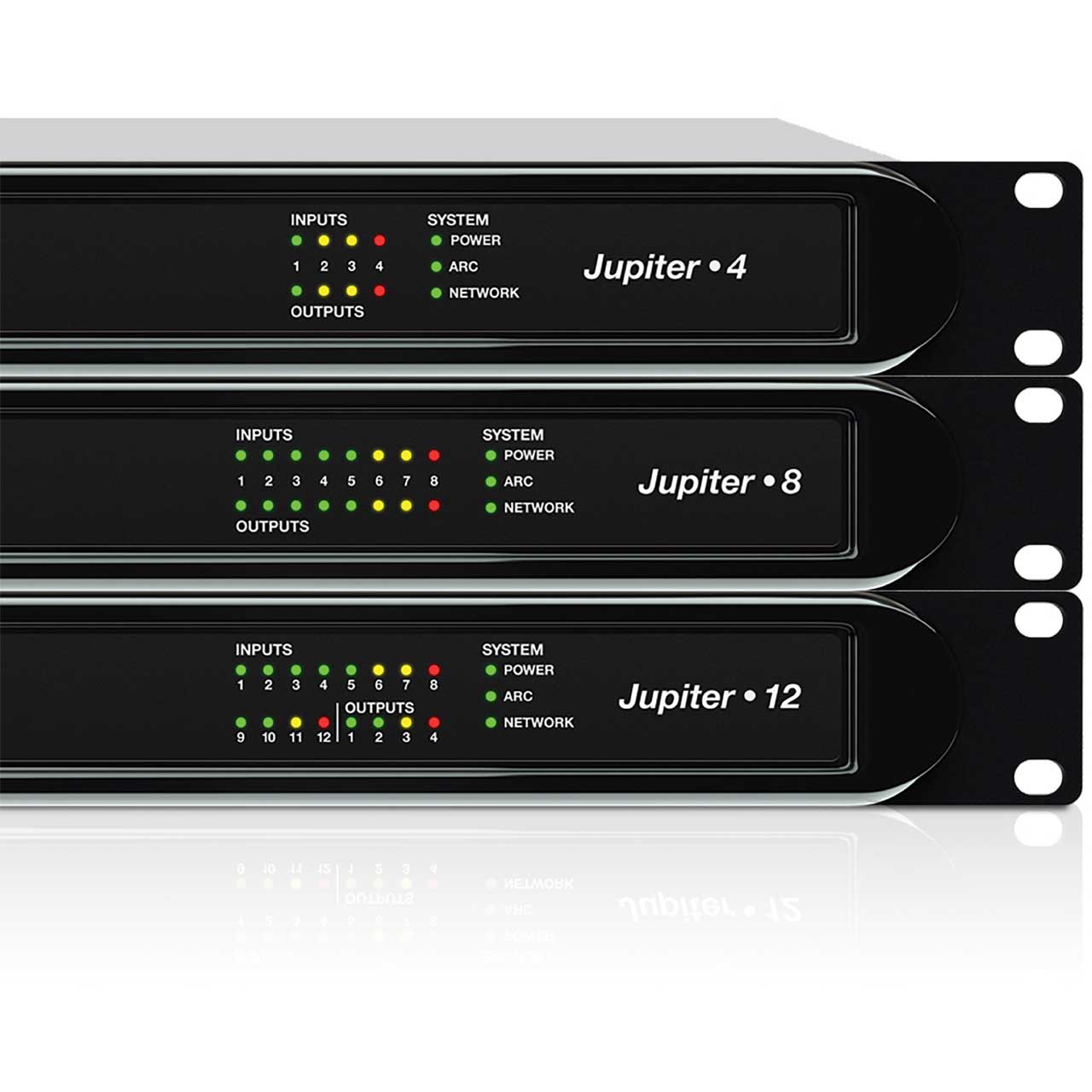

  • Number of Inputs: Twelve (12), eight (8), or four (4) switchable balanced mic or line level on Jupiter 12, 8 or 4 respectively.

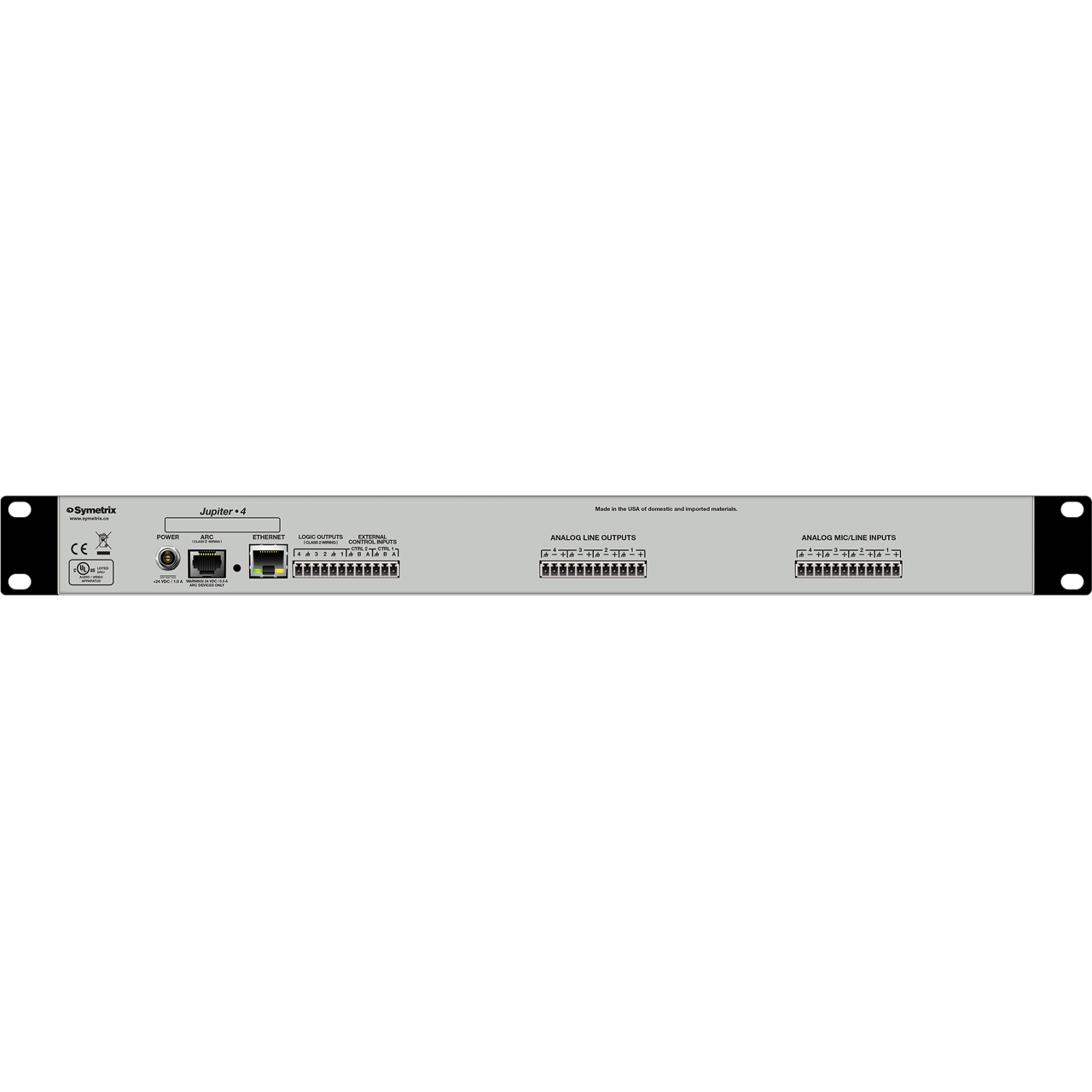

  • Connectors: 3.81 mm terminal blocks.
  • Nominal Input Level: +4 dBu line or -36 dBu mic level (software selectable) with 20 dB of headroom.
  • Mic Pre-amp Gain: +40 dB.
  • Input Trim: +/- 24 dB.
  • Maximum Input Level: +23 dBu.
  • Input Impedance: > 18 kΩ balanced, > 9 kΩ unbalanced, > 2 kΩ with phantom power engaged.
  • CMRR: > 50 dB @ 1 kHz, unity gain.
  • Mic Pre-amp EIN: < -125 dBu, 22 Hz - 22 kHz, 100 Ω source impedance.
  • Phantom Power: +20 VDC, 20 mA maximum per input.

    Outputs
  • Number of Outputs: Four (4), eight (8), or four (4) line level on Jupiter 12, 8 or 4 respectively.
  • Connectors: 3.81 mm terminal blocks.
  • Nominal Output Level: +4 dBu line level with 20 dB of headroom. For unbalanced analog output, do not connect the minus output terminal. Unbalanced configuration results in 6 dB lower output level.
  • Maximum Output Level: +24 dBu.
  • Output Impedance: 200 Ω balanced, 100 Ω unbalanced.

    Mechanical Data
  • Space Required: 1U (WDH: 18.91 in x 7.5 in x 1.72 in, depth is specified from front panel to back of connectors. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.
  • Electrical: 100-240 VAC, 50/60 Hz, 25 Watts maximum. Universal input.
  • Ventilation: Maximum recommended ambient operating temperature is 86 F.
  • Certifications or Compliance: UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS
  • Shipping Weight: 8 lbs

    System
  • Sample Rate: 48 kHz.
  • Frequency Response: 20 Hz - 20 kHz, +/- 0.5 dB.
  • Dynamic Range: > 110 dB (A-Weighted), input to output.
  • THD+Noise: < -85 dB (un-weighted); 1 kHz @ +22 dBu with 0 dB gain.
  • Interchannel Crosstalk: < -90 dB @ 1 kHz, typical.
  • Latency: < 1.6 ms, input to output with all DSP inactive.


• Item Includes:

  • 1x 24 VDC @ 1 amps switching power supply
  • 1x Power cable
  • 1x 12 or 20 detachable 3.81 mm terminal block connectors
