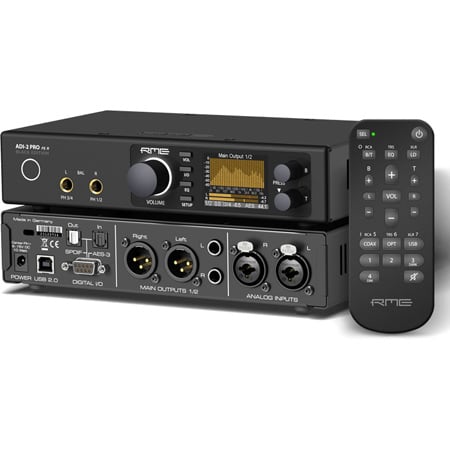

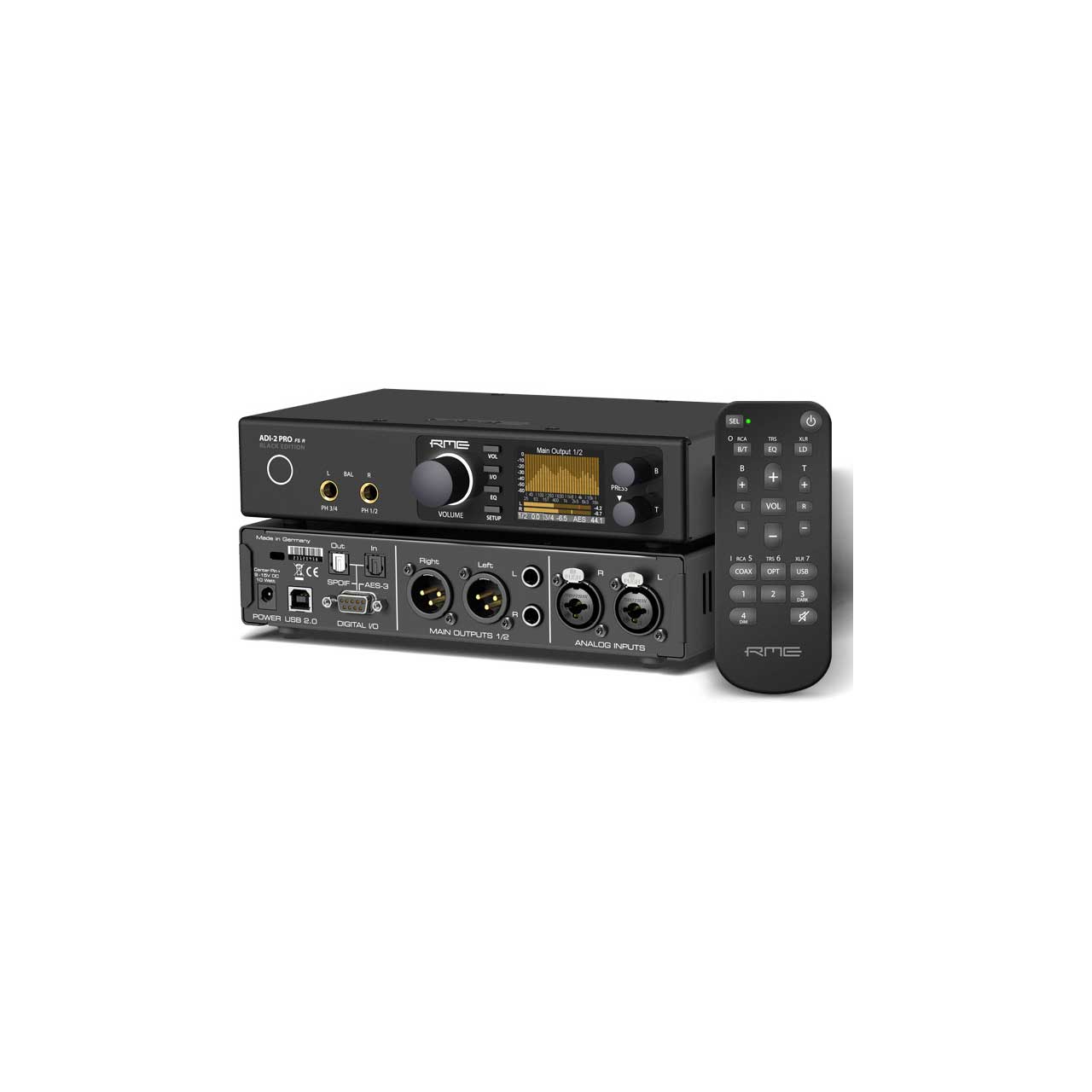

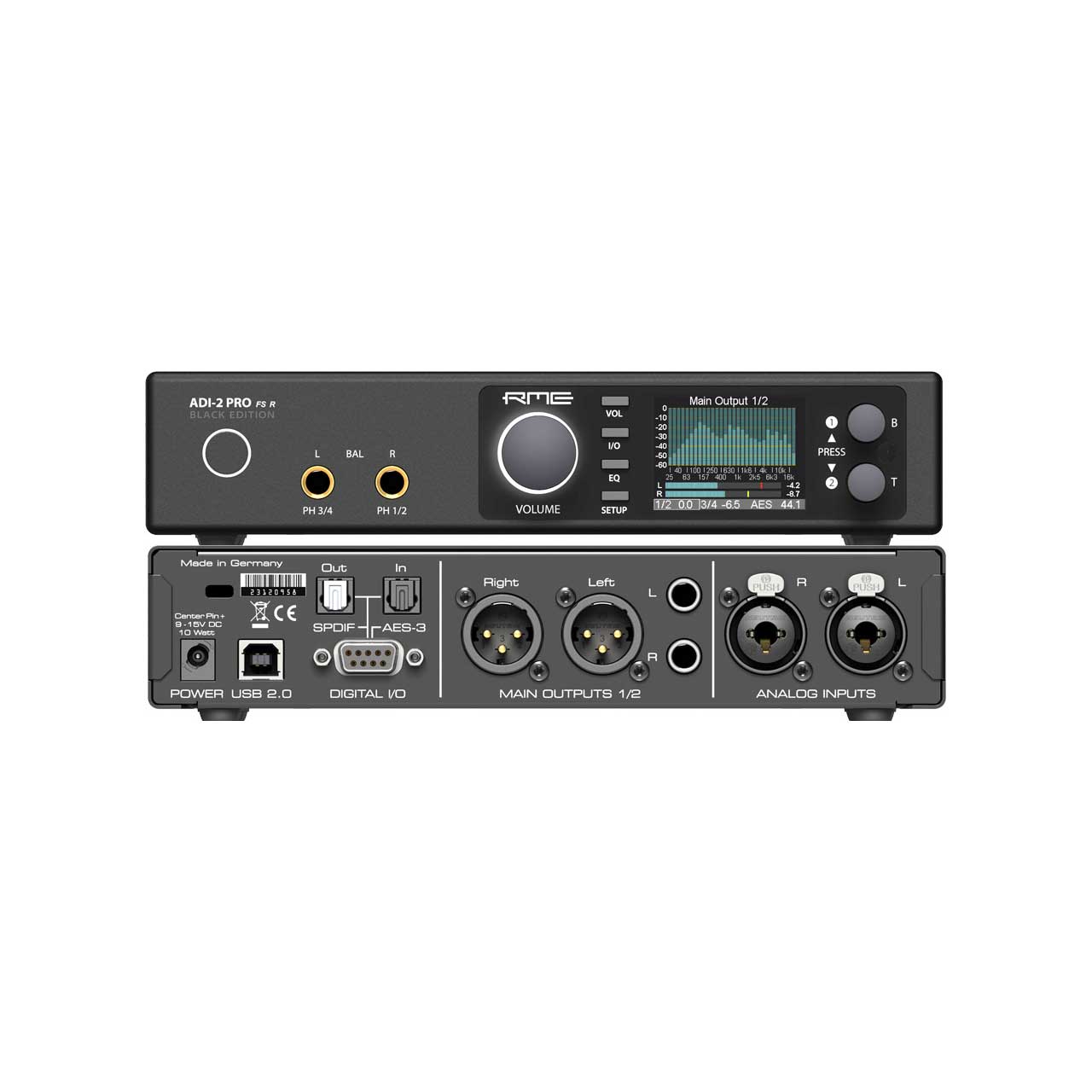

RME ADI2PROFSRBE ADI-2 Pro FS Black Edition Ultra-Fidelity PCM/DSD 768 kHz AD/DA Converter

ADI-2 PRO FSR BE - Overview

• Features:

  • A high-end AD/DA converter in professional studio quality
  • A double headphone amplifier in true high-end quality
  • A USB DAC like no other - the most versatile and capable one
  • A high-end AD/DA frontend and headphone amp for iPad / iPhone
  • A multi-format converter (AES, SPDIF, ADAT) with monitoring function
  • A DSD record and playback solution
  • An AD/DA frontend for audio measurement at up to 768 kHz sample rate


• Specifications:

  • Analog Inputs
  • XLR
    Input: XLR, servo-balanced
    Input sensitivity switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS
    Digital Trim Gain range: 0 dB up to +6 dB
    Signal to Noise ratio (SNR) @ +13/19/24 dBu: 120 dB RMS unweighted, 124 dBA
    Signal to Noise ratio (SNR) @ +4 dBu: 119 dB RMS unweighted, 123 dBA
    Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz - 20.5 kHz
    Frequency response @ 96 kHz, -0.5 dB: 3 Hz - 45.5 kHz
    Frequency response @ 192 kHz, -1 dB: 2 Hz - 92.7 kHz
    Frequency response @ 384 kHz, -1 dB: < 1 Hz - 124 kHz
    Frequency response @ 768 kHz, -3 dB: < 1 Hz - 180 kHz
    THD @ -1 dBFS: -116 dB, 0.00016 %
    THD @ -10 dBFS: -125 dB, 0.000056 %
    Channel separation: > 110 dB
  • TRS
    As input XLR, but:
    Input: 6.3 mm TRS jack, servo-balanced, fully compatible to TS and RCA
  • Analog Outputs
    1/2 XLR
    Output level switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS
    Signal to Noise ratio (SNR) @ +13/19/24 dBu: 120 dB RMS unweighted, 124 dBA
    Signal to Noise ratio (SNR) @ +4 dBu: 117 dB RMS unweighted, 120 dBA
    Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz - 20.2 kHz
    Frequency response @ 96 kHz, -0.5 dB: 0 Hz - 44.9 kHz
    Frequency response @ 192 kHz, -1 dB: 0 Hz - 88 kHz
    Frequency response @ 384 kHz, -1 dB: 0 Hz - 115 kHz
    Frequency response @ 768 kHz, -3 dB: 0 Hz - 109 kHz
    THD @ 0 dBFS: < -120 dB, 0.0001 %
    THD+N @ 0 dBFS: -115 dB, 0.00018 %
    Channel separation: > 110 dB
    Output impedance: 200 Ohm balanced, 100 Ohm unbalanced
  • 1/2 TS (rear)
    As output XLR, but:
    Output: 6.3 mm TS jack, unbalanced
    Maximum output level: +19 dBu
    Signal to Noise ratio (SNR) @ +19 dBu: 120 dB RMS unweighted, 123 dBA
    Signal to Noise ratio (SNR) @ +13 dBu: 118 dB RMS unweighted, 121 dBA
    Signal to Noise ratio (SNR) @ +4 dBu: 115 dB RMS unweighted, 118 dBA
    Output impedance: 100 Ohm
  • Phones 1/2
    As Output 1/2 TS, but:
    Output: 6.3 mm TRS jack, unbalanced, stereo
    Output impedance: 0.1 Ohm
    Signal to Noise ratio (SNR) @ +22 dBu: 120 dB RMS unweighted, 123 dBA
    Signal to Noise ratio (SNR) @ +7 dBu: 118 dB RMS unweighted, 121 dBA
    Output level at 0 dBFS, Ref Level +19 dBu, load 100 Ohm or up: +22 dBu (10 V)
    Output level at 0 dBFS, Ref Level +4 dBu, load 8 Ohm or up: +7 dBu (1.73 V)
    THD @ +18 dBu, 32 Ohm load, 1.2 Watt: -110 dB, 0.0003 %
    THD+N @ + 18 dBu, 32 Ohm load: -107 dB, 0.00045 %
    THD @ +14 dBu, 16 Ohm load, 0.94 Watt: -110 dB, 0.0003 %
    Max power @ 0.001% THD: 1.5 W per channel
  • General
    Lock Range: 28 kHz - 200 kHz
    Jitter suppression: > 50 dB (2.4 kHz)
    Accepts Consumer and Professional format
  • AES/EBU
    1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
    Input sensitivity 1.0 Vpp
  • SPDIF coaxial
    1 x RCA, transformer-balanced, according to IEC 60958
    High-sensitivity input stage (< 0.3 Vpp)
    AES/EBU compatible (AES3-1992)
  • SPDIF optical
    1 x optical, according to IEC 60958
    ADAT compatible
    Digital Outputs
    AES/EBU
    1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
    Output level 2.7 Vpp
    Format Professional according to AES3-1992 Amendment 4
    Single Wire mode, sample rate 28


• GTIN:

  4260123363260
