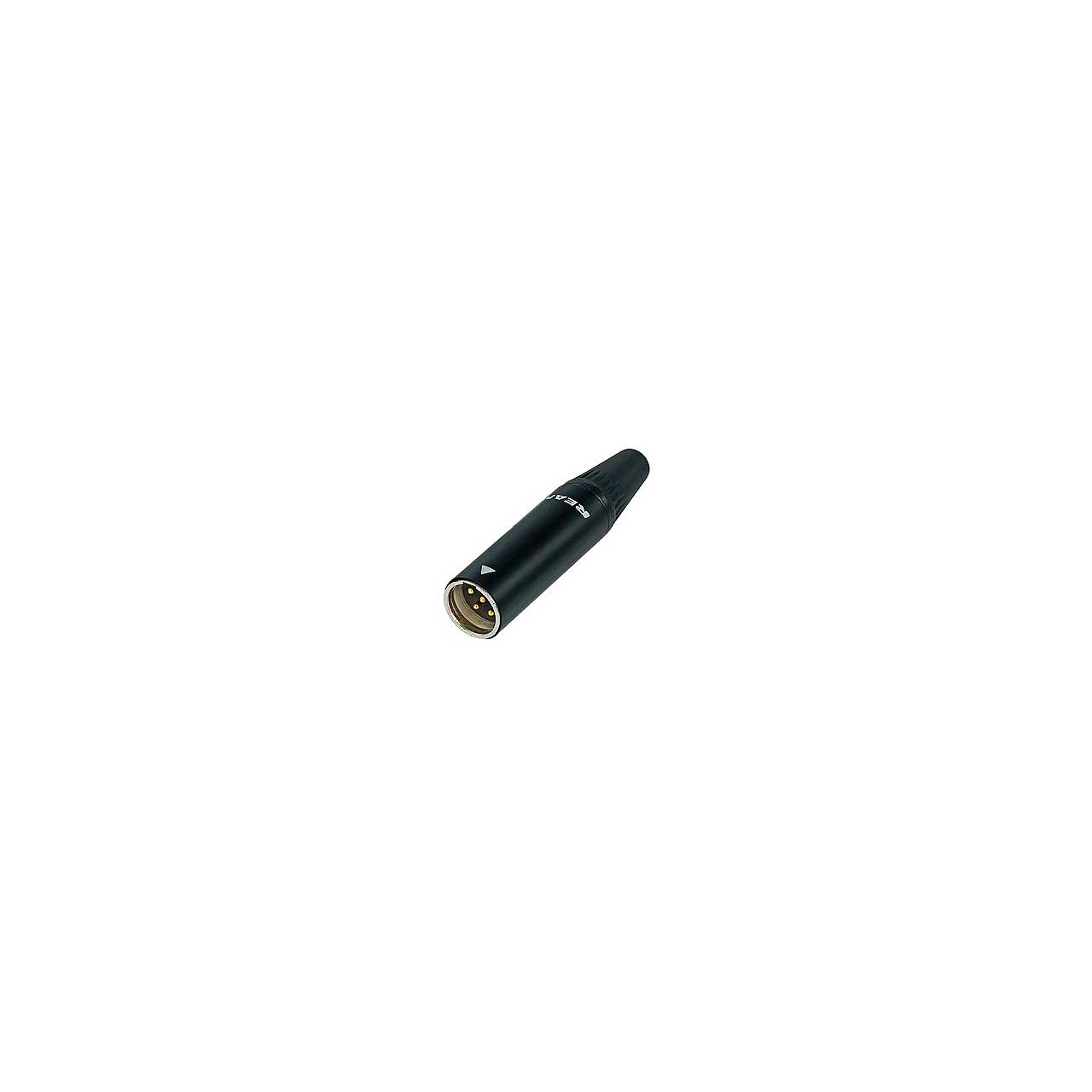

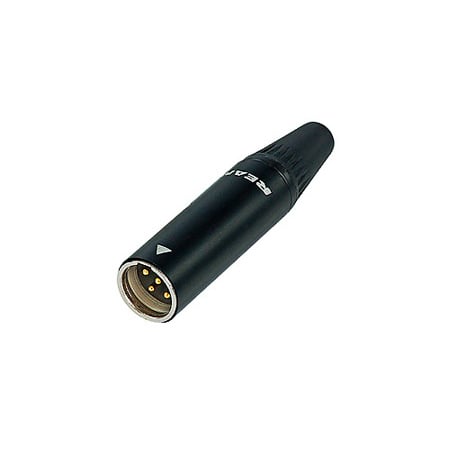

Rean RT4MC-B Tiny XLR 4-Pole Male - Black Shell Gold Contacts

RT4MC-B - Overview

• Features:

  • Easy to assemble
  • Robust metal housing with best flex relief
  • Shielded system - high noise immunity and EMI protection
  • Intuitive and rugged locking mechanism provides secure locking system
  • Millionfond proven chuck type strain relief - up to 4.00 mm cable diameter
  • Keyed insert and strain relief to avoid mispositioning / rotation of insert respectively cable


• Specifications:

  • Product
  • Title: RT4MC-B
  • Connection Type: XLR

    Electrical
  • Contact Resistance: <10 mΩ
  • Insulation Resistance: >1 GΩ
  • Dielectric Strength: >500 V rms
  • Rated Current per Contact: <5 A

    Mechanical
  • Cable O.D. Range: 2.0-4.5 mm
  • Lifetime: >1000 Mating Cycles
  • Wiresize: 0.22 mm²
  • Wiresize: 24 AWG

    Material
  • Housing: Zinc
  • Tube: Aluminum
  • Pin: Brass
  • Plastic Body: PA6+30%GF
  • Ground Contact: Bronze
  • Chuck: POM
  • Boot: PC/ABS+TPU
  • Housing: Nickel Plating
  • Tube: Black Plating
  • Pin: Gold Plating
  • Ground Contact: Tin
