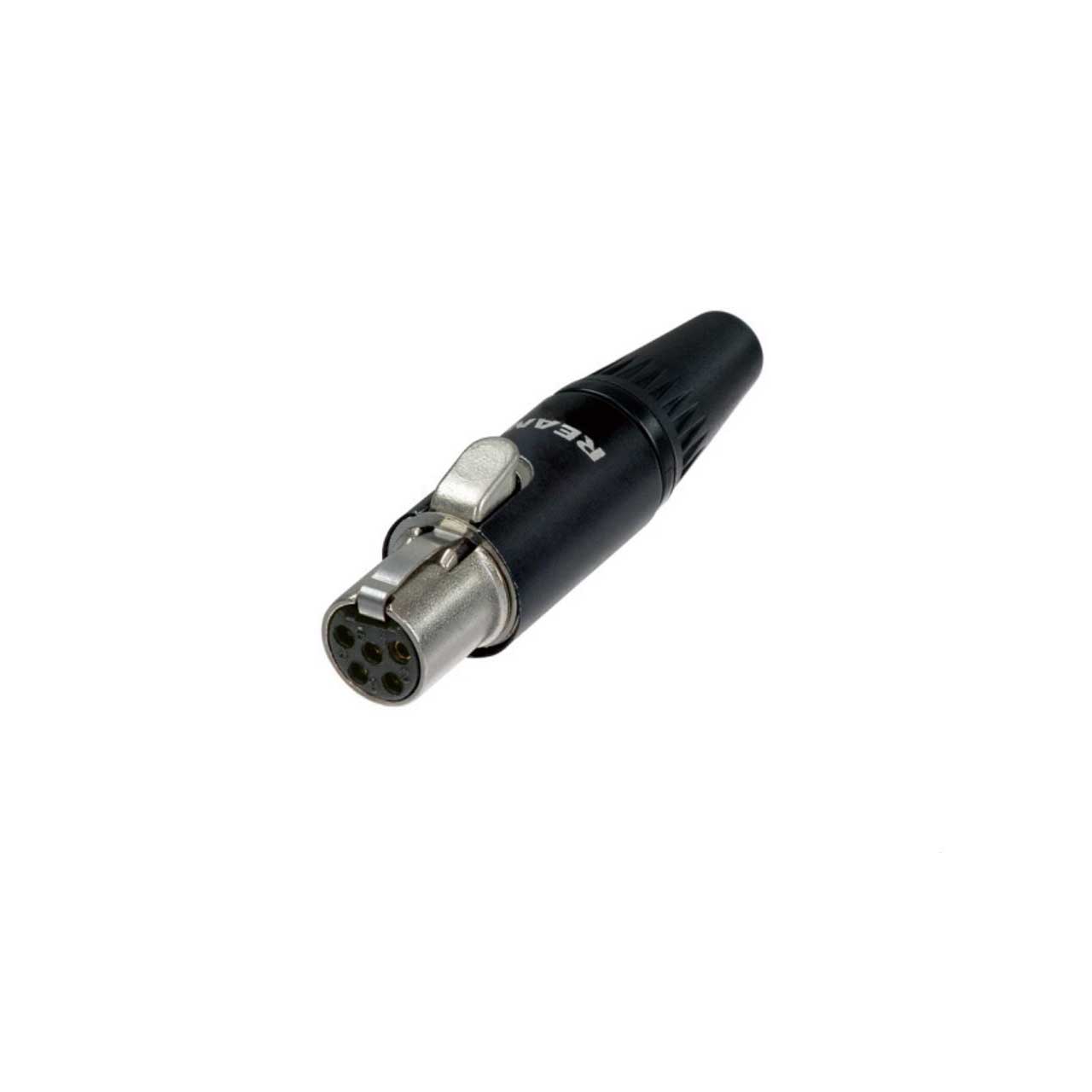

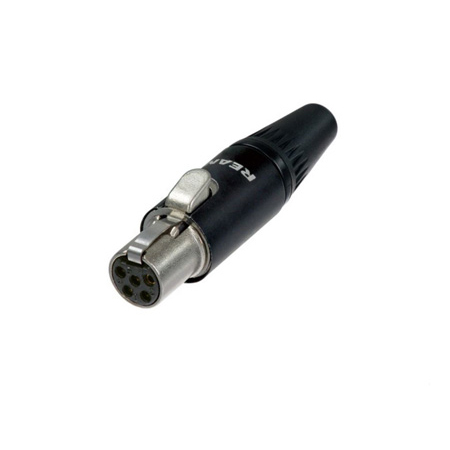

Rean RT5FC-B TINY Cable Connector 5-Pole Female Black Housing / Gold Plated

RT5FC-B - Overview

• Features:

  • Easy to assemble
  • Robust metal housing with best flex relief
  • Shielded system - high noise immunity and EMI protection
  • Intuitive and rugged locking mechanism provides secure locking system
  • Millionfond proven chuck type strain relief - up to 4.00 mm cable diameter
  • Keyed insert and strain relief to avoid mispositioning / rotation of insert respectively cable


• Specifications:

  • Electrical
  • Contact resistance: < 10 mΩ
  • Dielectric strength: > 0.5 kVdc
  • Insulation resistance: > 1 GΩ
  • Rated current per contact: < 5 A

    Mechanical
  • Cable O.D.: 2.0 - 4.0 mm
  • Lifetime: > 5000 mating cycles
  • Wiresize: 0.22 mm²
  • Wiresize: 24 AWG
  • Wiring: Solder contacts

    Material
  • Bushing: ABS / TPU
  • Contact plating: Au
  • Contacts: Bronze (CuSn6)
  • Insert: PA 6.6 30 % GF
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black
  • Strain relief: POM

    Environmental
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30°C to +85°C
