RPI - Overview

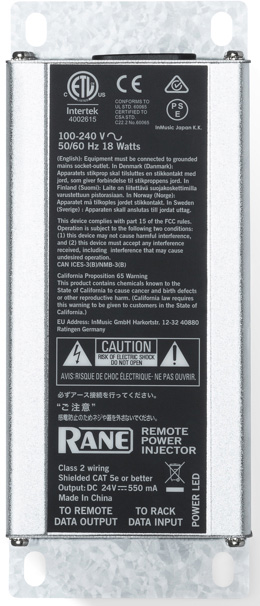

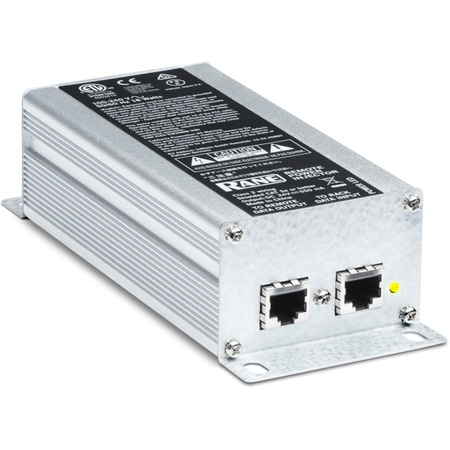

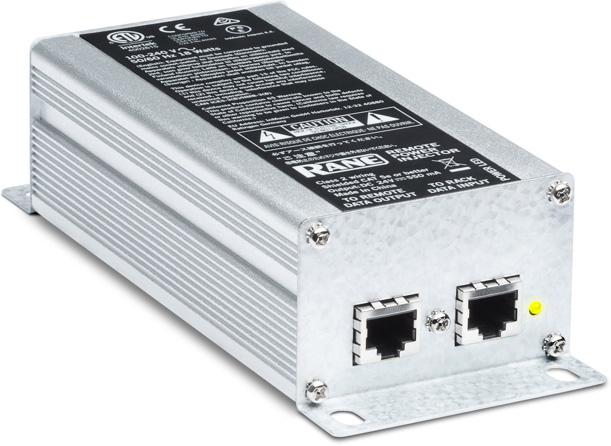

The Rane RPI is a remote powering device for the DR6 Touchscreen Digital Remote and the RAD26 One-Room Remote Audio Device. This power supply is needed when using the DR6 or RAD26 with rackmount HAL units (HAL3s and legacy units). The RPI is connected between the HAL and the peripheral controller using shielded Cat5e cable (or better), and can be located at any point between the HAL units and the peripherals within a 325ft (100m) maximum distance. It requires 100-240 VAC and utilizes an included standard IEC cable. Its form factor is a rugged metal box, and can be mounted to any flat surface.

Please Note: Mounting screws are not included.

  • Features:

    • Provides necessary power for the RANE DR6 and RD26 when used with HAL rackmount units
    • Requires Cat5e (or better) for input and output connection
    • Rugged chassis mounts to any flat surface


  • Specifications:

    • Supported HAL Peripherals
    • DR6 RAD26

      Connectors
    • Data Input: RJ45 to DR port on HAL unit
    • Data Output: RJ45 to HAL peripheral

    • Mounting Hardware: (4) screws (not included)
    • RPI Power Output: 24 VDC @ 500 mA
    • Maximum Distance: 325 ft / 100m between HAL - RPI - HAL peripheral
    • Cable Required: Shielded CAT 5e (or better)
    • Power Required: 100-240 VAC, 50/60 Hz
    • Power Consumption: 18 W maximum
    • Maximum Operating Temperature: 104 °F / 40 °C
    • Dimensions (width x depth x height): 6.90" x 2.79" x 1.78" (175mm x 71mm x 45mm)
    • Weight: 14.1 oz (400g)


  • Item Includes:

    • 1x RPI
    • 1x IEC Power Cable
    • 1x Safety & Warranty Manual


  • GTIN:

    0694318023143
