Belden 1212A 6 Conductor 26 AWG Instrumentation Cable - 500 Foot Roll

Name: Belden 1212A 6 Conductor 26 AWG Instrumentation Cable - 500 Foot Roll
Brand: Belden
SKU: BL-1212A-500
Price: 2790.14 USD
Availability: PreSale

ITEM #: BL-1212A-500 MFG #: 1212A 010500

Belden

List Price:

$3,103.95

Our Price:

$2,790.14

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

1212A 010500 - Overview

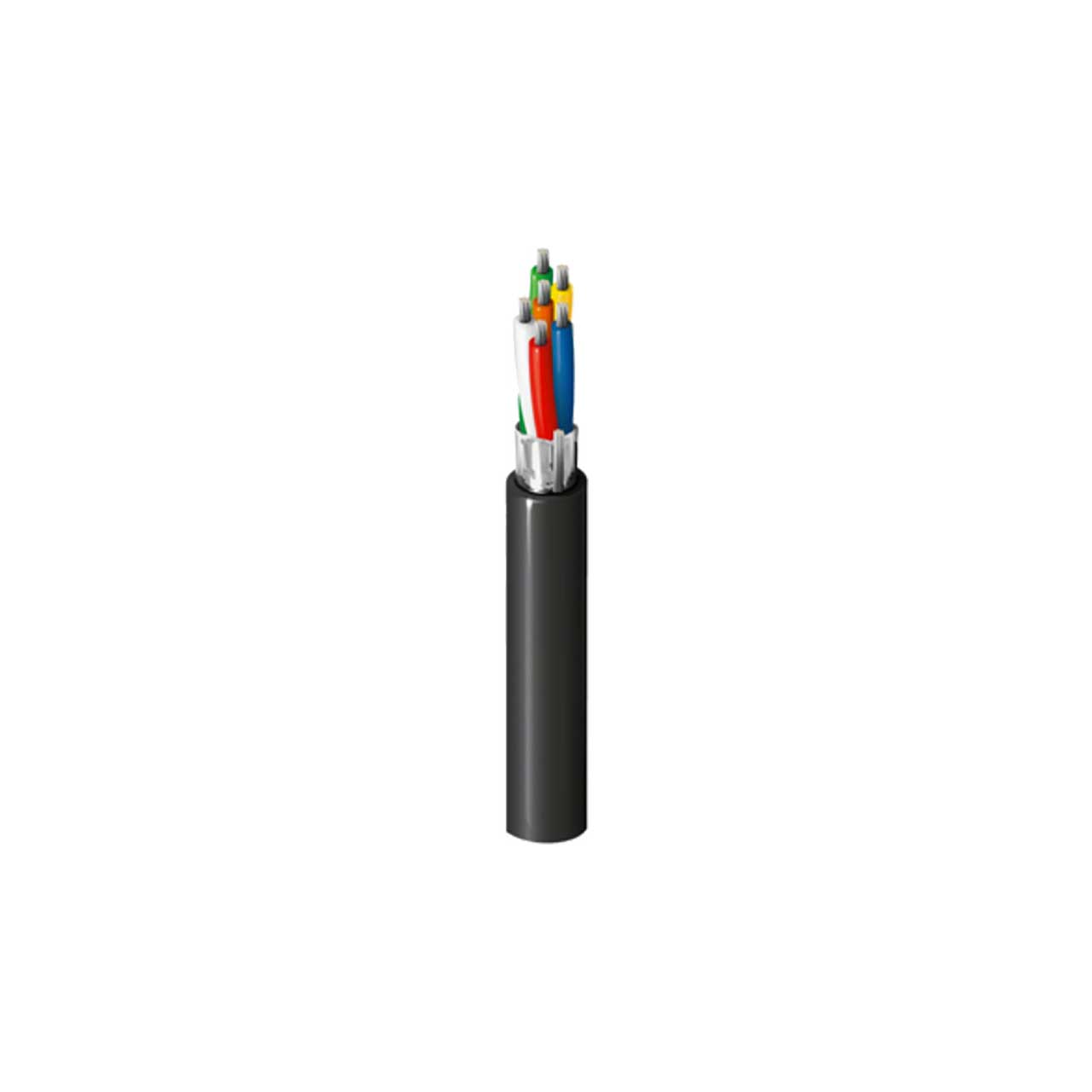

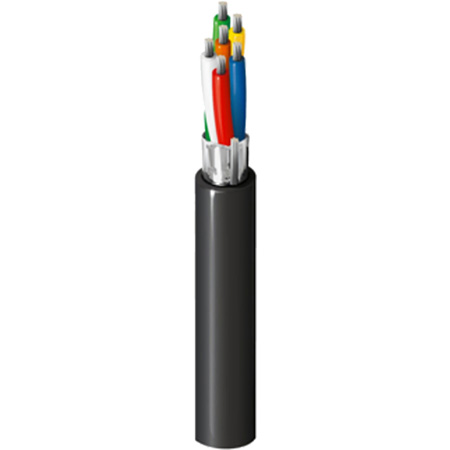

Belden 1212A Computer, Instrument & Medical Interconnect, 26 AWG stranded (7x34) tinned copper conductors, PVC insulation, Duofoil shield (100% coverage), 26 AWG stranded tinned copper drain wire, PVC jacket. Suitable for use with Molex SEMMCONN/AMP SDL connectors; computer communications; medical electronics interconnects; low voltage analog signals (4-20ma, 0-10v, ...); low
voltage digital control (24v, ...); line level audio; panel wiring

Specifications:
- AWG: 26
- Stranding: 7x34
- Material: TC - Tinned Copper
- Conductor Count: 6
- Nominal Conductor DCR: 37.3 Ohm/1000ft
- Max. Recommended Current [A]: 1.2 Amps per Conductor at 25§C
- UL Voltage Rating: 300 V RMS
- Operating Temp Range: -20°C To +80°C
- Bulk Cable Weight: 26 lbs/1000ft
- Max. Pull Tension: 25 lbs
- Min Bend Radius/Minor Axis: 2.25 in
- NEC/(UL) Compliance: CL2X
- UL AWM Style Compliance: 2464 (300 V 80°C)
- CPR Euroclass: Eca
- IEC Flammability: IEC 60332-1-2
- UL voltage rating: 300 V RMS
GTIN:
0612825108474

1212A 010500 - Recommended Accessories

Platinum Tools 90170 10 Gig Termination Kit for CAT6A Cables
PLAT-90170
Our Price: $218.48
Platinum Tools 100004C EZ-RJ45 Crimp Tool for RJ45 Connectors (Carded Tool)
PLAT-EZRJ45-B
Our Price: $58.90
Seco 90520 Gopher Pole 22 Foot Telescoping Wire Installation Tool
GO-POLE
Our Price: $199.00
Triplett CTX200 PocketCAT RJ45 Ethernet - BNC COAX Network Cable Tester
BYB-CTX200
Our Price: $64.99
Cable Joe Clamp-On Roller Glide Cable Install Helper
CBL-JOE
Our Price: $138.95
MKK-2 Markerstraps Sturdy-High Quality Cable Organizers with 20 Inch Strap and Built In Rigid Carry Handle
MKK-2
Our Price: $15.45
Black 8 Inch Softcinch VELCRO® Brand Hook & Loop Polytie Cable Tie 25 Pack
3108-X-25
Our Price: $19.10
Brady M21-750-499 Aggressive Adhesive Multi-Purpose Nylon Labels w/ Ribbon for M21 Printers Black on White 3/4inx16 Ft
M21-750-499
Our Price: $31.11
Brady M210-LAB 210 Series Portable Label Printer - Multi-Line
BDY-M210-LAB
Our Price: $109.99
Rip-Tie 9-Inch Caribiner Cable Carrier 2 Pack Black
RIP-9C2BK
Our Price: $11.93
JackReel-3 High Capacity Low Cost Cable Reel
JACKREEL-3
Our Price: $59.95
Pro Tapes 001CC350MFLGRN Hot Green CAUTION CABLE Tape 3 Inch x 60 Yard
GT-CABLE
Our Price: $50.24
Checkers FL1X1.5-B FastLane 1 Channel Drop Over Cable Protector - 3 Foot - Black
CHK-FL1X15-B
Our Price: $64.47
HellermannTyton 115-00049 Resealable/Reuseable CableTies 10in- 100 pack
REL50LOC2-100
Our Price: $28.72
Rip Tie Unitag Cable Identification Labels 100 Pk Yellow (5/8x1.5In)
U-15-100-Y
Our Price: $33.05

1212A 010500 - Reviews

1212A 010500 - Attachments

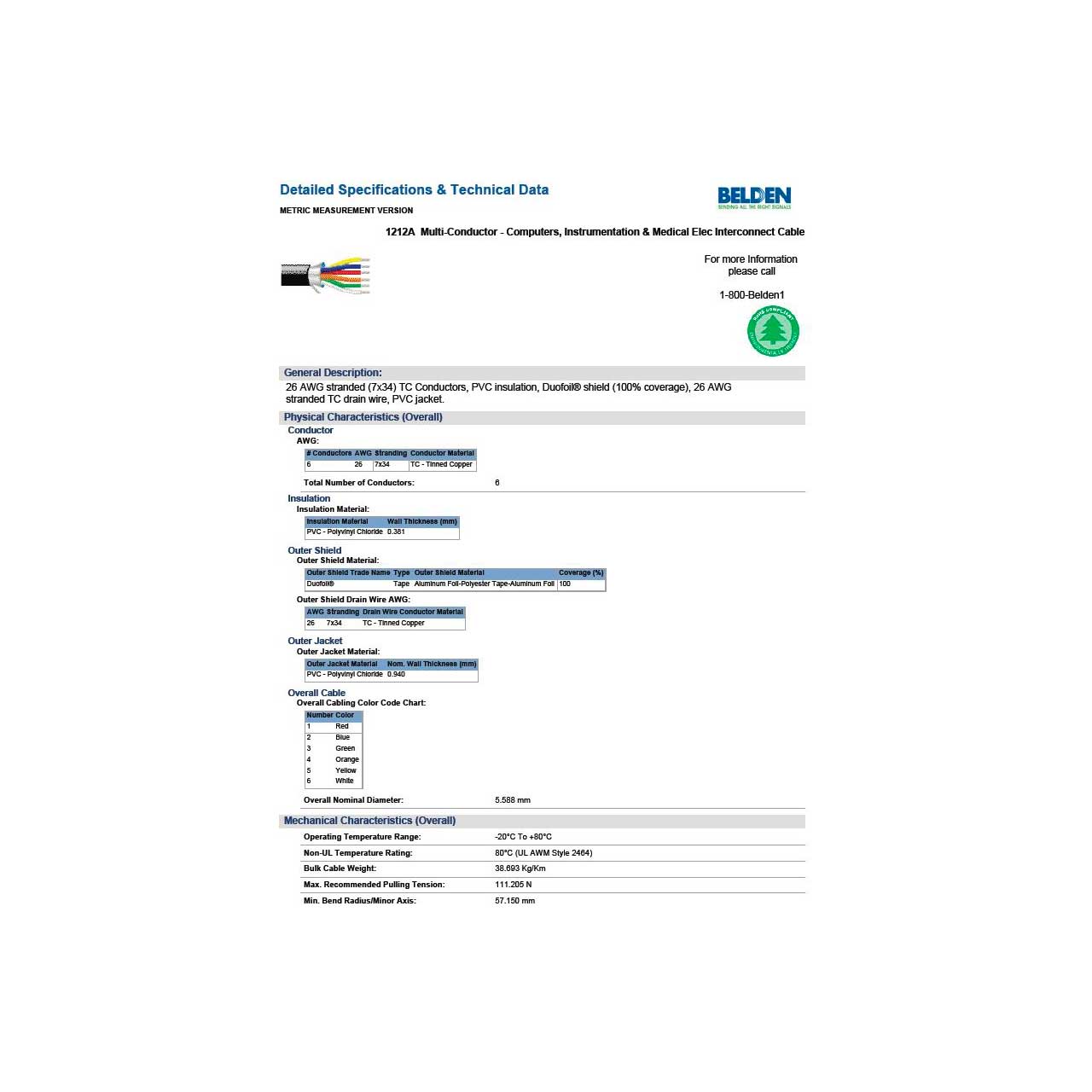

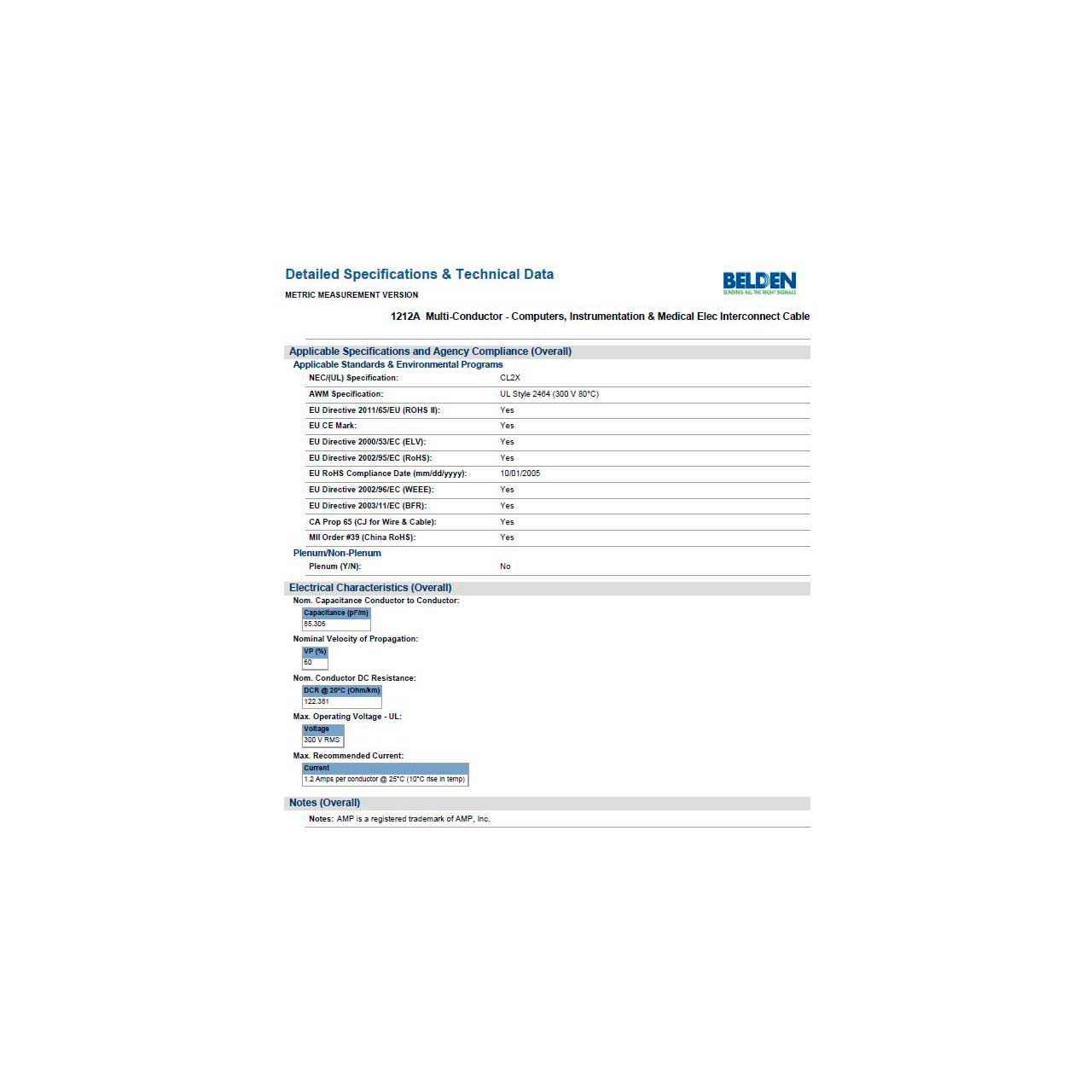

See Belden BL-1212A-500 Specifications (PDF)
